Let's see your tubes!

HAL · « **Reply #380 on:** 27 Feb 2013, 12:55 am »

Gary had a preamp like that at RMAF2012!

adrianc · « **Reply #381 on:** 4 Mar 2013, 05:27 pm »

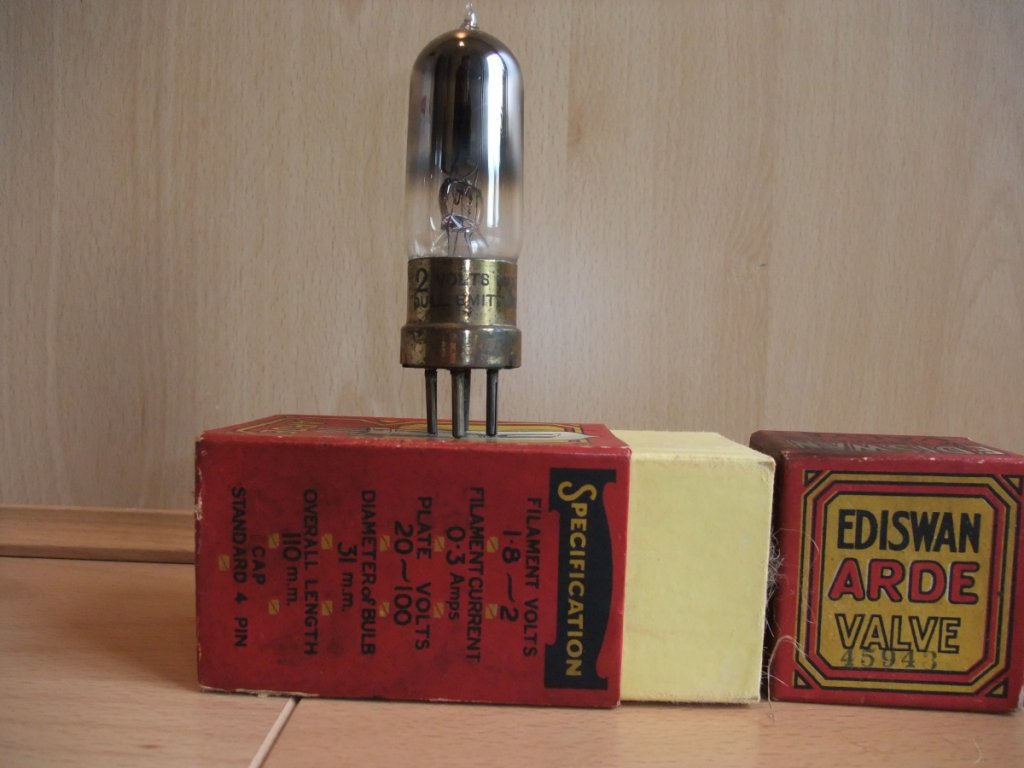

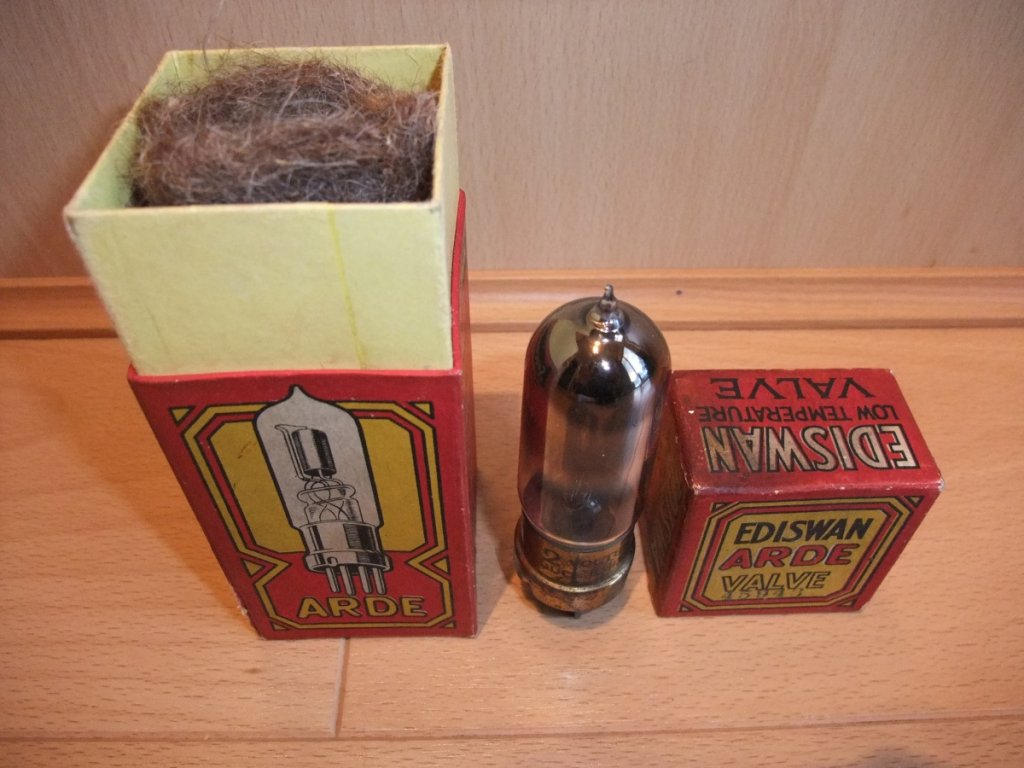

Bought it just for fun,no idea what it is

adrianc · « **Reply #382 on:** 5 Mar 2013, 01:28 pm »

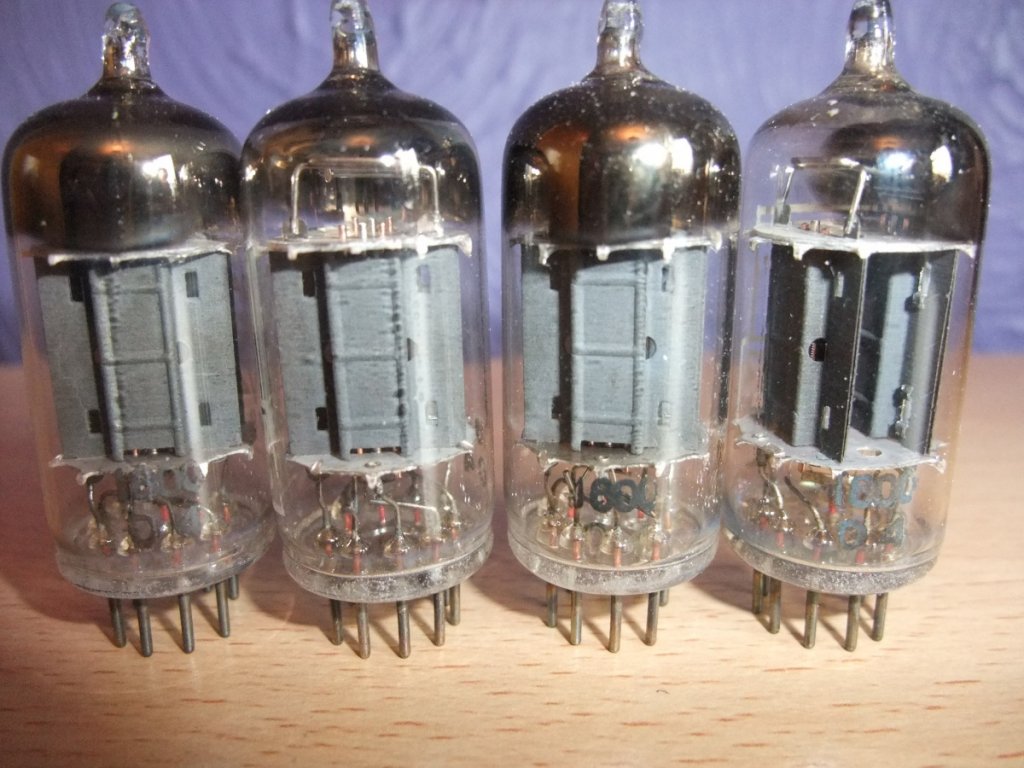

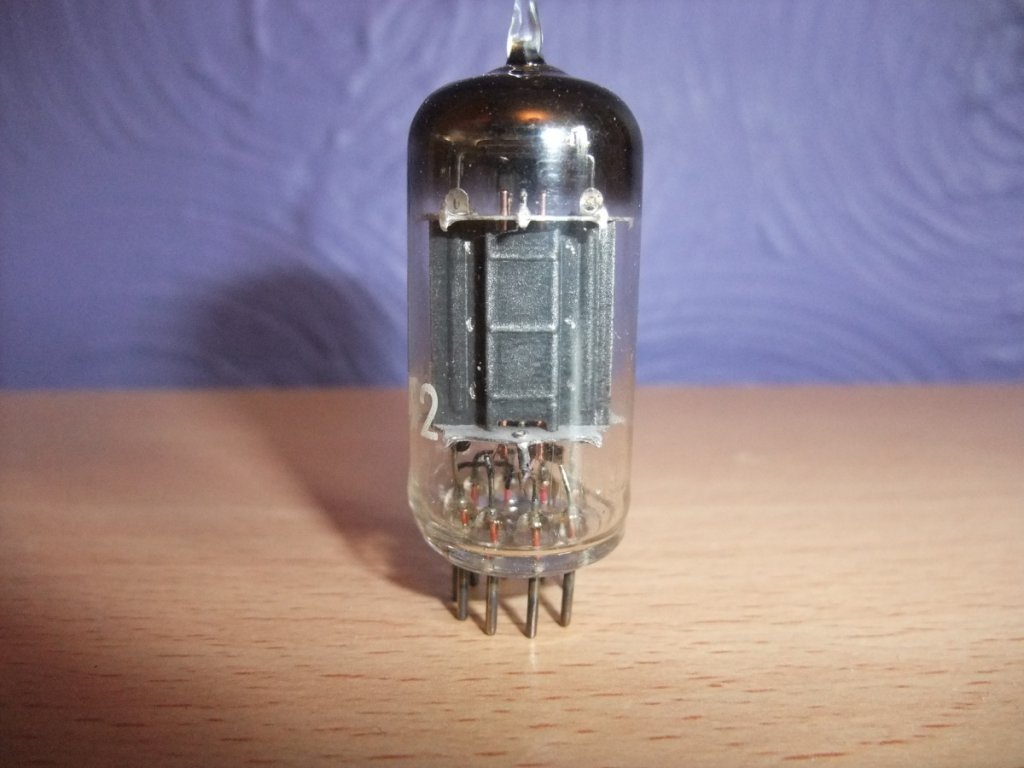

Mullard ECC83
First version
Double support square getter,black plate ,wrinkled glass,bottom mica have vertical & horizon flat metal pieces,Date code 1600 D3

adrianc · « **Reply #383 on:** 5 Mar 2013, 01:32 pm »

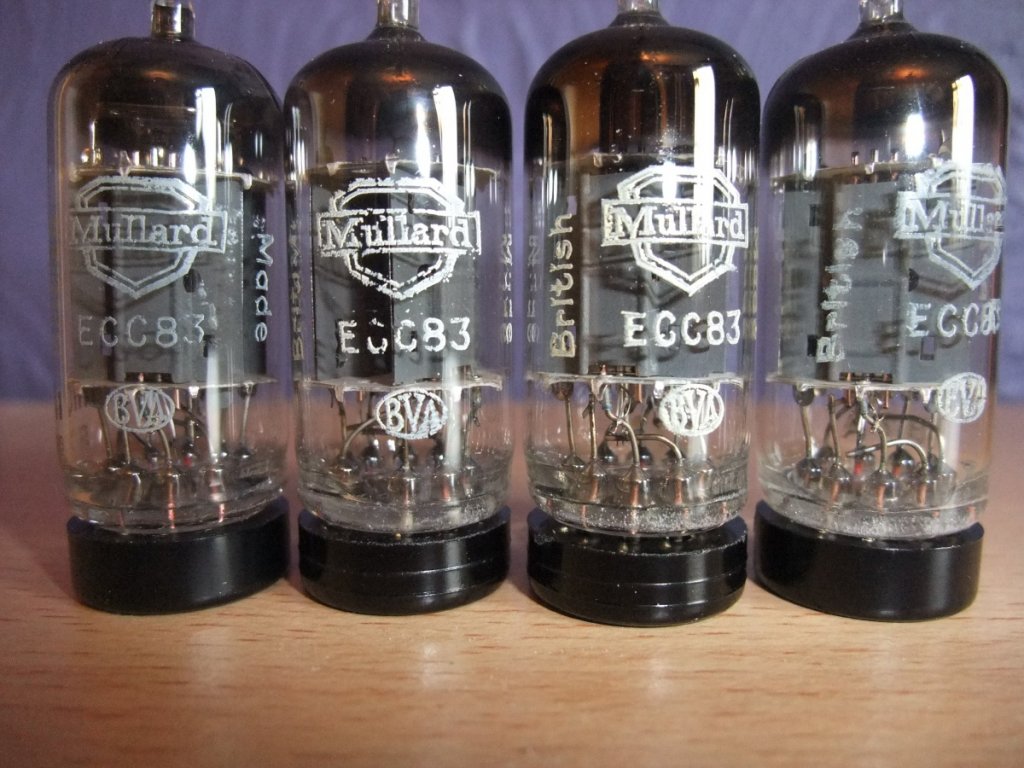

Mullard ECC83
Second version
Double support square getter,grey plate,wrinkled glass,no metal pieces on bottom mica,Date code 1600 D4

adrianc · « **Reply #384 on:** 5 Mar 2013, 01:38 pm »

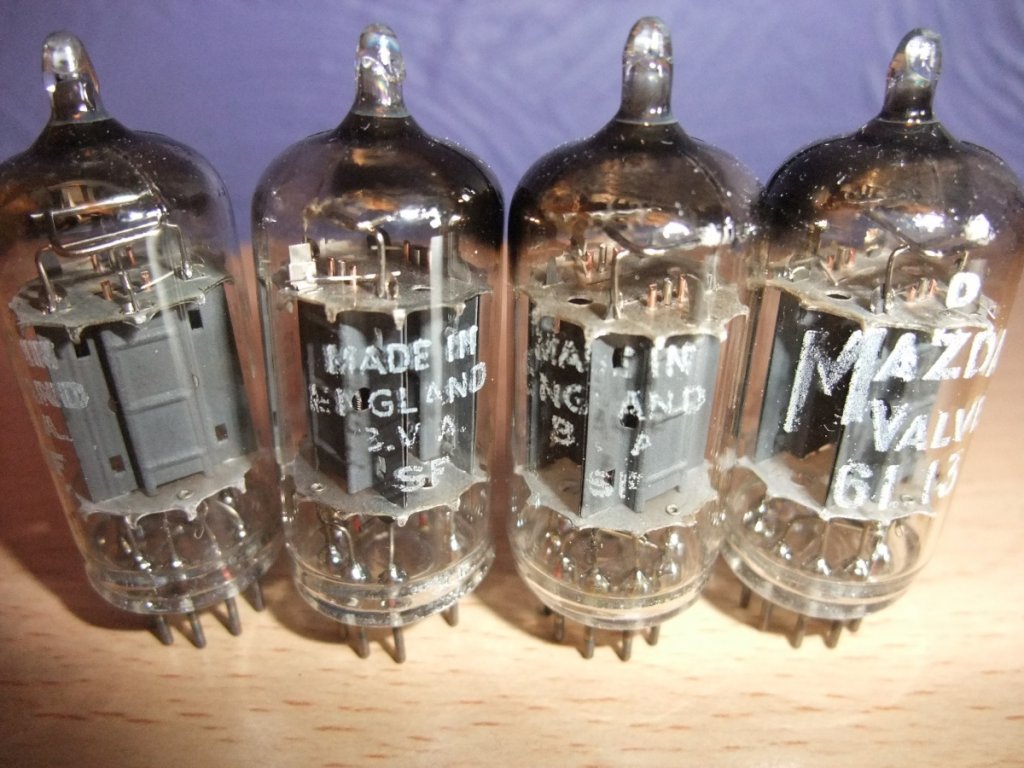

Mullard ECC83
Third version
Double support square getter,grey plate,clear glass,no metal pieces on bottom plate,Date code MC1 B5A to MC1 B5G

adrianc · « **Reply #385 on:** 5 Mar 2013, 01:46 pm »

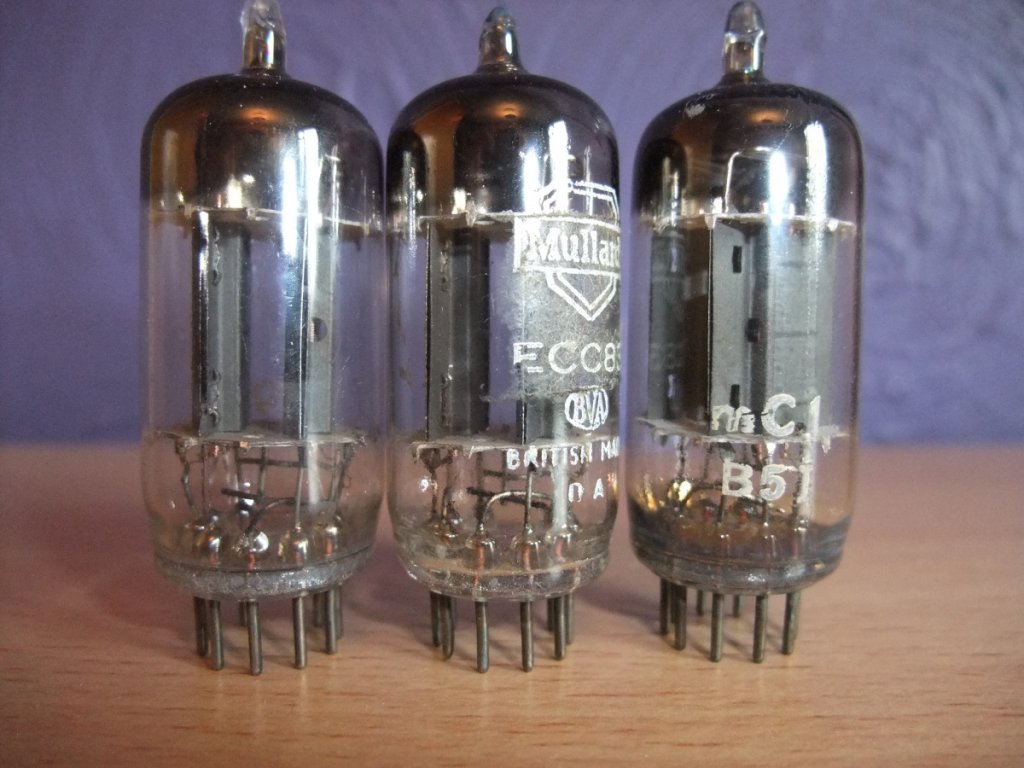

Mullard ECC83
Fourth version
Double support square getter,wrinkled glass,bottom mica have vertical metal piece,Date code MC1 B5H to MC1 B6L

adrianc · « **Reply #386 on:** 5 Mar 2013, 01:49 pm »

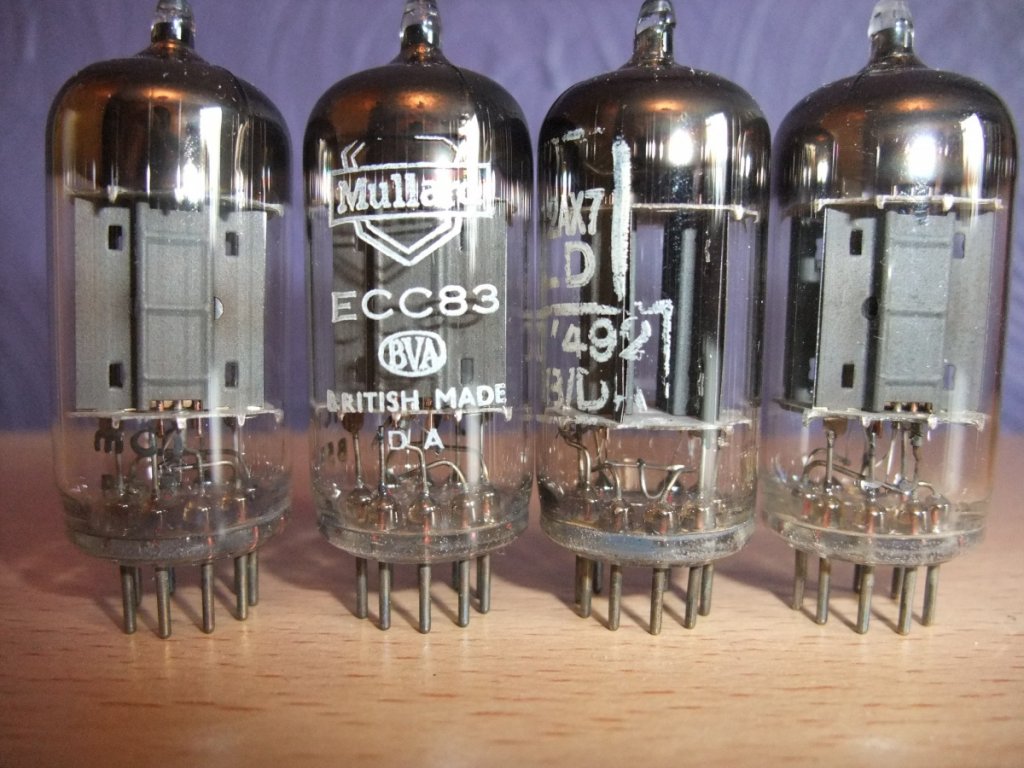

Mullard ECC83
Fifth version
Double support square getter,clear glass,bottom mica have vertical piece ,Date code MC1 B7A

adrianc · « **Reply #387 on:** 5 Mar 2013, 01:58 pm »

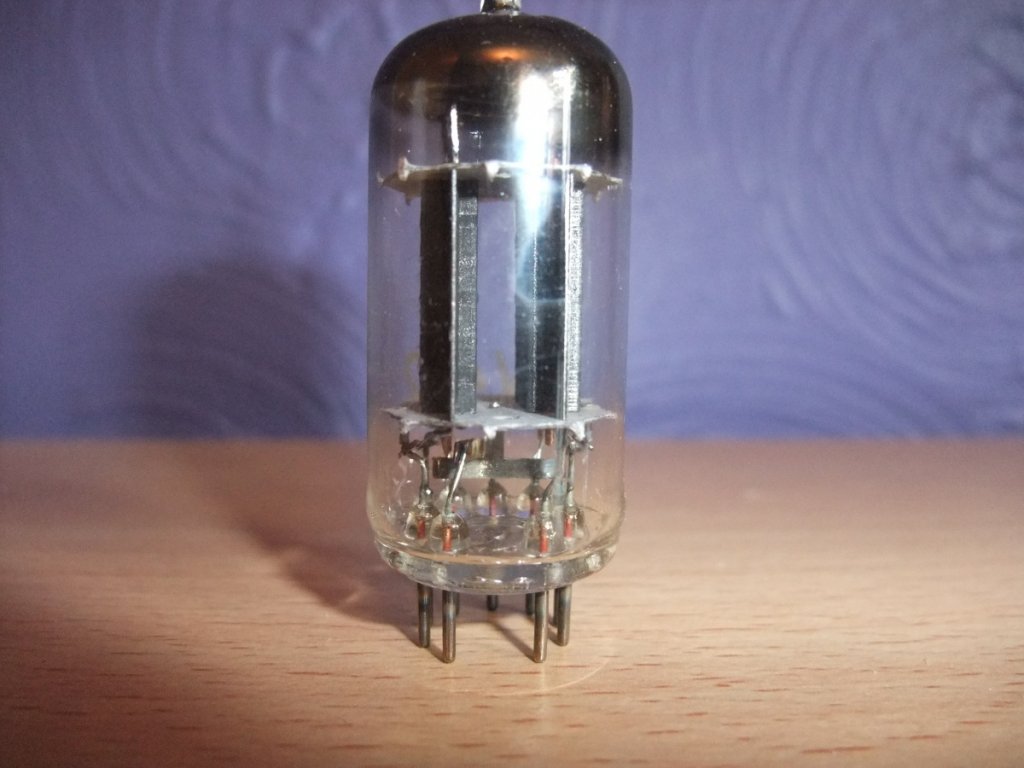

Mullard Ecc83
These were the last double support square getter right after the MC1 version
Clear glass,bottom mica have vertical metal piece,Date code change to F91 B7I
The big different between the Fifth version is the top mica have two flat metal pieces.

adrianc · « **Reply #388 on:** 11 Mar 2013, 05:13 pm »

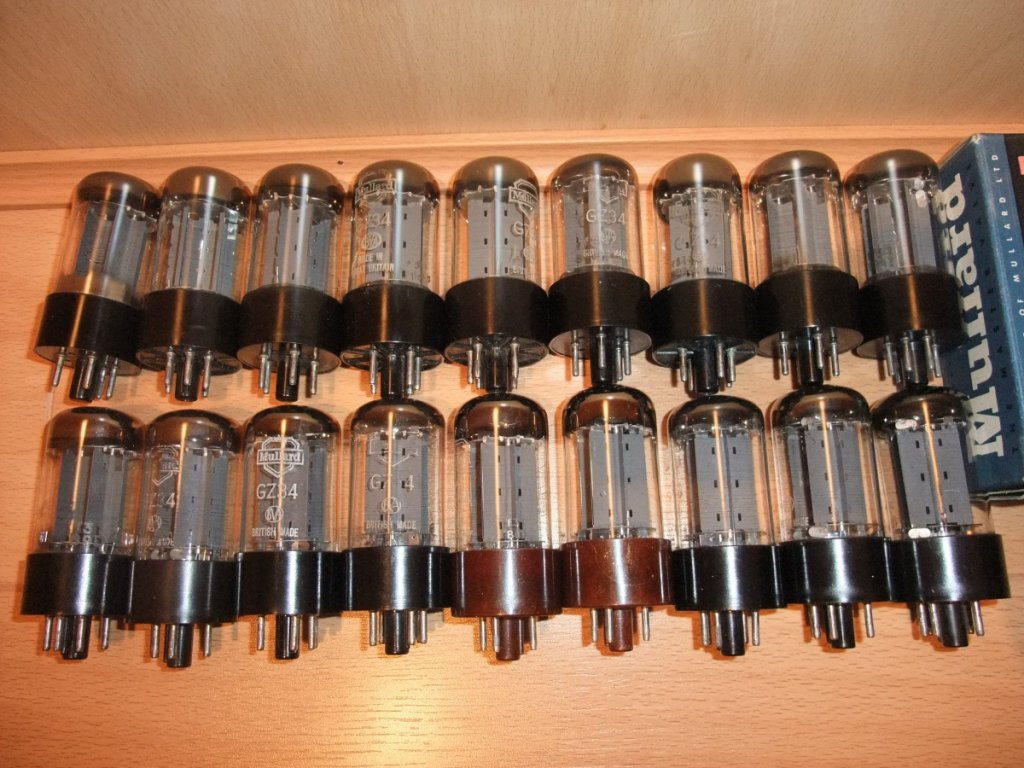

Mullard GZ34 Big base

adrianc · « **Reply #389 on:** 11 Mar 2013, 05:23 pm »

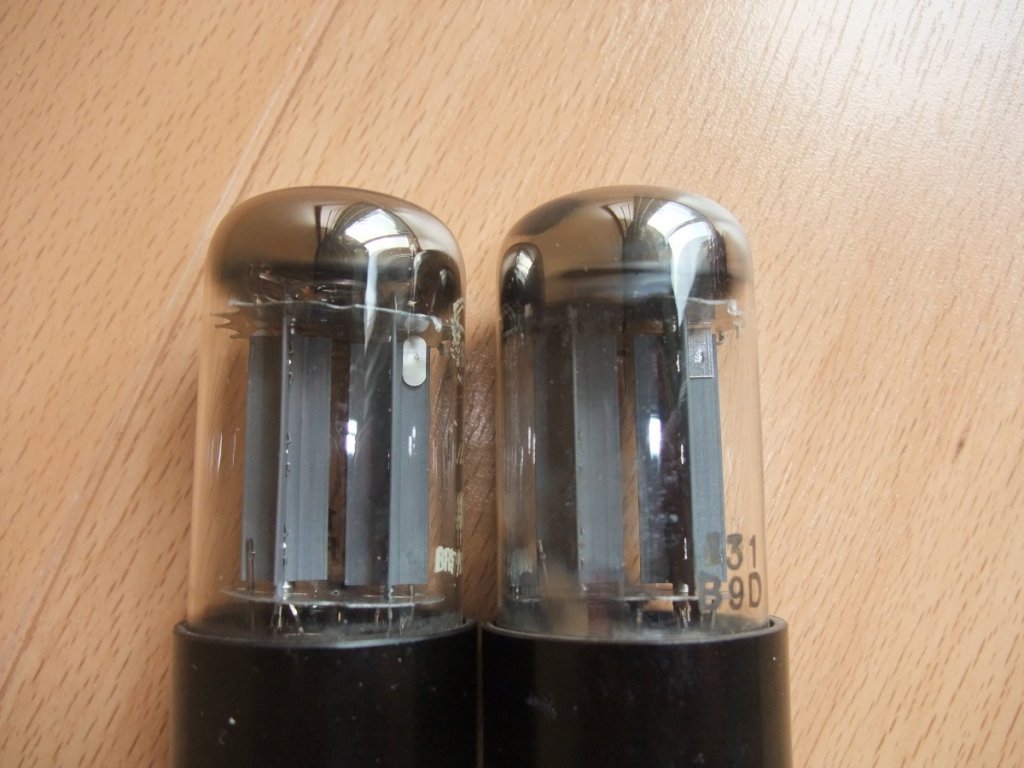

There are two different version of Big Black Base.

Round edges and shiny rectangular pieces under top mica,it's hard to imagine a tiny piece can make the sounds so different.

dminches · « **Reply #390 on:** 11 Mar 2013, 06:11 pm »

Adrianc, show us some metal base pictures.

adrianc · « **Reply #391 on:** 11 Mar 2013, 08:07 pm »

Quote from: dminches on 11 Mar 2013, 06:11 pm

Adrianc, show us some metal base pictures.

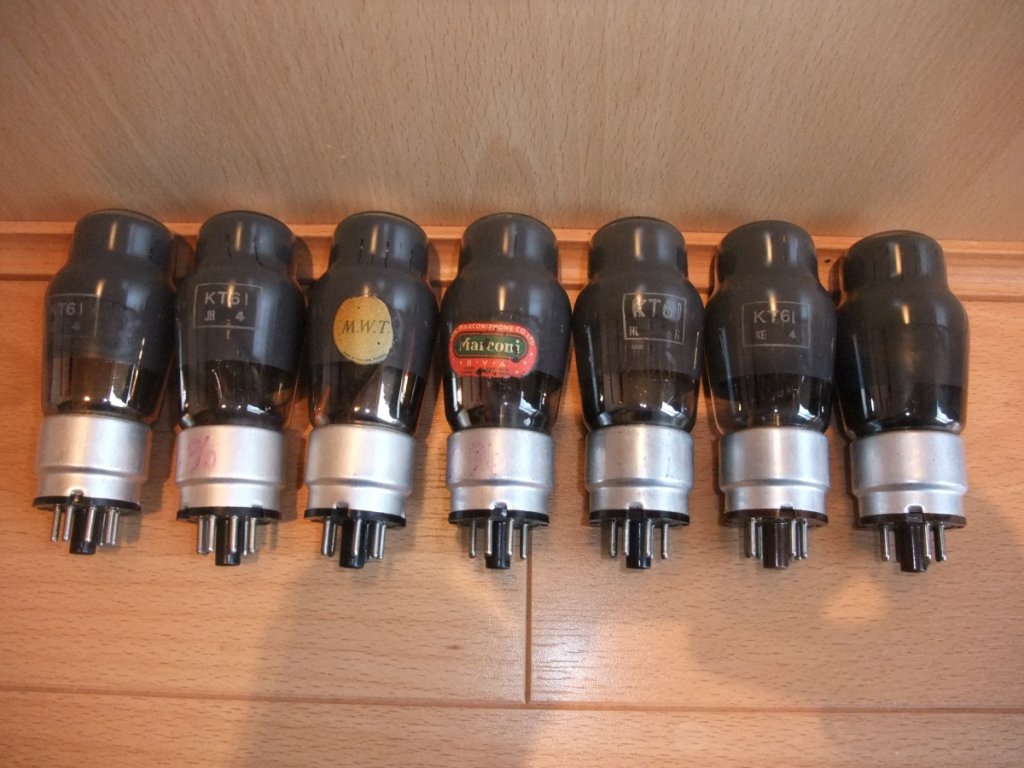

Hi,David ,how are you,Which metal pictures you want,I already posted GZ34 metal base on #213,may be you like these KT61 .

dminches · « **Reply #392 on:** 11 Mar 2013, 08:19 pm »

I just went back and saw them. Wow.

These KT61s are very nice.

Your collection is beyond words.

adrianc · « **Reply #393 on:** 11 Mar 2013, 08:27 pm »

Quote from: dminches on 11 Mar 2013, 08:19 pm

I just went back and saw them. Wow.

These KT61s are very nice.

Your collection is beyond words.

Thanks ,David,will show you some Metal Base EL34 next time,take care.
Adrian

gcos · « **Reply #394 on:** 13 Mar 2013, 02:05 am »

A pic of my Decware SE 84Cex that I got from fellow AC member morganc. I have placed it in a hand rubbed teak enclosure which has a 2" greenheart slab as the base.

Guy 13 · « **Reply #395 on:** 13 Mar 2013, 05:42 am »

Hi gcos and all Audio Circle members.

May I ask why the wood base of your Decware SE84 is so thick/deep?
I am also the happy owner of a Decware SE84C+

I am now using Electro Harmonix tubes,
but later on I would like to up-grade with Tung Sol tubes ? ? ?

Guy 13

gcos · « **Reply #396 on:** 13 Mar 2013, 11:00 am »

Hi Guy,
I thought it a neater alternative to putting the amp on a slab. So I incorporated it into the enclosure. All for stability and elimination of unwanted resonances. The larger enclosure also shows off the wood grains more thus making it more visually appealing.

Guy 13 · « **Reply #397 on:** 13 Mar 2013, 11:07 am »

Hi gcos and all Audio Circle members.
Thanks for the explanation, makes sense...

Guy 13

daves · « **Reply #398 on:** 14 Mar 2013, 01:12 am »

I like tubes..

Guy 13 · « **Reply #399 on:** 14 Mar 2013, 08:32 am »

Hi daves and all Audio Circle members.
May I (we) have a short description of (All) your tube equipment.
(Brands and models)
How about your speakers, I did not see any ?
Your (Working) collection of tube audio is very impressive.

Guy 13
