jtwrace · « **Reply #780 on:** 1 Feb 2011, 01:33 am »

Quote from: dBe on 31 Jan 2011, 11:26 pm

How cool is that!

Dave

I think it's very cool.

Randall Kepley · « **Reply #781 on:** 1 Feb 2011, 03:32 am »

Man Jason you've been a busy little bee! Wireing looks great also. Hope everything works as it should. Thanks for the business!

R.K.

jtwrace · « **Reply #782 on:** 3 Feb 2011, 02:58 am »

Battery Box is working great!

Also, the 6H30 is pretty sweet. It's finally coming alive..

TrungT · « **Reply #783 on:** 3 Feb 2011, 03:26 am »

^^^^^
JT
6H30DR

TrungT · « **Reply #784 on:** 3 Feb 2011, 03:33 am »

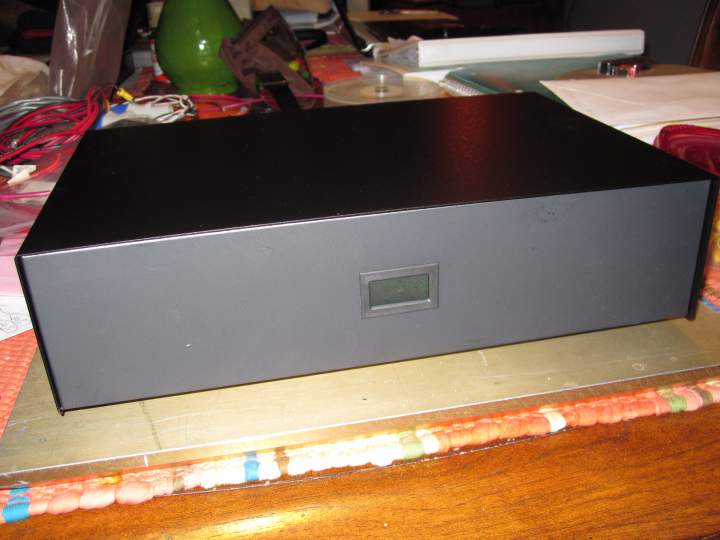

Bad weather here in North TX, stuck indoor couple days, made the battery pwr dist.
Not thing fancy like JT battery box.

TrungT · « **Reply #785 on:** 3 Feb 2011, 03:34 am »

jtwrace · « **Reply #786 on:** 3 Feb 2011, 03:40 am »

Inside picture?

What are you going to power?

TrungT · « **Reply #787 on:** 3 Feb 2011, 04:28 am »

Inside Picture, Top secret

Powered by 12V 100AH battery

HAL · « **Reply #788 on:** 4 Feb 2011, 03:01 am »

WOOHOO! The black knobs arrived today! Now if I could only find a 1/8" Allen wrench!

TrungT · « **Reply #789 on:** 4 Feb 2011, 03:09 am »

^^^^
I have an extra one here

HAL · « **Reply #790 on:** 4 Feb 2011, 12:50 pm »

Thanks Trung, but you are a bit to far away and iced in!

I did find one in my hex driver kit, but it is to short. Heading to the hardware store soon.

sl_1800 · « **Reply #791 on:** 4 Feb 2011, 02:07 pm »

Trung, very nice work. Is that a digital voltage meter on the front? Where did you get it?

jtsnead · « **Reply #792 on:** 4 Feb 2011, 02:57 pm »

Questions, all you guys with the battery boxes with more than one output.
Is it ok to power more than one component off of one battery, and do you
just daisy chain the outputs or run seperate cables from the battery terminals?

JT on the wood box where is the AC connector? Do you just run the AC cord
from the charger out of the bottom of the box? Looka nice I really want one.

BTW my buffer has finally burned in it has opened up a lot more bass is tighter
The Platinum caps must take a while

TrungT · « **Reply #793 on:** 4 Feb 2011, 02:59 pm »

Very good self-power (2 wires), good meter. Don't buy "junk" from Fleabay

http://www.mouser.com/ProductDetail/Murata-Power-Solutions/DMS-20LCD-0-DCM-C/?qs=b13bmSh8y6x1ZZgi49a3RQ%3d%3d

http://search.digikey.com/scripts/DkSearch/dksus.dll?site=us&lang=en&mpart=DMS-20LCD-1-DCM-C

Danny Richie · « **Reply #794 on:** 4 Feb 2011, 03:08 pm »

Quote

The Platinum caps must take a while

To really settle those caps need a good 500 hours.

And you can parallel other gear on the same battery.

jtwrace · « **Reply #795 on:** 4 Feb 2011, 03:49 pm »

Quote from: jtsnead on 4 Feb 2011, 02:57 pm

JT on the wood box where is the AC connector?

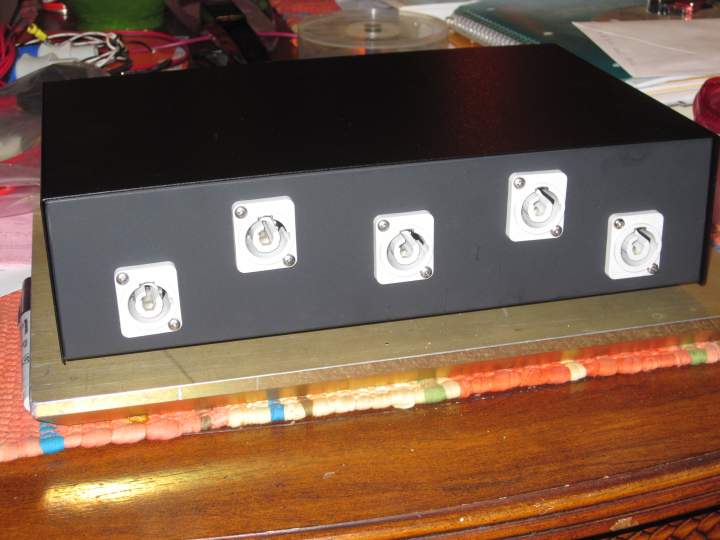

The blue PowerCon is AC power in to the charger and the gray PowerCon is power out to the Buffer.

Quote

Do you just run the AC cord
from the charger out of the bottom of the box? Looks nice I really want one.

See above. I can take more pics if you need but I think this will explain it all.

HAL · « **Reply #796 on:** 4 Feb 2011, 03:59 pm »

Since I know Trung wanted pics of the buffer...

Twins from different mothers:

The purpleheart goes with my Dodd battery PA.

The Buffer in Padauk is for a friend to try out.

TrungT · « **Reply #797 on:** 4 Feb 2011, 04:04 pm »

^^^^
Very nice.

jtsnead · « **Reply #798 on:** 4 Feb 2011, 04:07 pm »

Ok JT,
you used a powercon for AC. got it

jtwrace · « **Reply #799 on:** 4 Feb 2011, 04:09 pm »

Quote from: jtsnead on 4 Feb 2011, 04:07 pm

Ok JT,
you used a powercon for AC. got it

and DC.
