Let's See Your Transformers!

FullRangeMan · « **Reply #40 on:** 29 Nov 2014, 03:58 am »

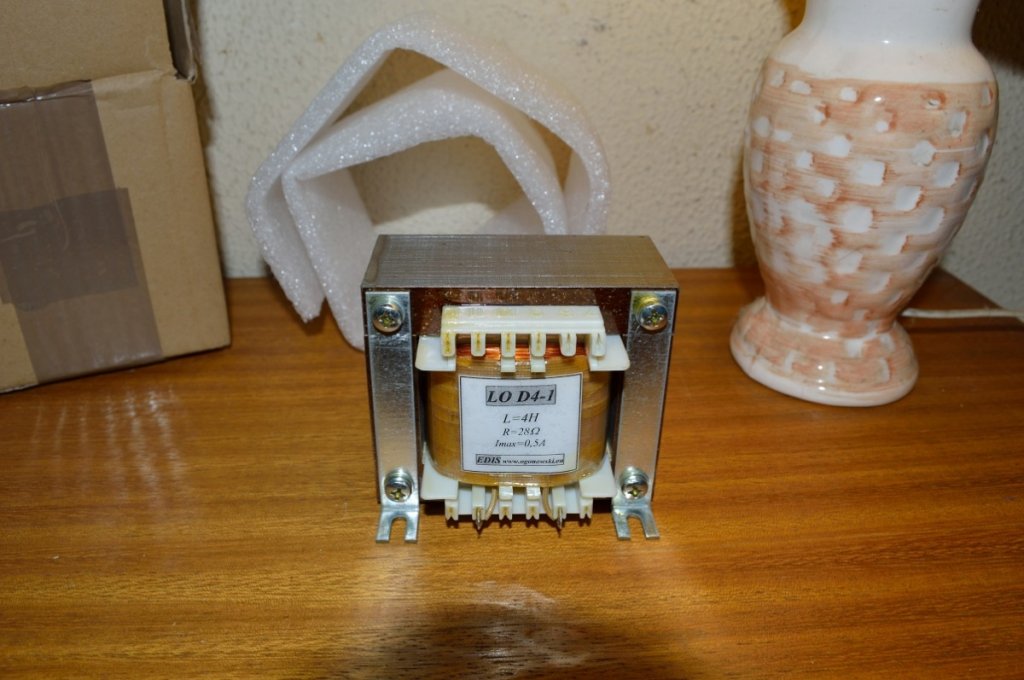

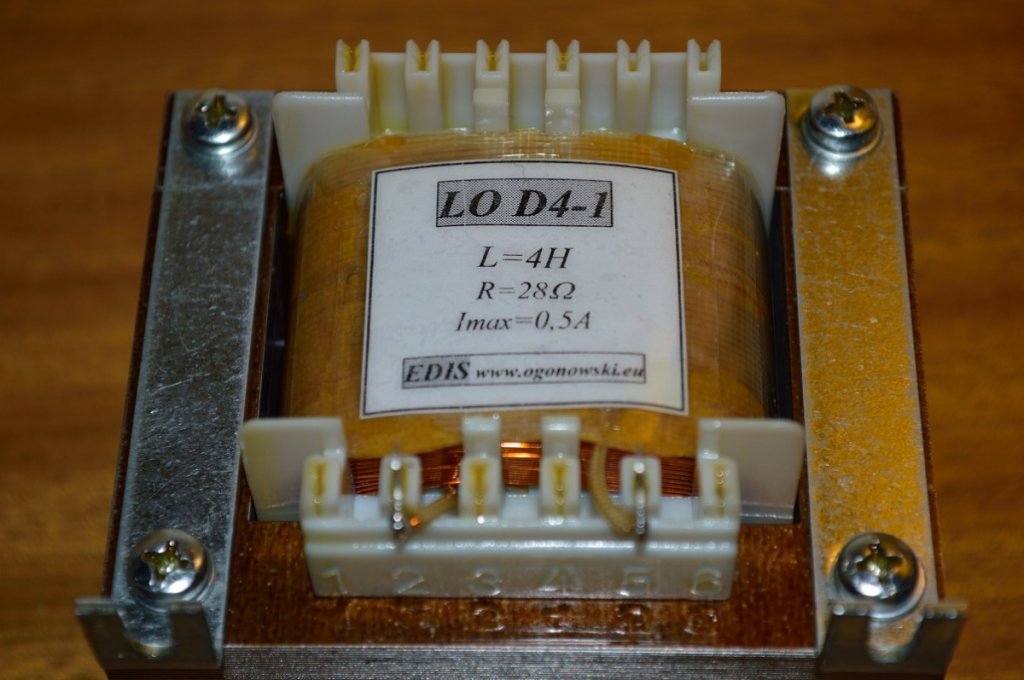

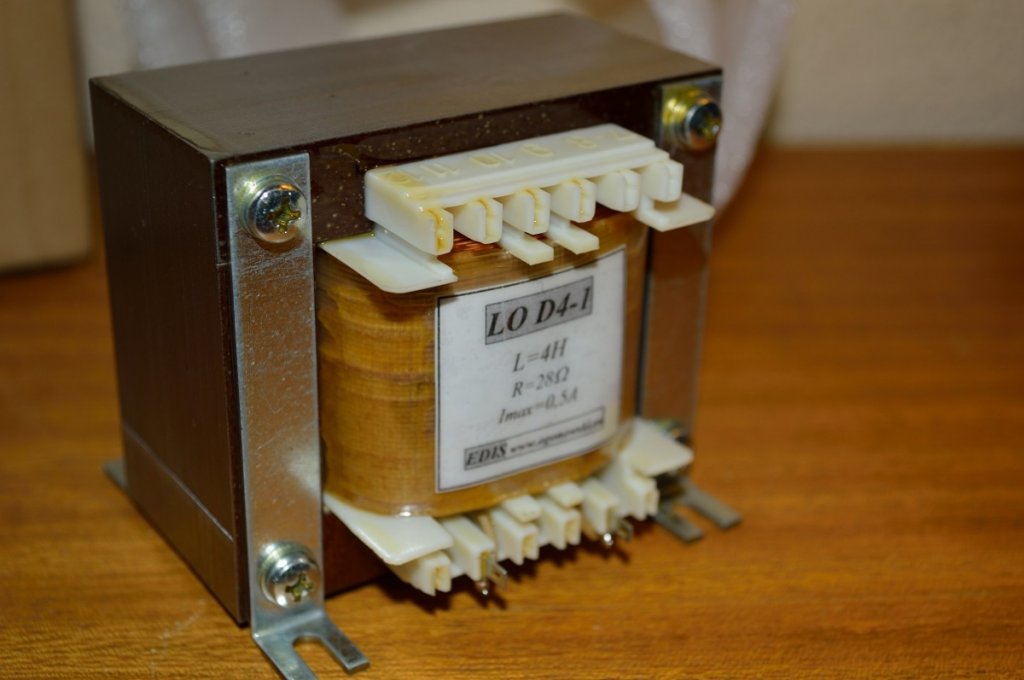

Choke Ogonowski for 6C33 SE:

FullRangeMan · « **Reply #41 on:** 29 Nov 2014, 04:23 am »

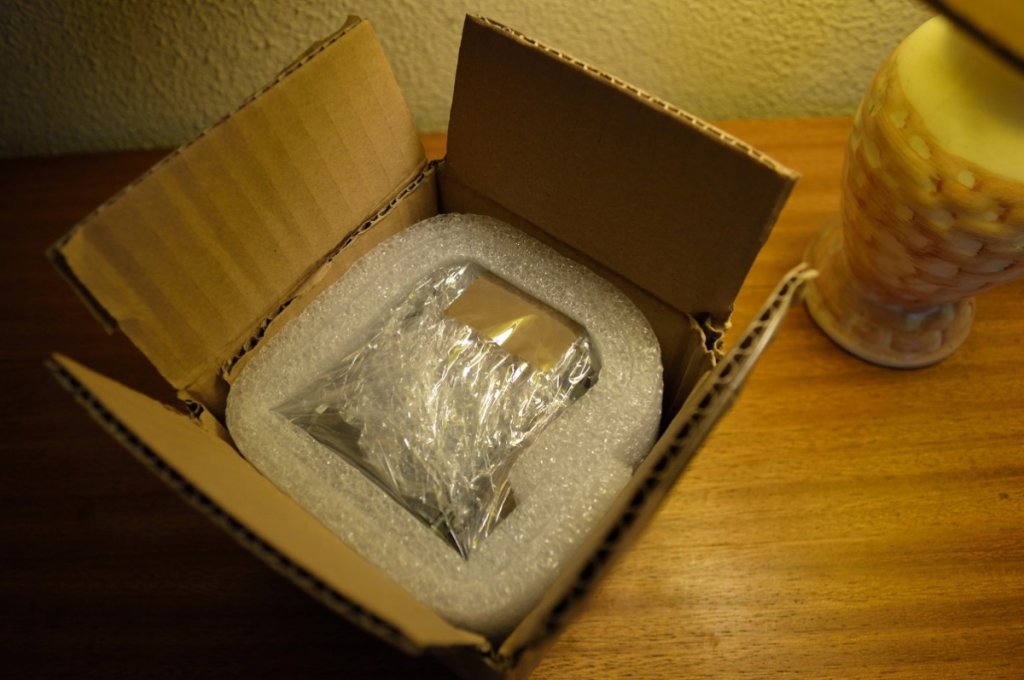

Net weight 1,9kg:

FullRangeMan · « **Reply #42 on:** 29 Nov 2014, 04:27 am »

Incredible value at just $30 each.

FullRangeMan · « **Reply #43 on:** 29 Nov 2014, 04:28 am »

FullRangeMan · « **Reply #44 on:** 29 Nov 2014, 04:30 am »

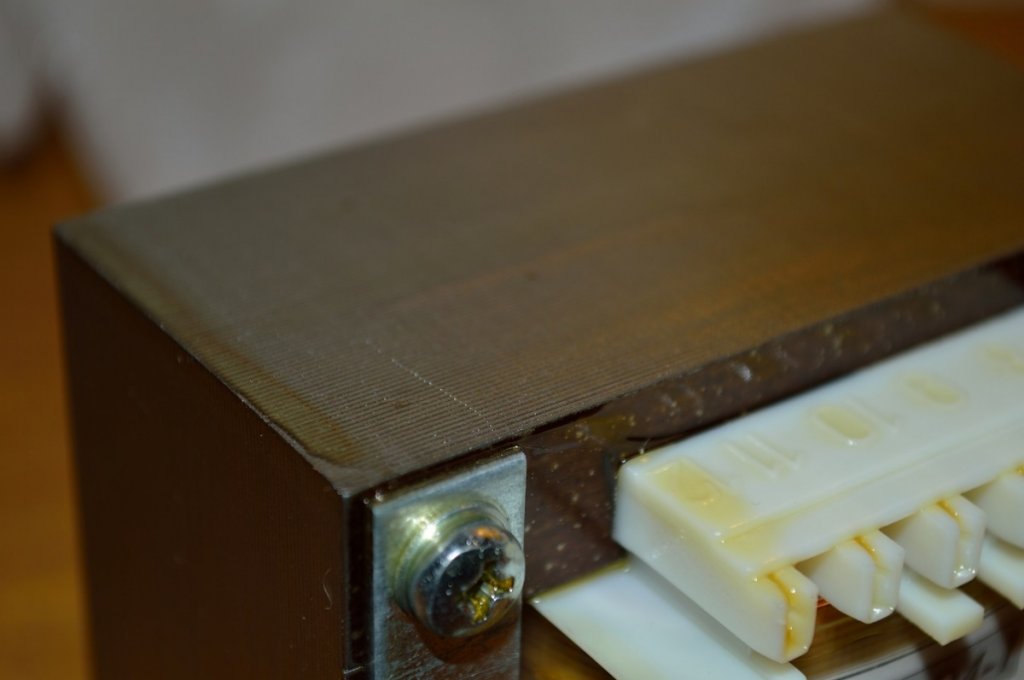

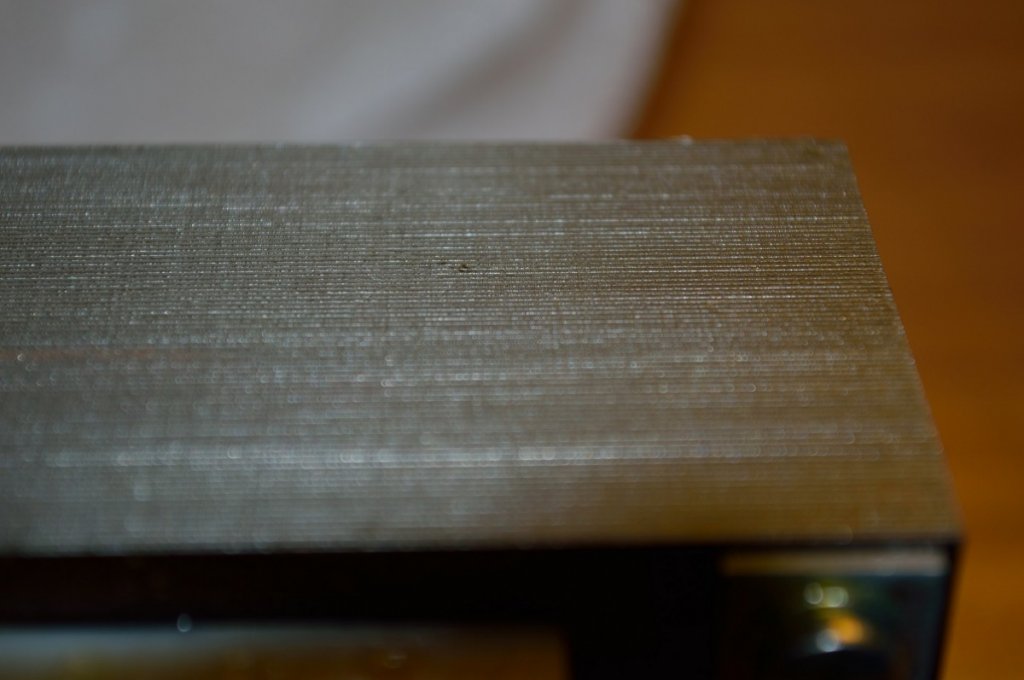

Core EI 84/42.

FullRangeMan · « **Reply #45 on:** 29 Nov 2014, 04:34 am »

I must thanks to Mr.Ogonowski.

Jehuty · « **Reply #46 on:** 29 Nov 2014, 12:08 pm »

My beloved Falls Audio SET Parallel 45 with a pair of vintage Lancroft SE22 double C core output transformers:

Hope you guys like the picture

Guy 13 · « **Reply #47 on:** 30 Nov 2014, 05:09 am »

Quote from: Jehuty on 29 Nov 2014, 12:08 pm

My beloved Falls Audio SET Parallel 45 with a pair of vintage Lancroft SE22 double C core output transformers:

Hope you guys like the picture

Hi Jehuty.
Nice picture of a nice amplifier.
May I ask where is the power supply or power supply transformer ???

Guy 13 from planet Vietnam.

Jehuty · « **Reply #48 on:** 30 Nov 2014, 07:33 am »

Quote from: Guy 13 on 30 Nov 2014, 05:09 am

Hi Jehuty.
Nice picture of a nice amplifier.
May I ask where is the power supply or power supply transformer ???

Guy 13 from planet Vietnam.

Greetings Guy 13,

Thanks for the compliment. It has a separate power supply to keep the noise floor low, see below pics:

Apologies for the blurry pic. I can literally run 4 volts and 5 volts rectifier tubes together, or I can simply run one rectifier either the 4 volts or 5 volts one. My favourite is GEC U52 brown base

Yes, the U52 sounds organic!

Cheers,
Jehuty from planet down under

Guy 13 · « **Reply #49 on:** 30 Nov 2014, 09:37 am »

Quote from: Jehuty on 30 Nov 2014, 07:33 am

Greetings Guy 13,

Thanks for the compliment. It has a separate power supply to keep the noise floor low, see below pics:

Apologies for the blurry pic. I can literally run 4 volts and 5 volts rectifier tubes together, or I can simply run one rectifier either the 4 volts or 5 volts one. My favourite is GEC U52 brown base

Yes, the U52 sounds organic!

Cheers,
Jehuty from planet down under

Hi Jehuty.
Unless I am completely wrong,
the big transformer is for the high plate voltage,
the small one (No cover) look like a choke
and the other one (Low profile)
is probably for the filaments/heaters 4-5 Volts.
If all my guesses are right, what do I win?
All those amplifier behind, are those spares/back-up?
My God, you have enough stuff to open an audio store.

Really nice stuff, did you make all those yourself?
What all those amplifiers drive, make and model of speakers, please?
Do you want to share any details on the other amplifiers.

Guy 13 on the wrong side of planet earth.
You are on the right side, lucky you.

My wife love those (Rubbery) plants holding the rectifier tube,
easy to grow on planet Vietnam.

FullRangeMan · « **Reply #50 on:** 30 Nov 2014, 11:13 am »

Jehuty,
Congratulations, its a very nice amp.
A 45 already is a rare amp, let alone a parallel 45.
I endorse the Guy questions, there is alot of power supply on these photos.
Regards

Jehuty · « **Reply #51 on:** 1 Dec 2014, 11:45 am »

G'day Guy 13, FullRangeMan and all AudioCircle members,

Quote from: Guy 13 on 30 Nov 2014, 09:37 am

Hi Jehuty.
Unless I am completely wrong,
the big transformer is for the high plate voltage,
the small one (No cover) look like a choke
and the other one (Low profile)
is probably for the filaments/heaters 4-5 Volts.
If all my guesses are right, what do I win?
All those amplifier behind, are those spares/back-up?
My God, you have enough stuff to open an audio store.
Really nice stuff, did you make all those yourself?
What all those amplifiers drive, make and model of speakers, please?
Do you want to share any details on the other amplifiers.

Guy 13 on the wrong side of planet earth.
You are on the right side, lucky you.

My wife love those (Rubbery) plants holding the rectifier tube,
easy to grow on planet Vietnam.

Quote from: FullRangeMan on 30 Nov 2014, 11:13 am

Jehuty,
Congratulations, its a very nice amp.
A 45 already is a rare amp, let alone a parallel 45.
I endorse the Guy questions, there is alot of power supply on these photos.
Regards

Guy 13 got it right (well, almost) with regards to the transformers. The small transformer without cover is actually the filament transformer for the 4V and 5V tube rectifiers made by a bloke here in Sydney, Australia. All quality materials without recycled copper/iron. The medium transformer with a cover is actually the first choke, the second choke is not visible as it's located under the top plate. There's also another filament transformer located inside the chassis, it's specifically used for the driver tubes. And the biggest one is the plate transformers for both driver and output tubes. Guy 13, if you had guessed right, I guess I would buy you a drink or two while listening to your system when I go to Vietnam?

The five amplifiers behind the SET parallel 45 are a legion of Leak Stereo 20, a British classic, running a GZ34 rectifier, three 12AX7 driver and phase splitter tubes, and four EL84 tubes (my favourite pentode tube EVER!). And the last amps are RCA Theatre monoblocks. I have a few different speakers but mostly I like single drivers the most. I have run the amps with my most favourite single driver speaker, a pair of Goodmans Axiom 80 in BLH box. Non single driver speakers that I like and have run the amps with were Tannoy Monitor Golds 15 inch, Tannoy HPD 385, Tannoy Red 15 inch, Goodmans Axiom 300, Goodmans Triaxiom and other vintage Goodmans drivers. For augmenting the bass, I have a pair of Altec 515 alnico, they sound great with the RCA Theatre monoblocks. Yes, as you can see I am a big fan of Goodmans, Altecs and Tannoys. There is something magical about alnico magnets and vintage drivers, they just suit my ears better, YMMV

Oh, one of the few modern speakers I like is Omega Super 6 Alnico XRS. Very musical, fast, tonally right and great imaging too, very fun speaker to listen to. Pity they are not around anymore

Yeah, I like the plants too, they are very unique and beautiful in their own way. Your wife has a very good taste, Guy 13

Living in Australia has its disadvantage too, for example, shipping usually cost a bomb as we are quite isolated from the rest of the world. I can't justify buying heavy audio gear from the US (the biggest hifi market in the world) as the cost of shipping, custom and duty can be really high. So yeah, enjoy the sun in Vietnam Guy 13, I hear the food is good there and the girls are hot too!

Some more pics for all of you to enjoy:

Happy listening peeps

Kind regards from the sunny summer down under,
J

FullRangeMan · « **Reply #52 on:** 1 Dec 2014, 12:21 pm »

Jehuty,
I could be your neighbor.

Jehuty · « **Reply #53 on:** 4 Dec 2014, 10:25 am »

Quote from: FullRangeMan on 1 Dec 2014, 12:21 pm

Jehuty,
I could be your neighbor.

Not a problem at all mate. We can have a beer together!

Mags · « **Reply #54 on:** 9 Dec 2014, 02:14 pm »

Here are the output transformers I use on my 200WPC SET amps. This picture is before they were strapped and potted - that's an ECC83 tube for size reference. The OPTs weigh 62lbs each. The double C core is amorphous Metglas, interwinding insulation is virgin teflon. Monolith Magnetics made these up for me. They sound excellent, just don't drop them on your toe!

Guy 13 · « **Reply #55 on:** 9 Dec 2014, 02:33 pm »

Quote from: Mags on 9 Dec 2014, 02:14 pm

Here are the output transformers I use on my 200WPC SET amps. This picture is before they were strapped and potted - that's an ECC83 tube for size reference. The OPTs weigh 62lbs each. The double C core is amorphous Metglas, interwinding insulation is virgin teflon. Monolith Magnetics made these up for me. They sound excellent, just don't drop them on your toe!

Hi Mags.
Holly smoke, that's an impressive transformer,
you must need an heavy duty chassis to support an
heavy weight like that?

Guy 13

FullRangeMan · « **Reply #56 on:** 9 Dec 2014, 02:35 pm »

Wow, that alot of transformer.
Congratulations Mags this is a nice amp.

Mags · « **Reply #57 on:** 9 Dec 2014, 02:49 pm »

Quote from: Guy 13 on 9 Dec 2014, 02:33 pm

Hi Mags.
Holly smoke, that's an impressive transformer,
you must need an heavy duty chassis to support an
heavy weight like that?

Guy 13

The chassis are all-aluminum, from Landfall Systems:

https://www.landfallsystems.com/

They'll make up just about any size chassis you need. Great guys.

FullRangeMan · « **Reply #58 on:** 9 Dec 2014, 02:55 pm »

They use the thicker alu in the tube audio bussiness(3mm).
But I giveup order from them, too expensive, the site price calc inform around $300 just for two top plates.
Its so expensive I suspect may be some thing wrong.

How much they charged for the chassis to you??

Mags · « **Reply #59 on:** 9 Dec 2014, 03:11 pm »

Quote from: FullRangeMan on 9 Dec 2014, 02:55 pm

They use the thicker alu in the tube audio bussiness(3mm).
But I giveup order from them, too expensive, the site price calc inform around $300 just for two top plates.
Its so expensive I suspect may be some thing wrong.

How much they charged for the chassis to you??

$372 for the two complete chassis, 22"x18"x4.25", with brush finish.
