[Niteshade]

NS-16CS


Wiring

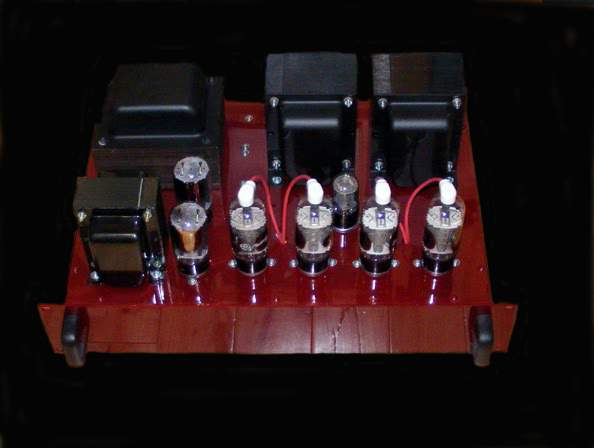

This is a **huge** amplifier! Everything is double size since it's a commercial duty (24/7 run time) based amp. The difference between commercial amps and regular amps is how the tubes are driven and size of the transformers. All CS amplifiers have parallel output tubes and parallel tube rectifiers, if tube rectification is chosen. The idea is to eliminate stress from every component.

More information is available here:
http://niteshade-audio.blogspot.com/

[FullRangeMan]

Hi,

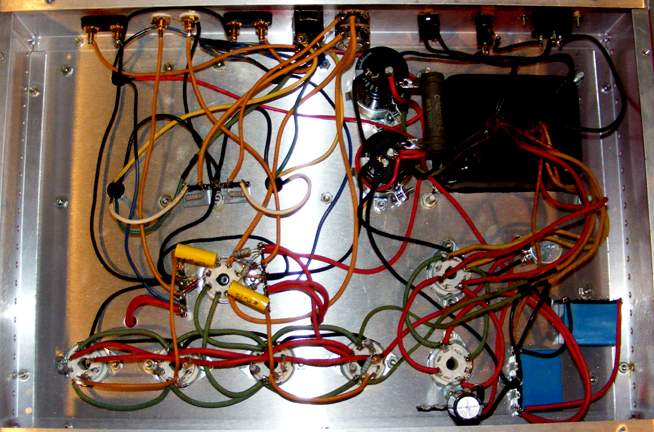

Perusin the past topics find this impressive underside photo:
= Very few components!! (Less parts=more sound quality).
= No wires bent at right(L or V) angles.
= Good gaude/size wiring.
Nice amp at underside too.
