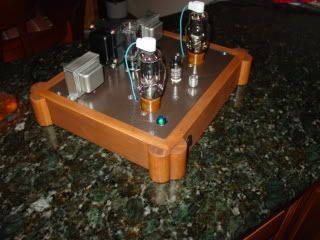

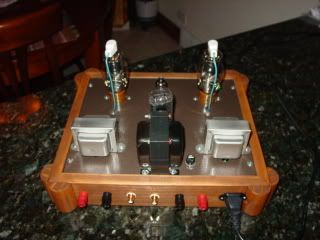

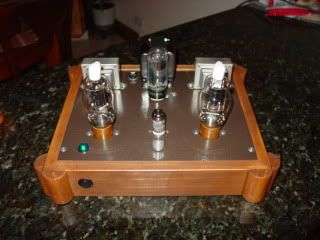

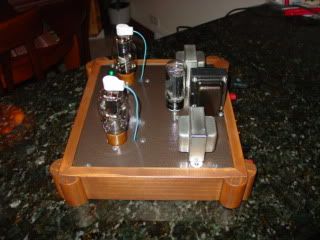

Beautiful, Custom Made 807 Stereo, Power Tube Amplifier all handwired, point to point circuitry on a garolite board. This amplifier layout has been carefully redesigned using a combination of Vintage and the highest quality components, such as choke-input power supply, Heyboer output transformers, IEC plug, gold-plated RCA and speaker Jacks. The amplifier has built in volume control and does not need a preamp. You can connect the audio out from an iPod, CD, DVD, MP3, VCR, TV, XM or SIRUS to the input connection. Amplifier was designed utilizing four tubes, one 6N1P (Input) can be substituted with 6922, 6FQ7, 6EV7, 6GU7, 6CG7 or 6DJ8, two 807 (Output) and one 5U4 (Rectifier) can be substituted with 5Y3. This Amplifier features normal input, volume control, power switch, power indicator, speaker terminals (8 Ohms) and circuit protection. You will be amazed at the bass sound of such a small amplifier.
I am an audio technician and specialize in building and restoring vintage equipment with over 20 years of experience. I take pride and spend many hours in restoring vintage equipment for others to enjoy. I offer a 90 day warranty including parts and labor. After 90 day period, labor will be free of charge.
Amplifier will be fully insured at no extra charge. Amp will be bubble wrapped, double boxed and guarded with packing peanuts. Will ship with FedEx or UPS. Usually ships the first business day after payment is made. I will email buyer tracking infomation.
Specifications:-Input connector - Two Gold RCA input jacks (Right & Left).
-Built-in volume control (does not need a preamp).
-you can connect the audio out from an iPod, CD, DVD, MP3, VCR, TV, XM or SIRUS to the input connection.
-Tubes 1-6N1P(Pre-amp), 2-807(Output) and 1-5U4(Rectifier).
-Normal input(R,L), Volume control, Power switch, IEC plug, Power indicator, Speaker terminals(4 & 8 Ohms) and Circuit protection.
-Circuit Type: Single-Ended Class A
-Circuit is based on RH 807 SE
-Power Output: 6 watts
-Dimensions: W 13 1/2" x D 11 1/2" x H 2 1/2"
