Custom Speaker Projects

0 Members and 1 Guest are viewing this topic. Read 9693 times.

Jason T

  • Industry Participant
  • Posts: 368
  • Enjoying the music
    • custom cables
Custom Speaker Projects
« on: 18 Jul 2009, 12:54 am »

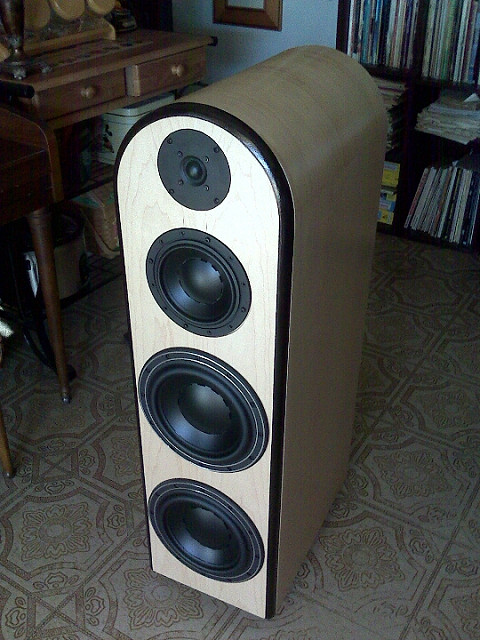

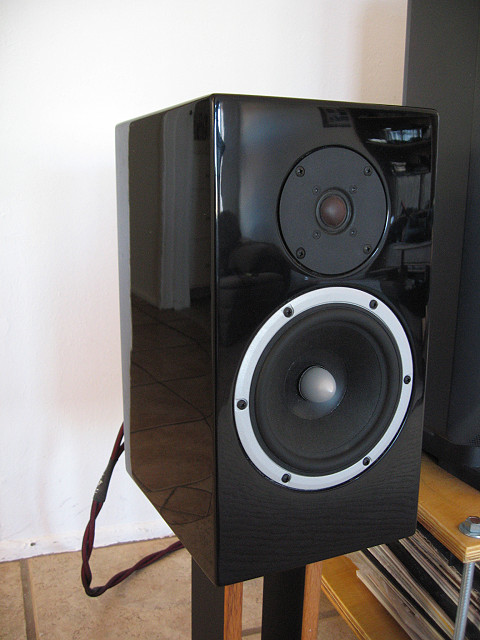

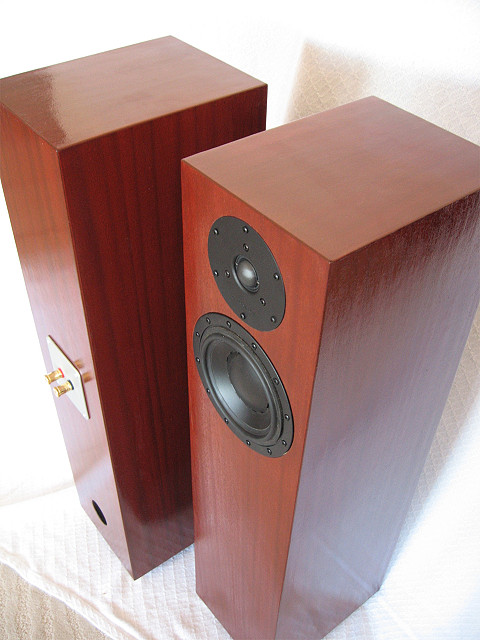

I'm going to keep this thread on track and upload more Images of some speakers I used with the TWO.

I built these for fun.














« Last Edit: 20 Jul 2009, 05:45 pm by Jason T »
Logged

1000a

Re: Custom Speaker Projects
« Reply #1 on: 19 Jul 2009, 05:20 pm »
WOW :drool:

Beautiful- which ones sounded the best to your ears?
Logged

panomaniac

Re: Custom Speaker Projects
« Reply #2 on: 20 Jul 2009, 02:52 am »
The man does nice work, you have to admit!  :thumb:
Logged

Jason T

  • Industry Participant
  • Posts: 368
  • Enjoying the music
    • custom cables
Re: Custom Speaker Projects
« Reply #3 on: 20 Jul 2009, 05:47 pm »
Quote from: 1000a on 19 Jul 2009, 05:20 pm
WOW :drool:

Beautiful- which ones sounded the best to your ears?

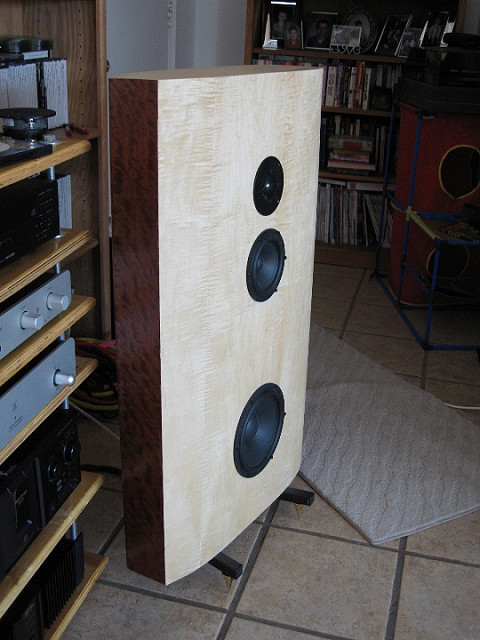

I would have to say that my favorite is the "bobsled" (the wide shallow 3ways)

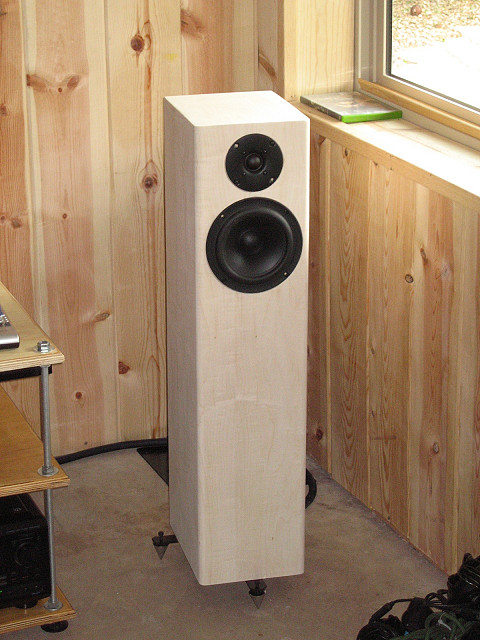

second would be the Curly maple 7" 2-ways.
Logged

1000a

Re: Custom Speaker Projects
« Reply #4 on: 20 Jul 2009, 06:50 pm »
are you selling these speakers?
Logged

panomaniac

Re: Custom Speaker Projects
« Reply #5 on: 20 Jul 2009, 07:45 pm »
So Jason, what was the idea behind the "Bobsled"?  You just wanted to try a wide baffle?  Or something else?
Logged

Jason T

  • Industry Participant
  • Posts: 368
  • Enjoying the music
    • custom cables
Re: Custom Speaker Projects
« Reply #6 on: 20 Jul 2009, 08:15 pm »
Quote from: panomaniac on 20 Jul 2009, 07:45 pm
So Jason, what was the idea behind the "Bobsled"?  You just wanted to try a wide baffle?  Or something else?
yeah kind of a Sonus faber knockoff I guess although they really dont look to much like them.
they image surprisingly well.
Logged

rhing

Re: Custom Speaker Projects
« Reply #7 on: 20 Jul 2009, 11:36 pm »

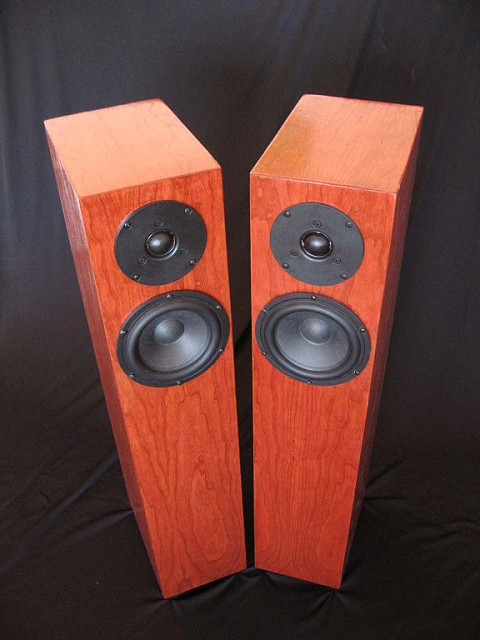

Is that second pair from the top using Dynaudio drivers? I would really be interested in how those sound with the Two.
Logged

Jason T

  • Industry Participant
  • Posts: 368
  • Enjoying the music
    • custom cables
Re: Custom Speaker Projects
« Reply #8 on: 21 Jul 2009, 12:36 am »
Quote from: rhing on 20 Jul 2009, 11:36 pm
Is that second pair from the top using Dynaudio drivers? I would really be interested in how those sound with the Two.

that pair used the Hi-Vi D6.8 and Hi-Vi Q1R tweeter and a simple series network @3200hz.
I later changed the tweeter to an Usher and the woofer to a Dynavox and found them to be MUCH more listenable :)

Logged

JoshK

Re: Custom Speaker Projects
« Reply #9 on: 21 Jul 2009, 12:57 am »
Quote from: Jason T on 20 Jul 2009, 05:47 pm
Quote from: 1000a on 19 Jul 2009, 05:20 pm
WOW :drool:

Beautiful- which ones sounded the best to your ears?

I would have to say that my favorite is the "bobsled" (the wide shallow 3ways)


First, beautiful work!

How would you describe the imaging of the bobsled?  NM, just read it in the above post.
Logged

Jason T

  • Industry Participant
  • Posts: 368
  • Enjoying the music
    • custom cables
Re: Custom Speaker Projects
« Reply #10 on: 21 Jul 2009, 05:33 pm »
so you guys know.
I did not design the bobsleds I found the "poor mans strad" here http://www.troelsgravesen.dk/PMS.htm
and changed it a little to suit what I wanted.
I used series network on the top drivers @ 3800hz and a standard 12db @100hz on the woofer.

I used a Dayton Ref 8" woofer
Sb acoustics 5" mid
Fountek neo cd1.0

simple speaker, low cost and great performance

you can see some peoples opinion's of them here at our last Arizona diy event I hosted

http://www.lonesaguaro.com/speakers/AZdiy08/DIY08-Gear.html
Logged
