[pugs]

Are there any pictures of the SB2 basic power supply?  What are the dimentions?

[Wayne1]

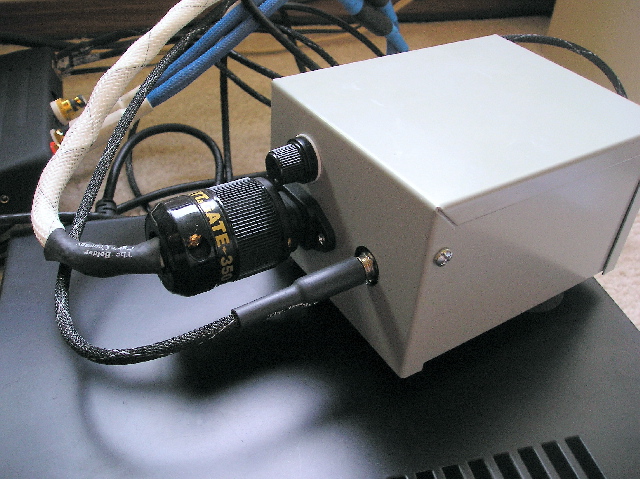

5" X 3" x 4"

The only color it comes in is gray.

The "Deluxe" PS will be 12" x 3" x 8" It will be Black. Silver may be made an option.

It is still at least 2-3 weeks before the Deluxe case arrive. I ordered 6 of them.

[pugs]

What is the difference between the basic and delux?

Thanks

[Wayne1]

The "Deluxe" supply will be built with a very nice BLACK anodized aluminum case. Some folks feel the "basic" PS looks too DIY and don't like the color.

The "Deluxe" will also have the power transformer separated from the diodes and regulator. There is some thought that the magnetic field of the EI core transformer might be affecting the diodes and regulator and causing a bit of noise pick up. By moving the parts about a foot away from each other, this "problem" is removed.

High quality film and foil bypass caps are added to the circuits, as well. The cost, at least at first, will be $300.00 for the Deluxe PS.

The "Super Deluxe" PS which uses both AC and batteries will be made available on special order only. It uses an even bigger case, 12" x 3" x 12", It has two 5 Ah batteries in parallel, resevoir capacitors after the batteries and after the diodes. It can be switched between AC or battery input into the 5 volt regulator circuit. It will cost around $500.00 and take about a month to get built.

I have ordered in 6 cases to build Deluxe power supplies. 4 of them are spoken for. Please get in contact with me if you wish to reserve a case. The factory has a 2-3 week lead time on orders placed for cases.

[Wayne1]

5 of the cases are now spoken for.

1 left from the initial run.

Any additional "Deluxe" power supply orders will have the 2-3 week lag time

[Wayne1]

Going, going, GONE!!

All of the Deluxe cases are now spoken for.

After the first run has come through, I guess I will have to take pre-orders so I can have a better idea how many cases to order.
