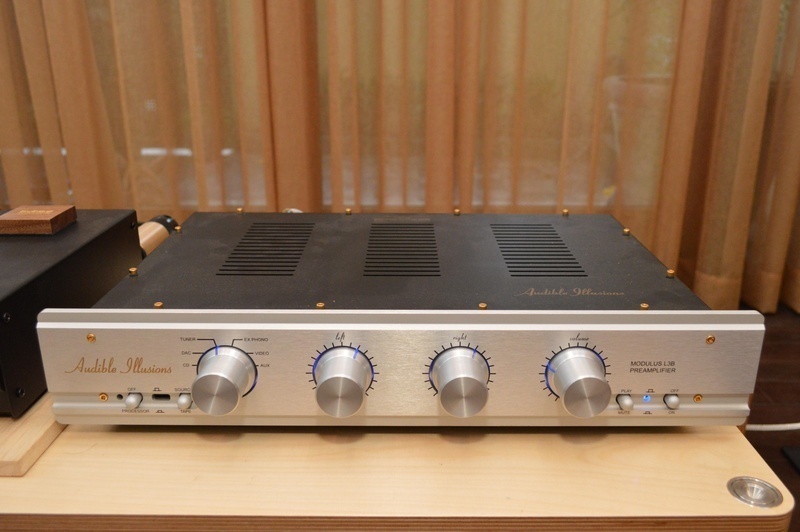

SOLD SOLD SOLD Audible Illusions L3B Line Stage with Remote
Serial # L3200202
Paypal, Please add 4%.
Asking price includes shipping to US address.
Ships from 08054.
Overview:
Many audiophiles remember how the introduction of the original Modulus preamplifier excited the audio industry. For the first time a full-function, reliable vacuum tube preamp with true high-end sound was available at an affordable price. It’s rare for a company to capture ones imagination and loyalty even once in such a manner. With the debut of the new L3B Line Stage the Legend Continues.
As many audiophiles migrated to CD and digital media for their main source we began producing our Modulus line stage series. These preamps were specifically designed to optimize digital playback and other line-level equipment. The L3B with the new faceplate and a plethora of upgrades is a force to reckon with at any price point.The preamp is on the leading edge of audio technology. The L3B makes elegant use of engineering approaches to circuit board design that improves signal flow and reduce interference and vibration. A Class A, zero feedback, single-ended design built on the proven tube design philosophy that “simpler is better”. Additional improvements include dedicated relay signal switching and Teflon coupling capacitors which result in outstanding resolution. The L3B also features a dedicated external power supply which isolates AC fields from the main chassis and prohibits common-mode noise from interfering with the musical waveform.
In terms of features the L3B is an audio control center second to none. It has inputs and switching designed for CD, DVD, Tuner, External Phono Stage, Video, Aux and Tape. Volume and Muting functions are operated from the front panel or with Remote Control. The L-R Balance Controls are Precision Stepped Attenuators.
For Home Theater use the L3B includes complete input and output switching facilities for Surround Sound Processors. Another feature incorporates special active buffer circuitry for optimum matching of components which prevents signal degradation and impedance mismatches.
As with the previous Modulus preamplifiers, the L3B is next step in the evolution of our famous single-ended designs. The Heart of Fine Audio and Video Systems for Years to Come.
Control Functions:Master Stereo Volume, L&R Stepped Attenuator Balance Controls, Source-Tape, External S/S Processor, Mute and Power. Remote selects Stereo Volume Up-Down, Muting.Output Selection:Main (2) Tape, External S/S Processor.Optional Faceplates: Mirror-Polished Nickel-Silver Faceplates available as a special order.
Specifications:
L3B TECHNICAL FEATURES
• Circuit Design is Pure Class-A, Single-Ended Triode, Zero Feedback, Dual-Mono.
• Audio Circuit has no Cathode Followers or Buffers.
• To prevent unwanted AC-induced distortions, the L3B features an External Power Supply housing three separate supplies and a large-shielded, custom-wound transformer.
• In the main chassis, four-separate, fully-regulated FET power supplies drive the audio circuitry in addition to separate filament supplies.
• Automatic-timed muting with Tri-Color LED indicator.
• Low-light Illumination for Selector Switch and Master Volume Control Knobs.
• Standby Mode avoids cold starts and prolongs tube life and circuit components.
• Active Tape Output and External S/S Output Buffers are FET regulated, set for unity-gain.
• All circuit boards are hand-soldered using the finest silver solder available. All polypropylene and polystyrene film capacitors used are proprietary designs of Audible Illusions. Resistors are precision 1% Holco and Roederstein.
• Proprietary gold-plated RCA Jacks with Teflon insulators.
• Master stereo volume is laser-trimmed Alps. Balance Controls are Precision Stepped Attenuators.
• Handcrafted in the USA.
L3B TECHNICAL SPECIFICATIONS
Gain: 30dB, Tape & S/S Processor 0dB
Distortion: .10% at 1.5V rms, 20-20kHz, into 50kOhm. Less than .12% at 1V out 20-20kHz into IHF load
Frequency Response: Within +/-1dB 2Hz to 100kHz measured w 1-1 probe/50 kOhms,100pf
Signal to Noise: 90dB below 1.5V rms output wideband
Max Input: 9V rms
Signal Phase: Main Out-Inverting, Tape and S/S Processor-Non Inverting
Input Impedance: 50kOhm – all
Output Impedance: Main-1.2 kOhms Tape, S/S Processor-150 Ohms
Muting: 45 second warm-up and automatic brown-out protection
Tube Compliment: 2-6H23EB Ultra A +++ twin-triodes, graded & matched
Power Requirements: 115-125VAC, 60Hz 45 watt maximum. 6 foot IEC Line Cord-Supplied.
Optional 100, 220, 230, 240 50-60Hz transformers.
Dimensions: 19″W x 3.5″H standard rack mount
Chassis is 17″W x 11″D x 3″H
Power Supply, 6″W x 10″D x 5″H
Reviews:
http://www.theabsolutesound.com/articles/audible-illusions-l3a-line-preamplifier/https://positive-feedback.com/audio-discourse/audible-illusions-modulus-l3a-preamplifier/
