Want to build OB with Lii Audio F15

0 Members and 1 Guest are viewing this topic. Read 3203 times.

renaudrenaud

  • Jr. Member
  • Posts: 21
Re: Want to build OB with Lii Audio F15
« Reply #20 on: 22 Apr 2023, 02:35 pm »
Well, I finally understood what is wrong with this story. Really wrong.

opnly bafld

  • Full Member
  • Posts: 2404
  • 83 Klipsch LSIs
Re: Want to build OB with Lii Audio F15
« Reply #21 on: 22 Apr 2023, 04:05 pm »
[
« Last Edit: 23 Apr 2023, 03:14 am by opnly bafld »

renaudrenaud

  • Jr. Member
  • Posts: 21
Re: Want to build OB with Lii Audio F15
« Reply #22 on: 23 Apr 2023, 02:34 am »
This is not a question of ability for a driver to work in open baffle or not.

 The question, for me, was the difference between the prices and the specs from taobao in a side, and the western website in the other side.

The explanation is here in this thread :

https://www.diyaudio.com/community/threads/new-lii-audio-fast-15-anyone-hear-these-yet.391776/

Main explanation on page 2. How an employee stole the name and cheat with the products on the western market.



FullRangeMan

  • Volunteer
  • Posts: 19712
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Re: Want to build OB with Lii Audio F15
« Reply #23 on: 23 Apr 2023, 03:01 am »

Apparently both companies are solidly constituted technically.
In view of these unexpected probs I would not buy the F15 in
any way,  much  less  the FAST-15, but  only  the  F18  from
Lii Audio.com what have a good Qts and maybe dont need a sub
https://www.lii-audio.com/product/one-pair-18-inch-full-range-speakers-superb-scale-soundstage-with-new-imaging-f-18/
Technical Data:
Impedance: 8 ohm
Power: 40 – 80 W
Frequency response: Fu – 15k Hz
Fs: 38.7 Hz
Sd: 119.46 cm²
Qms: 18.656
Qes: 0.985
Qts: 0.935
Sensitivity: 97.8 dB (2.83V/1m)
Vas: 661.77 litres
Weight (a pair): 18 KG

http://www.glowinthedarkaudio.com/lii-audio-f18.html
« Last Edit: 23 Apr 2023, 07:49 am by FullRangeMan »

renaudrenaud

  • Jr. Member
  • Posts: 21
Re: Want to build OB with Lii Audio F15
« Reply #24 on: 4 May 2023, 10:24 am »
Finally found how to upload an image.



FullRangeMan

  • Volunteer
  • Posts: 19712
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Re: Want to build OB with Lii Audio F15
« Reply #25 on: 4 May 2023, 10:31 am »
Looks great, lets us know how it sounds after the break-in.

renaudrenaud

  • Jr. Member
  • Posts: 21
Re: Want to build OB with Lii Audio F15
« Reply #26 on: 4 May 2023, 11:21 am »
Ha... It is working since last Saturday and I am working at home, so it means it is from 08:00 to 23:00 each day.

I use a little amp, the FOSI BTA20 pro, paid 57€, so the total cost with the amp was less than 400€.

I am very happy with the results because it was a fun project shared with my wife. She helped a lot, in particular with the wood. She knows a lot in mechanic (and a lot of other topics, but mechanic knowledge is good for building a first Open Baffle). We continue to work on the project with a full toolbox of ideas.

Not sure to be qualified to describe the sound but I can try with my words and my own feeling
 - sound is very soft, not tiring, comfortable
- on vocals, male or female, it is verry good
- nice 3D presentation
- lot of micro details
- dynamic is spectacular

I've ordered an Umik-1 and will take some measurements with REW and will see if we need some convolution.

I did not test BASTA! yet for simulation, it runs only on zindozs and I hate this OS, I do not like telemetry, adds and bloatware. I do not know how to manage that yet (a VM with WIndows 2000 maybe).

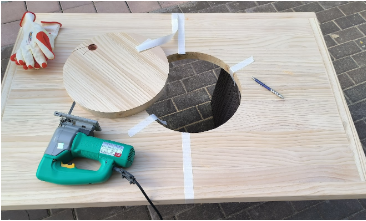

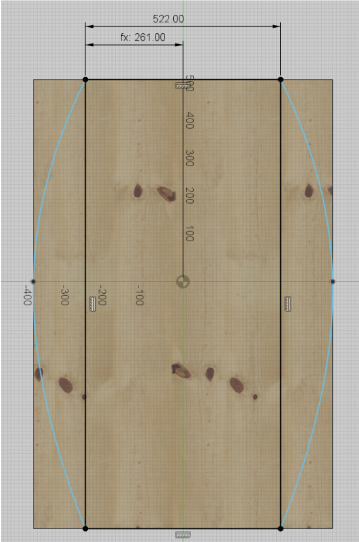

My wife designed the model, ordered the wood and cut it.













We plan to re-cut but I want some measurements before we cut the round shape.





FullRangeMan

  • Volunteer
  • Posts: 19712
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Re: Want to build OB with Lii Audio F15
« Reply #27 on: 4 May 2023, 12:26 pm »
The driver in a low position near the floor will delivery more bass.

kd4ylq

  • Jr. Member
  • Posts: 173
  • Esse Quam Videri
Re: Want to build OB with Lii Audio F15
« Reply #28 on: 4 May 2023, 01:27 pm »
Maybe more bass with the driver closer to the floor, but at the expense of imaging - not the right trade-off IMO. Keep the driver CL near your sitting ear height (I found that out the hard way).

renaudrenaud

  • Jr. Member
  • Posts: 21
Re: Want to build OB with Lii Audio F15
« Reply #29 on: 4 May 2023, 02:06 pm »
Yes, we are designing a support for the panel allowing us a fine tuning for the angle.

FullRangeMan

  • Volunteer
  • Posts: 19712
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Re: Want to build OB with Lii Audio F15
« Reply #30 on: 5 May 2023, 12:54 am »
Chances are you will dont like a too slanted angle.
This is your wife working for you in the wood working?
Incredible, you really are a locky man.

Poultrygeist

Re: Want to build OB with Lii Audio F15
« Reply #31 on: 9 May 2023, 09:58 am »

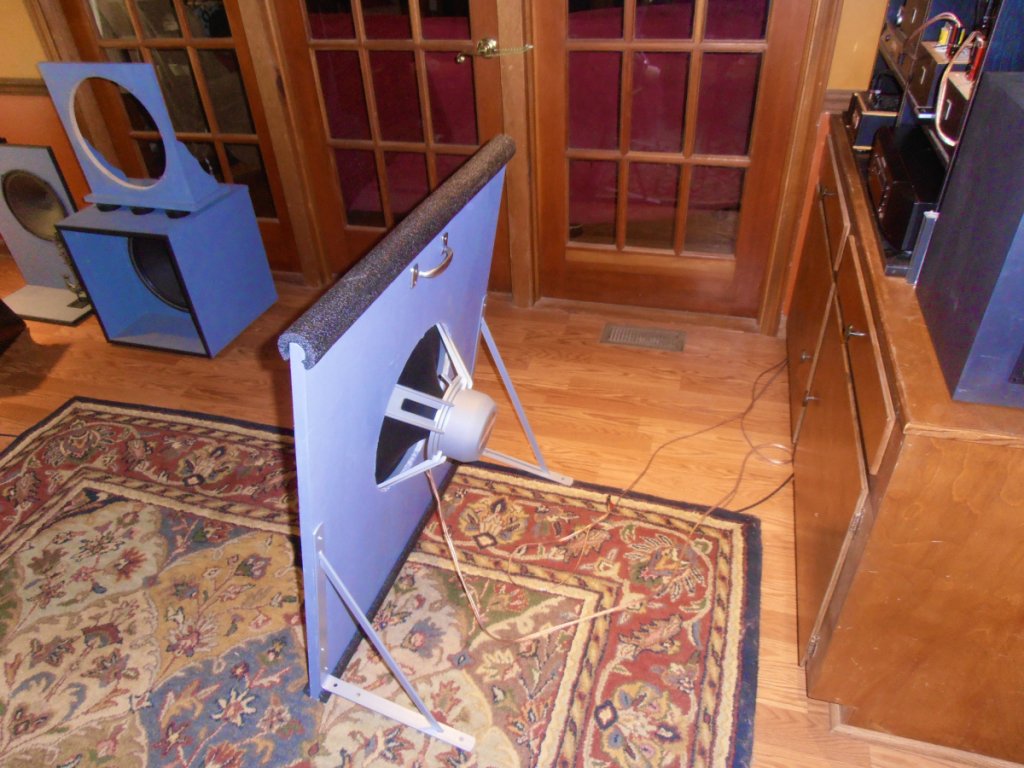

Tried the F15 solo in a wide baffle but much prefer it in a smaller baffle bi-amped with bass woofer support.




Poultrygeist

Re: Want to build OB with Lii Audio F15
« Reply #32 on: 9 May 2023, 10:20 am »

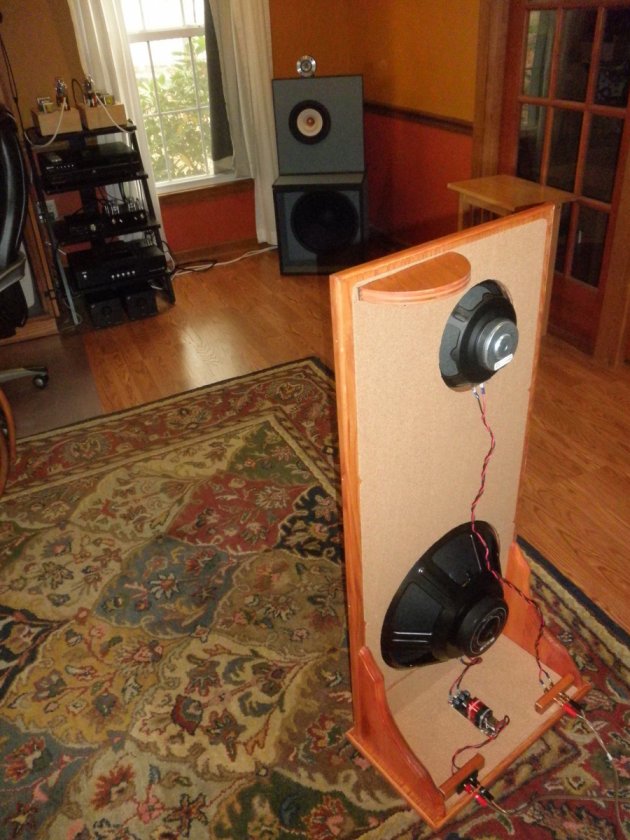

My first experimental baffle using the F-15 was sort of a cross between the dimensions of the Decware and Mr. Glow-in-the-dark's version. Bass was weak but probably ok for some. Elevating the F-15 atop the H-frame supporting woofers proved to be a much better solution.




kd4ylq

  • Jr. Member
  • Posts: 173
  • Esse Quam Videri
Re: Want to build OB with Lii Audio F15
« Reply #33 on: 9 May 2023, 03:35 pm »
Chances are you will dont like a too slanted angle.
This is your wife working for you in the wood working?
Incredible, you really are a locky man.

I built my F15 stands with adjustable tilt angle. I use a digital angle gauge to measure and ensure they are both the same. The optimum tilt angle is different for different listening distances from the speaker (obviously?)

FullRangeMan

  • Volunteer
  • Posts: 19712
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Re: Want to build OB with Lii Audio F15
« Reply #34 on: 10 May 2023, 03:33 am »
My first experimental baffle using the F-15 was sort of a cross between the dimensions of the Decware and Mr. Glow-in-the-dark's version. Bass was weak but probably ok for some. Elevating the F-15 atop the H-frame supporting woofers proved to be a much better solution.
Do you could stuffing inside the H Frame walls with 10mm car wood blanket to increase the bass and inform us the results?

Poultrygeist

Re: Want to build OB with Lii Audio F15
« Reply #35 on: 10 May 2023, 09:37 am »
I use 3/4" MDF covered with heavy wallpaper. Filler between layers or thicker baffles may be required to reduce resonance if one plays at extreme SPL's but I don't.

I favor MDF for baffles as it tends to be deader that plywood. The objective with OB's is you don't want to hear the baffles.

Poultrygeist

Re: Want to build OB with Lii Audio F15
« Reply #36 on: 11 May 2023, 09:20 am »
Cork also works well to combat baffle resonance. Here I used thick cork placemats from Ikea.




jk@home

  • Full Member
  • Posts: 781
Re: Want to build OB with Lii Audio F15
« Reply #37 on: 26 Dec 2023, 10:54 am »
To the OP, how is this driver working out for you? After reading the diyAudio thread you posted, got the impression that the Xizi morning glory  / non-Lii Song drivers (like you used) were not available in the US. Then found this on Amazon:

https://www.amazon.com/AVPLAY-FAST-15-Frequency-Speaker-50-80W/dp/B0C3GRFJTK/ref=sr_1_3?keywords=lii%2Baudio&qid=1703523181&sr=8-3&th=1

Like you posted, this driver claims to have a QTS of .99

Full disclosure, I'm interested in this driver instead of the Lii song model mainly due to the ability to buy it from Amazon (with my Store Card).

FYI, found their web site:

https://www.lii-audio-hifi.com/
« Last Edit: 6 Jan 2024, 03:50 pm by jk@home »

jk@home

  • Full Member
  • Posts: 781
Re: Want to build OB with Lii Audio F15
« Reply #38 on: 30 Jan 2024, 07:18 pm »
Finally got my new Fast 15s in a test baffle....I know this is all wrong, but just temporary  :D The plan is to do a PAP style modular OB. As of now, decided to have the Fii in the middle, and two Eminence Beta 15 bass drivers underneath and above.  Tried the Fiis on the floor, a little higher up on some milk crates (for WMW), and then on my 24" stands (for MWW). Very happy with what I'm hearing so far.

Right now driving them with a W4S M-pre/ dual M-amps, will use Crown XLS1500s for the bass driver, and IB subs in the ceiling above, if needed...




« Last Edit: 1 Feb 2024, 01:12 pm by jk@home »

ZAKski288

Re: Want to build OB with Lii Audio F15
« Reply #39 on: 30 Jan 2024, 09:59 pm »
Just came across these on FB,
