SOLD

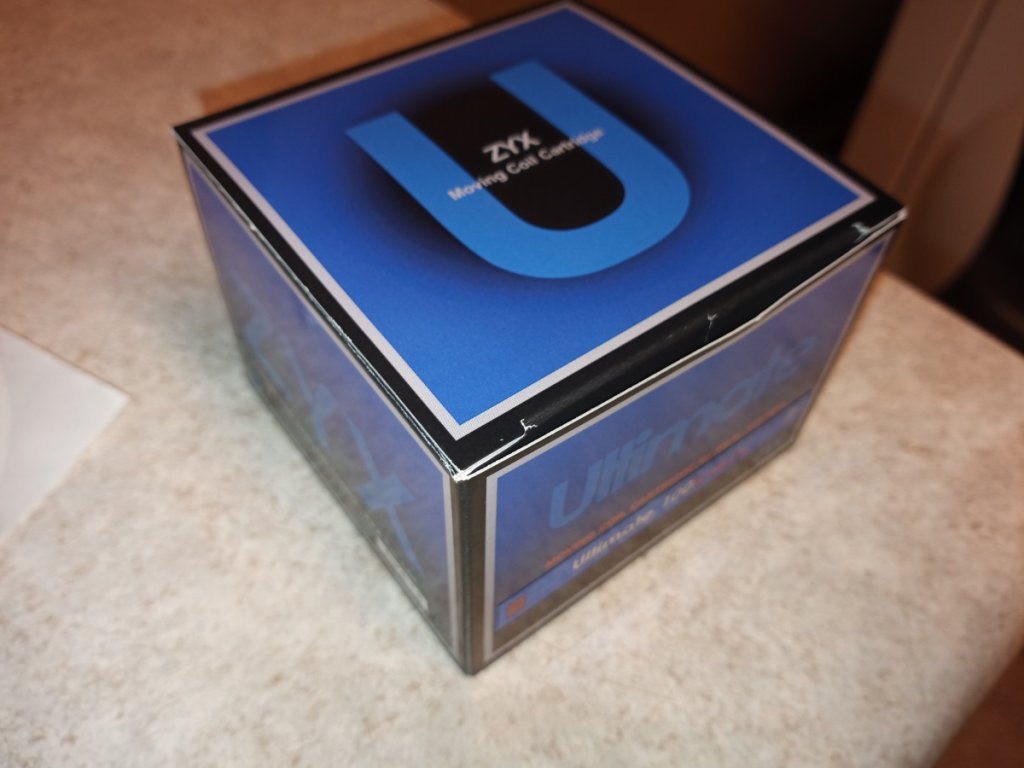

New in the box with 3 sets of different length screws provided by ZYX for mounting to any arm as seen in photos. I did remove from box to check all accessories which as stated has 6 screws one pair is holding the cartridge to the packing plate. Plus cleaner brush, and screwdriver.
Payment via ZELLE or VENMO, or PayPal no fee payment.
PRICE - $1500.00
MSRP - $2200.0048 State Priority USPS will be included.

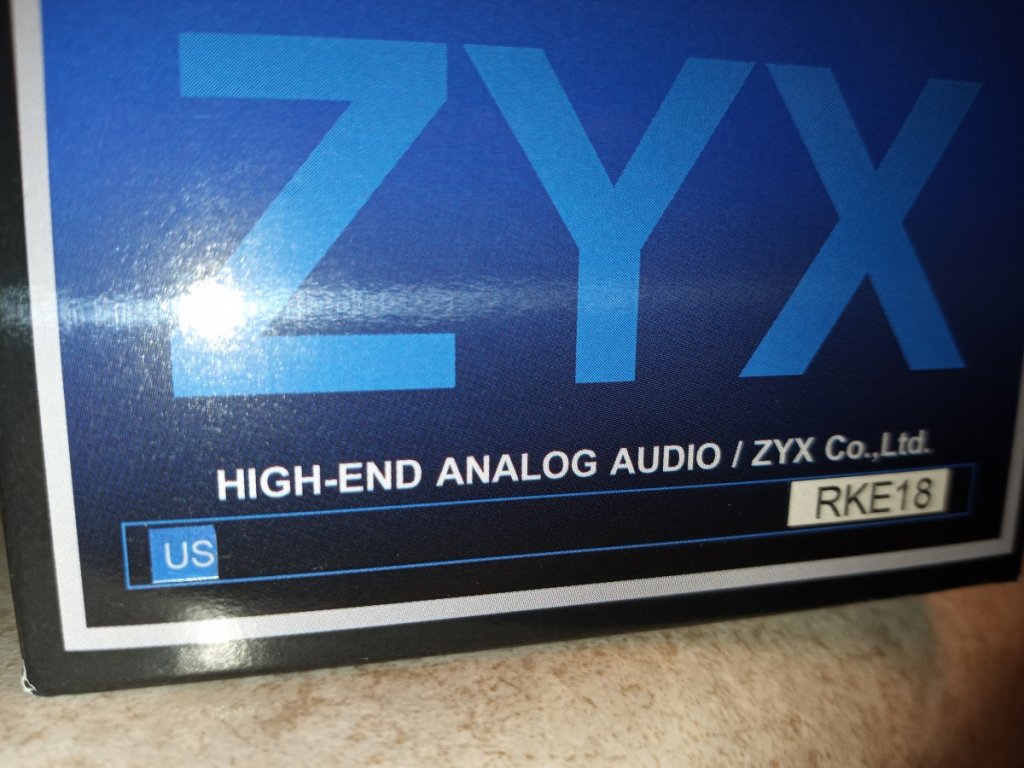

Serial # - RKE18

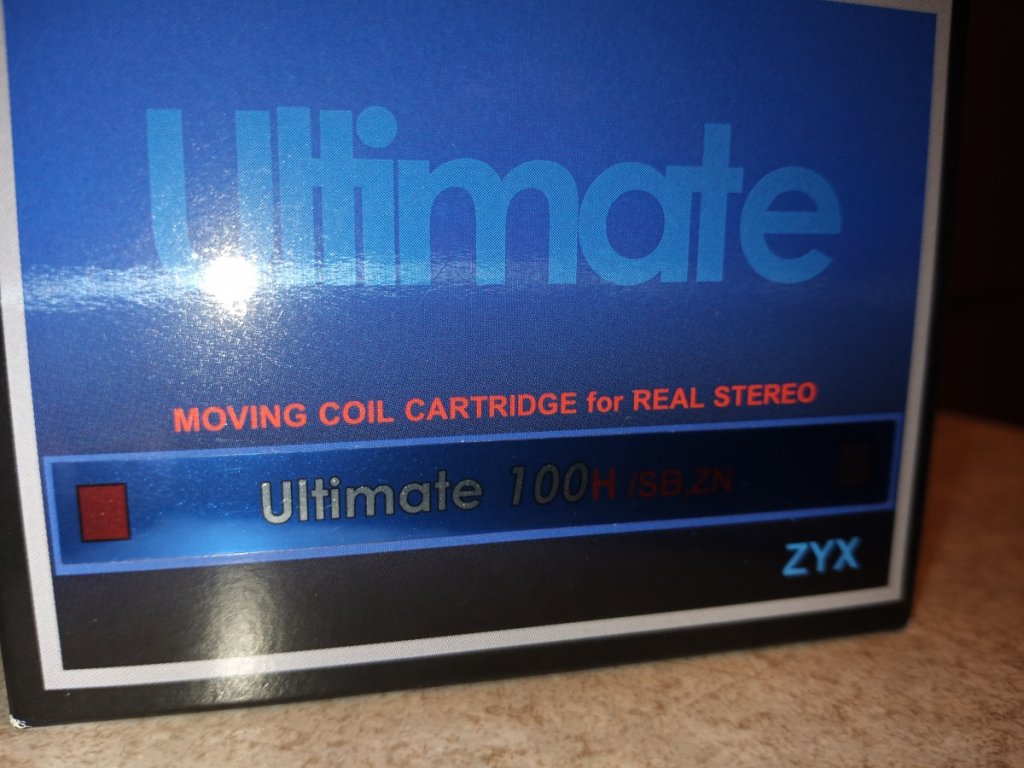

This is the "H" with 0.48 mV Low MC output.
It has the silver mounting plate (SB) getting the weight to an optimum 9 grams.
Reviews and specs. In links below say it all.
https://parttimeaudiophile.com/2020/05/31/zyx-ultimate-100-phono-cartridge-review/http://www.zyx-audio.com/products_mc_ultimate_series_100.htmlMoving Coil (Dynamic)
“REAL STEREO” Generator System
Cryogenic Treatment Temperature: -196 ℃ (-320оF)
Output Voltage (0.48mV) (3.54cm/sec, 1kHz)
Frequency Response
±1dB 10 Hz - 100 kHz
20 Hz - 20 kHz
Channel Separation ＞ 30dB 〔 1kHz 〕
Channel Balance ＜ 0.5dB 〔 1kHz 〕
Recommended Tracking Force 2.0gm 〔 20 ゜C-25 ゜C 〕
Tracking Force Range 1.7gm - 2.5gm
Trackability ＞ 60μm /2.0gm
EQ Compliance horizontal
vertical
15×10-6cm/dyne
12×10-6cm/dyne
Internal Impedance (8.0 Ω)
Load Impedance ＞ 100Ω
Coil Wire 6N OFC Crystal Copperφ0.035mm

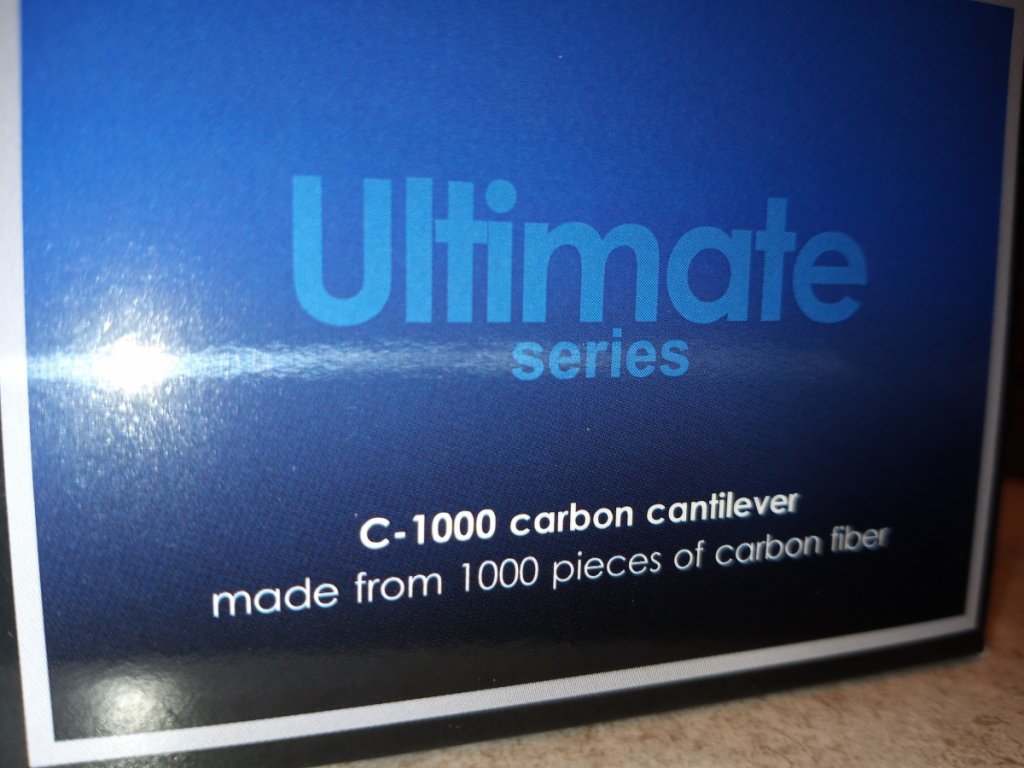

Cantilever Material C-1000 Carbon φ0.30mm
Stylus Micro-Ridge Solid Diamond□0.1mm
Contact Radius, Life Time 3μm×60μm, 2000Hour/2.0gm
Output Terminals φ1.25mm gold plated〔EIA〕
Terminal Board Glass Epoxy Plate
Dimensions 16.2mm(W)×19.7mm(L)×x17.6mm(H)
Net Weight 5.0gm, 7.7gm(TB), 9.0gm(SB)
