ECC99 PREAMP

0 Members and 1 Guest are viewing this topic. Read 378 times.

happyrabbit

ECC99 PREAMP
« on: 13 Dec 2020, 08:54 pm »

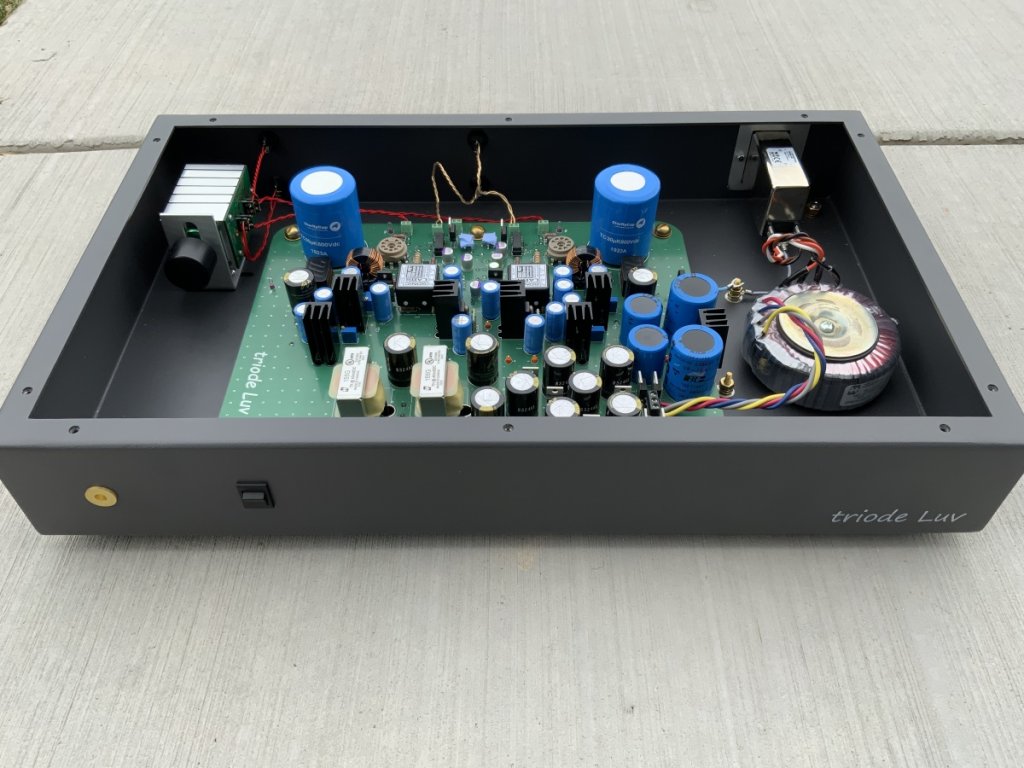

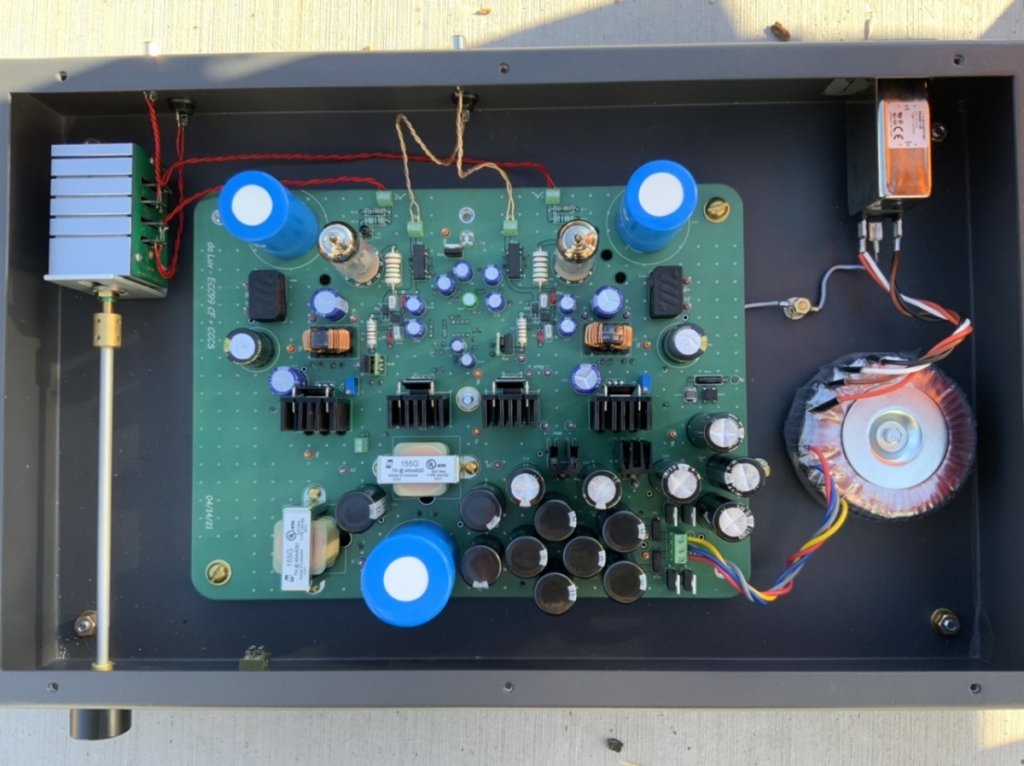

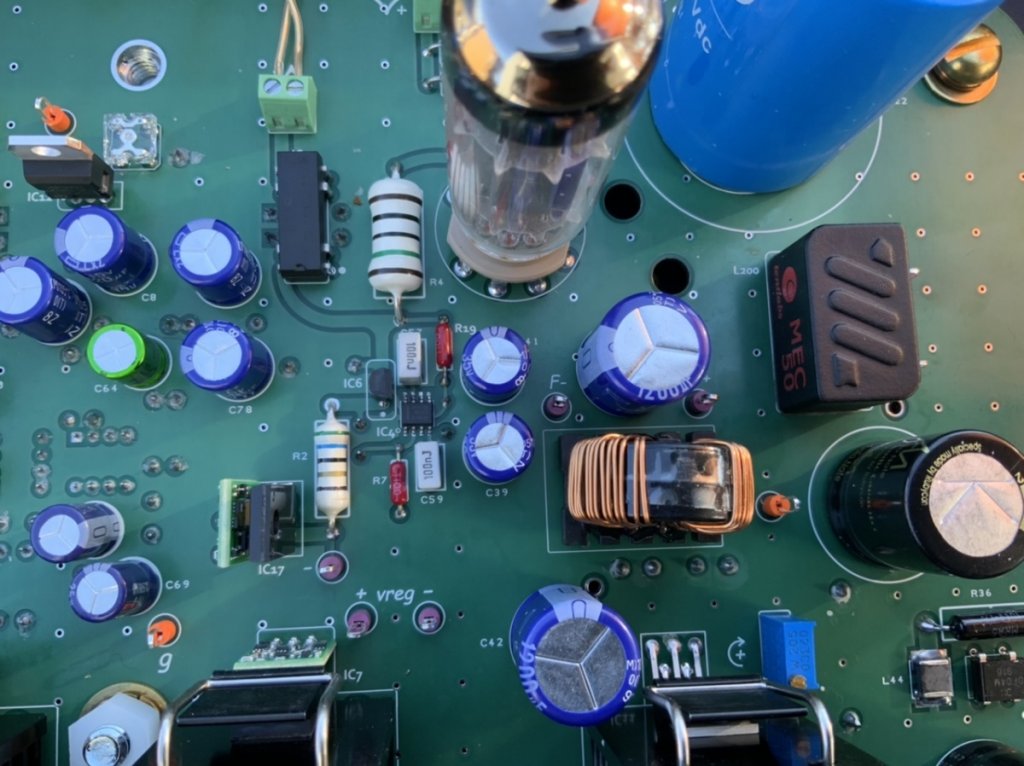

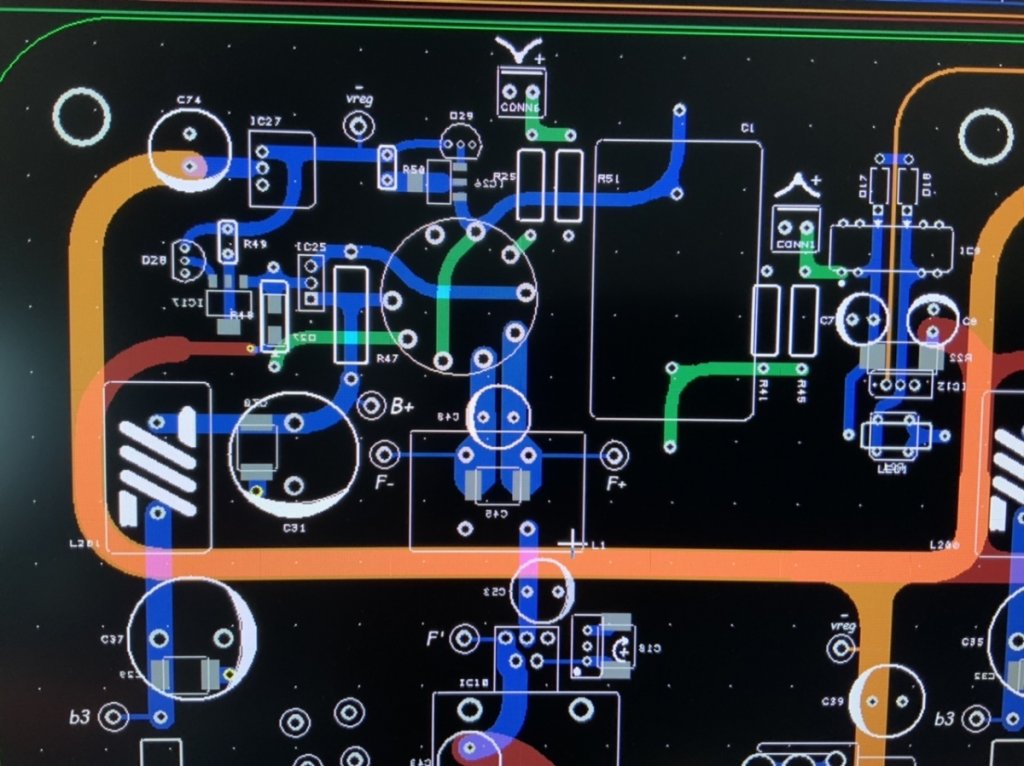

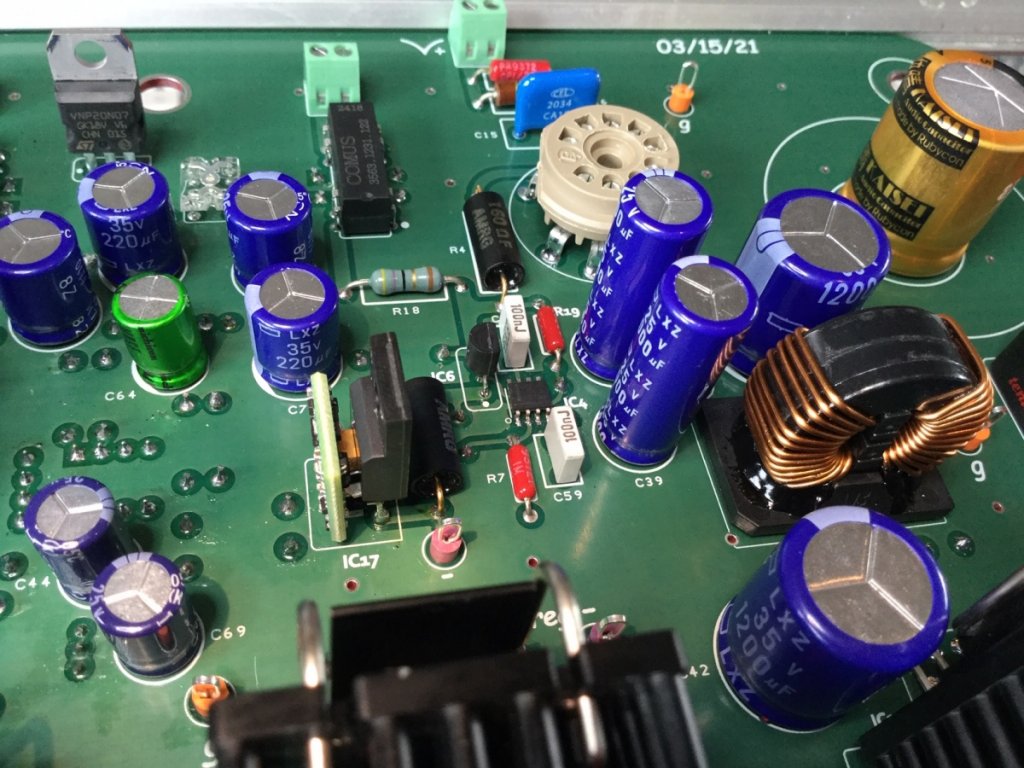

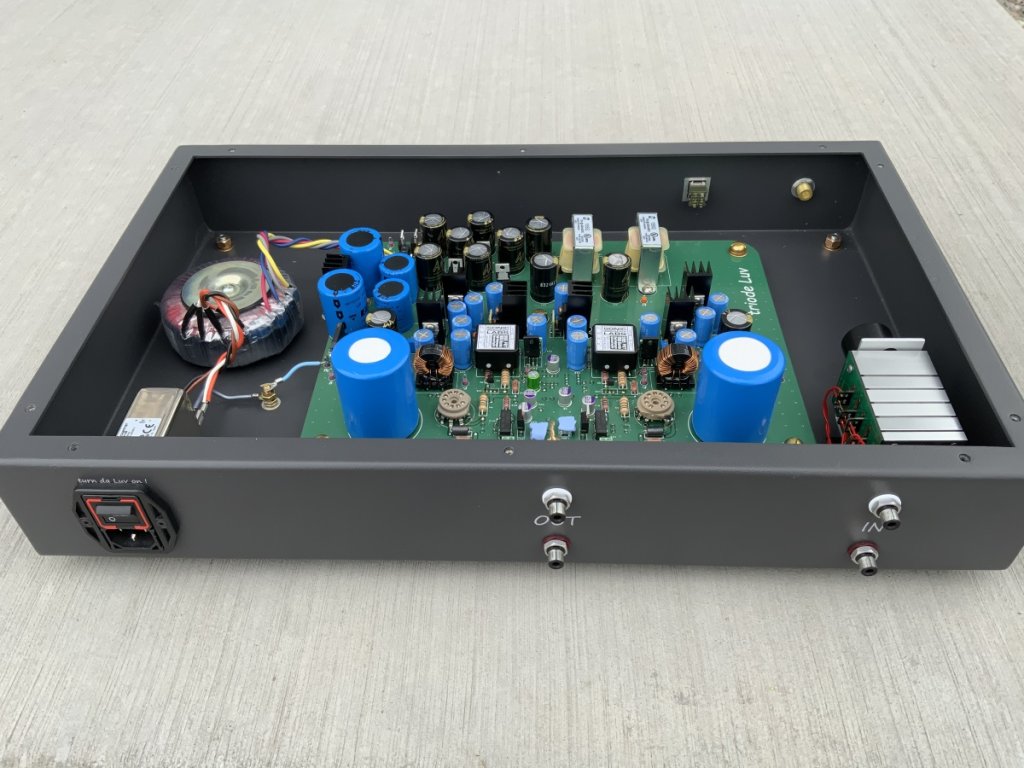

Just finished my ECC99 Cathode Follower w/ Servo.  It’s a tube buffer built to drive my 2a3. I found this crazy cool design on - https://tubecad.com/2007/04/blog0102.htm

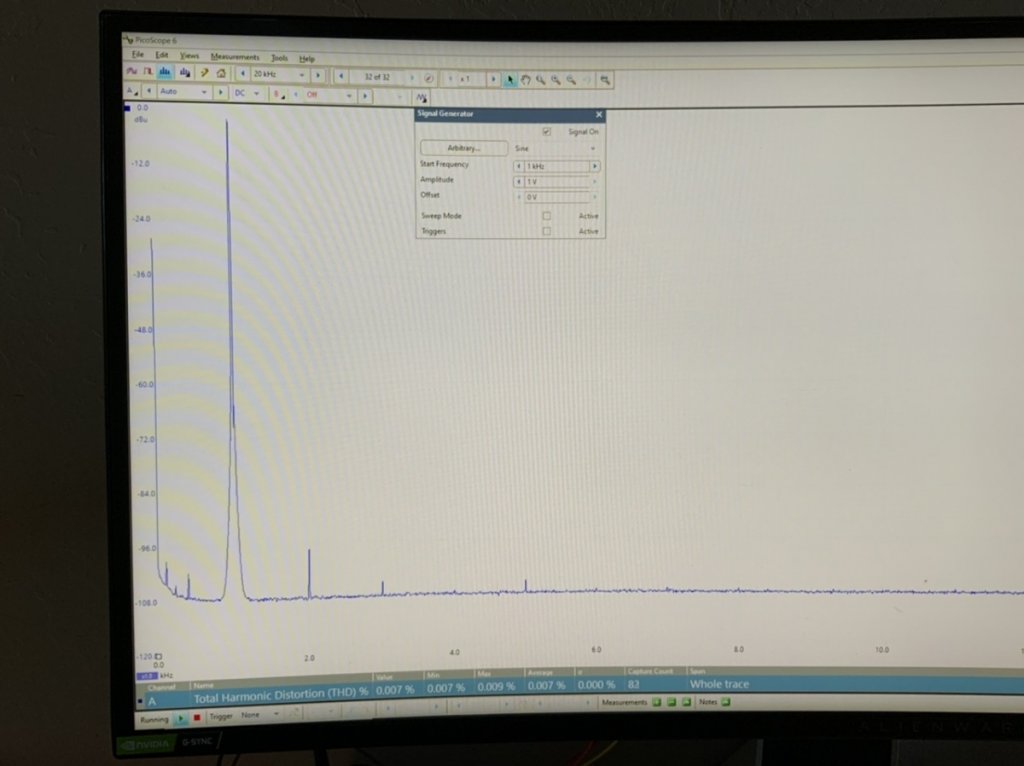

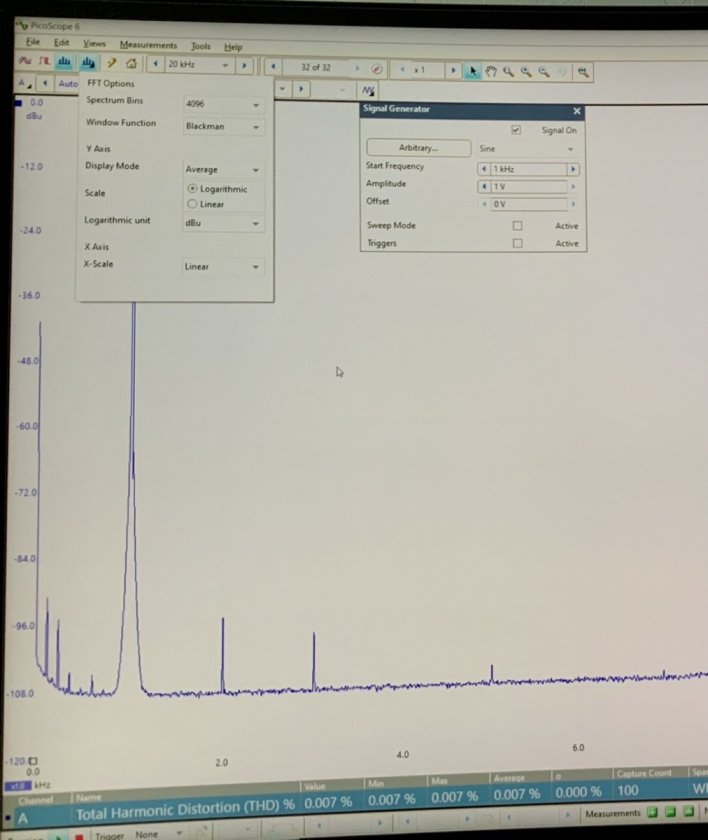

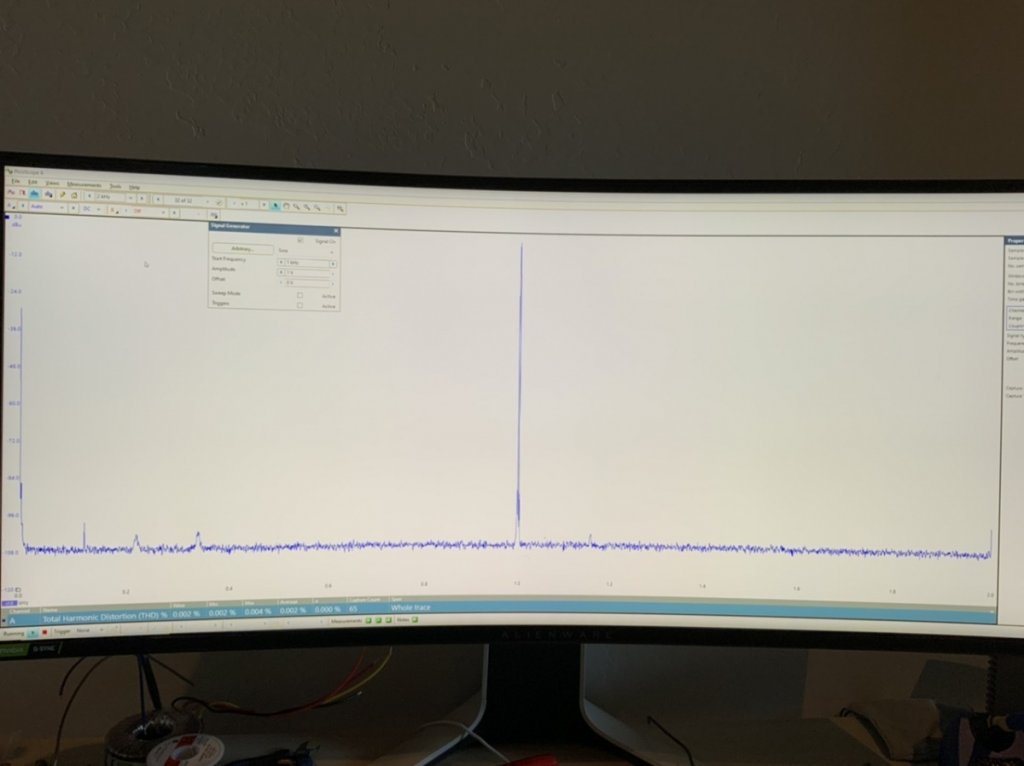

Operating the ECC99 @ 94v / 15ma.  DC Offset is ~0.2mv. Configured as Series Filament - 12.6v @ 400ma. THD% @ 0.03 with no high order harmonics. Startup / Shut down muting + 45sec delay circuit.   No DC protection..  Khozmo 10k  ladder attenuator.

















Blue is b+ (ac coupled) Red is output (dc coupled).  4mv/2s for scale.






Dwight
« Last Edit: 13 Dec 2020, 10:36 pm by happyrabbit »

poseidonsvoice

  • Full Member
  • Posts: 3868
  • Science is not a democracy - Earl Geddes
    • 2 channel/7 channel setup
Re: ECC99 PREAMP
« Reply #1 on: 14 Dec 2020, 11:13 am »
Dwight,

Did you etch your own boards too? That's fantastic. You are just one step away from mass manufacturing! Excellent job, and thanks for the measurements!

Give us your subjective feel on the pre since you have pretty much provided everything else!

Best,
Anand.

DaveC113

  • Industry Contributor
  • Posts: 4209
  • ZenWaveAudio.com
Re: ECC99 PREAMP
« Reply #2 on: 14 Dec 2020, 03:30 pm »
Looks good!

I use the ACF-2 Octal Aikido buffer currently, have used ECC99 as a driver in the past as well. Good tube! How's it sound?

happyrabbit

Re: ECC99 PREAMP
« Reply #3 on: 14 Dec 2020, 08:00 pm »
This design adds a healthy dose of realism.   I found the 2a3 SET to be a more enjoyable partner than the AVA 120 SET (aka SS amp).  I hate to say this but the design is ‘too clean’ ?    Maybe I need more break in time..  I can understand why the ecc99 is recommended as a driver for a dht tube.   Dave113 & Poseidon - I can send you the preamp if interested ? I am going to be gone for the next couple weeks.

Not sure I want to continue this design any further..  I am leaning towards this approach :

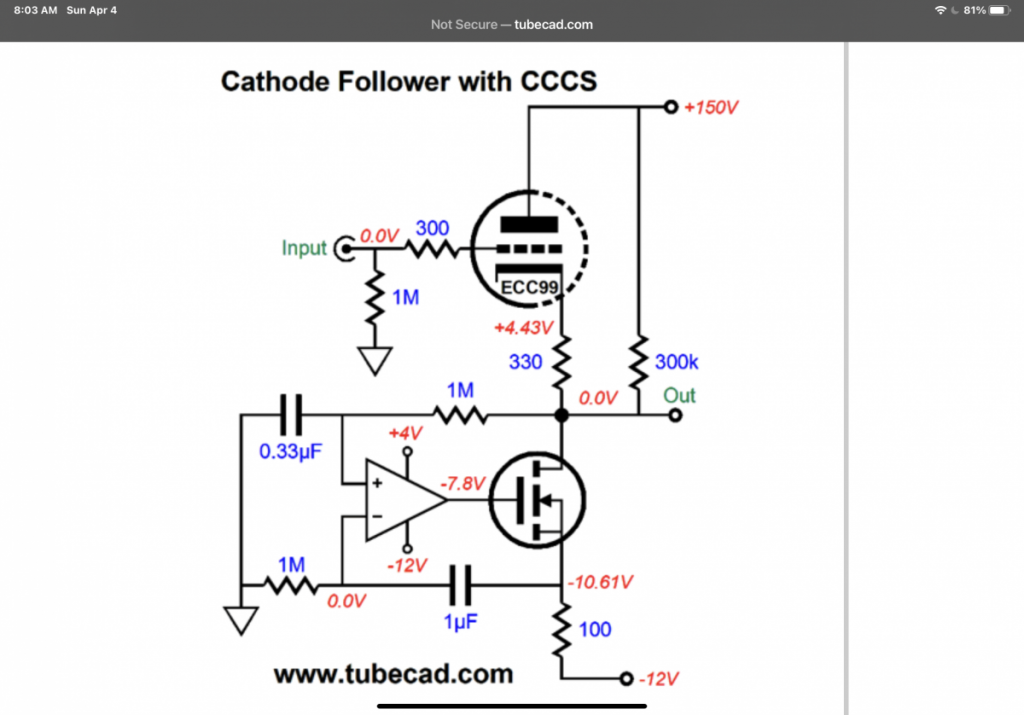

https://www.tubecad.com/2011/08/blog0212.htm

I found this design while looking up White Cathode Followers.

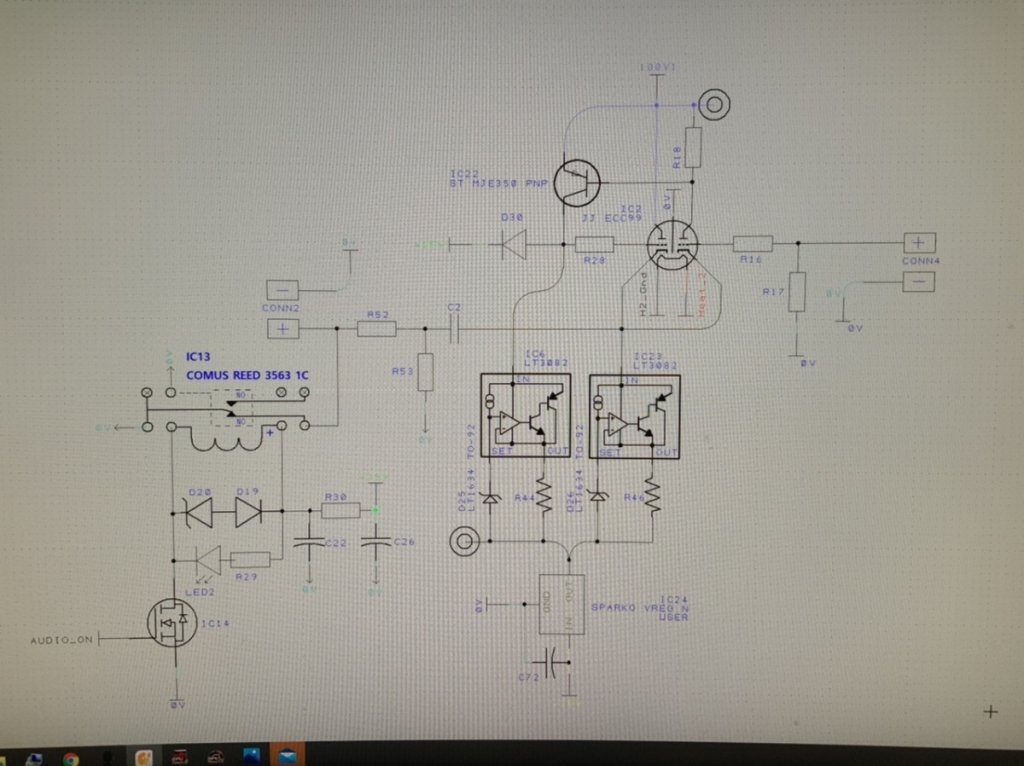

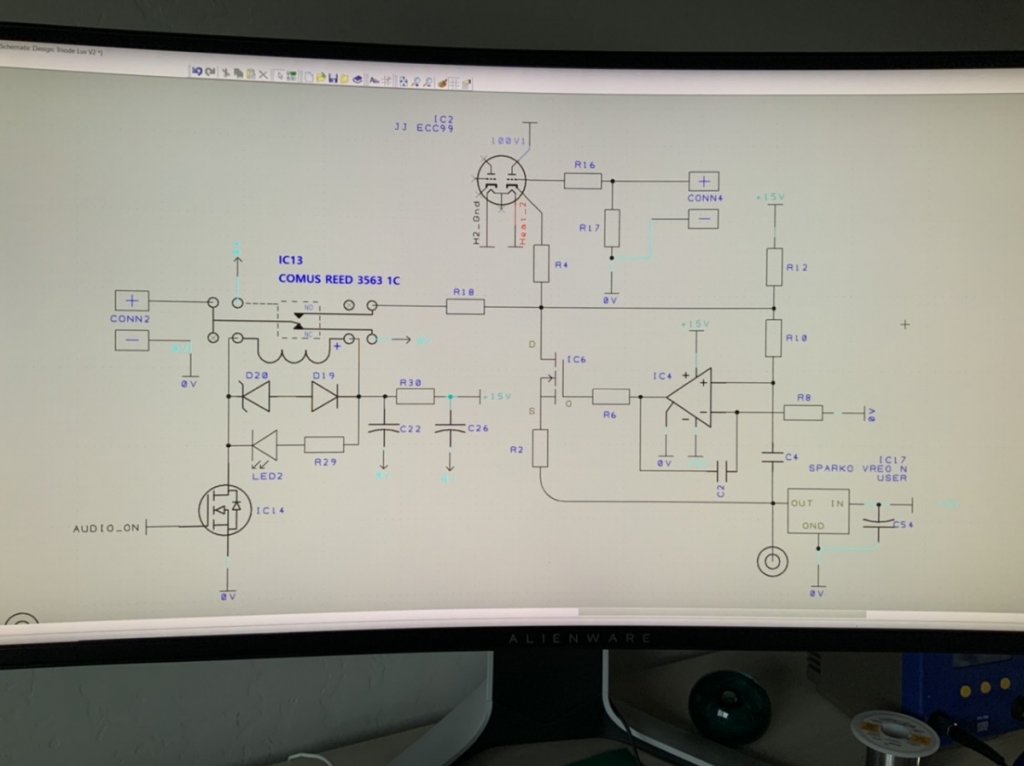

See attached images for actually design.   The article has a bunch designs to pick from...

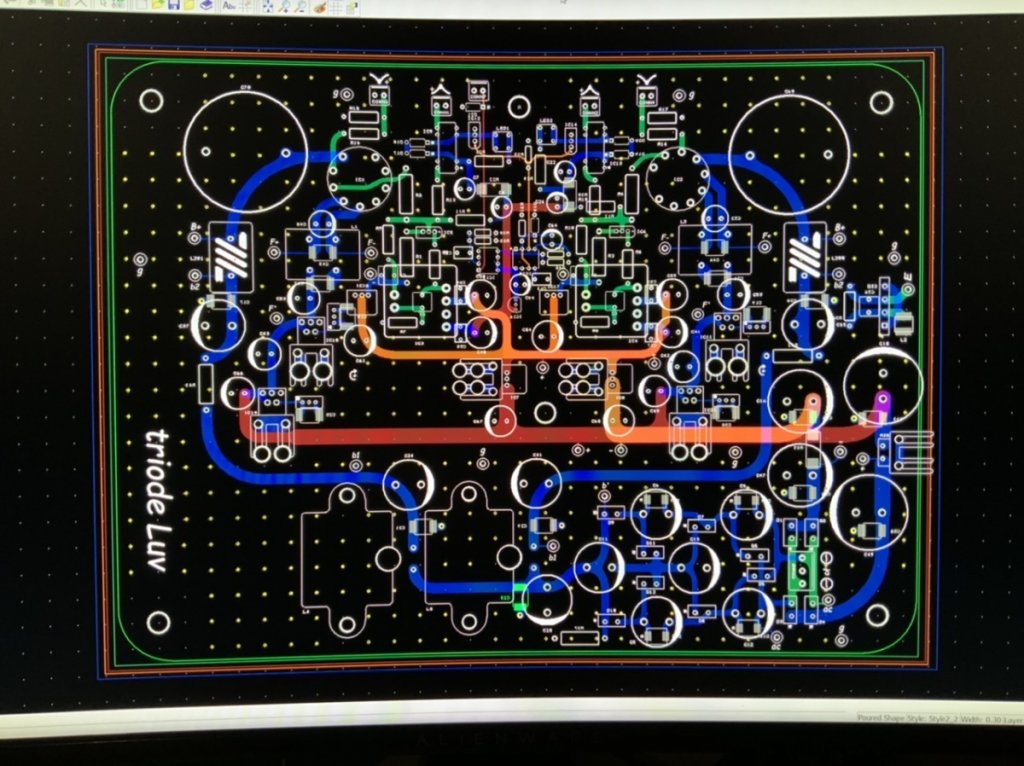

I get my boards made here :  https://www.4pcb.com/

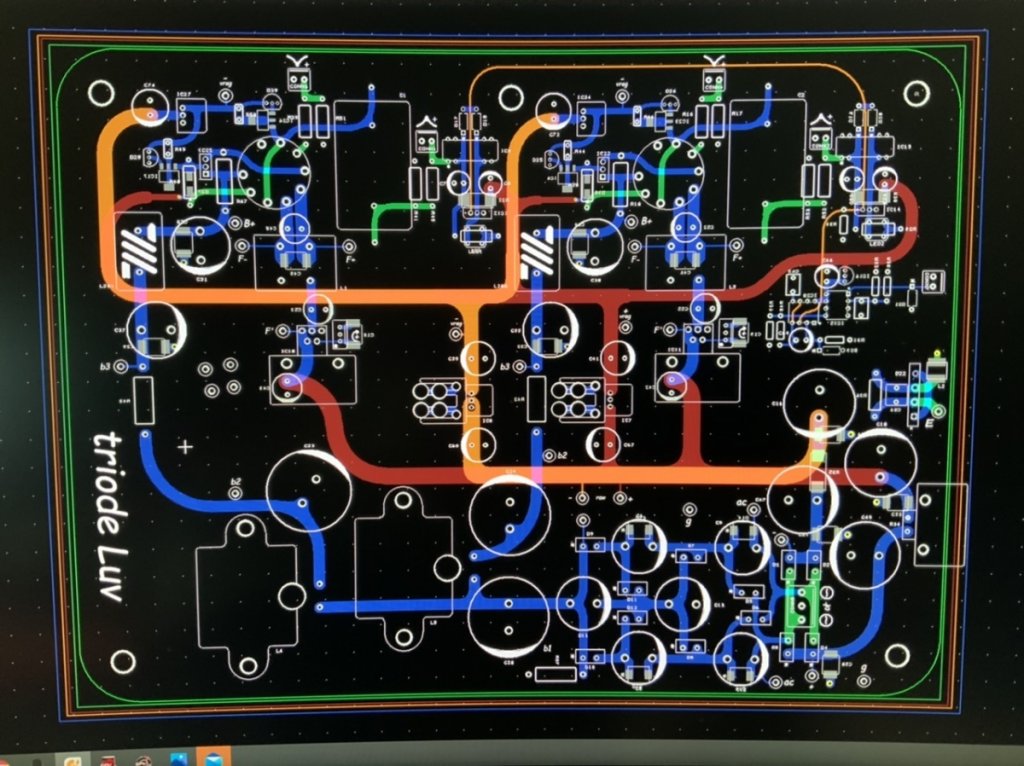

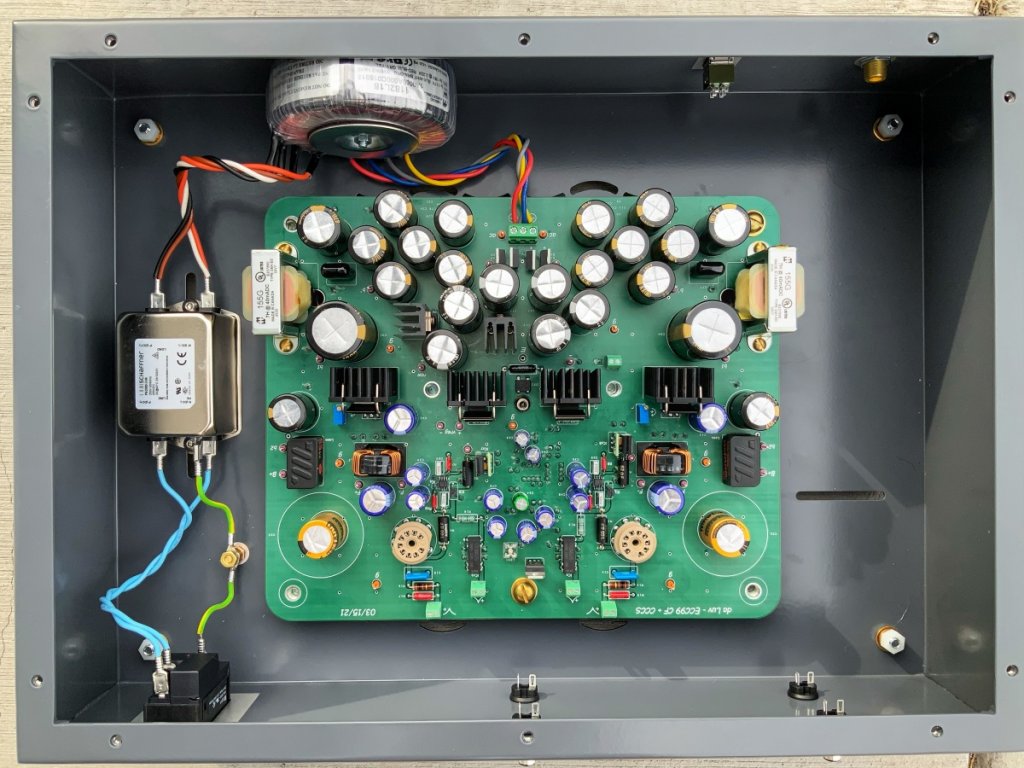

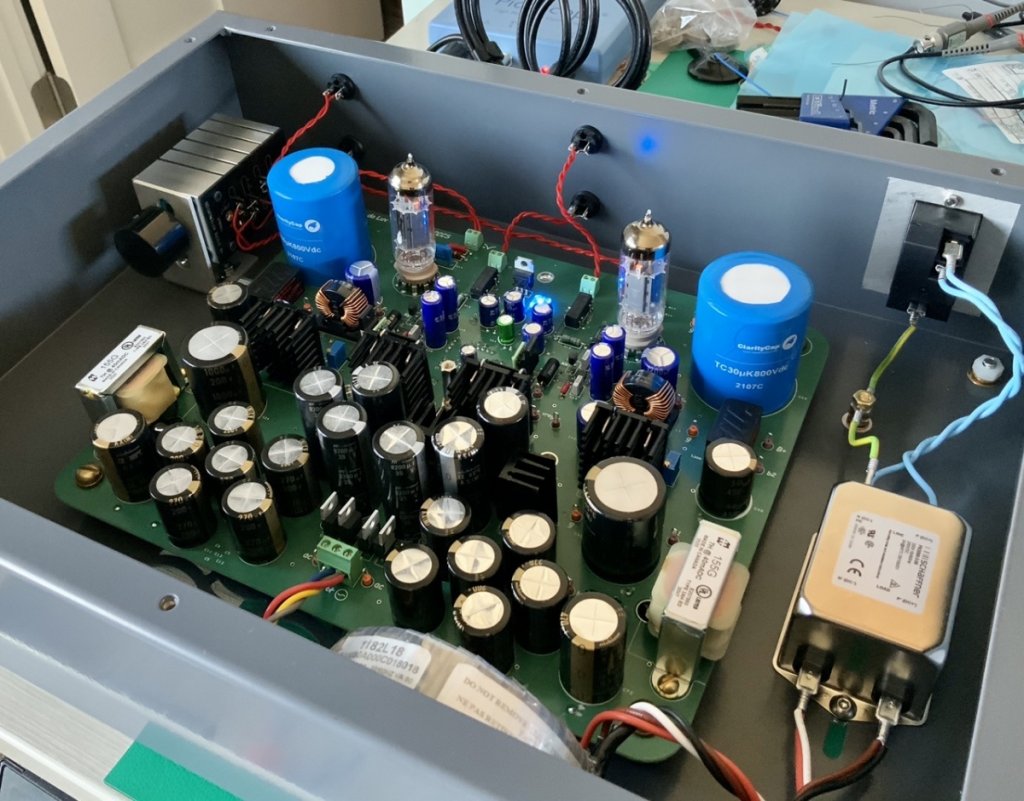

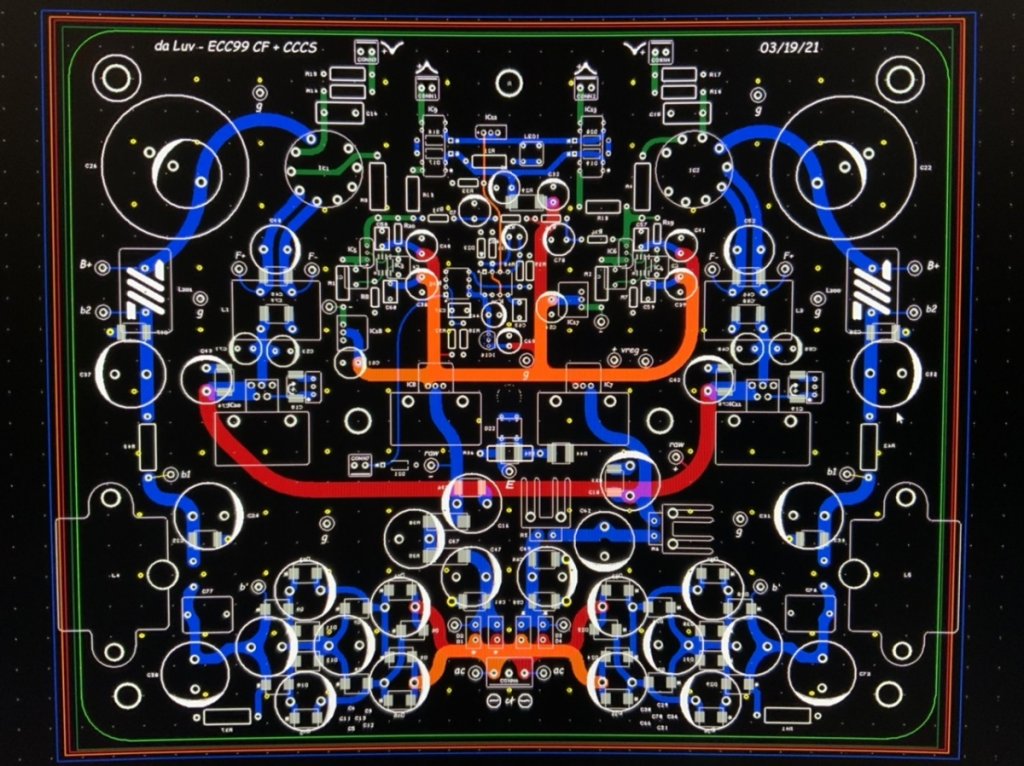

It’s an 6 layer 2oz FR-4.   SIGNAL / GND / PWR / PWR / GND / SIGNAL.   ALL PLANE FILLS ARE TIED TOGETHER AND THEN CONNECTED TO EARTH.

Dwight









DaveC113

  • Industry Contributor
  • Posts: 4209
  • ZenWaveAudio.com
Re: ECC99 PREAMP
« Reply #4 on: 14 Dec 2020, 08:21 pm »
Yeah, ACF measures and sounds super clean as well, which is what I'm going for... if I were to do it over I'd probably still use the ACF circuit just with a tube rectified PS and no electrolytic caps at all. Last time I rewired my EL34 SET amp I did it PtP w/ 5AR4 and CLC filter, the Aikido noise canceling scheme and all Clarity film caps, turned out sounding really nice! I actually use a previous Aikido preamp w/ 6SL7 > 6SN7 for the driver, the Aikido circuit makes for a far better driver than anything I came up with using a single ECC99, even with CCS loading, the Aikido simply blew it away as far as a clean, clear noise-free result.

Thanks for the offer to try out the pre but I'm too far behind on work, I should be working and not posting right now, lol. ;)
