Introducing the Sonore opitcalModule deluxe
« on: 2 Dec 2019, 11:33 pm »

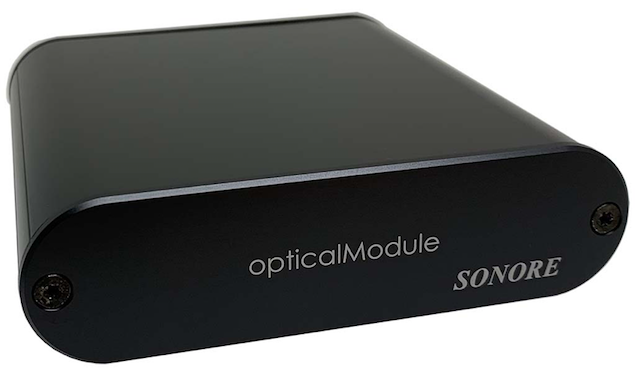

Introducing the Sonore opticalModule Deluxe a redesigned the original opticalModule with new features like support for all network devices regardless of speed (100/1000).



So what's new?
Supports both 100 speed and 1000 speed network devices
Supports flow control for NAA streaming
Designed on the same form factor as the ultraRendu and opticalRendu
Compatible with the Sonore Rendu (ethernet input with USB output and SPDIF/i2s output)
Compatible with the Sonore endPoint (ethernet input with SPDIF/AES-EBU output)
Compatible with 100 speed Ethernet DACs and DDCs (PS Audio Direct Stream, dCS Network Bridge, etc.)
Compatible with any music server
Improved circuit layout
Supports the use of the Sonore dual faceplate
Includes a link LED
Includes LEDs on the ethernet connector that indicate 100/1000 speed streaming
All connections are now on the rear faceplate

Other Features
High-quality ultra low noise linear regulators
Fixed frequency high-quality ultra low jitter FEMTO oscillator
External power input jack
RJ45 connector
SFP cage with SFP fiber optic transceiver included
Power connector: 2.1mm x 5.5mm (center +)
Power input: 5-9 VDC
Dimension: 3.5"x2.2"x.7"
systemOptique Certified

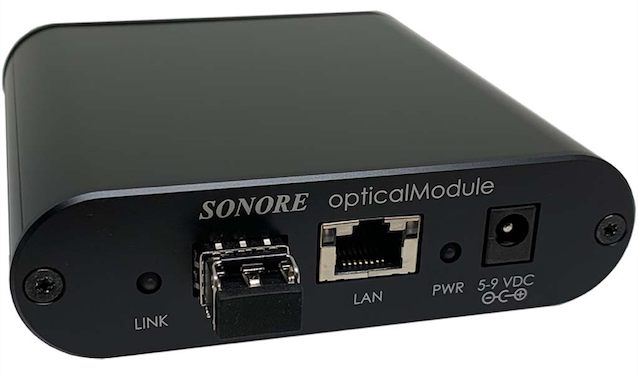

Rear Panel Image



AVAILABILITY
https://sonore.us
« Last Edit: 21 Dec 2020, 01:28 pm by vortecjr »

vortecjr

  • Facilitator
  • Posts: 212
  • the sound has to be in concert with the music....
    • Sonore by Simple Design
Re: Introducing the Sonore opitcalModule deluxe
« Reply #1 on: 18 Dec 2020, 11:31 am »
Some updates: Now shipping. Pre-orders are shipping in the order received.
