I thought I would try something new for me and post the building of a Kitoki V2 with some pictures of different steps.

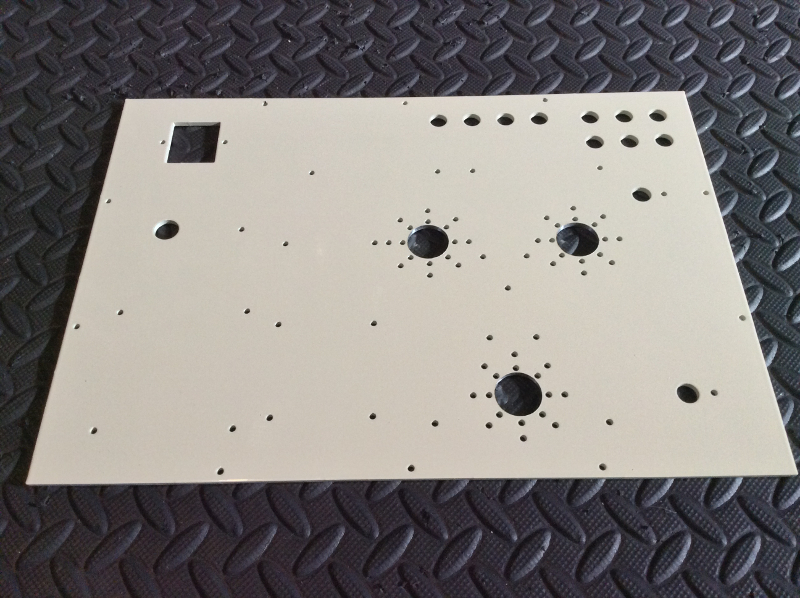

First up, let's start with a chassis top plate

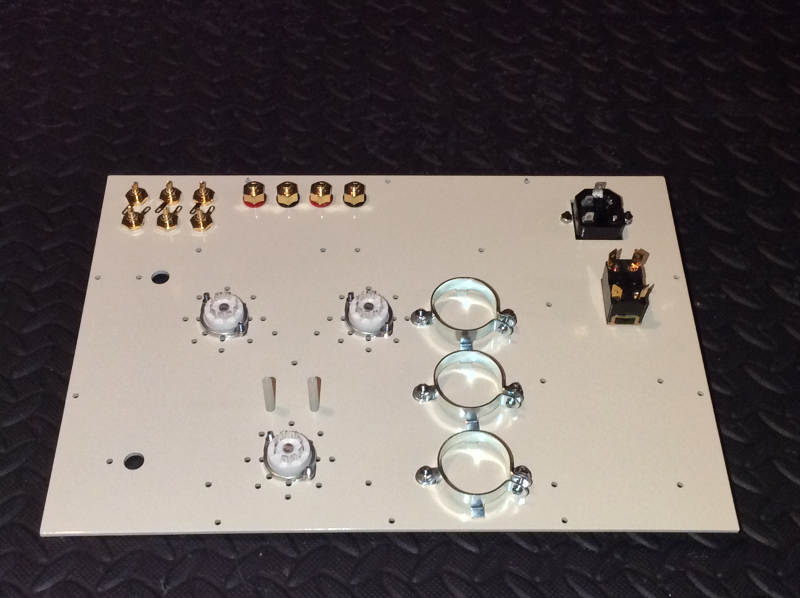

Next, let's populate it with our connectors, capacitor clamps, etc.
I like to use good quality parts that don't break the bank, though I have no problem using any parts that are requested if a customer wants that

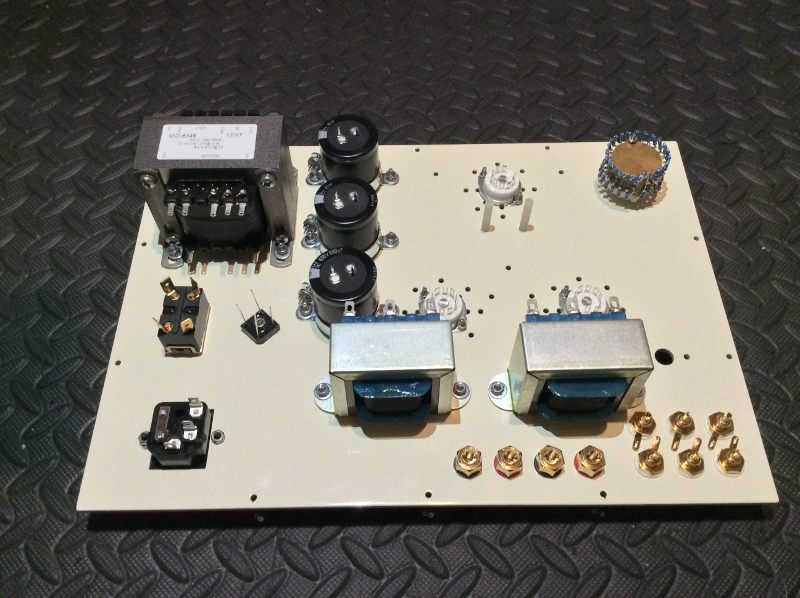

Then the output and mains transformers, capacitors, switches, stepped volume attenuator (made by me in-house), etc.
I'll be adding the attenuator's build as an update to the attenuator thread
in a little bit to show better how they are made now, since I changed it up a bit.

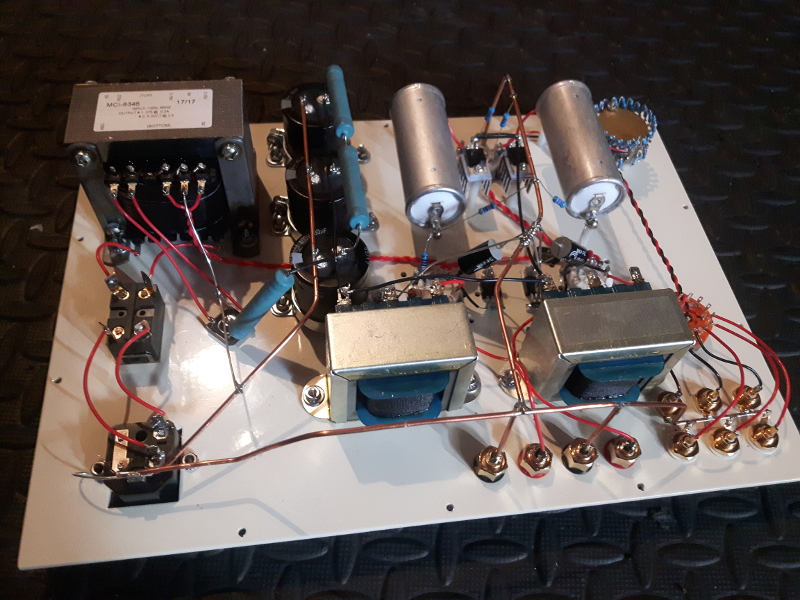

EDIT Feb 27:Alright, so I did up the grounding and installed the power supply resistors, the heater wiring and the Teflon coupling capacitors.

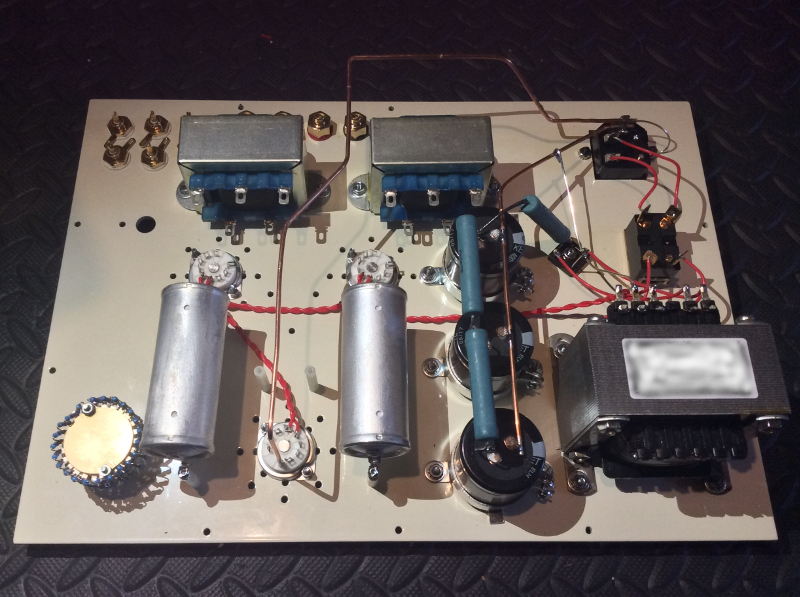

EDIT Mar 6: The Kitoki top plate is now assembled! All parts are now installed and checked. Next up I'll do some voltage testing, burn-in and install some tubes and check for noise.
If there's anything else people would be interested in seeing, feel free to post here or message me!
