Guide to Watts in Audio Transformer

0 Members and 1 Guest are viewing this topic. Read 1292 times.

FullRangeMan

  • Volunteer
  • Posts: 20894
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Guide to Watts in Audio Transformer
« on: 27 Jun 2017, 12:14 pm »
Please Note audio output transformer have wattage according the transformer weight and core type (EI, C core), this data dont apply to power transformer, only audio transformer.
Logged

FullRangeMan

  • Volunteer
  • Posts: 20894
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Re: Guide to Watts in Audio Transformer
« Reply #1 on: 27 Jun 2017, 12:16 pm »

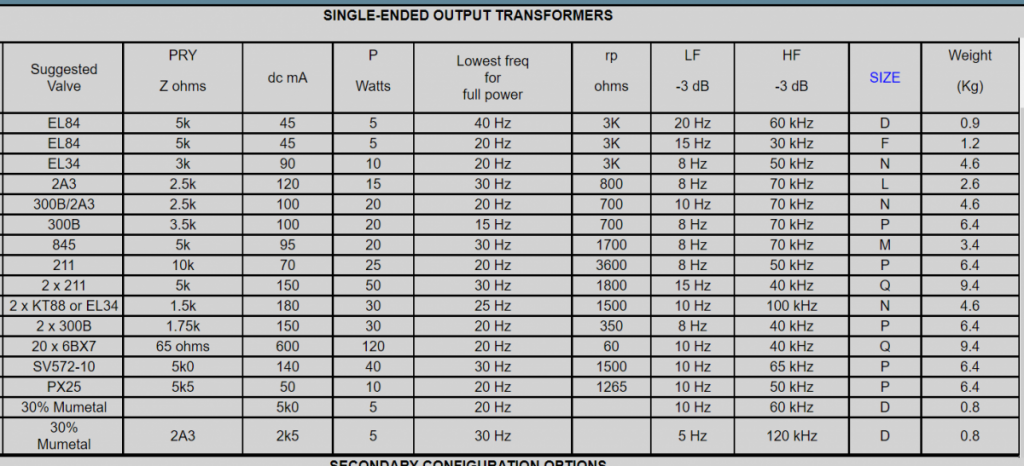

Weight at far right.

Logged

FullRangeMan

  • Volunteer
  • Posts: 20894
  • To whom more was given more will be required.
    • Never go to a psychiatrist, adopt a straycat or dog. On the street they live only two years average.
Re: Guide to Watts in Audio Transformer
« Reply #2 on: 27 Jun 2017, 07:06 pm »
Summary:
0.9kg = 5W EI
1.2kg = 7W EI
2.6kg = 20W EI
3.5kg = 20W Ogonowski 6C33 SE C core
5.0kg = 30W Hammond 16xx series
9.4kg = 50W EI

EDIT> add some details and links.
« Last Edit: 28 Jun 2017, 05:39 pm by FullRangeMan »
Logged

JakeJ

Re: Guide to Watts in Audio Transformer
« Reply #3 on: 27 Jun 2017, 10:39 pm »
This may be of some assistance. http://jensen-transformers.com/wp-content/uploads/2014/09/Audio-Transformers-Chapter.pdf

I did not read it as I am at work.
