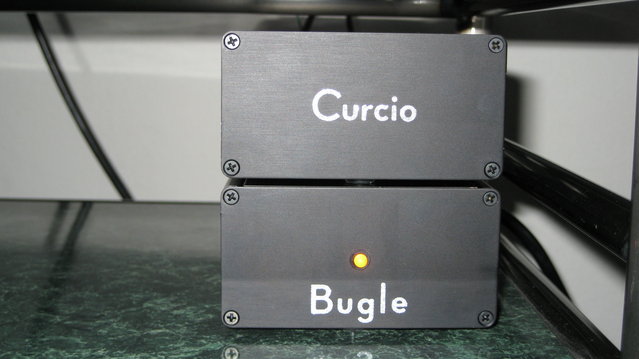

The BUGLE looks great! Where did you get the boxes? The only problem is that those blue LEDs will eventually drive you insane...jh

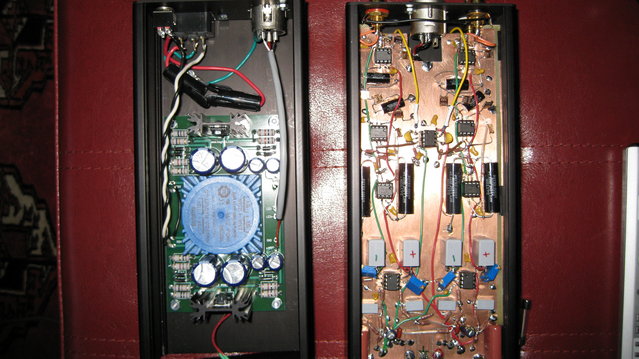

The boxes are really nice.I'd rotate the Bugle PCB to make the wires from the input as short as possible. This also allows to make all "signal" wires on one side and power wires on another and eliminates near parallel layout of power wires and the output wires.The blue LEDs are definitely simething that should be dimmed.

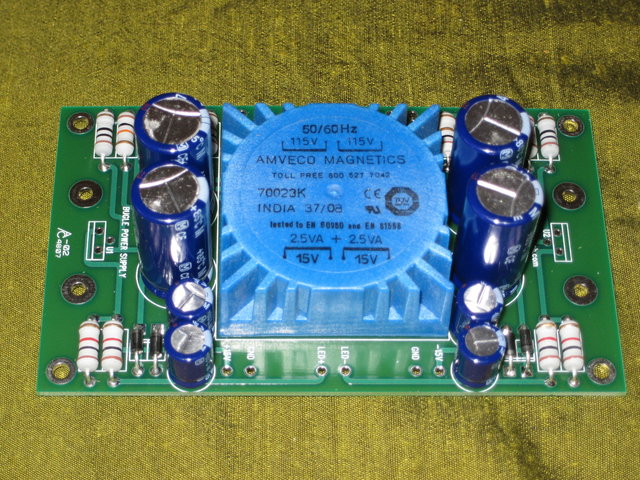

Awesome, I love it. Is the PS offered by Hagerman also

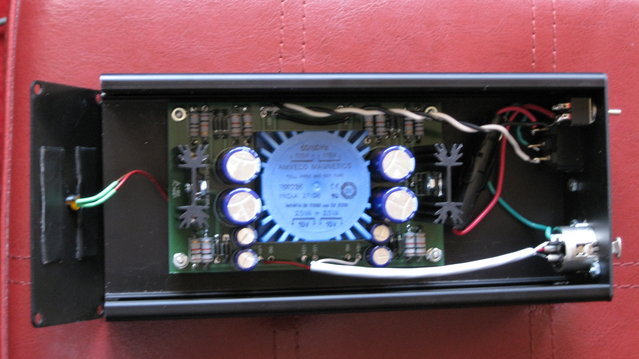

They are 5 pin XLR's. Jacks and connectors from ebay. Made the cables myself from my local surplus electronics store. Nothing fancy. Pin 1: +15v (TP1)Pin 2: gnd (TP5)Pin 3: chassis ground which was connected to the ground points on each box.Pin 4: gnd (TP7)Pin 5: -15v (TP10)
