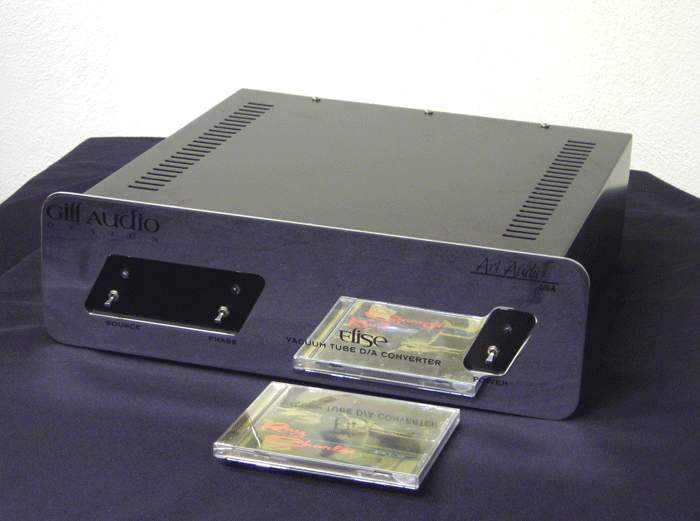

To aid in the flood recover, we have reduced the price of this full factory upgraded Elise DAC.
Includes the amorphous core transformers, upgraded to include one set of balanced outputs. Upgraded with 96kHz upsampling option. Like new condition. Rated 9/10 because of demo.

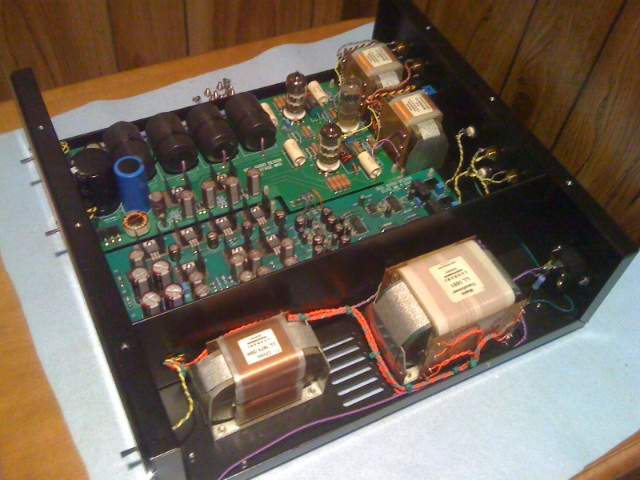

As seen in the lower picture, this unit contains balanced output transformers, main transformer and choke all by Lundahl. There are a total of 33 Black Gate capacitors, 15 Elna Silmic II capacitors, 2 V-Cap TFTF capacitors and a host of Dale/Vishay 1% resistors.
This is an exceptionally quiet unit when used with a CD transport of any type but can be noisy with some music servers.
Orignal box was lost in the flood but will be packed as good or better than original. DAC itself not effected at all by flood.
- Type: 24bit/96kHz DVD compatible vacuum tube digital to analogue converters
- Resolution:24-bit Burr-Brown DAC
- Sampling Frequency: 96kHz
- Distortion: 0.05%
- Output Impedance: 1K ohms (standard version), 400 ohm (LT version) @ 2.5V full output
- Frequency Response: 20Hz-20kHz <0.2dB
- Input Impedance: 75 ohms, 110 ohms (optional with AES/EBU)
- S/N Ratio: 90dB
- Tube Complement: 2 X 6DJ8/6922/7308, 1 X 6FQ7/6CG7
- Dimensions: 16.5" x 15" x 4.5" [ W x D x H ]
- Weight: 40 lbs. (standard version ), 43 lbs. ( LT version )
Regular price - $7,595
Selling Price $2,500 + shipping
