Re: Share pictures of your fullrange speakers thread
« Reply #80 on: 16 Jul 2011, 03:54 pm »
Well done! The "tableaux" looks very harmonious-- the white pickets, the speakers, and of course, the wine!
don

Poultrygeist

Re: Share pictures of your fullrange speakers thread
« Reply #81 on: 20 Jul 2011, 01:41 am »
After a carafe or two the Tubals really open up! :lol:

JRace

  • Full Member
  • Posts: 610
  • Greetings one and Everyone!
Re: Share pictures of your fullrange speakers thread
« Reply #82 on: 11 Aug 2011, 06:58 pm »

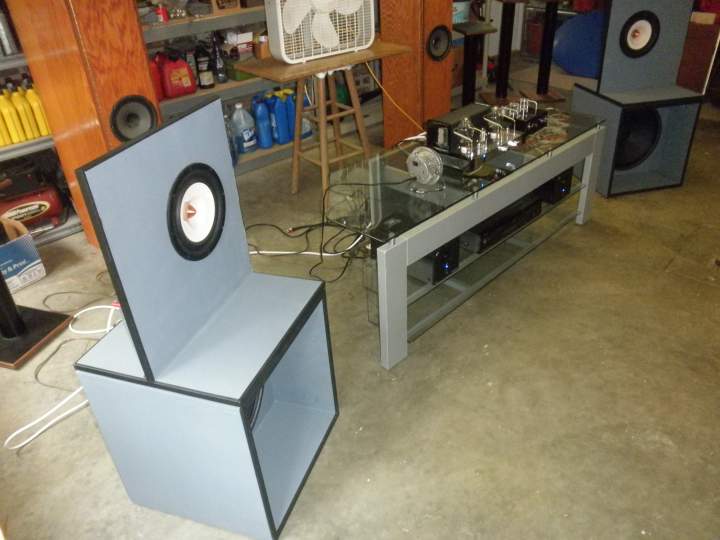

My Frugel Horn MK3 A7eN:


Just need to sand and stain em to finish...that will mean I have to disconect them from the stereo...and that won't be happening anytime soon! :D

Poultrygeist

Re: Share pictures of your fullrange speakers thread
« Reply #83 on: 11 Aug 2011, 08:48 pm »
JRace,

That's a great job on the Frugal Horn Mk3. Really handsome. I've built four so far and they're great in 5.1 but will be better if I can come up with a center channel. I went with the Fostex Fe126En.

PDR

  • Full Member
  • Posts: 787
  • May the best man win
Re: Share pictures of your fullrange speakers thread
« Reply #84 on: 11 Aug 2011, 09:03 pm »
I've built four so far..........

Man....I want to build a pair of these in the worst way.......dang work gets in the way.
This fall for sure......thinking a dark cherry to go with the rest of my diy speaks.

You guys do beautiful work....

Poultrygeist

Re: Share pictures of your fullrange speakers thread
« Reply #85 on: 12 Aug 2011, 02:41 pm »
My DIY Tang Band WE1808 over 15 inch Alpha H Frames, thanks to MJK





chrisby

  • Full Member
  • Posts: 772
Re: Share pictures of your fullrange speakers thread
« Reply #86 on: 12 Aug 2011, 05:25 pm »
JRace,

That's a great job on the Frugal Horn Mk3. Really handsome. I've built four so far and they're great in 5.1 but will be better if I can come up with a center channel. I went with the Fostex Fe126En.


If you don't already have an enclosure design for the center channel,  a QNDD  guess would be 4 liter or so, vent tuning circa 110Hz.


Both Fostex's "recommended" enclosures for this driver are not among their best.


Now, I only build these things, so don't ask me what modifications would be necessary to tuning, but it couldn't hurt to try this design

http://homepage.mac.com/tlinespeakers/FAL/box-plans/mFonken-0v999-map.pdf



Chamfers are optional, but if you're laying it sideways, I'd run them on the short edges


planet10

  • Industry Participant
  • Posts: 1468
  • Frugal-phile (tm)
    • planet10-hifi
Re: Share pictures of your fullrange speakers thread
« Reply #87 on: 12 Aug 2011, 05:45 pm »

If you don't already have an enclosure design for the center channel,  a QNDD  guess would be 4 liter or so, vent tuning circa 110Hz.


This enclosure is designed but not drawn, a response to seeing Fostex recommended BR which has a really ugly bass alignment. And to show that without helper woofers or a horn, you won't get bass out of an FE126.

Plans will be free for download.

dave

Poultrygeist

Re: Share pictures of your fullrange speakers thread
« Reply #88 on: 12 Aug 2011, 06:47 pm »
Thanks guys

ttan98

  • Full Member
  • Posts: 523
Re: Share pictures of your fullrange speakers thread
« Reply #89 on: 13 Aug 2011, 11:41 pm »
Hi,

My sealed 4" full ranger mounted in 4-5litre box. Use them as my desktop speakers. Sounds good to me, I am buying another pair which costs about $80, spl rated at 88dB at 4 ohm impedance. I can use tube amp(12watts) to drive them to fairly loud level.



jeffh

Re: Share pictures of your fullrange speakers thread
« Reply #90 on: 14 Aug 2011, 02:32 am »
ttan98,

What driver is that?

tabrink

  • Full Member
  • Posts: 469
  • lake life is good
Hoyt Bedfords
« Reply #91 on: 14 Aug 2011, 05:00 am »
By the fabulous Louis!
Near field heaven!


ttan98

  • Full Member
  • Posts: 523
Re: Share pictures of your fullrange speakers thread
« Reply #92 on: 14 Aug 2011, 10:18 am »
ttan98,

What driver is that?

I got them from Louis in China, currently they run out of stock, once available I will post their website here. BTW I am not associated with the seller.

JLM

  • Full Member
  • Posts: 9125
  • The elephant normally IS the room
Re: Share pictures of your fullrange speakers thread
« Reply #93 on: 14 Aug 2011, 10:53 am »
tabrink,

Thanks for the pic   :thumb:

The set up for my main rig is similar, but my desk is back about 10 feet, which gives enough room for a chair in front to provide unobstructed Cardas formulated nearfield listening (with speakers again the perscribed Cardas distance from front/side walls in a Cardas "Golden Cuboid" proportioned room).  With monoblocks wired directly to the drivers the image snaps into place from "the" chair (even 8 year olds have heard it and get "big eyes").

Raiderone

  • Jr. Member
  • Posts: 46
Re: Share pictures of your fullrange speakers thread
« Reply #94 on: 14 Aug 2011, 08:25 pm »
I got them from Louis in China, currently they run out of stock, once available I will post their website here. BTW I am not associated with the seller.

Would be interested in finding out more information (ts specs) about the driver.  Is that a whizzer cone?  Don't see very many 4" with whizzers.  Thanks.

aragon63

Re: Share pictures of your fullrange speakers thread
« Reply #95 on: 15 Aug 2011, 09:31 pm »

 My Audio Nirvana Super 8 Alnico in OB





Poultrygeist

Re: Share pictures of your fullrange speakers thread
« Reply #96 on: 16 Aug 2011, 12:02 am »
Those Super 8's look great but they'll take you to another level if you add some H Frame Alphas.

JohnR

Re: Share pictures of your fullrange speakers thread
« Reply #97 on: 16 Aug 2011, 07:09 am »
Hey that avatar looks familiar... ;)

JRace

  • Full Member
  • Posts: 610
  • Greetings one and Everyone!
Re: Share pictures of your fullrange speakers thread
« Reply #98 on: 3 Sep 2011, 01:33 am »

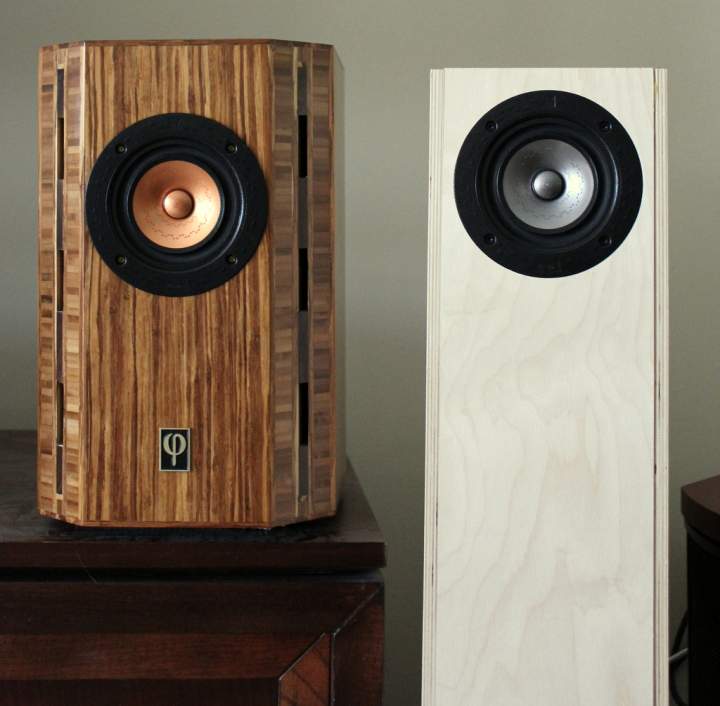

Planet 10 Neopolitin dMar-Ken7 beside my recently built 10 Frugel-Horn-MK3
Both with Mark Audio Alpair7eN.

jeffh

Re: Share pictures of your fullrange speakers thread
« Reply #99 on: 3 Sep 2011, 02:51 am »
JRace,
Very nice.  Can you describe the difference in sound you get from the dMar-Ken7 and Frugel-Horn-MK3?
