New 8in OB H-Frame servo subs cabinets

0 Members and 2 Guests are viewing this topic. Read 8367 times.

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #40 on: 23 Oct 2023, 08:15 pm »
And how soon til you replace the foundation to your house? Sheesh, all that shaking will register on the Richter scale for sure!

Luckily the house and audio room are on a 6in slab of concrete.  Will be interesting to hear the results! :)

Maybe use it for massage therapy as well! :)

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #41 on: 30 Oct 2023, 05:26 pm »

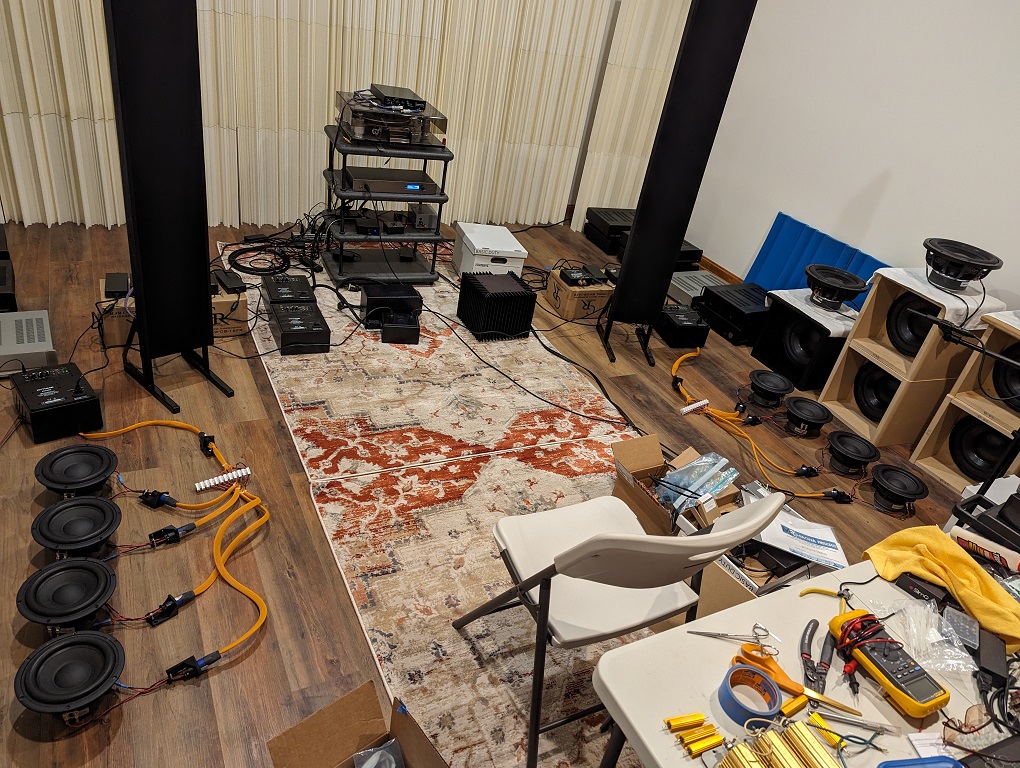

Both 4x8in servo sub wiring harnesses are complete and working.

The two 4x8in modular sub cabinets are to be finished and deliverd Tuesday.  Then time to install the servo drivers and start measurements and listening.



rollo

  • Industry Participant
  • Posts: 5423
  • Rollo Audio Consulting -
Re: New 8in OB H-Frame servo subs cabinets
« Reply #42 on: 30 Oct 2023, 05:56 pm »
 The Scientist at work

charles

sandbagger

  • Full Member
  • Posts: 304
Re: New 8in OB H-Frame servo subs cabinets
« Reply #43 on: 30 Oct 2023, 07:35 pm »
You forgot the "MAD" part :P
The Scientist at work

charles

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #44 on: 30 Oct 2023, 07:54 pm »
BWAHAHAHAHAHAHA!   :D

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #45 on: 2 Nov 2023, 04:03 pm »

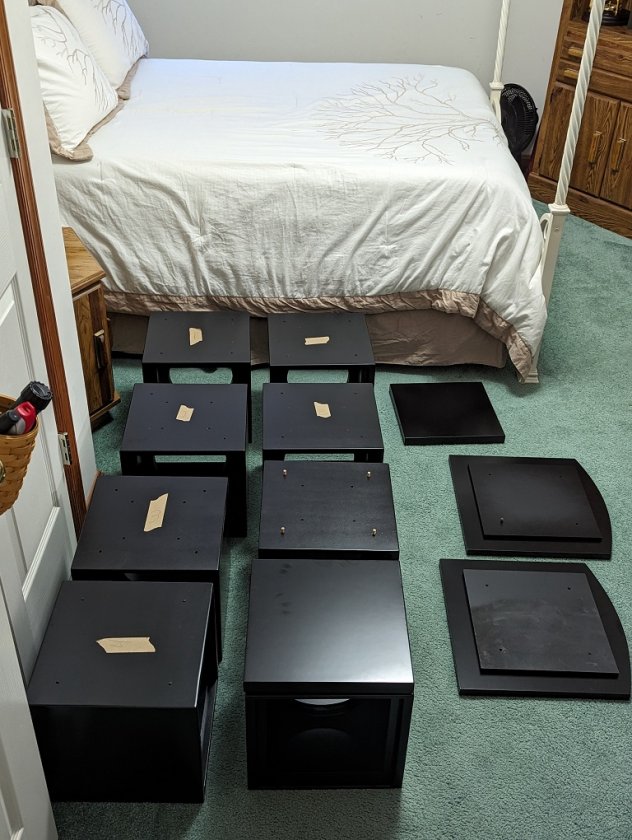

The 4x8" servo sub H-Frames are back from painting.   These were done with cabinet grade semigloss black paint, not the automotive Hot Rod Black like the 3x12" cabinets.

Now to install the drivers and wiring to test and listen.



mix4fix

  • Volunteer
  • Posts: 2198
  • I reject your music, and substitute my own.
Re: New 8in OB H-Frame servo subs cabinets
« Reply #46 on: 2 Nov 2023, 06:56 pm »
Make your bed. We should be able to bounce a quarter.

 :nono:

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #47 on: 2 Nov 2023, 07:36 pm »
Talk to my wife about that.  She did it.   :nono:

aldcoll

  • Full Member
  • Posts: 749
  • Champagne Taste on a Water Budget
Re: New 8in OB H-Frame servo subs cabinets
« Reply #48 on: 2 Nov 2023, 11:16 pm »
How many pizza boxes fit under the bed?

Alan

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #49 on: 3 Nov 2023, 12:01 am »
At least four.

Four of the pizza boxes make two 250W Class D monoblocks amps. :D

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #50 on: 3 Nov 2023, 02:06 am »

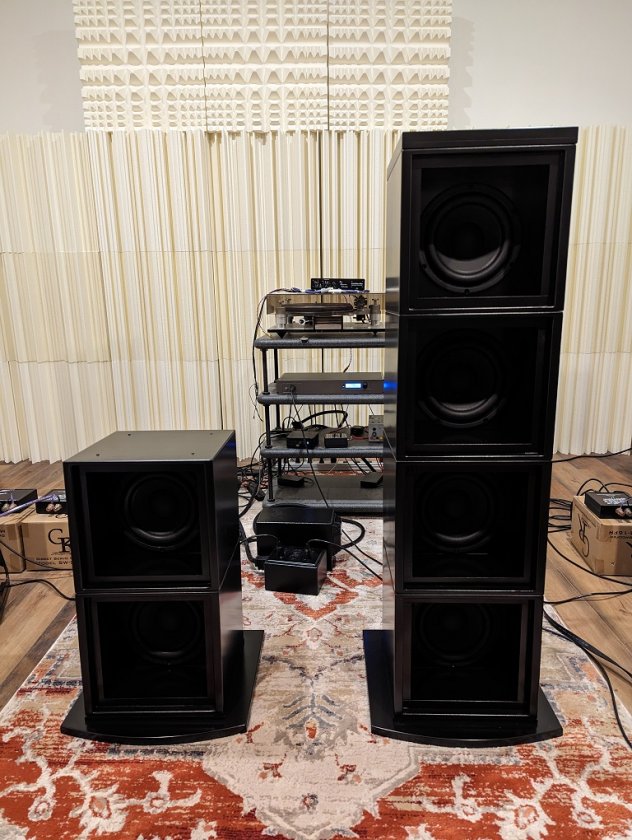

And... servo sub stack #1 is complete.

Servo sub stack #2 is half done.  Easy to see how the modules stack.

Stack #2 will be complete tomorrow then testing and listening.  :)



HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #51 on: 3 Nov 2023, 04:37 pm »

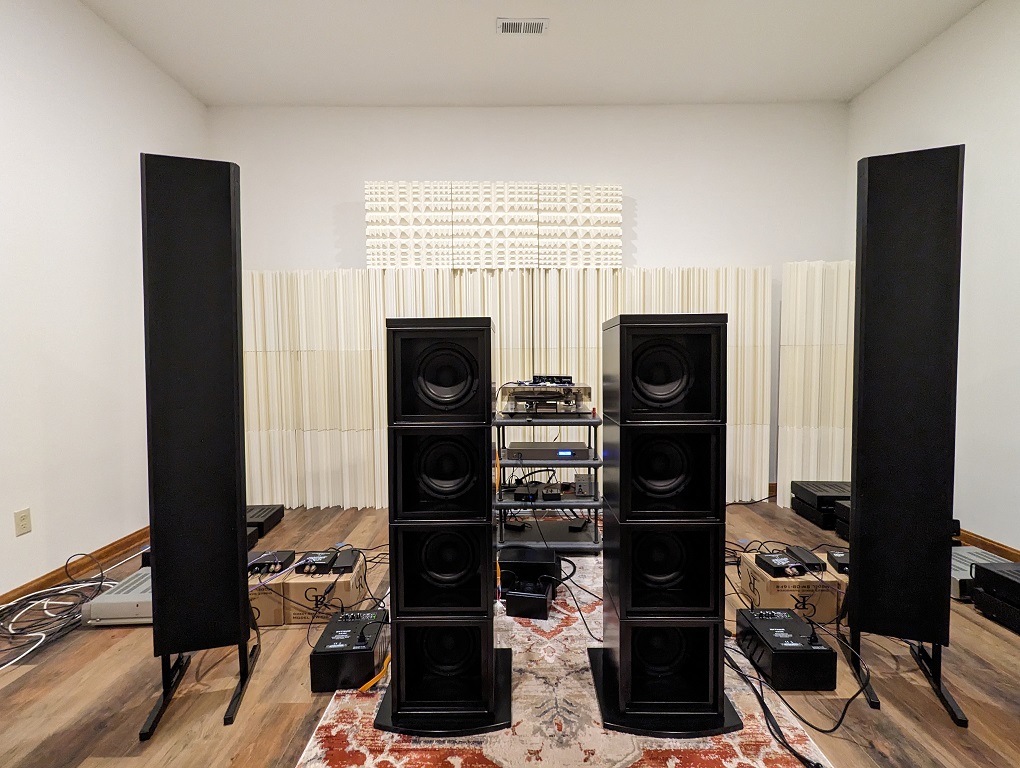

The two open baffle 4x8in modular sub stacks are complete and now making music.

Will be doing another round of measurements to integrate the MG10/QR's and sub stacks to get ready for CAF2023.



Tyson

  • Full Member
  • Posts: 11056
  • Audio - It's all a big fake.
Re: New 8in OB H-Frame servo subs cabinets
« Reply #52 on: 3 Nov 2023, 05:13 pm »
Question - how do you make a wimpy looking speaker more badass?

Answer - add intimidating looking subwoofer towers.

:thumb:

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #53 on: 3 Nov 2023, 05:26 pm »
 :weights: :beer:

jmimac351

  • Jr. Member
  • Posts: 281
  • Chief Instructor - ChinTrackDays.com
Re: New 8in OB H-Frame servo subs cabinets
« Reply #54 on: 15 Nov 2023, 12:21 am »
How low would stacks of 3 of these 8" woofers play, rather than stacks of 4?

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #55 on: 15 Nov 2023, 12:46 am »
They still play to 30Hz, but they will be 3dB lower in max SPL.

jmimac351

  • Jr. Member
  • Posts: 281
  • Chief Instructor - ChinTrackDays.com
Re: New 8in OB H-Frame servo subs cabinets
« Reply #56 on: 15 Nov 2023, 12:57 am »
They still play to 30Hz, but they will be 3dB lower in max SPL.

Thank you.  And I think I see that each module is 11.5"H.  So a stack of 3 would be ~34.5"H?

HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #57 on: 15 Nov 2023, 01:23 am »
With the base and top about 37in.  Those can be adapted if shorter subs are needed.  They add about 2in.


HAL

Re: New 8in OB H-Frame servo subs cabinets
« Reply #58 on: 16 Nov 2023, 01:45 pm »

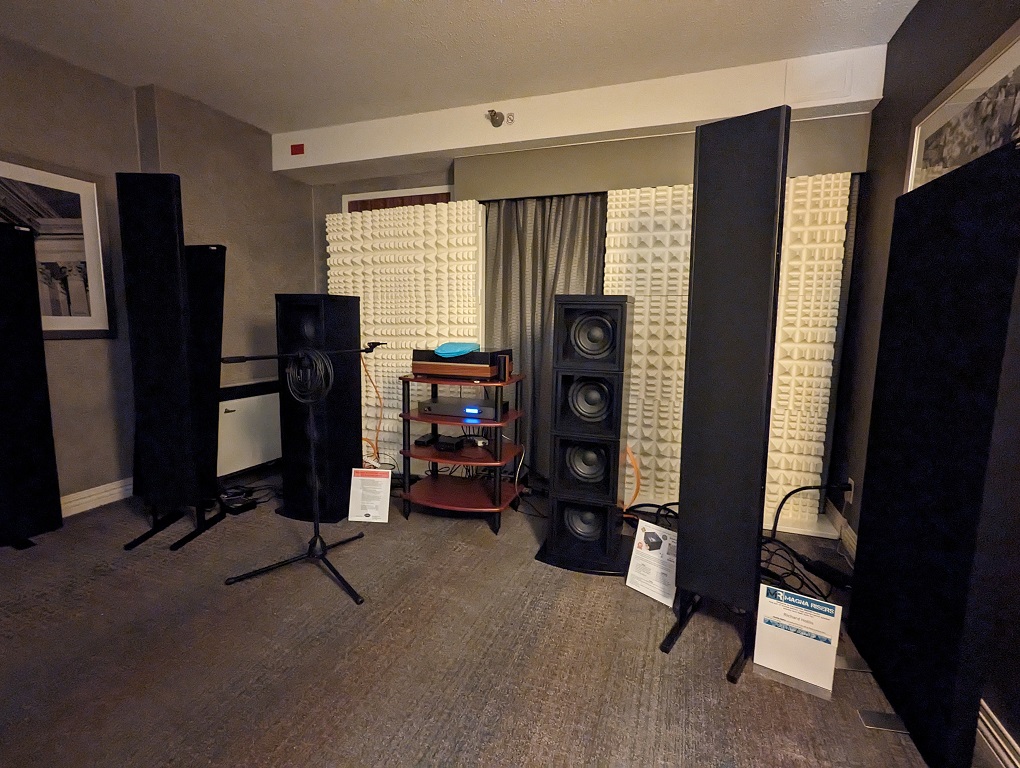

Here are the 4x8in servo subs at CAF2023 last weekend.

Even the Magnepan folks came in for a listen to their upgraded 30 year old pair of MG10/QR's.  We got Magnepan buttons for the room. :)
