Too much anti skate damaging my carts...

0 Members and 1 Guest are viewing this topic. Read 372 times.

sHERO

  • Jr. Member
  • Posts: 12
Too much anti skate damaging my carts...
« on: 4 Apr 2021, 10:55 pm »
Regards all.

I have a Well Tempered turntable, square motor, and even with the antiskate adjustment to minimum (the arms close together), the cantilever of 2 cartridges have become askewed as if there is too much antiskate force. One Dynavector XX2 and on Transfiguration which I already sent in for repair and is again having the same problem....   :cry:

Any idea on what might be causing such and how to fix it?

my arm has the white plastic disk submerged in the silicone. the position of the disk can be adjusted so that the filament attaching point are perpendicular to the arm length or on a different position....  where should it ideally be set?

 Thanks..

RPM123

  • Full Member
  • Posts: 570
Re: Too much anti skate damaging my carts...
« Reply #1 on: 4 Apr 2021, 11:30 pm »
Unclear from your description. Can you attach photos of your set up? Perhaps too much silicone?

sHERO

  • Jr. Member
  • Posts: 12
Re: Too much anti skate damaging my carts...
« Reply #2 on: 5 Apr 2021, 03:02 am »
thanks for your response.

attached a picture of an arm like mine.



SET Man

Re: Too much anti skate damaging my carts...
« Reply #3 on: 5 Apr 2021, 03:36 am »
Hey!

   This doesn't sound right. If the anti skating is way too high the cart would not track right.

   Looking straight at the cart, does the cantilever bent toward the center of the record? I only noticed this once with an old turntable with auto return, the cantilever bent to the left toward the center of the record. I thought it was due to the way of the auto return lift up the cart and pull it out to return it to the side after many times.

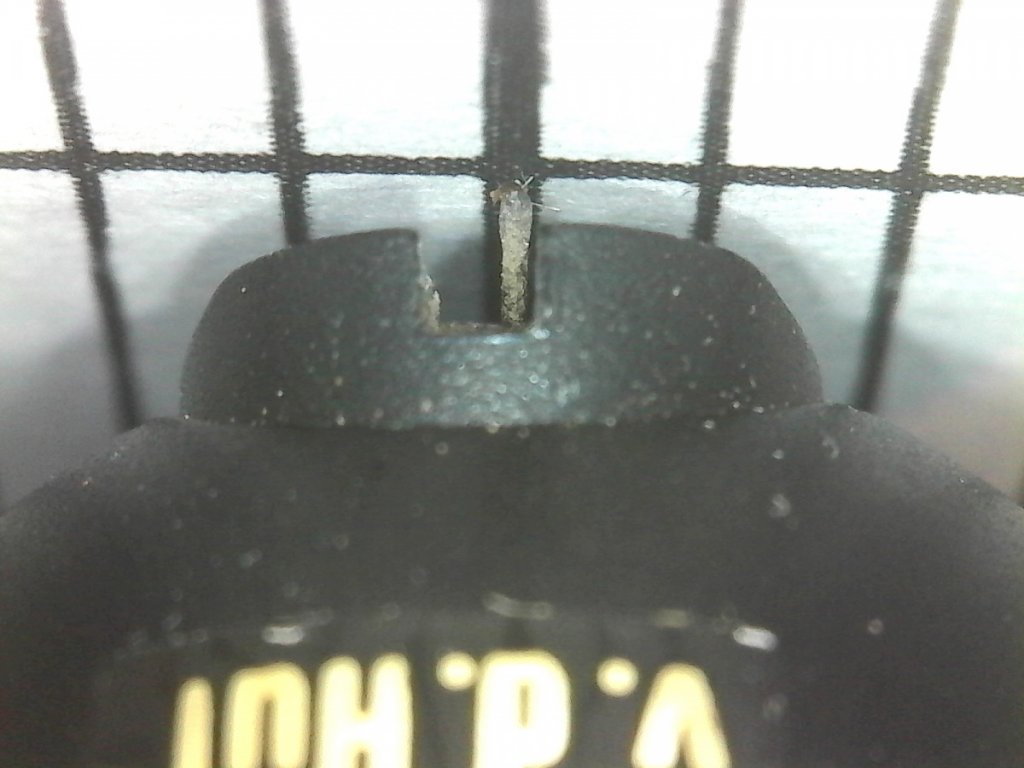

    A picture of the cart from the front would be more helpful.

Buddy

sHERO

  • Jr. Member
  • Posts: 12
Re: Too much anti skate damaging my carts...
« Reply #4 on: 5 Apr 2021, 03:51 am »




SET Man

Re: Too much anti skate damaging my carts...
« Reply #5 on: 5 Apr 2021, 04:11 am »
Hey!

  So, it looks like it pull toward the center. I think your arm's movement is too restricted. I would check the viscosity of the silicone and how much you submerge the disc.

   With the cantilever like that the channel balance would be off for sure. Anyway, hope someone with more experience with that particular arm would jump in to help here.

Buddy

sHERO

  • Jr. Member
  • Posts: 12
Re: Too much anti skate damaging my carts...
« Reply #6 on: 5 Apr 2021, 04:16 am »
Thanks for the response.

I was just thinking the same, maybe the arm movement is too restricted when compared to the horizontal movement required when playing the record...


RPM123

  • Full Member
  • Posts: 570
Re: Too much anti skate damaging my carts...
« Reply #7 on: 5 Apr 2021, 11:25 pm »
Looks like an older arm version. Try removing some silicone and/or get some newer silicone. Also, have you checked tracking force? Does your arm run freely when in the record run out groove? You also may want to try contacting the company and ask for advice. Good luck!

sebrof

Re: Too much anti skate damaging my carts...
« Reply #8 on: 6 Apr 2021, 12:02 am »
Table is perfectly level?

sHERO

  • Jr. Member
  • Posts: 12
Re: Too much anti skate damaging my carts...
« Reply #9 on: 7 Apr 2021, 03:24 am »
Yes its the original type of arm....

The table is leveled, the cartridges are setup with proper tracking force using a digital scale and I have not noticed any problem when the cart is traversing in the runout groove.

The silicone is of the correct consistency, that is why the idea that maybe the lower paddle might need to be submerged in less silicone so that there might be less resistance to horizontal movement seems to me as a possible cause.

I sent a message to Mike Pranka, but have not received a response yet.

I have digital copies of the  tonearm setup instructions, I will read them again, maybe there is some helpful info there.

gagamut

Re: Too much anti skate damaging my carts...
« Reply #10 on: 12 Apr 2021, 03:43 am »
Want to know you how to determine the antiskate is right?

Sam

sHERO

  • Jr. Member
  • Posts: 12
Re: Too much anti skate damaging my carts...
« Reply #11 on: 12 Apr 2021, 03:27 pm »
Yes I would.... :D
