Re: Klipsch RP-600M Upgrade
« Reply #160 on: 17 May 2020, 07:26 am »
Hi Danny,

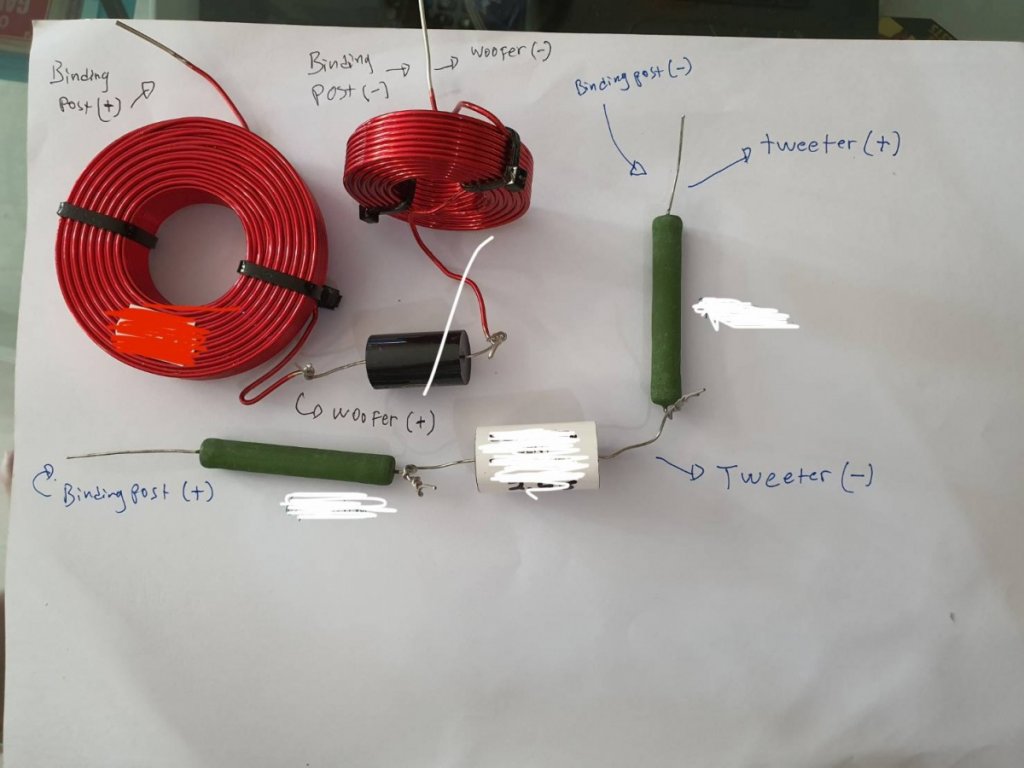

Is this asslembly correct?
Are the cables (which i wrote) correct?


« Last Edit: 18 May 2020, 03:58 pm by Hans.jakjj »

Audio Mo

  • Newbie
  • Posts: 2
Re: Klipsch RP-600M Upgrade
« Reply #161 on: 18 May 2020, 11:12 am »
KLIPSCH RP-6000F
[Polish] https://audio.com.pl/testy/stereo/kolumny-glosnikowe/3193-klipsch-rp-6000f

https://www.translatetheweb.com/?ref=TVert&from=&to=en&a=https%3A%2F%2Faudio.com.pl%2Ftesty%2Fstereo%2Fkolumny-glosnikowe%2F3193-klipsch-rp-6000f

Graphs in the PDF: https://audio.com.pl/files/lmw/2677-Klipsch_RP-6000F.pdf

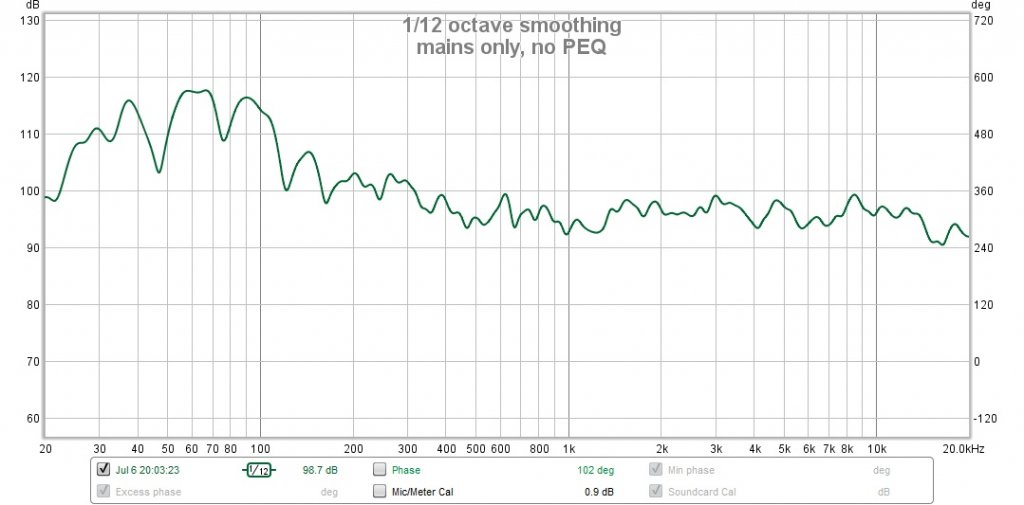

Figure. 1. processing characteristics throughout the acoustic band, on different axes




Figure. 2. charakteystics of the impedance module.


Rated impedance [Ω] 4
Sensitivity (2.83 V / 1 m) [dB] 89
Rated power [W] 125
Dimensions (H x W x D) [cm] 100.6 x 23.7 x 43.2
Mass [kg] 22

Hi Everyone

I'm new to this forum. This is an excellent topic and thanks to Dannie for his work. I would like to try to upgrade my Klipsch RP-260f and RP-440c, I know the way to do this is to send them to Dannie to measure them and design crossover accordingly. The cost of doing so is quite prohibitive.

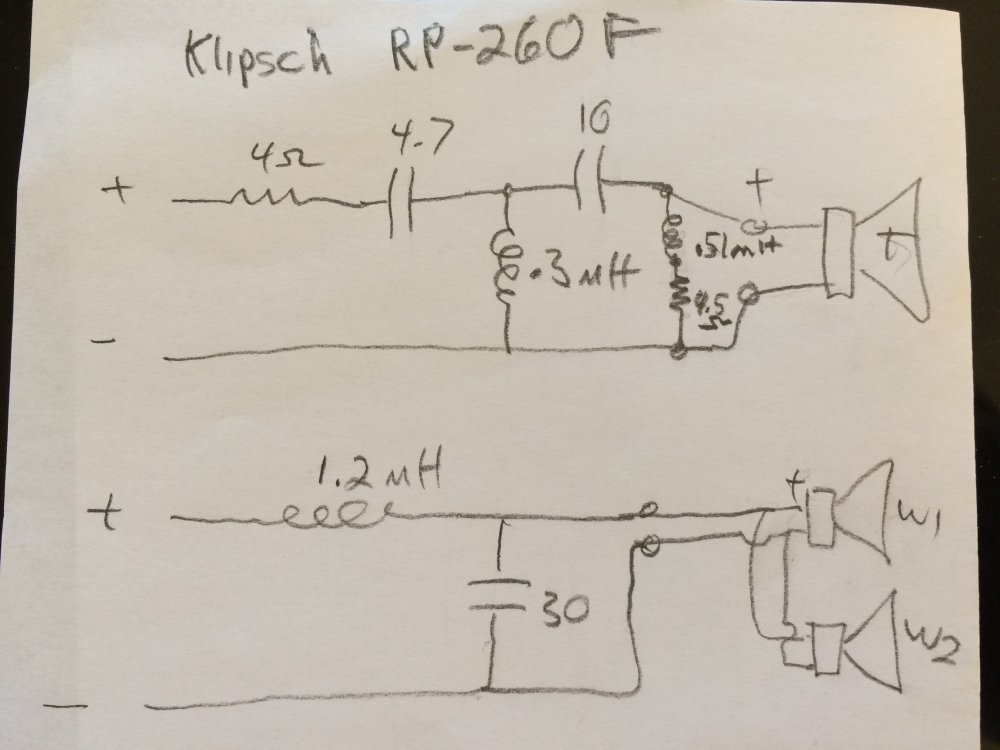

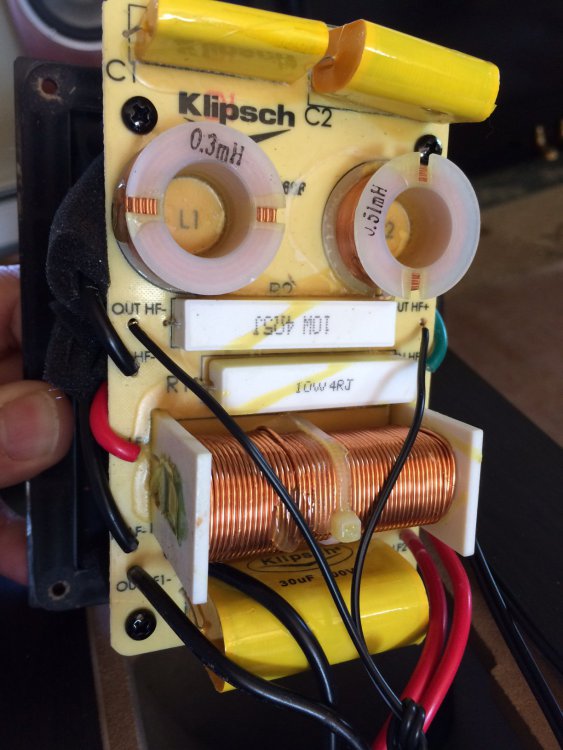

The RP260f is quite similar to RP6000f and it uses the same crossover (attached) I would like to upgrade the crossover similarly to Dannie did to RP8000f and RP504c to correct this dip. I measured it with REW (in room) and the SPL was similar. Now thanks to Maty who posted the measurements of the RP6000f and I'm 90% sure they are the same if not identical to RP260f.

With that assumption in mind and information available (measurements and crossover), Dannie can you suggest something? I know it's a long shot.







Danny Richie

  • Facilitator
  • Posts: 13094
    • http://www.gr-research.com
Re: Klipsch RP-600M Upgrade
« Reply #162 on: 18 May 2020, 02:07 pm »
Hi guys!

There was no mention about the filling, it should go back or not. I tried without, then quickly decided to stuff some inside. I ended up even stuff the bass port.
The high tones.. nobody mentioned, that at first will be "coarse". I gave it some time, and looks like it comes back to "fine".

Is this normal? Did I something wrong?  :scratch:

Go back and add in all of the factory insulation, or replace it all with fiberglass insulation.

And it will take those caps over 100 hours to settle in.

Danny Richie

  • Facilitator
  • Posts: 13094
    • http://www.gr-research.com
Re: Klipsch RP-600M Upgrade
« Reply #163 on: 18 May 2020, 02:15 pm »
Hi Everyone

With that assumption in mind and information available (measurements and crossover), Dannie can you suggest something? I know it's a long shot.

My experience is that every one of them needed to be redesigned to fix the issues we see. So I am afraid I can't be much help to you without having one here to design a new crossover for it.



wowarning

  • Jr. Member
  • Posts: 8
Re: Klipsch RP-600M Upgrade
« Reply #164 on: 21 May 2020, 03:11 am »
Currently putting together the crossovers for the rp600m’s and just want to confirm something before soldering - none of the components need to go into the circuit in a particular direction, correct? I understand the inductors need to be oriented in a way that the fields don’t interfere with each other, but does it matter where you attach the outer coil vs the inner coil? Caps and resistors can go in either way as well? Thanks in advance!

Danny Richie

  • Facilitator
  • Posts: 13094
    • http://www.gr-research.com
Re: Klipsch RP-600M Upgrade
« Reply #165 on: 21 May 2020, 12:58 pm »
Currently putting together the crossovers for the rp600m’s and just want to confirm something before soldering - none of the components need to go into the circuit in a particular direction, correct? I understand the inductors need to be oriented in a way that the fields don’t interfere with each other, but does it matter where you attach the outer coil vs the inner coil? Caps and resistors can go in either way as well? Thanks in advance!

All of those parts can be used in either direction, but be consistent and run them in the same direction on both speakers.

mlundy57

Re: Klipsch RP-600M Upgrade
« Reply #166 on: 21 May 2020, 02:49 pm »
For caps and resistors I run the signal left to right in the direction of the writing. With inductors I have the signal go into the center of the coil and out the outside. That way the orientations are always the same and it’s easy to remember

gringo117

  • Jr. Member
  • Posts: 6
  • Keep on keeping on
Re: Klipsch RP-600M Upgrade
« Reply #167 on: 24 May 2020, 04:39 pm »

I have a question about crossover upgrade (not particularly of this speaker), but in general it may relate to many other speakers.
If the high pass filter has an air core coil (very thin gauge) as a 2nd order.

What would be the benefit of upgrading that thin gauge to a thicker gauge air coil (with the same inductance value)? In other words: How would the change of resistance of the inductor in the shunt change the behavior of the tweeter?

I would expect higher clarity: slope would be a bit steeper and therefore tweeter would less operate in the frequencies not ideal for it. And it would be more in line for the shunt inductance value purpose.
I am correct in my assumption?
If not then:
Would there be a need to compensate it by adding a resistor after the coil (covering the difference)? What would be the benefit then?


Danny Richie

  • Facilitator
  • Posts: 13094
    • http://www.gr-research.com
Re: Klipsch RP-600M Upgrade
« Reply #168 on: 26 May 2020, 01:02 pm »
I have a question about crossover upgrade (not particularly of this speaker), but in general it may relate to many other speakers.
If the high pass filter has an air core coil (very thin gauge) as a 2nd order.

What would be the benefit of upgrading that thin gauge to a thicker gauge air coil (with the same inductance value)? In other words: How would the change of resistance of the inductor in the shunt change the behavior of the tweeter?

I would expect higher clarity: slope would be a bit steeper and therefore tweeter would less operate in the frequencies not ideal for it. And it would be more in line for the shunt inductance value purpose.
I am correct in my assumption?
If not then:
Would there be a need to compensate it by adding a resistor after the coil (covering the difference)? What would be the benefit then?

A coil is basically a non-linear resistor. A capacitor is the same.

In the lowest ranges the resistance of a coil is the dcr. So gauge can slightly matter. As frequency increases the resistance increases from the inductance.

In a tweeter circuit the capacitor is creating more resistance down low. So the lower dcr of the inductor never really comes into play. The response of the circuit is the same regardless of the gauge.

Could it still sound different to some degree? Yeah, it might. Everything matters to some degree. But we are dealing with extreme subtlety.

gringo117

  • Jr. Member
  • Posts: 6
  • Keep on keeping on
Re: Klipsch RP-600M Upgrade
« Reply #169 on: 26 May 2020, 05:19 pm »

Thank you for the reply. It is very helpful. I was considering the change of the coil to a thicker one, but if we are talking about extreme subtlety and not about removing a bad/not intended characteristic, because of the cheaper part, I will thrice  consider the change. First because of the cost of the new coil, second space in the speaker for the XO (convenience) and third the speakers are not that fancy or other of my hifi components, that could benefit from the change. But when the mood strikes you, who knows.  :D

Of course I am changing the coil in the woofer and the capacitor in the tweeter and the resistors in the direct path to the speakers. I was just wondering about that coil in the high pass.

Thanks again.

Tyson

Re: Klipsch RP-600M Upgrade
« Reply #170 on: 26 May 2020, 05:23 pm »

Thank you for the reply. It is very helpful. I was considering the change of the coil to a thicker one, but if we are talking about extreme subtlety and not about removing a bad/not intended characteristic, because of the cheaper part, I will thrice  consider the change. First because of the cost of the new coil, second space in the speaker for the XO (convenience) and third the speakers are not that fancy or other of my hifi components, that could benefit from the change. But when the mood strikes you, who knows.  :D

Of course I am changing the coil in the woofer and the capacitor in the tweeter and the resistors in the direct path to the speakers. I was just wondering about that coil in the high pass.

Thanks again.

The quality of the copper in the coil matters because your signal is passing through it.  The higher the quality, the better.  As for gauge, my rule of thumb is 12ga for the woofer circuit, and usually 16ga for the tweeter circuit.  Although gauge seems less important that copper quality.
