[Rick Craig]

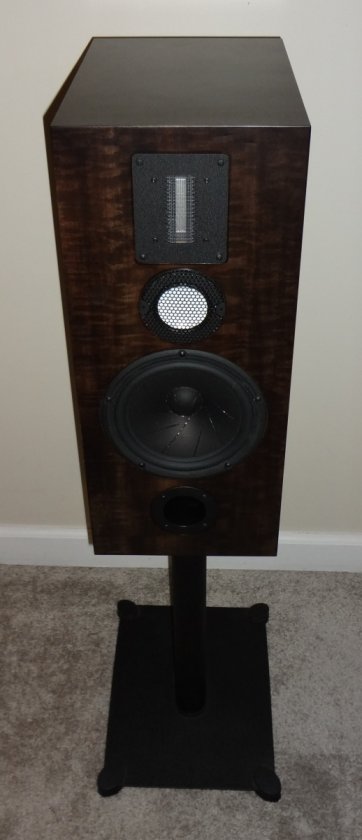

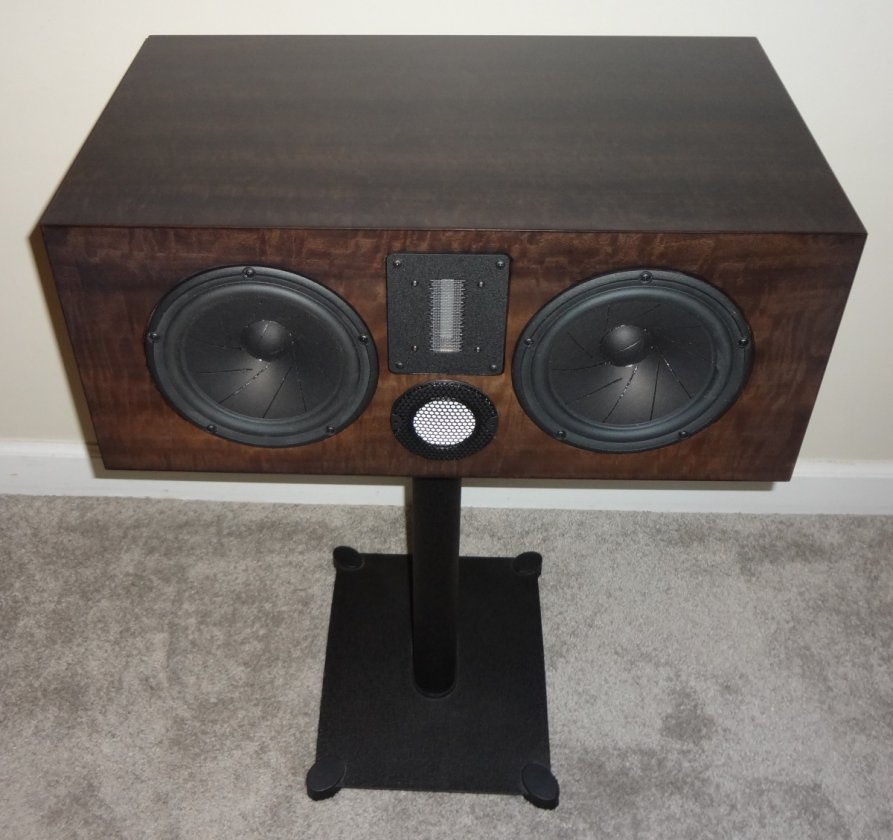

L/C/R and surrounds with Scan-Speak Revelator woofers, Accuton dome mids, and RAAL ribbon tweeters.

[Rick Craig]

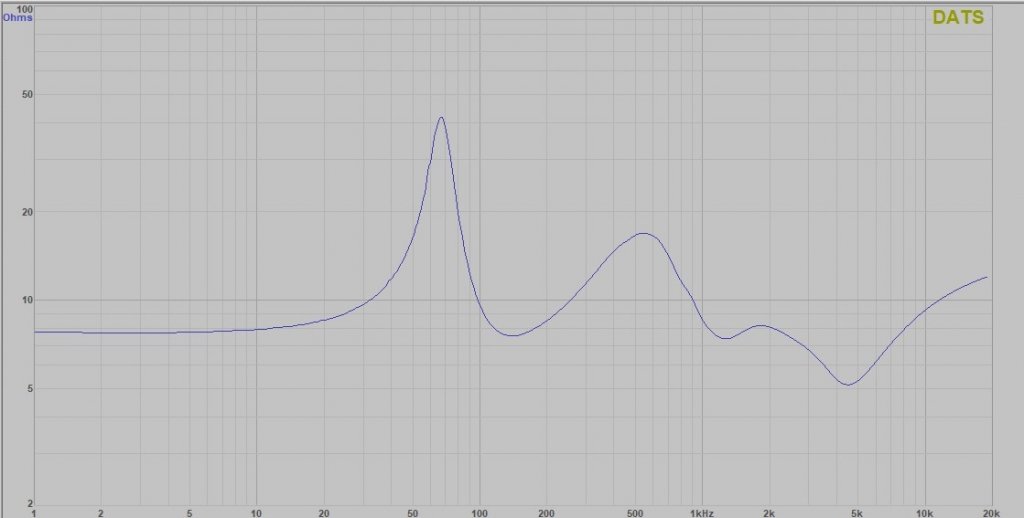

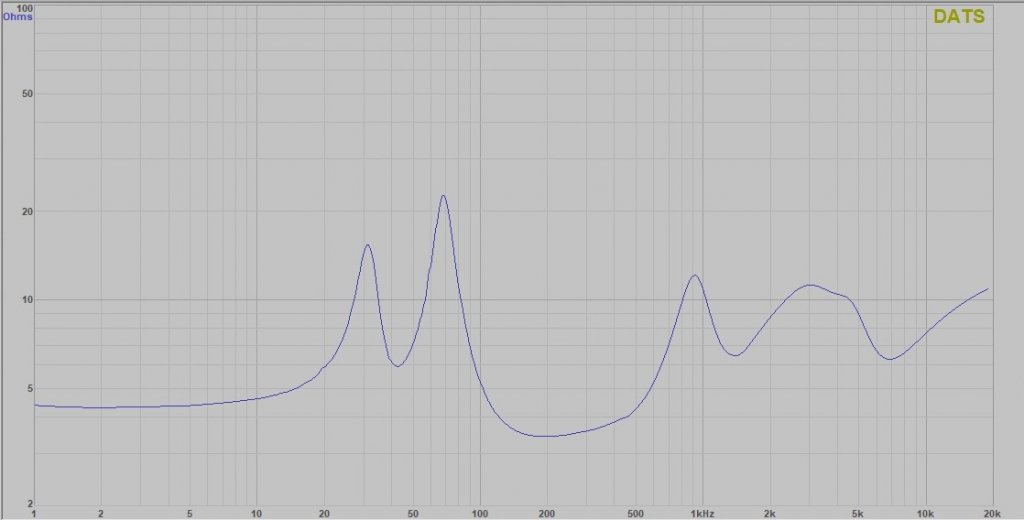

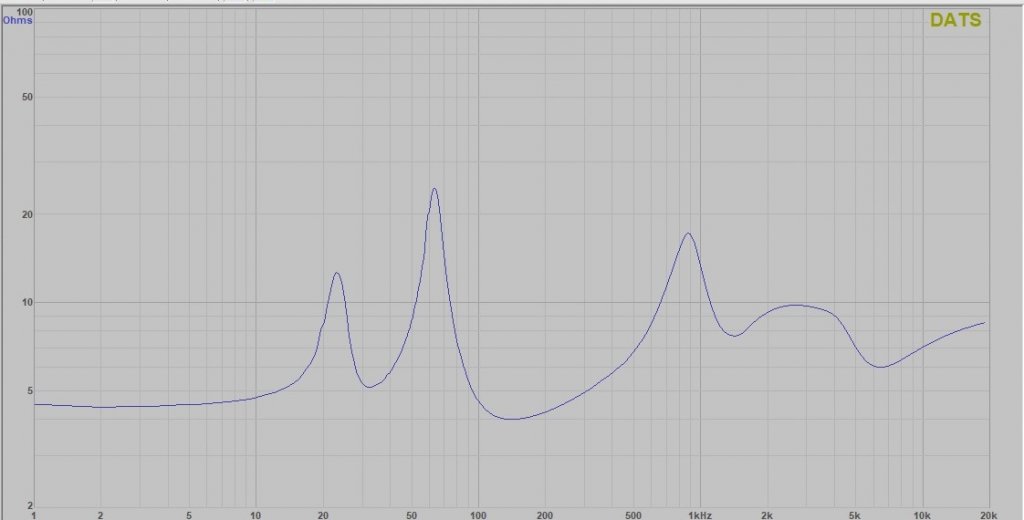

Impedance graphs...

CC




L/R




Surrounds

[mresseguie]

Rick,

What are the advantages and/or disadvantages of changing the positions of the midrange and tweeter? What were your intentions in doing this?

I'm not judging, mind you - just curious.

[Rick Craig]

Rick,

What are the advantages and/or disadvantages of changing the positions of the midrange and tweeter? What were your intentions in doing this?

I'm not judging, mind you - just curious.

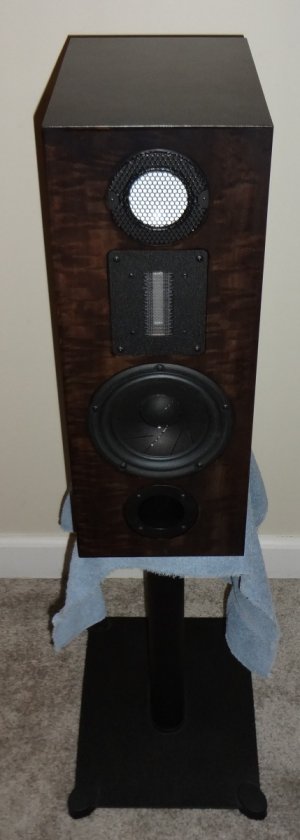

The owner requested that in order to have the surround tweeters closer to his listening angle. Once I complete the measurements I can comment more of the difference. The surround woofer is smaller than the L/R and that makes the inversion easier to do with the crossover.

[Rick Craig]

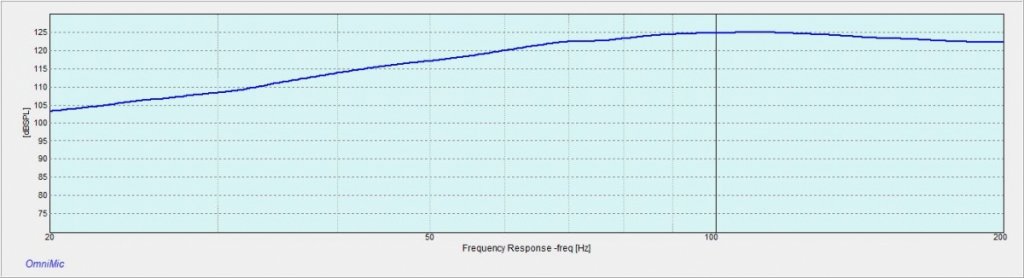

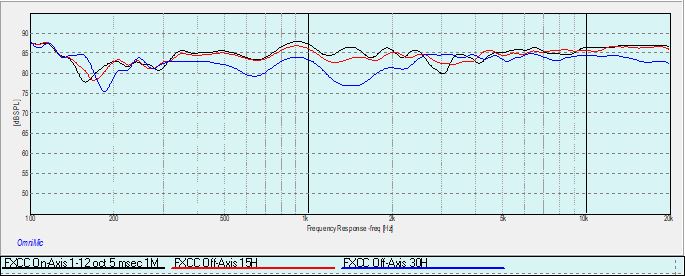

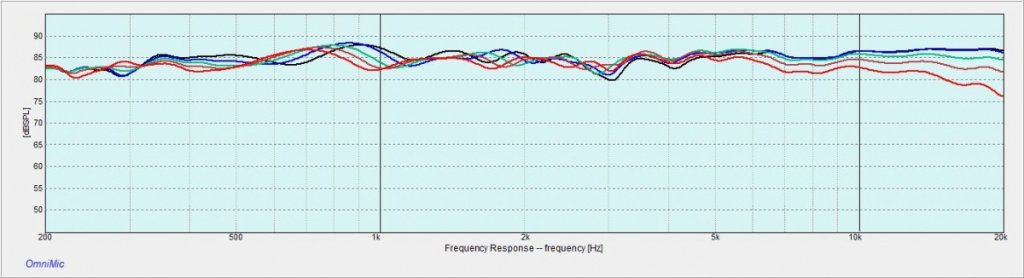

Center channel response graphs, both vertical and horizontal, as well as the nearfield bass response.

[ColSanderz]

Man, I bet this is going to sound splendid for a home theater setup. And probably for music as well!

Outta curiosity, how much does the whole setup run (L/R, center and surrounds)?

[Rick Craig]

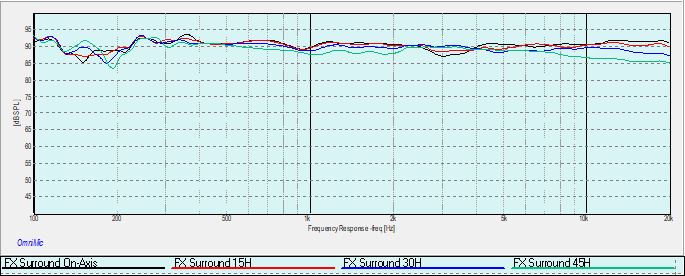

Surround graphs...

On-axis and 15,40,45 degrees off-axis horizontally.

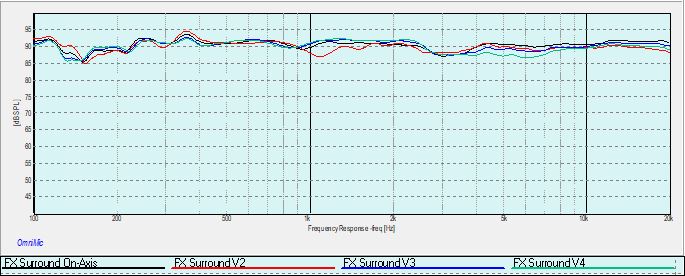

Vertical Reponse (V1/on-axis, V2/woofer axis, V3/midrange axis, and V4/above the midrange (2") from 40" distance.

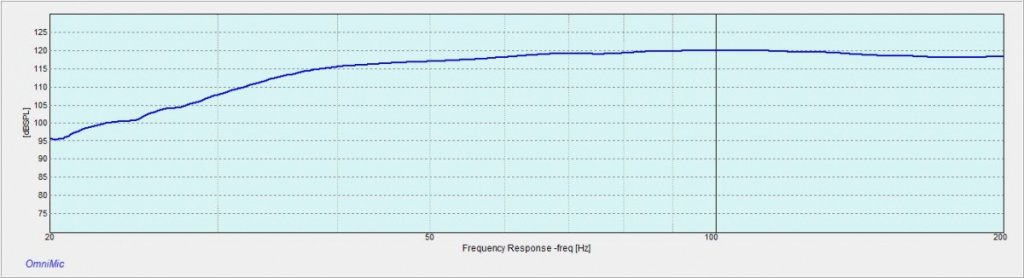

Nearfield bass response summing the woofer and port responses together.

[Rick Craig]

Man, I bet this is going to sound splendid for a home theater setup. And probably for music as well!

Outta curiosity, how much does the whole setup run (L/R, center and surrounds)?

Yes, a great combination of music / HT. The entire system for a 5.1 system (minus the subs) is $12,000 including shipping in the USA.

[Rick Craig]

Rick,

What are the advantages and/or disadvantages of changing the positions of the midrange and tweeter? What were your intentions in doing this?

I'm not judging, mind you - just curious.

Here's the on-axis and horizontal response.
