New DMC•1 Digital Music Console (music player)

0 Members and 1 Guest are viewing this topic. Read 1207 times.

CIAudio

New DMC•1 Digital Music Console (music player)
« on: 25 Jul 2019, 11:36 pm »
Our DMC•1 Digital Music Console is now getting close to production, so I thought it would be a good time to start a thread.

What is it? It’s my idea of what a digital music player should be.
There are several options on the market, but none quite like the DMC•1.

The DMC is a headless design, meaning it has no screen or controls. It has a built-in graphical user interface that can be accessed from any web browser. We call it a console as there is no music storage or CD drive, instead it uses inexpensive USB devices that can be easily removed/replaced by the customer.
It can be used stand-alone file player by creating a HotSpot, and playing audio files from a USB storage device.
It can also be connected to your local network to stream internet radio, Tidal, Qobuz, and music stored on NAS or shared drives.
4 USB ports allow direct connection of music drives, USB Dac, and even CD drive.
With addition of a USB CD drive, DMC becomes a reference quality CD player and can also save tracks in .flac format.

The internal design starts with multiple power supplies and 6 individually regulated outputs to power the quad core CPU, clocks, digital circuitry, and analog stages. There is also a dedicated 5V output port to power a CD drive.

32 bit/768k dac with dsd, single-ended and balanced outputs, ultra-low jitter femto clocks.
Price will be $1595 and will have an optional matching USB CD Transport.

That’s it for now... next I’ll post some screenshots of the software on various devices.
« Last Edit: 27 Jul 2019, 02:09 pm by CIAudio »

dminches

Re: New DMC•1 Digital Music Console (media player).
« Reply #1 on: 26 Jul 2019, 11:17 am »
Dusty, can you provide more details on the software side?  Can you run Roon or Jriver?  HQPlayer?  What audio software does it comes with?

CIAudio

Re: New DMC•1 Digital Music Console (media player).
« Reply #2 on: 26 Jul 2019, 01:32 pm »
Software is called CI AudioFile Player and is custom to our device.
The 1st release will not have Roon but we plan add compatibility in the next release.

The hardware design is modular... the main board contains all power supply circuitry, and computer and audio circuits are modules. This allows for future internal upgrades of DAC’s and audio circuits.

Software updates are done the same as a cell phone or computer... software notifies you that a new version is available and you can choose to update or not.
Third party software like JRiver, HQPlayer are not supported.

This platform is very flexible for future updates of hardware and software as new technologies & music streaming services become available.

dminches

Re: New DMC•1 Digital Music Console (media player).
« Reply #3 on: 26 Jul 2019, 02:51 pm »
Does the player have a USB out so it can be used with another DAC?

CIAudio

Re: New DMC•1 Digital Music Console (media player).
« Reply #4 on: 26 Jul 2019, 03:25 pm »
yes, 4 of them

CIAudio

Re: New DMC•1 Digital Music Console (media player).
« Reply #5 on: 27 Jul 2019, 02:08 pm »

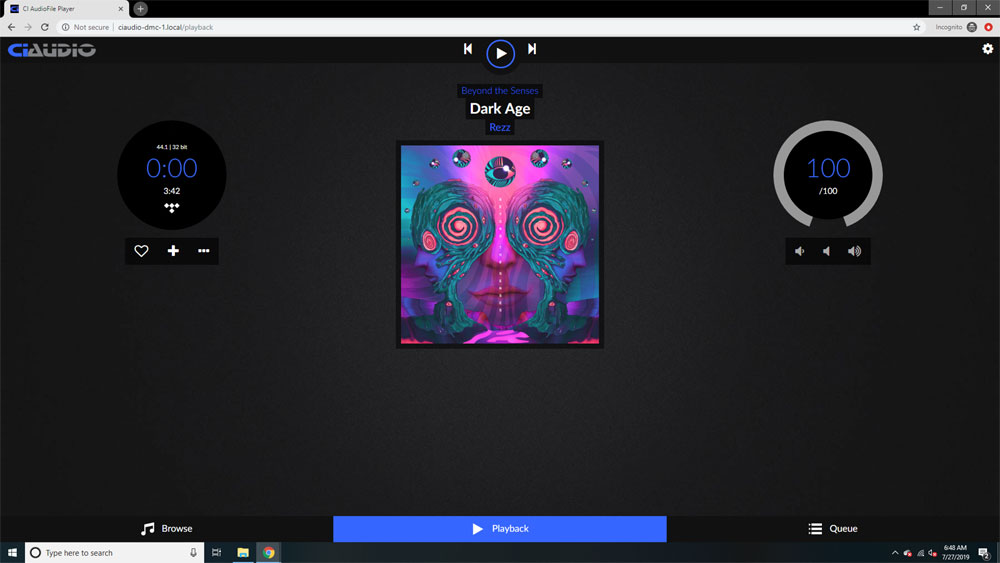

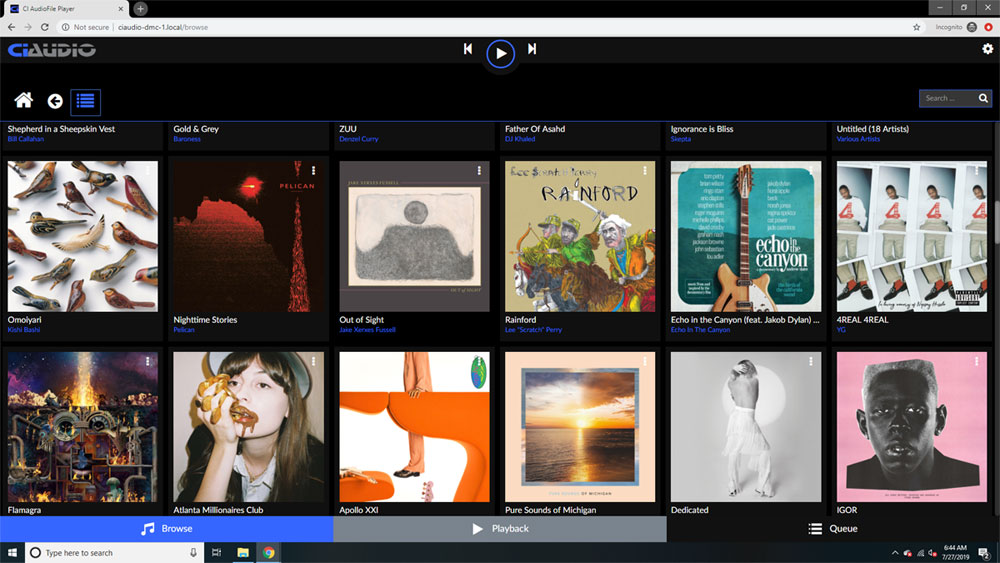

Here are a couple of screenshots of CI AudioFile Player from my PC to get a basic idea of the look.









artur9

  • Jr. Member
  • Posts: 231
Re: New DMC•1 Digital Music Console (music player)
« Reply #6 on: 27 Jul 2019, 05:06 pm »
Anything other than USB outs? AES, toslink, coax?

CIAudio

Re: New DMC•1 Digital Music Console (music player)
« Reply #7 on: 27 Jul 2019, 05:16 pm »
No s/pdif outputs as they do not support beyond 24/192 and is a high-jitter interface.
It is primarily designed to use the internal DAC but most any USB 2.0 DAC is compatible.
The internal DAC circuit is built around the AK4493 DAC with SE and balanced outputs, and precision Crystek femto clocks.

The internal hardware is somewhat modular in design, so software & hardware are future upgradable.

CIAudio

Re: New DMC•1 Digital Music Console (music player)
« Reply #8 on: 28 Jul 2019, 03:24 pm »

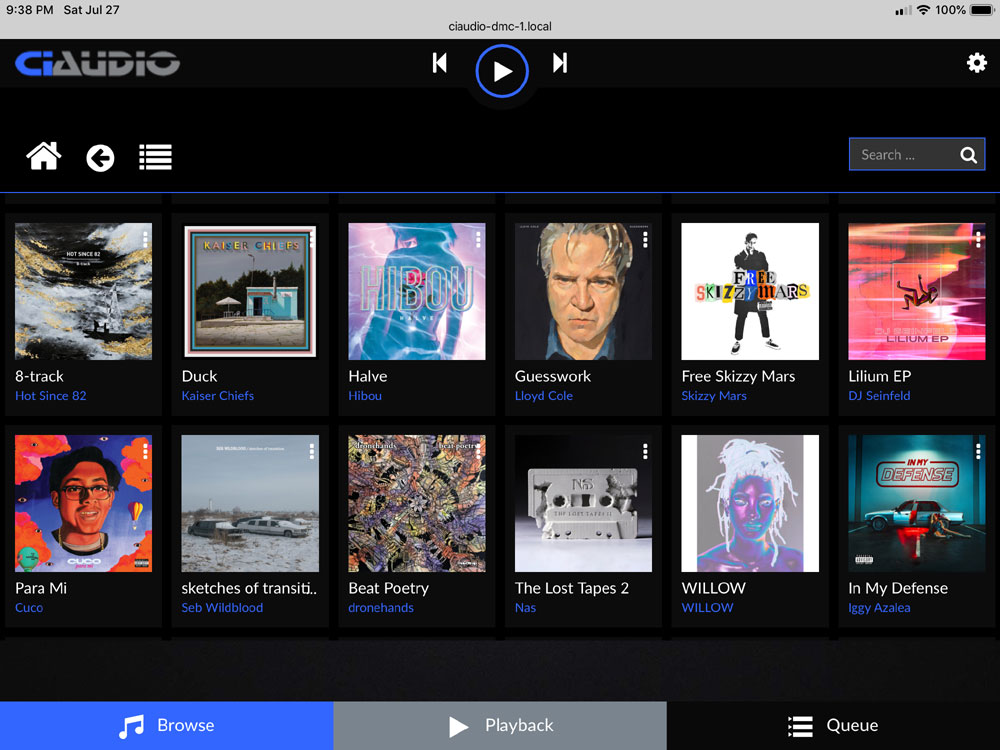

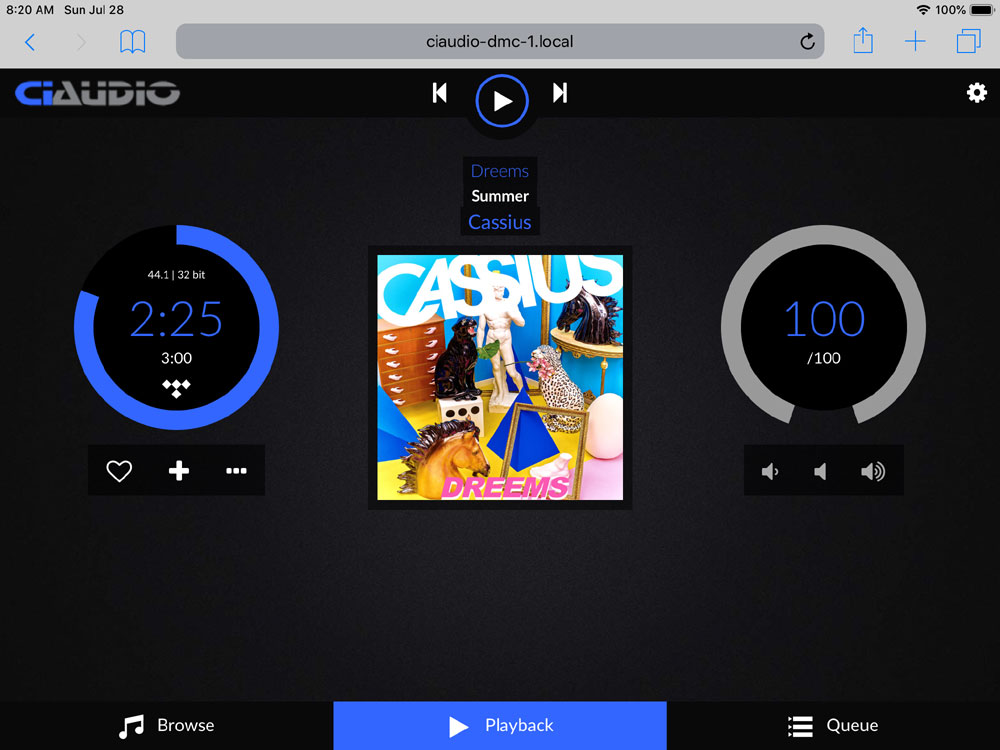

And here are screenshots from an iPad







CIAudio

Re: New DMC•1 Digital Music Console (music player)
« Reply #9 on: 29 Jul 2019, 02:53 pm »

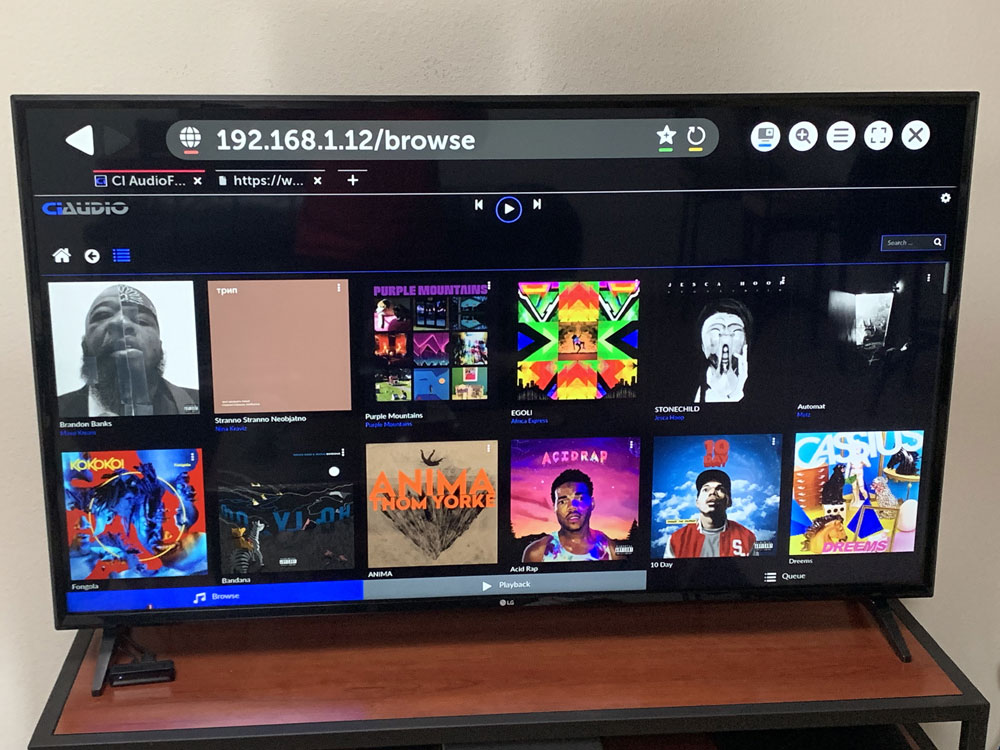

DMC•1 can be controlled by any web browser, even the Web OS on your smart TV, no apps needed!




poseidonsvoice

  • Full Member
  • Posts: 3628
  • Science is not a democracy - Earl Geddes
    • 2 channel/7 channel setup
Re: New DMC•1 Digital Music Console (music player)
« Reply #10 on: 29 Jul 2019, 03:03 pm »
I was wondering where I had seen that screen configuration...looks like an application of Volumio which some use on their Raspberry Pi units:

https://volumio.github.io/docs/User_Manual/First_steps_with_Volumio.html

Interesting...

Best,
Anand.

CIAudio

Re: New DMC•1 Digital Music Console (music player)
« Reply #11 on: 29 Jul 2019, 03:10 pm »
Yes, our software is designed by INTUITU (creators of Volumio), but is customized to our hardware and feature set.

jtwrace

Re: New DMC•1 Digital Music Console (music player)
« Reply #12 on: 29 Jul 2019, 03:31 pm »
I'm very intrigued by this Dusty.  Look forward to some pictures of the hardware and some AP measurements too.   :D

CIAudio

Re: New DMC•1 Digital Music Console (music player)
« Reply #13 on: 15 Aug 2019, 02:30 pm »
We’re also developing a matching companion CD transport for DMC•1.

The CDT•1 ($495) is a high performance slot-loading drive mechanism in a solid billet aluminum chassis with damped mounting for low mechanical noise.
Data is output through USB and clocked by precision femto oscillators in DMC. This yields reference quality playback unmatched by hi-end CD players/transports of yesteryear.

Power to CDT is provided by a dedicated power port on the rear of DMC. Use AudioFile player to play CD’s or save tracks to .flac

Front panel includes status LED and eject button (can also be ejected in AudioFile player).
