Super Mini's up and playing over here.

Saturn94 · « **Reply #80 on:** 6 Jul 2019, 07:33 pm »

Quote from: Danny Richie on 6 Jul 2019, 07:31 pm

Yes.

The Super Mini has handled everything that I have throw at them really well.

I can't wait for more people to hear them. Come on over...

Ha, I wish I lived close enough! I would love to hear them! I’m in SE VA, hence my thread asking if you would be at CAF.

Danny Richie · « **Reply #81 on:** 6 Jul 2019, 07:40 pm »

Quote from: 2bigears on 6 Jul 2019, 07:29 pm

now these look in budget land. If you just sit them on a double servo base , what will the cost be all in ?

$1,049 for the complete kit with flat pack, plus shipping.

And you can sit them right on a set of double servo subs.

Quote

or is a base being developed ? Thanks. I love the S7's but to big , heavy and $$ .....

We're working on a lower cost, non-servo bass solution, that keeps the same look and front baffle width and will easily play down to the servo subs.

HAL · « **Reply #82 on:** 6 Jul 2019, 08:34 pm »

A fully active version of the Super Mini's is in Southern MD. I had them at CAF2018 for demo. It is the NEO3/NEO10 planar open baffle over the OB 2x12 servo subs.

Just PM me if interested in a listen if it will help.

2bigears · « **Reply #83 on:** 6 Jul 2019, 10:02 pm »

non-servo Wowwww,,,,,KISS ,, I love it. But I did think the servo bass was the best bass I have ever had. But to not have those amps and for big drivers would be so cool. Keep us posted. I really really need a great speaker at a real world price. This just might be the one set to do such an impossible task.

Danny Richie · « **Reply #84 on:** 6 Jul 2019, 10:39 pm »

Quote from: 2bigears on 6 Jul 2019, 10:02 pm

non-servo Wowwww,,,,,KISS ,, I love it. But I did think the servo bass was the best bass I have ever had. But to not have those amps and for big drivers would be so cool. Keep us posted. I really really need a great speaker at a real world price. This just might be the one set to do such an impossible task.

No, a non-servo amp powering the lower M-165 woofers

2bigears · « **Reply #85 on:** 6 Jul 2019, 11:16 pm »

ohhhhh, ok. So you supply the amp you think sounds best and the top is up to us ? A sweet little tube amp maybe ? That sounds great. So each lower section will have an amp or one for both ? Sorry if I came into the thread late,,,,,, it's summer and can't keep up,,,,,ha ..

Saturn94 · « **Reply #86 on:** 7 Jul 2019, 12:44 am »

Quote from: HAL on 6 Jul 2019, 08:34 pm

A fully active version of the Super Mini's is in Southern MD. I had them at CAF2018 for demo. It is the NEO3/NEO10 planar open baffle over the OB 2x12 servo subs.

Just PM me if interested in a listen if it will help.

Sending you a PM.

oskar · « **Reply #87 on:** 7 Jul 2019, 02:50 pm »

Can I assume that the front baffles need to be at least 3 feet from the wall behind?

Saturn94 · « **Reply #88 on:** 7 Jul 2019, 04:49 pm »

I didn’t see this mentioned......

What are the dimensions of the Super Mini and the planned bass section?

Usable space is kind of tight in my room.

Saturn94 · « **Reply #89 on:** 7 Jul 2019, 04:50 pm »

Quote from: oskar on 7 Jul 2019, 02:50 pm

Can I assume that the front baffles need to be at least 3 feet from the wall behind?

Good question. I see in Danny’s videos he has them pulled way out from the wall behind them. Three feet would be the absolute max I could place the front baffle from the wall behind them in my room. Would this severely compromise their performance?

Captainhemo · « **Reply #90 on:** 7 Jul 2019, 05:56 pm »

sorry, didn't get to this yesterday.
Anyway, here's what we've been working on for non-servo lower section.
Ben able to keep the cabinet identical to the Super Mini so the Super Mini can just sit right on top... maybe with a think layer of Sorbathane betwen them .

fully braced cabinet with an overall height ( no super Mini on top) is 27.5" with a 1" base.

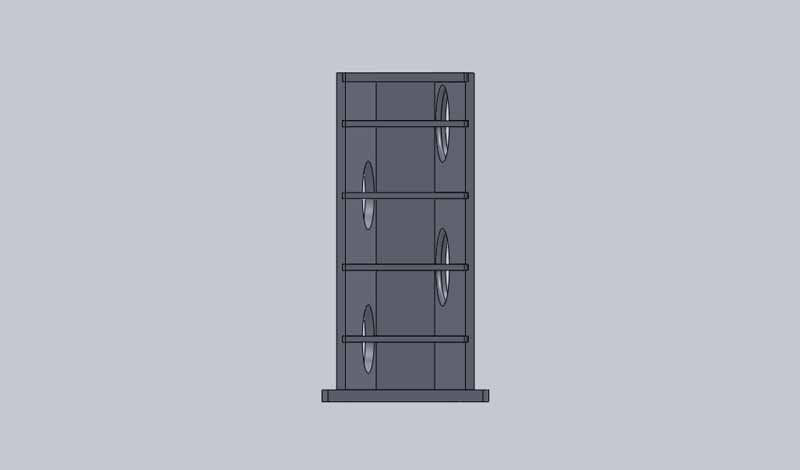

Front

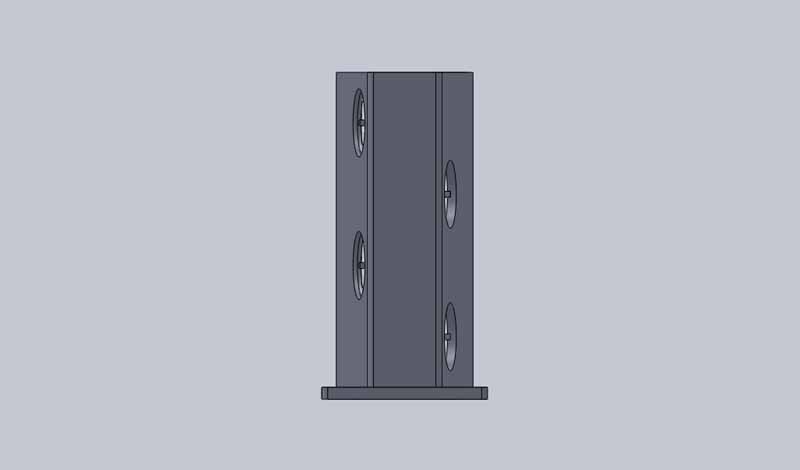

Rear

Transparent from side

As with our other cabinets, all bracing located via dado's in wings and baffle. dowels/screws in base for easy alignment and glue up.
Haven't cut any of these yet, playing catch up with other stuff but they are on the list.

And yes, you want them out inthe room. I've heard of some people not quite making the suggested 3' min but idally, you want that. Maybe havem on some sliders so when you're critical listening, you can pull them out ? Have heard of people doing that as well.

jay

revg1952 · « **Reply #91 on:** 8 Jul 2019, 01:41 am »

Jay
very cool looking and functional speaker base for the Mini's and other satellite speakers. I am going to assume these have openings for 8 inch drivers.
Gary

revg1952 · « **Reply #92 on:** 8 Jul 2019, 01:53 am »

or I may be wrong probably 6.5 drivers. Will they come as a flat pack.
Gary

Captainhemo · « **Reply #93 on:** 8 Jul 2019, 02:02 am »

Quote from: revg1952 on 8 Jul 2019, 01:41 am

Jay
very cool looking and functional speaker base for the Mini's and other satellite speakers. I am going to assume these have openings for 8 inch drivers.
Gary

Hey Gary
No, 4 M165's per cabinet (6.5" woofers). I loved them in my Otica's !

jay Then , ideally, you'd pass them off to a pair of servo sub towers or an existing sub system if you have one.

Flat packs are the paln. Assembled cabs are always an option as well
jay

Captainhemo · « **Reply #94 on:** 8 Jul 2019, 02:12 am »

Quote from: HAL on 6 Jul 2019, 08:34 pm

A fully active version of the Super Mini's is in Southern MD. I had them at CAF2018 for demo. It is the NEO3/NEO10 planar open baffle over the OB 2x12 servo subs.

Just PM me if interested in a listen if it will help.

Wish I were closer rich, would love to hear them

for guys interested in a fully digital version, check out rich's Monolith thread over in the HAL circle
https://www.audiocircle.com/index.php?topic=153244.msg1739673#new

jauy

2bigears · « **Reply #95 on:** 9 Jul 2019, 11:06 pm »

can you just cut and build this a one piece with the smaller drivers non servo bottoms ?
This seems feasible,, or not ??

Saturn94 · « **Reply #96 on:** 9 Jul 2019, 11:14 pm »

Quote from: Saturn94 on 7 Jul 2019, 04:49 pm

I didn’t see this mentioned......

What are the dimensions of the Super Mini and the planned bass section?

Usable space is kind of tight in my room.

???

2bigears · « **Reply #97 on:** 9 Jul 2019, 11:58 pm »

the passive 4 driver per side has the same shape and size as top section,,,,, seamless ??

Danny Richie · « **Reply #98 on:** 10 Jul 2019, 01:32 am »

Quote from: Saturn94 on 7 Jul 2019, 04:49 pm

I didn’t see this mentioned......

What are the dimensions of the Super Mini and the planned bass section?

Usable space is kind of tight in my room.

The Super mini's are set up in my house and I am at the office. So I don't have a pair here to measure I think it was 16" tall and 6.25" wide.

Jay is working on the base and posted something on the height a few posts up.

These will work fine in a small room so long as you can pull them at least three feet out from the front wall.

Saturn94 · « **Reply #99 on:** 10 Jul 2019, 03:21 am »

Quote from: Danny Richie on 10 Jul 2019, 01:32 am

The Super mini's are set up in my house and I am at the office. So I don't have a pair here to measure I think it was 16" tall and 6.25" wide.

Jay is working on the base and posted something on the height a few posts up.

These will work fine in a small room so long as you can pull them at least three feet out from the front wall.

Thanks.

How about depth of the top and bass unit?

It appears the back is wider than the front. If so, what’s the width at the back?
