Saturn94 · « **Reply #120 on:** 16 Jul 2019, 02:59 am »

Sweet, thanks!

I’m looking forward to hearing them at HAL’s next month.

2bigears · « **Reply #121 on:** 16 Jul 2019, 07:49 pm »

jello speaker seekers. Does anyone know if the version with triple 165's powered version is in design stage of ready for rollout ? Danny, I sent you a pm. This speaker seems a mini S7 of sorts. Love the servo bass, but totally not needed at my age unless I won the lotto. Budget, size , weight all factor in. Thanks for the mini.

Captainhemo · « **Reply #122 on:** 16 Jul 2019, 08:06 pm »

No 3 M165 version , sending Danny a side loaded 4 M165 base soon. There are pics earlier in thread .
More super Mini baffles / kits this week

jay

2bigears · « **Reply #123 on:** 16 Jul 2019, 09:20 pm »

hi Jay. Thanks ,, and I forgot the V design you crafted ,, you have 4, 165's OB each side ? Is that right ? And Danny is thinking of adding an amp each side ? This sounds fab.... Be in Kelowna next month.

Captainhemo · « **Reply #124 on:** 16 Jul 2019, 10:32 pm »

Quote from: 2bigears on 16 Jul 2019, 09:20 pm

hi Jay. Thanks ,, and I forgot the V design you crafted ,, you have 4, 165's OB each side ? Is that right ? And Danny is thinking of adding an amp each side ? This sounds fab.... Be in Kelowna next month.

yes, 4 per channel and they will be active , think Danny has some ideas for an amp for each channel.
Let me know when you're in town, maybe you can pop by for a listen if you like

jay

2bigears · « **Reply #125 on:** 17 Jul 2019, 03:13 am »

thanks Jay,, be there on the 22nd next month. Would love to see what your cutting up in your Mad speaker lab,,,,,

Captainhemo · « **Reply #126 on:** 30 Aug 2019, 04:26 pm »

A pair of these will be off to Danny next week.
Will grab a couple better pics before boxing

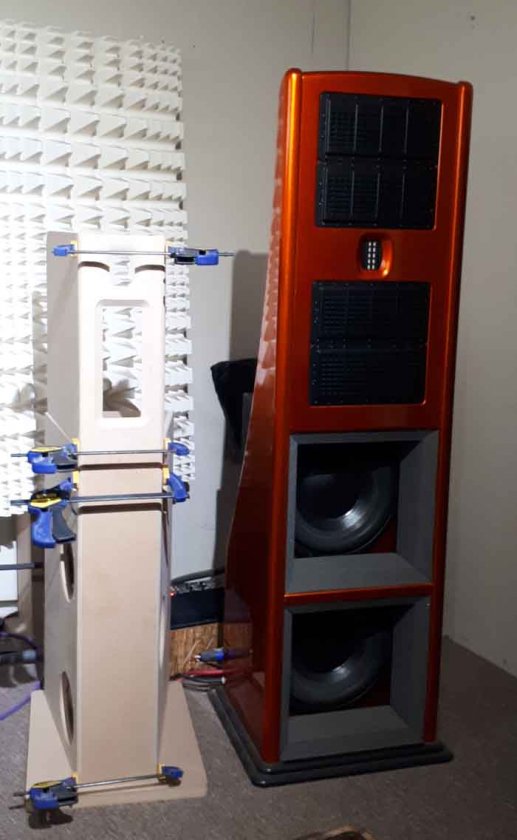

With a raw Super Mini cab on top and beside teh s7 for size comparison

jay

DeeJayBump · « **Reply #127 on:** 30 Aug 2019, 06:41 pm »

Even raw, those look very nice.

HAL · « **Reply #128 on:** 30 Aug 2019, 07:00 pm »

Looks really good Jay!

Captainhemo · « **Reply #129 on:** 2 Sep 2019, 05:19 pm »

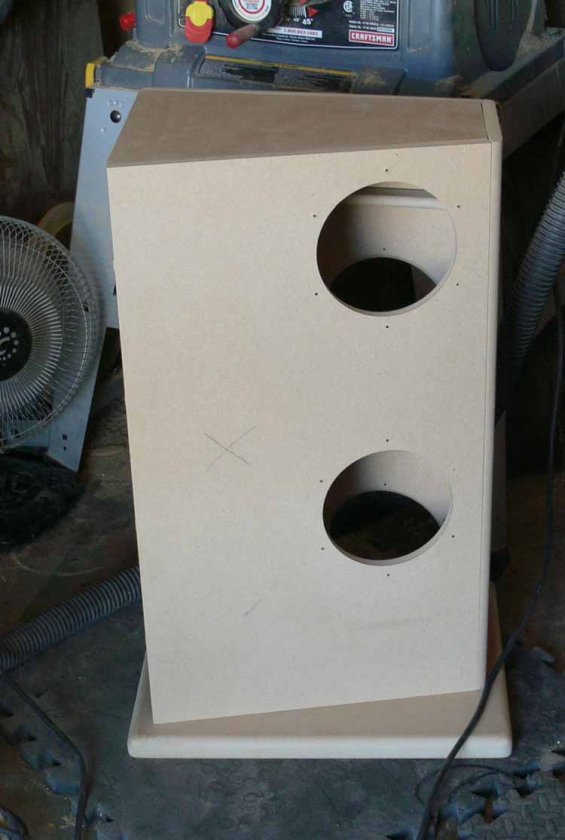

Packing these up today to get down to Danny so took some pics when I fitting up the 2nd cabinet.

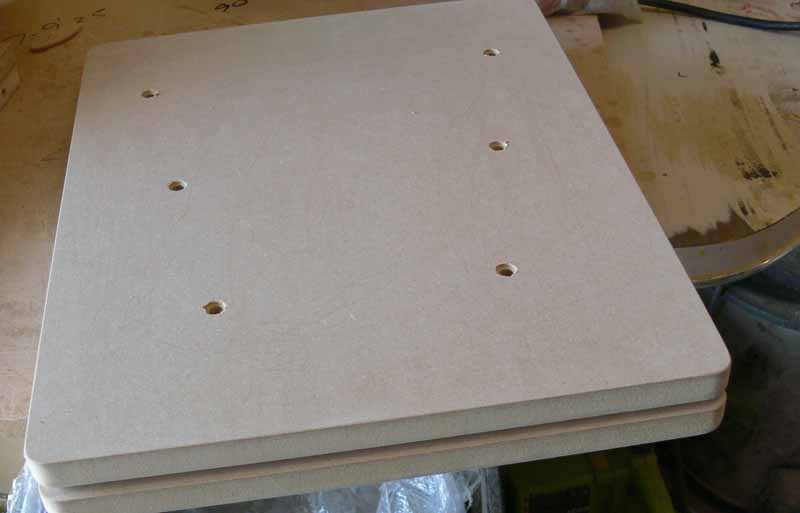

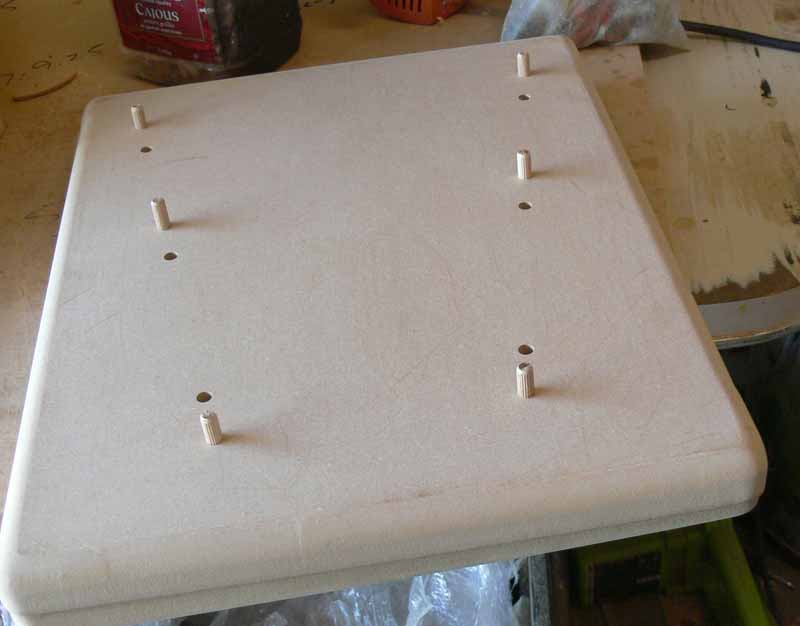

As with most of our other kits, bases have contersunk screws in bottom to eliminate the need for really long clamps and dowels on the top side to position the wings and make assembly very easy.Bases were left quite simple but there is room for the builder to be creative if one desired and still use the existing dowel/screw layout.. Or, we can add a roundover to the existing base as I did in this case

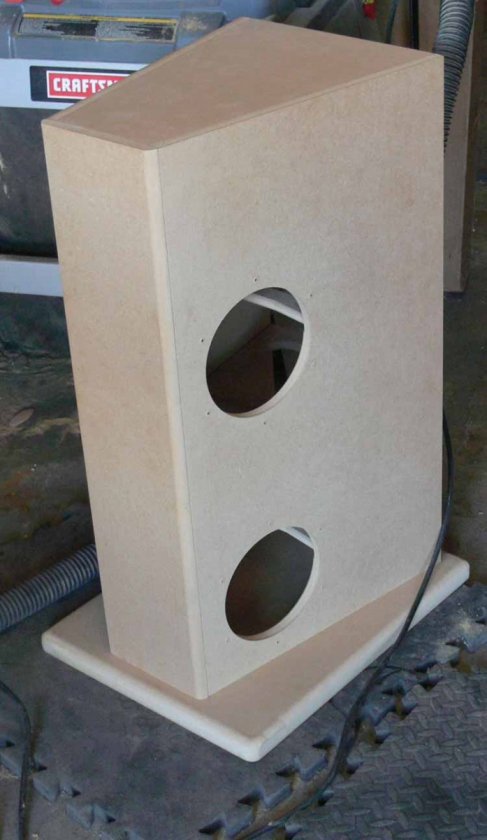

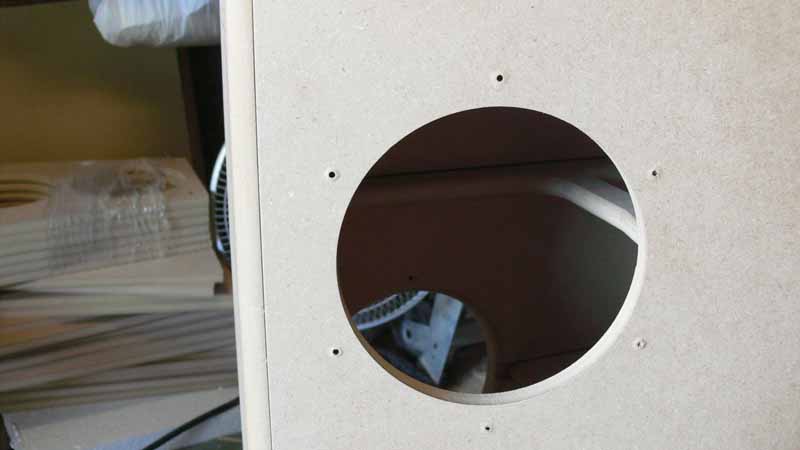

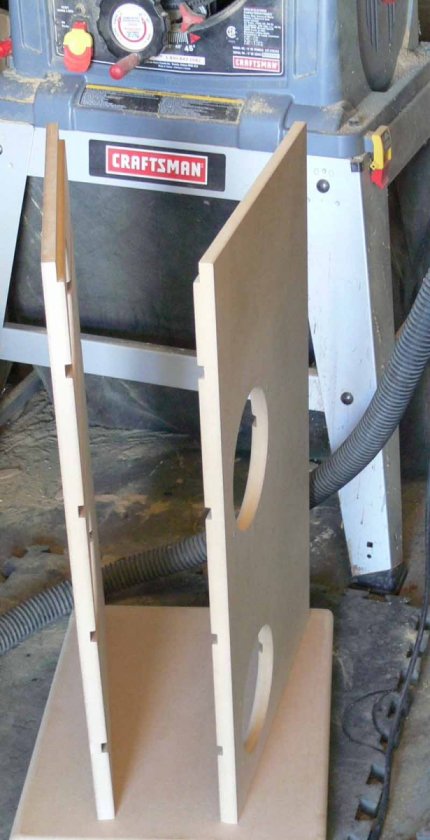

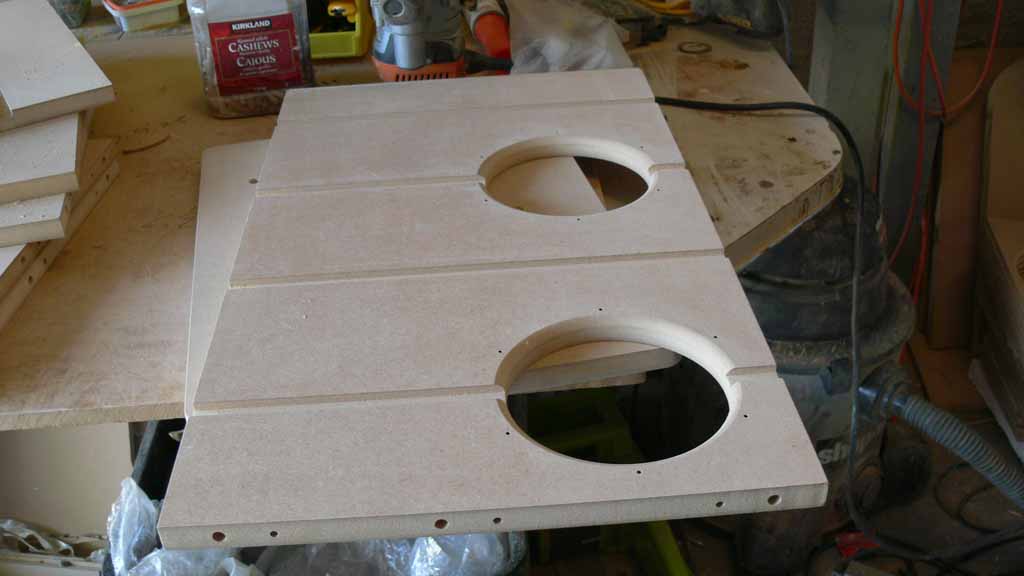

Now the side panels can be perectly located onthe base via the insstalled dowels. Each panel has the two driver cutouts with 3/8" roundover on rear side, pre-drilled mounting screw holes, the 4 dados for the braceing as well as a top rebbet for the top of the cabinet.

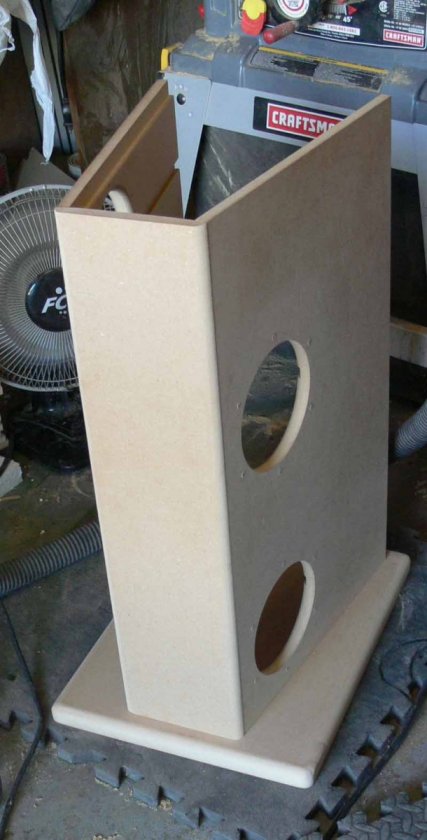

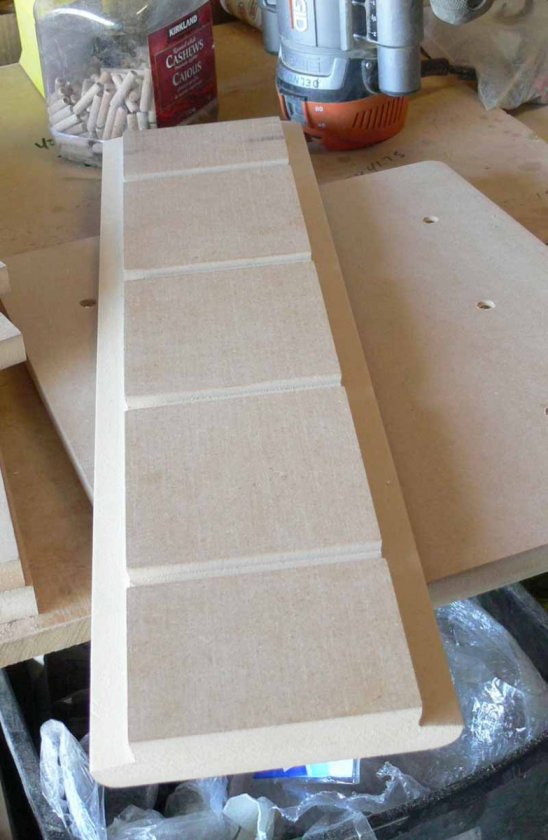

Next comes the baffle. the rear side has 4 dados and the upper rabbet to match the side panels. There are also the 2 verticle 10 degree rabbets to mate up with the front edge of the side panels. Front side has the 2 verticle .5" rouindovers

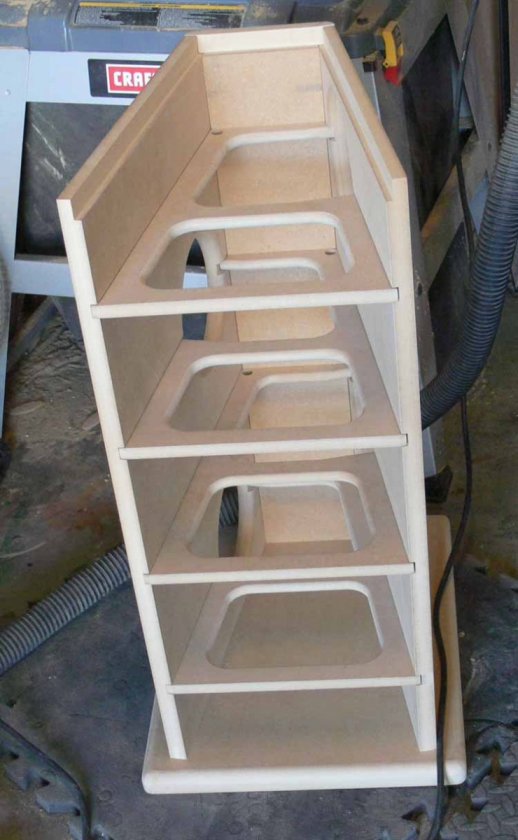

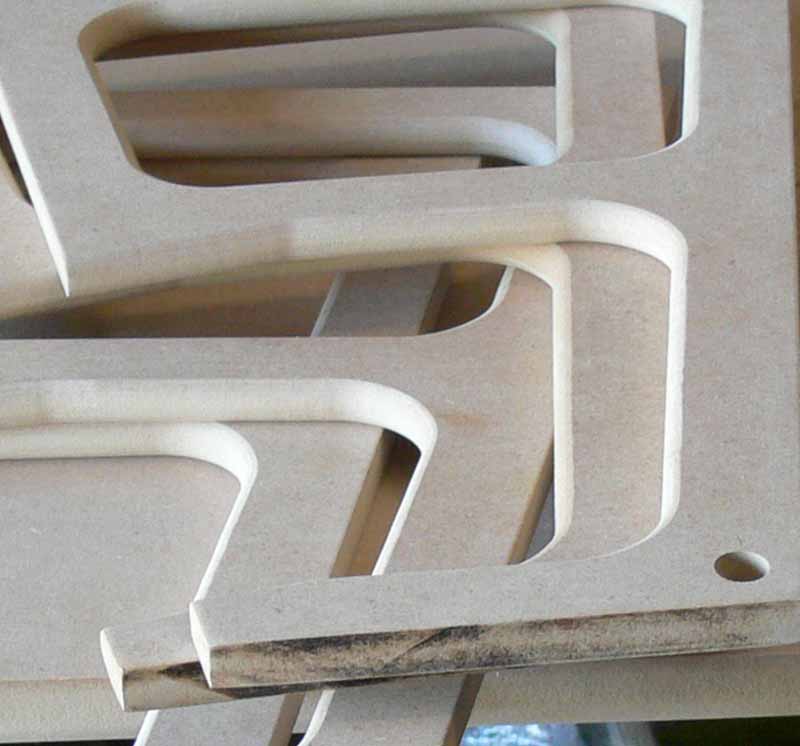

Time for some braces. Each cabinet will have four of these.All the inner edges have been rounded over to help prevent defraction

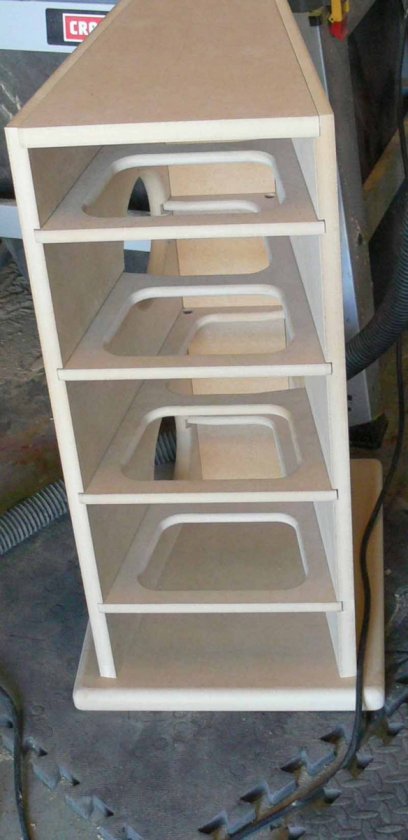

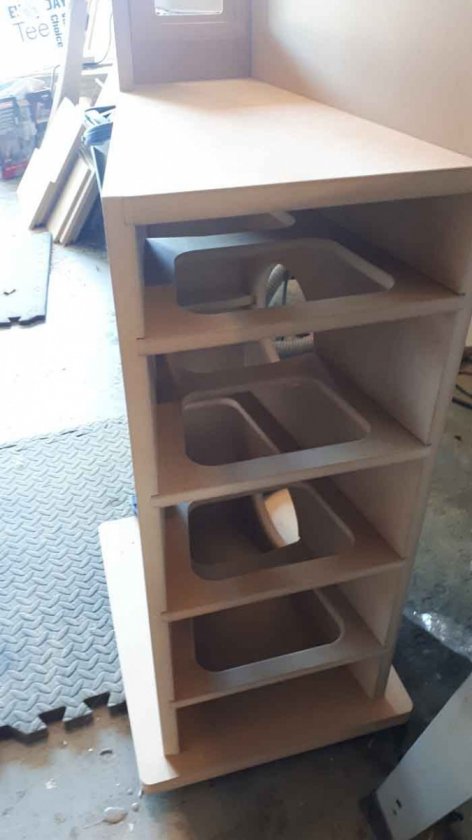

The wrap around bracing leaves lots of room fo the M165 drivers.

Finaly we have the inset cabinet top which glues into the rabbets cut at top of side panels and baffle.

Each pair of cabinets is mirrored so either woofers 1&3 or 2&4 can be placed to the center to keep things symetrical.

jay

HAL · « **Reply #130 on:** 2 Sep 2019, 05:53 pm »

They look great Jay!

Tyson · « **Reply #131 on:** 2 Sep 2019, 06:01 pm »

How do they sound? It looks almost like it's "semi-OB", instead of full on OB. Do they still interact with the room the same way the H-Frame OB does?

tubav · « **Reply #132 on:** 3 Sep 2019, 04:15 pm »

Hi Jay: (maybe Danny and others would chime in also)
You've done amazing work on this flat pack!
What are it's advantages over a similar design using 3 M165's side mounted? (2 one side & 1 on the other)
What are the advantages over front mounting 3-4 M165's in the same winged design?
I realize the front baffle would be wider and that wouldn't fit the profile of the Super Mini.
I'm assuming these are the M165-16 version.
Also curious as to the amplifier used.
Thanks for any and all responses.
tubav

Danny Richie · « **Reply #133 on:** 3 Sep 2019, 07:57 pm »

Quote from: Tyson on 2 Sep 2019, 06:01 pm

How do they sound? It looks almost like it's "semi-OB", instead of full on OB. Do they still interact with the room the same way the H-Frame OB does?

The low wavelengths that they cover make it actually about the same as being front firing in the same wedge.

Danny Richie · « **Reply #134 on:** 3 Sep 2019, 08:00 pm »

Four drivers offer a little more output capability and one more driver sharing the load.

The series parallel grouping also brings it back to an 8 ohm load.

The side mounting isn't much of an issue because of the lower ranges that these are restricted to. So the output should be about the same as if they were front mounted. And the front to back wave cancellation should be about the same.

Any decent plat amp could be used. I am also looking into having some made that will offer some good flexibility.

Quote from: tubav on 3 Sep 2019, 04:15 pm

Hi Jay: (maybe Danny and others would chime in also)
You've done amazing work on this flat pack!
What are it's advantages over a similar design using 3 M165's side mounted? (2 one side & 1 on the other)
What are the advantages over front mounting 3-4 M165's in the same winged design?
I realize the front baffle would be wider and that wouldn't fit the profile of the Super Mini.
I'm assuming these are the M165-16 version.
Also curious as to the amplifier used.
Thanks for any and all responses.
tubav

Captainhemo · « **Reply #135 on:** 4 Sep 2019, 06:31 am »

Will be teh M165 08's in series / parallel setup as Danny stated ( 2 series pairs, each pair wired to the other in parallel)

jay

Nick77 · « **Reply #136 on:** 11 Sep 2019, 12:46 pm »

Hi Danny just curious if there will be any updates on new M165 cabinet and listening this week?? Thanks!

Captainhemo · « **Reply #137 on:** 11 Sep 2019, 04:35 pm »

Won't be this week, I haven['t sent the cabinets yet

they are boxed and ready to go, I just have been a little side tracked
Will try and get the labels done today and have them picked up tomorrow

jay

Nick77 · « **Reply #138 on:** 11 Sep 2019, 04:37 pm »

Quote from: Captainhemo on 11 Sep 2019, 04:35 pm

Won't be this week, I haven['t sent the cabinets yet they are boxed and ready to go, I just have been a little side tracked
Will try and get the labels done today and have them picked up tomorrow

jay

Good work, thank you Sir.

Wind Chaser · « **Reply #139 on:** 11 Sep 2019, 04:52 pm »

Quote from: Tyson on 2 Sep 2019, 06:01 pm

How do they sound? It looks almost like it's "semi-OB", instead of full on OB. Do they still interact with the room the same way the H-Frame OB does?

Yes, how do they sound? And how low do they go? And what is the projected or ballpark price with drivers and a suitable plate amp?

Very impressive work. Jay is a true craftsman.
