A new reference line array.

0 Members and 1 Guest are viewing this topic. Read 1581 times.

Rick Craig

  • Facilitator
  • Posts: 3538
  • Selah Audio
    • http://www.selahaudio.com
A new reference line array.
« on: 26 Mar 2019, 12:38 pm »



Ten SB Acoustics Satori 6.5" woofers and fourteen BZ Labs CQ76B tweeters in a sealed box, bi-amped with a DSP crossover. Measurement graphs coming soon!

jtwrace

Re: A new reference line array.
« Reply #1 on: 26 Mar 2019, 12:45 pm »
Very nice!  What amplification?  Kit?  Cost?

rklein

  • Full Member
  • Posts: 1100
  • My finest audio piece ever!!
Re: A new reference line array.
« Reply #2 on: 26 Mar 2019, 12:57 pm »
Very nice!  What amplification?  Kit?  Cost?

+1  :thumb:

bernardo

  • Jr. Member
  • Posts: 73
Re: A new reference line array.
« Reply #3 on: 26 Mar 2019, 05:14 pm »
"A new reference line array". This new design will this surpass your previous efforts with CBT line arrays?

Rick Craig

  • Facilitator
  • Posts: 3538
  • Selah Audio
    • http://www.selahaudio.com
Re: A new reference line array.
« Reply #4 on: 26 Mar 2019, 06:50 pm »
Very nice!  What amplification?  Kit?  Cost?

It's design for amps that can handle a 4-ohm load and typically in the 100-400 watt range. I haven't priced the kit yet but assembled shipped to the USA would be in the $14K-$15K/pair range.

Rick Craig

  • Facilitator
  • Posts: 3538
  • Selah Audio
    • http://www.selahaudio.com
Re: A new reference line array.
« Reply #5 on: 27 Mar 2019, 03:10 pm »
"A new reference line array". This new design will this surpass your previous efforts with CBT line arrays?

The drivers are superior to the CBT arrays and the woofers larger for greater dynamics and lower distortion. Low level detail is especially good and instrument placement is excellent! To top it I would need to do a CBT with drivers similar to these.

Rick Craig

  • Facilitator
  • Posts: 3538
  • Selah Audio
    • http://www.selahaudio.com
Re: A new reference line array.
« Reply #6 on: 28 Mar 2019, 01:44 am »

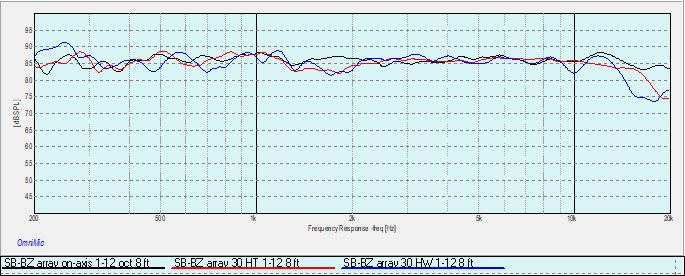

All of the following response curves are 1/12 octave smoothing and taken in-room. No gating was added.

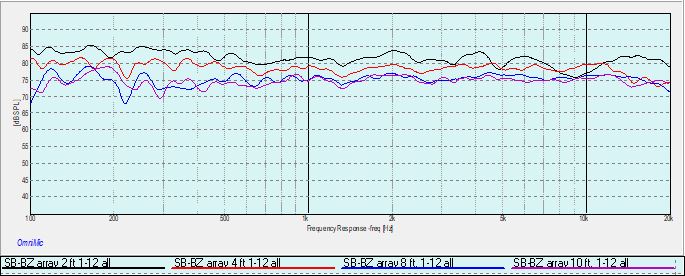

Measurements on-axis at 2,4,8, and 10 ft. distances.

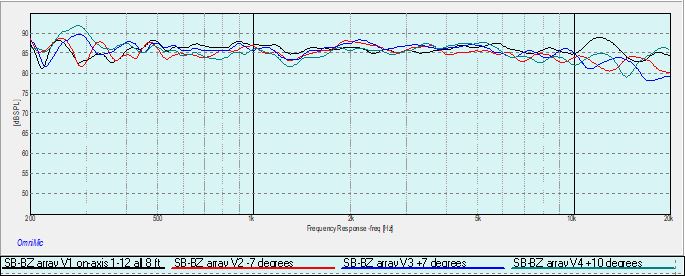

Vertical response curves taken at 8 ft. distance.

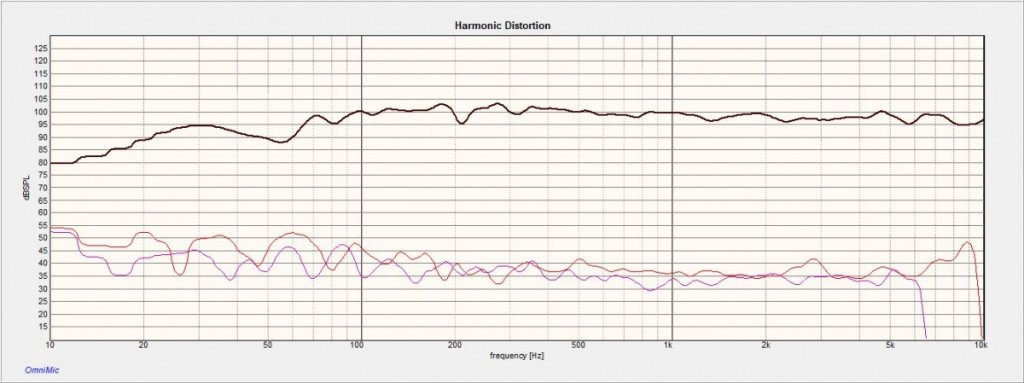

2nd/3rd harmonic distortion at 1M distance and 100dB at 1K reference.

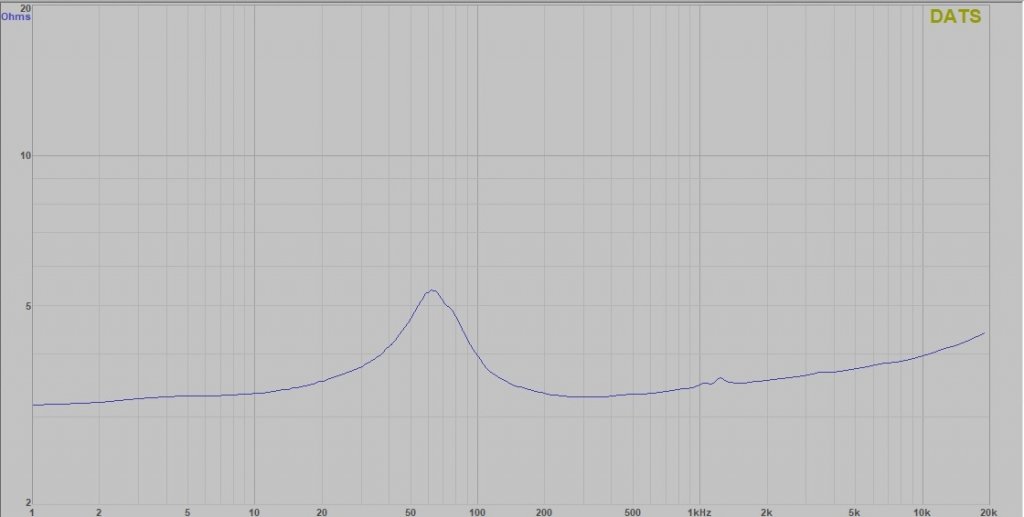

Woofer line impedance.

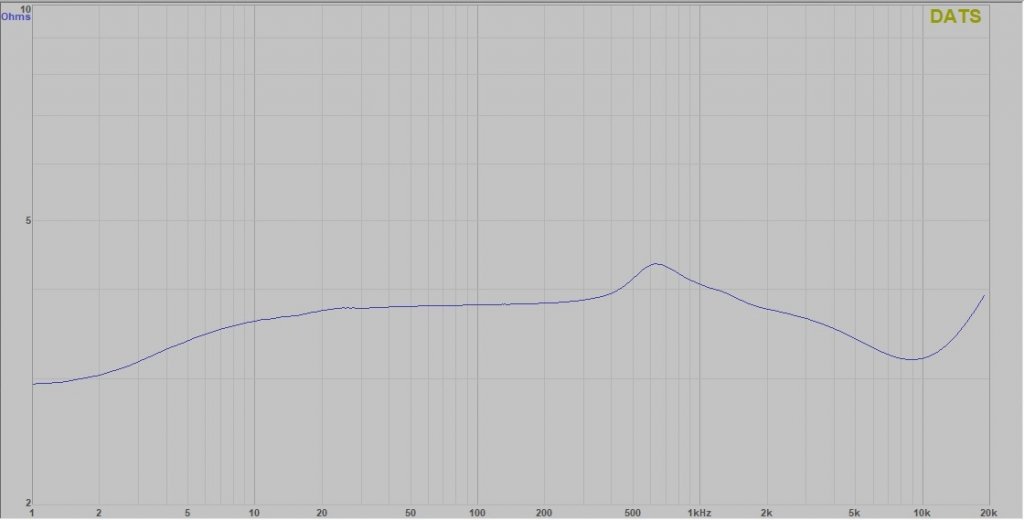

Tweeter line impedance.



On-axis, 30 degrees horizontal woofer side (HW), and tweeter side (HT).

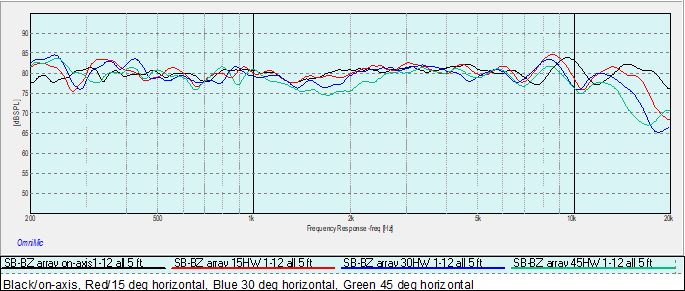

On-axis, 15,30,and 45 degrees off-axis horizontally at 5 ft. distance.

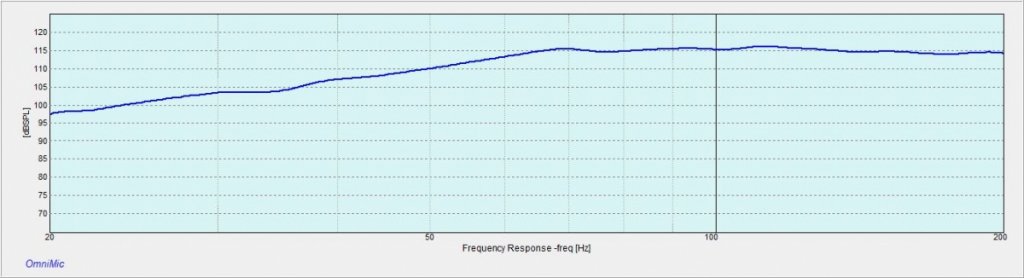

Nearfield bass response (no EQ added).

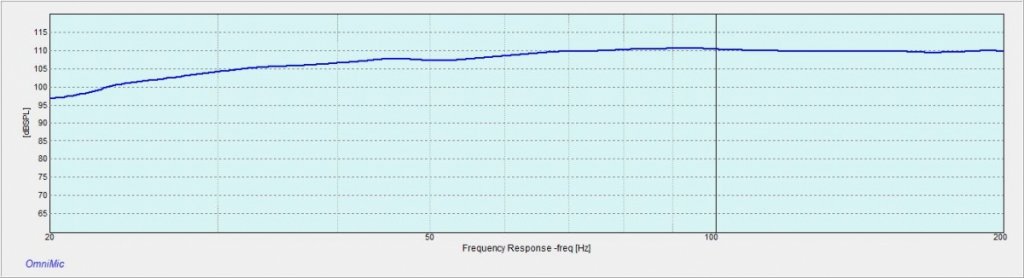

Nearfield bass with EQ added.




artur9

  • Jr. Member
  • Posts: 231
Re: A new reference line array.
« Reply #7 on: 29 Mar 2019, 12:40 am »
Very impressive.  No price yet?

poseidonsvoice

  • Full Member
  • Posts: 3619
  • Science is not a democracy - Earl Geddes
    • 2 channel/7 channel setup
Re: A new reference line array.
« Reply #8 on: 29 Mar 2019, 12:59 am »
Very impressive.  No price yet?

It's design for amps that can handle a 4-ohm load and typically in the 100-400 watt range. I haven't priced the kit yet but assembled shipped to the USA would be in the $14K-$15K/pair range.

Best,
Anand.

artur9

  • Jr. Member
  • Posts: 231
Re: A new reference line array.
« Reply #9 on: 29 Mar 2019, 05:22 pm »
Best,
Anand.

Thanks, dunno how I missed that.  I can only claim senescence.

poseidonsvoice

  • Full Member
  • Posts: 3619
  • Science is not a democracy - Earl Geddes
    • 2 channel/7 channel setup
Re: A new reference line array.
« Reply #10 on: 29 Mar 2019, 07:15 pm »
Thanks, dunno how I missed that.  I can only claim senescence.

You and me both buddy!  :thumb:

Hopefully we are wiser though...  :wink:

Best,
Anand.

CWL

  • Jr. Member
  • Posts: 8
Re: A new reference line array.
« Reply #11 on: 3 Apr 2019, 11:50 am »
They have arrived! :)

I am in a temperary home while our new house is being built.






artur9

  • Jr. Member
  • Posts: 231
Re: A new reference line array.
« Reply #12 on: 3 Apr 2019, 11:38 pm »
Beautiful!  What are the dimensions on that?  HxWxD ?

BluesDaddy

  • Jr. Member
  • Posts: 13
Re: A new reference line array.
« Reply #13 on: 4 Apr 2019, 05:37 pm »
Beautiful!  What are the dimensions on that?  HxWxD ?

Absolutely gorgeous. Would love to see pics of the pair when all properly set up.

CWL

  • Jr. Member
  • Posts: 8
Re: A new reference line array.
« Reply #14 on: 4 Apr 2019, 07:55 pm »
72" high with the base, 13 1/2" wide, and 10" deep.

They will go behind a screen eventually, so they are not very deep.

They look imposing, but once in place they take up very little floorspace.

Still looking for a new amplifier(x2) to run them just havent decided yet... :)
« Last Edit: 5 Apr 2019, 06:33 am by CWL »

saygrr

  • Jr. Member
  • Posts: 76
Re: A new reference line array.
« Reply #15 on: 4 Apr 2019, 08:22 pm »
I think you meant 72" ?  How much do they weigh? I'm sure they are going to be great.

Rick Craig

  • Facilitator
  • Posts: 3538
  • Selah Audio
    • http://www.selahaudio.com
Re: A new reference line array.
« Reply #16 on: 5 Apr 2019, 02:20 am »
Beautiful!  What are the dimensions on that?  HxWxD ?

72" high with the base, 13 1/2" wide, and 10" deep.

artur9

  • Jr. Member
  • Posts: 231
Re: A new reference line array.
« Reply #17 on: 5 Apr 2019, 02:45 am »
I sort of have dreams of something like that flanking a fireplace hidden in acoustically transparent caryatids or columns.  Then I think that might be too Hugh Hefner.

CWL

  • Jr. Member
  • Posts: 8
Re: A new reference line array.
« Reply #18 on: 5 Apr 2019, 06:33 am »
I think you meant 72" ?  How much do they weigh? I'm sure they are going to be great.

You're right :) 172" was a bit tall!
