so 9watt > 16ohm?
4ohm> 5 watts ?
input impedance ?
looking forward for more pics !

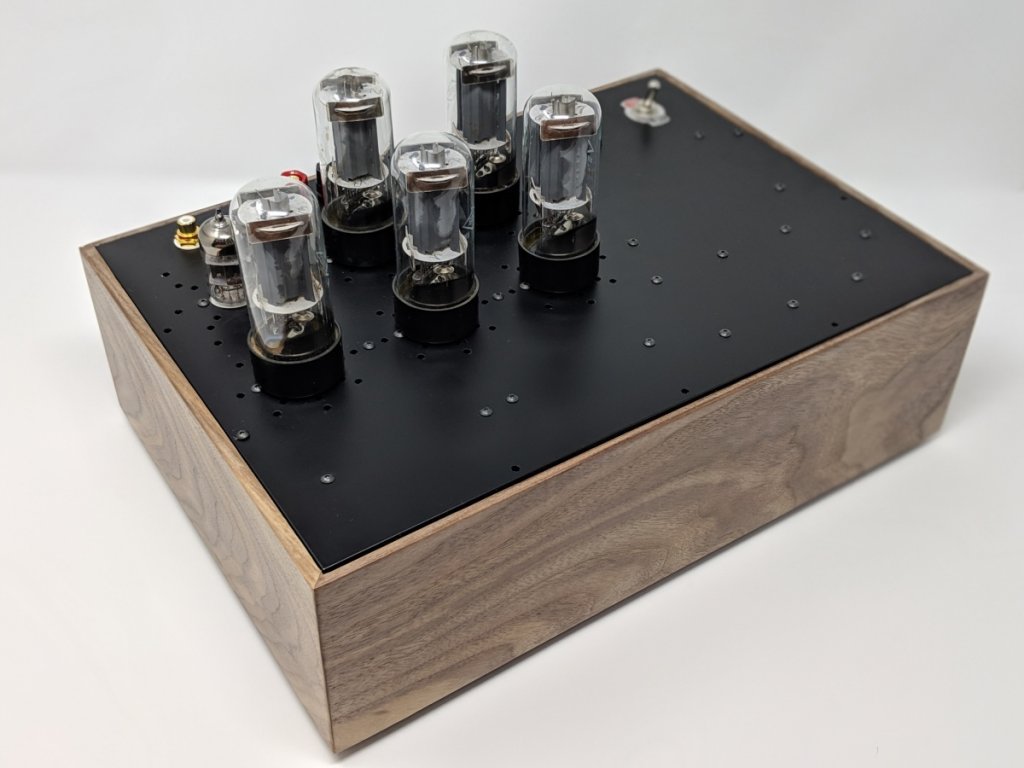

I was gonna wait to release full specs, but these are what they will look like at the moment (unless something major changes, this will be the way it stays)
Output Power: 9w@16ohms, 5w@8ohms and 2.5w@4ohms
Input Impedance: 100K ohms
Output impedance: about 1 ohm
Gain: 10 (+20dB)
Input tube: 6N1P-EV (6DJ8 and 6N6P also compatible)
Output tubes: Five 6N3S (6L6, EL34 and KT88 types also compatible)
Dimensions: 320mm(W) x 220mm(L) x 105mm(H)
More pics to come
