A 5-Channel Cherry ?? -- Introducing 5-CHerry !!

0 Members and 1 Guest are viewing this topic. Read 1359 times.

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« on: 20 Feb 2019, 10:19 pm »
We're developing a 5-channel Cherry Amplifier for surround sound!

Preliminary Features and Specifications:
  •  Power Output: 400Wpc into 4Ω, 200Wpc into 8Ω, 1000W max
  •  THD+N: 0.002%
  •  SNR: 118dB
  •  Input Impedance: 20kΩ true balanced
  •  DC coupled for no bass phase shift
  •  Wide band high damping factor
  •  Channel Independent Auto Sleep
  •  That amazing Cherry Sound! ---- tweaked for sonics above all else

The design consists of 5 Maraschino Cherry Monoblock boards driven by our 1kW 60V power supply. We will offer a standard version and a KING version with a brushed aluminum faceplate and upgraded WBT Gold binding posts.

Want one? We're offering these at a huge discount ($1000 off early adopter special) ONLY during our current Kickstarter project!

Click here and select "Cherry 5-Channel Amplifier Early Adopter" as your reward:
https://www.kickstarter.com/projects/378044010/cherry-mini-megaschino-tm-high-performance-stereo

We're currently at 430% with only 5 days left.   :o

« Last Edit: 6 Mar 2019, 04:47 am by AmpDesigner333 »

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ??
« Reply #1 on: 22 Feb 2019, 06:06 pm »

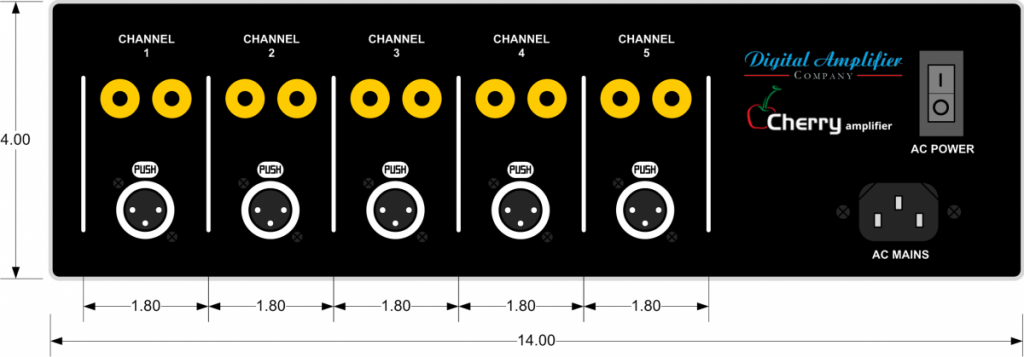

New enclosure drawing....



AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ??
« Reply #2 on: 26 Feb 2019, 02:06 pm »
2 hours left ! !

https://www.kickstarter.com/projects/378044010/cherry-mini-megaschino-tm-high-performance-stereo

#Sound #Stereo #Reviews #MEGAschino #DAC #CherryAmp #MaraschinoCherry #SurroundSound #Audio #HomeAudio #Amplifiers #DigitalAmpCo #HighEndAudio
#miniCherry #Cherry5ch #cherry5

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #3 on: 6 Mar 2019, 04:52 am »
We were asked about the cost for fewer than 5 channels, like a 4-CHerry or 3-CHerry....

Looks like we will be lowering the price by $100 per uninstalled channel.  The uninstalled channels will be covered by "vanity plates" on the back panel.

Not sure if this will be the same for any specials (upcoming pre-order special, possibly this month), but for now, as a difference from the list price of $2990 for the standard (non-KING) 5-CHerry, this is the plan.  The KING version adds a brushed aluminum faceplate and soldered Premium Gold WBT binding posts ($800 more).

Thanks to Michael B for the question.  The 4-CHerry would be a candidate for bi-amping a stereo pair or use of active crossovers.

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #4 on: 7 Mar 2019, 04:02 pm »

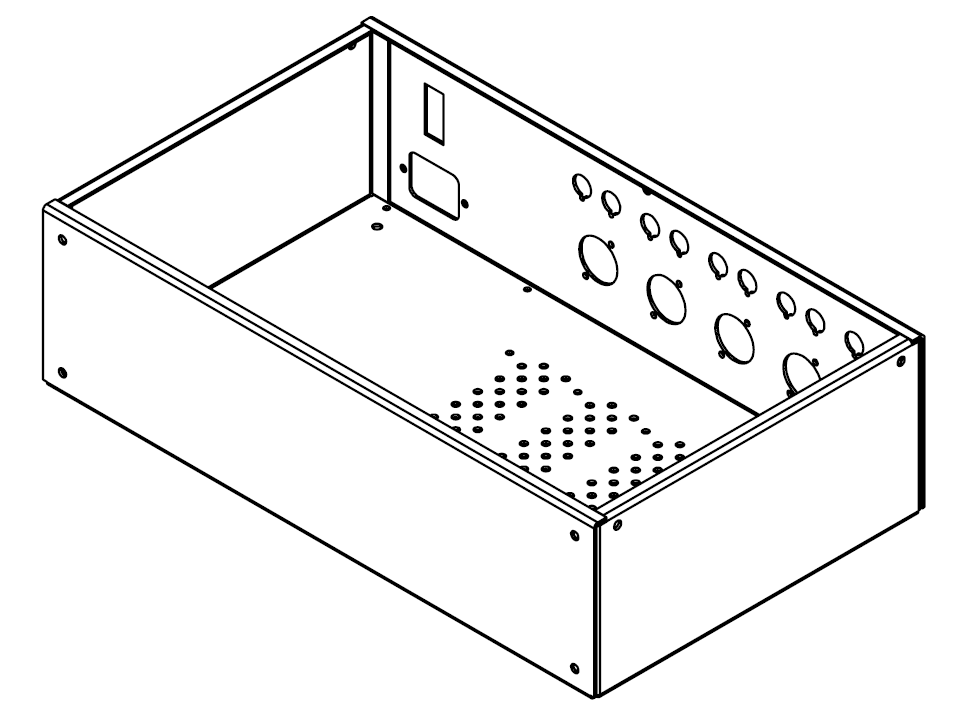

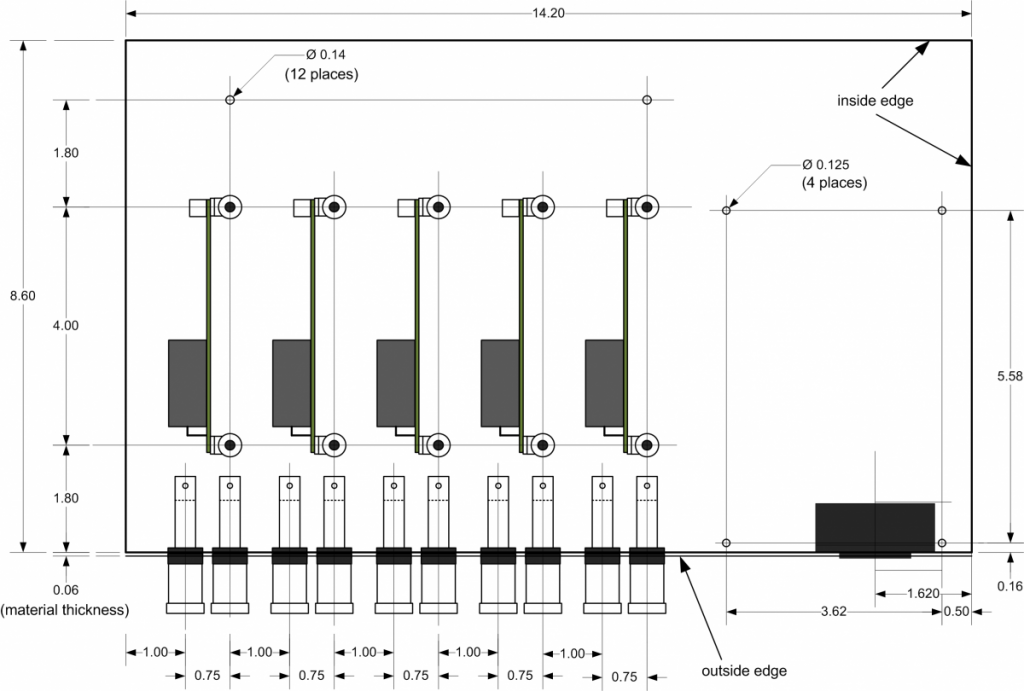

Latest enclosure drawing....


AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #5 on: 20 Mar 2019, 02:23 pm »

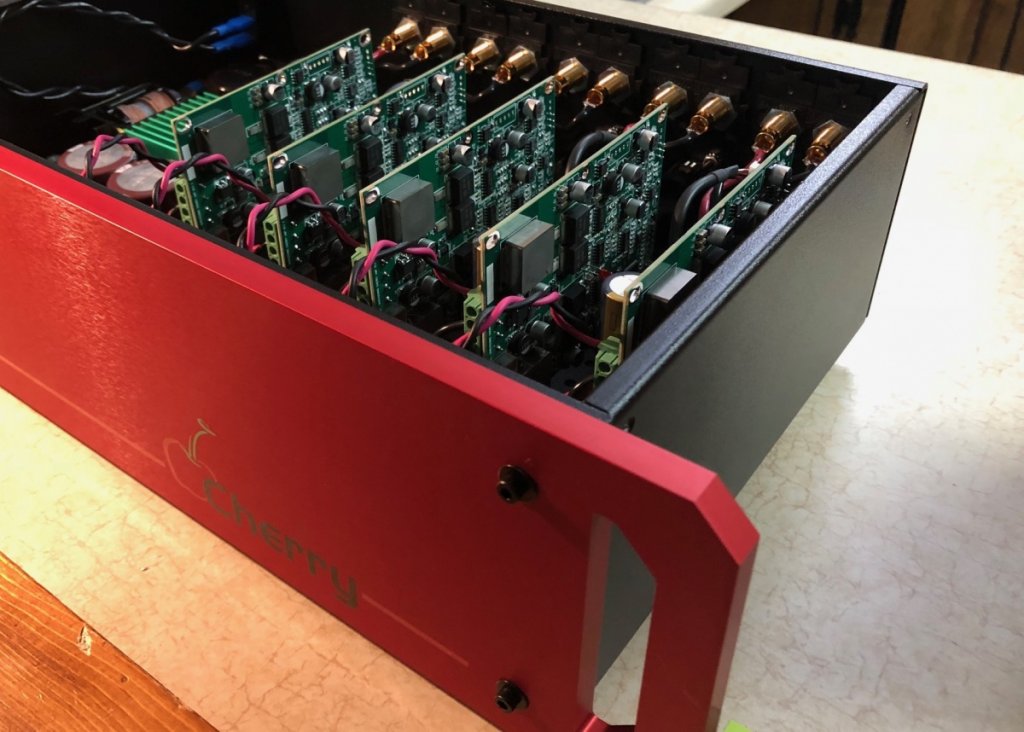

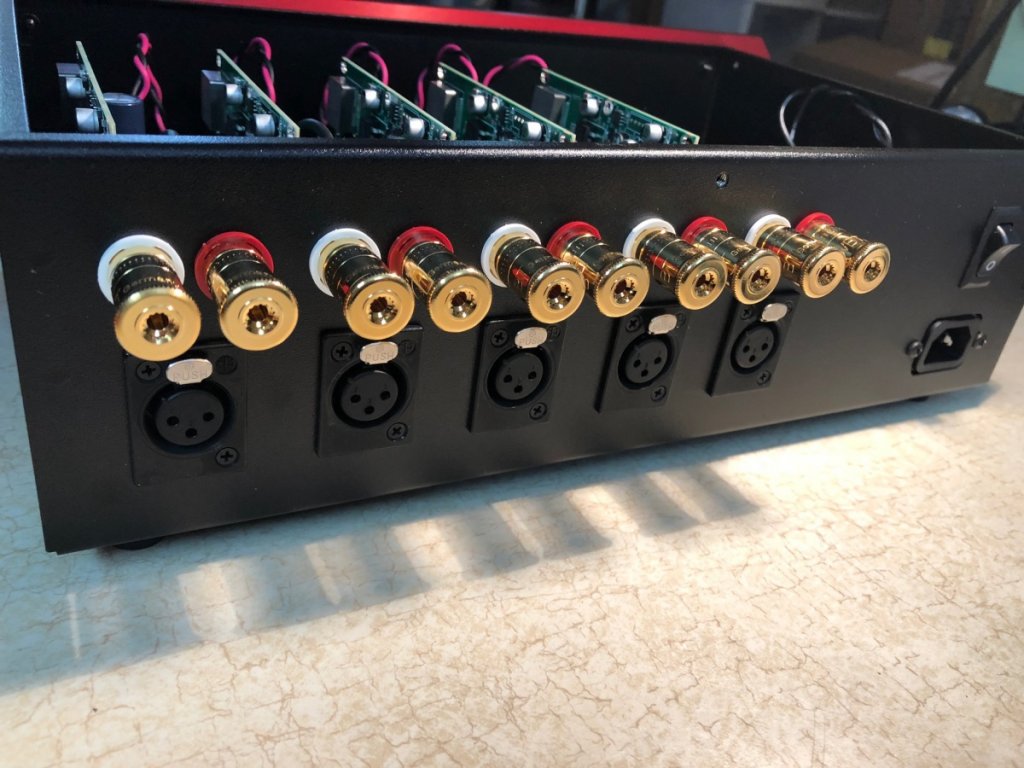

Where the 5-CHerry comes from....

We ran a Kickstarter project to develop a"mini MEGA" amplifier early this year.  During this project we decided to change the name to "mini Cherry" because it was more like the Cherry Maraschino amplifier series than the Cherry MEGAschino amplifier series.  It also made use of our Cherry Maraschino Modules which are currently not used in any Maraschino products.  The "mini Cherry" was essentially a two channel Maraschino, non-integrated.  This is comparable to a Stereo Maraschino (STM) in features and power output.  We were then encouraged by customers to make a five channel version of the "mini Cherry" amp.  When we worked out the details (new motherboard, new enclosure, new transformer) we found that we could provide better specifications with a different topology, using Maraschino Monoblock boards (!) and our 60V 1kW power supply.  We combined this with a new enclosure design, similar to the MEGAschino, to make the 5-CHerry, which can be configured as a 2-CHerry, 3-CHerry, 4-CHerry, or 5-CHerry.  Total power output is still 1000W regardless of the number of channels.  So power output for a two channel version is the same as a KING Stereo Maraschino (400Wpc into 4Ω).  There are two versions of the 5-CHerry, standard and KING.  The KING version adds a fancy brushed aluminum faceplate, Gold WBT binding posts, and double rail capacitance on all channels.  Now you can enjoy that Sweet Cherry Sound in YOUR home theater system.  The 5-CHerry is capable of powering even large home theater systems with ease as well as giving you pristine two channel playback performance!

RonN5

Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #6 on: 20 Mar 2019, 11:29 pm »
Two questions:

1.  What is the gain  for the 2-cherry and voltage
     needed to achieve full power?

2.  What is the advantage of the king version
     double rail capacitance?

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #7 on: 21 Mar 2019, 04:29 am »
Two questions:

1.  What is the gain  for the 2-cherry and voltage
     needed to achieve full power?

2.  What is the advantage of the king version
     double rail capacitance?

answers:

1. More specifications....

Gain: 22dB
SNR: 118dB
THD+N: 0.002%
Channel Separation; >100dB
Size: 4" x 5" x 2.5"
Weight (preliminary):
    18 lbs (standard version)
    21 lbs (KING version)
Size:
    14.2" x 10.3" x 4.6" (standard version)
    17.0" x 10.1" x 4.5" (KING version)
Power Efficiency: 96%
Output Impedance: <0.02Ω
Sensitivity: 3.1Vin for 400W into 4Ω
Input Impedance: 20 kΩ true balanced
Frequency Response: 0 Hz to >100 kHz
Output Power per channel:
    200Wpc into 8Ω
    400Wpc into 4Ω
    800Wpc into 2Ω
    1000W max total output
Protection:
    Thermal
    Current
    Voltage
    Auto-Recovery
AC Power Consumption, all channels in idle: 40W
AC Power Consumption, all channels in sleep mode: 14W
AC MAINS options (based on shipping destination):
    100-130VAC
    200-250VAC

2. Double rail caps provide lower THD+N in the 10Hz-100Hz range and more powerful transient peaks.  The KING version also has a pretty faceplate for the signature Cherry look ....and nicer binding posts (same as used on the Cherry MEGA).

« Last Edit: 29 Mar 2019, 05:16 pm by AmpDesigner333 »

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #8 on: 22 Mar 2019, 08:09 pm »
If you subscribe to our newsletter, you should have received the 5-CHerry pre-order special.  If not, please let us know.  To sign up, use this link:
https://bit.ly/2FdSR7K
« Last Edit: 29 Mar 2019, 05:17 pm by AmpDesigner333 »

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #9 on: 23 Mar 2019, 09:22 pm »
If you subscribe to our newsletter, you should have received the 5-CHerry pre-order special.  If not, please let us know.  To sign up, use this link:
https://bit.ly/2FdSR7K
Thank you to our new subscribers!  A warm welcome as well.  We plan to resend the pre-order to new subscribers in a few days.

Thanks again (:

RonN5

Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #10 on: 28 Mar 2019, 03:21 pm »
Ok...a few more questions regarding the 2-cherry version....

What is sleep mode…does it shut off completely or just go into an idle (in Florida, with all the lightning, it is usually preferable to power things down to be completely safe)

Is there a power on and power off relay/delay of a few seconds or is the power instant on instant off (to try to prevent the aggravating thumps)

Is there an option for the power switch on the front

Is there a 12v trigger

What color is the standard case and the king version case



AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #11 on: 29 Mar 2019, 04:00 pm »
Ok...a few more questions regarding the 2-cherry version....

What is sleep mode…does it shut off completely or just go into an idle (in Florida, with all the lightning, it is usually preferable to power things down to be completely safe)

Is there a power on and power off relay/delay of a few seconds or is the power instant on instant off (to try to prevent the aggravating thumps)

Is there an option for the power switch on the front

Is there a 12v trigger

What color is the standard case and the king version case


Sleep mode shuts off the output stage of the amplifier after 8 minutes of quiet and turns it back on when audio is detected.  AC power consumption is about 3 Watts per channel during sleep and about 8 Watts per channel during idle.  This is significantly more than typical Class-D amps because Cherry amps run much faster.

The 5-CHerry, 4-CHerry, 3-CHerry, and 2-CHerry have channel independent sleep mode.  For example, if you're listening to 2-channel audio on a 5.1-channel system through a 5-CHerry, the center and surrounds will sleep while left/right runs automatically.  Sleep mode also alleviates the need for a remote trigger (typ 12V), although the Cherry MEGA has both.

There's also a power switch on the back, so you can turn it off completely.  Based on your input, we might put the switch on the front for the standard version in the future.  Maybe even the KING, although that would require a new faceplate design.  So far, it's always on the back, but easily accessible from over the top, and the amp is less than 9"deep.

After switching on, there is a two second inrush prevention delay, then a one second amp startup delay.  On/off/sleep transition quietly.

The enclosure is black, and the KING version can have a black or red faceplate.  We might offer silver faceplates again someday soon.
« Last Edit: 29 Mar 2019, 05:18 pm by AmpDesigner333 »

Rick Craig

  • Industry Contributor
  • Posts: 3538
  • Selah Audio
    • http://www.selahaudio.com
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #12 on: 29 Mar 2019, 04:17 pm »
How about exhibiting with Selah Audio at an audio show?

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #13 on: 29 Mar 2019, 05:13 pm »
How about exhibiting with Selah Audio at an audio show?
Rick,

Please email me at Support@DigitalAmp.com and we'll talk.  Very nice looking speakers, by the way!  Are you the owner?

This is the site I visited:
http://www.selahaudio.com/

Going to AXPONA?

Thanks.

-Tommy O

Rick Craig

  • Industry Contributor
  • Posts: 3538
  • Selah Audio
    • http://www.selahaudio.com
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #14 on: 29 Mar 2019, 05:43 pm »
Rick,

Please email me at Support@DigitalAmp.com and we'll talk.  Very nice looking speakers, by the way!  Are you the owner?

This is the site I visited:
http://www.selahaudio.com/

Going to AXPONA?

Thanks.

-Tommy O

Yes, the owner of Selah Audio. I had contacted another company about Axpona but the owner wasn't very responsive and the time frame for an answer was limited. Thanks for your kind comment - I have sent you an e-mail.

RonN5

Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #15 on: 29 Mar 2019, 07:58 pm »
Tommy, Rick

Not that you guys asked my opinion….but…

If you look at what the online magazines have to say after each of the big shows…it is often other Audio Circle guys like Salk and VanAlstine…or Spatial Audio and Vinie Rossi that get together and end up being the “surprise” hits of the show.

Both DAC and Selah have strong followings and great reputations….YES, you should get together for one of the major shows!

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
See the 5-CHerry at AXPONA 2019 !!
« Reply #16 on: 2 Apr 2019, 07:52 pm »
We will have prototypes of the new 5-CHerry Amp at AXPONA this year.  Details here:
https://www.audiocircle.com/index.php?topic=163293.0

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #17 on: 2 Apr 2019, 07:55 pm »
Tommy, Rick

Not that you guys asked my opinion….but…

If you look at what the online magazines have to say after each of the big shows…it is often other Audio Circle guys like Salk and VanAlstine…or Spatial Audio and Vinie Rossi that get together and end up being the “surprise” hits of the show.

Both DAC and Selah have strong followings and great reputations….YES, you should get together for one of the major shows!
Take a look at our AXPONA 2019 post.  JTR's award winning speakers will be powered by Cherry Amps.  Spatial will probably be using Golden Cherry amps in their room as well.  There may be a few more Cherry Amps at the show, but we can't say for sure until the first day.  Thanks.

AmpDesigner333

  • Facilitator
  • Posts: 2469
  • Detailed AND Musical
    • Digital Amplifier Company
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #18 on: 2 Apr 2019, 10:05 pm »





Jonathon Janusz

  • Full Member
  • Posts: 809
Re: A 5-Channel Cherry ?? -- Introducing 5-CHerry !!
« Reply #19 on: 27 Jul 2019, 02:43 am »
Tommy,

Can the x-Cherry have the "no sleep" mod done that the maraschino monos can or have the on/auto/off sleep control of the STM for folks using high sensitivity speakers and low volume listening, as noted in the description of the "no sleep" mod on your website?

Thanks!
