Captainhemo

Updated Line force (Super LS? )
« on: 14 Sep 2018, 08:29 pm »

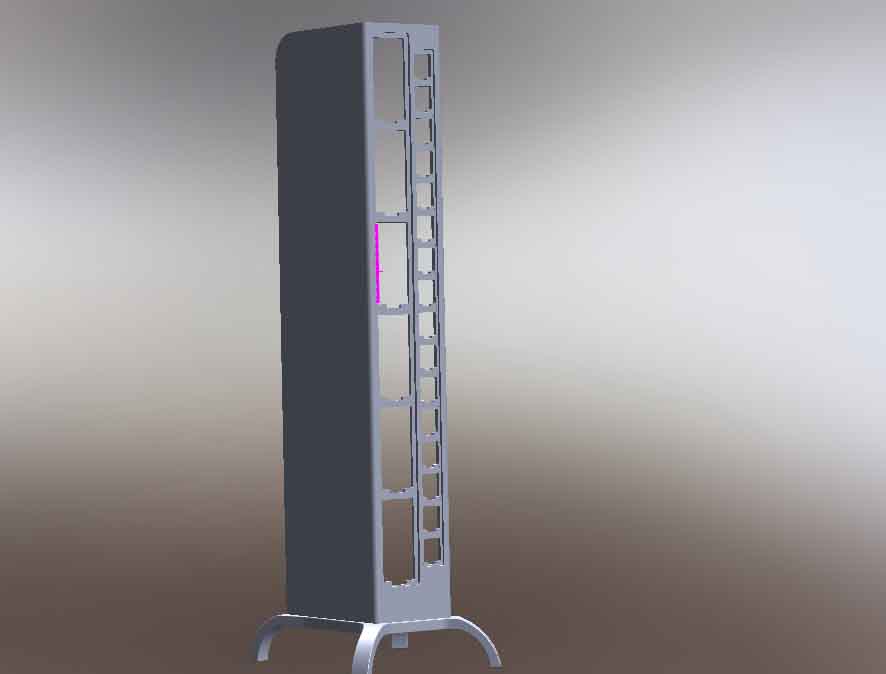

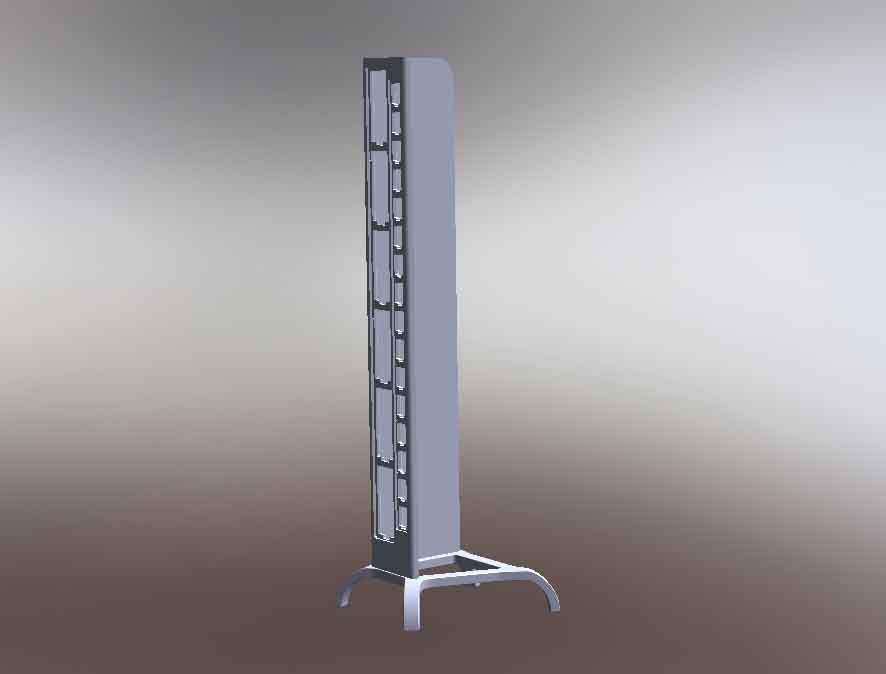

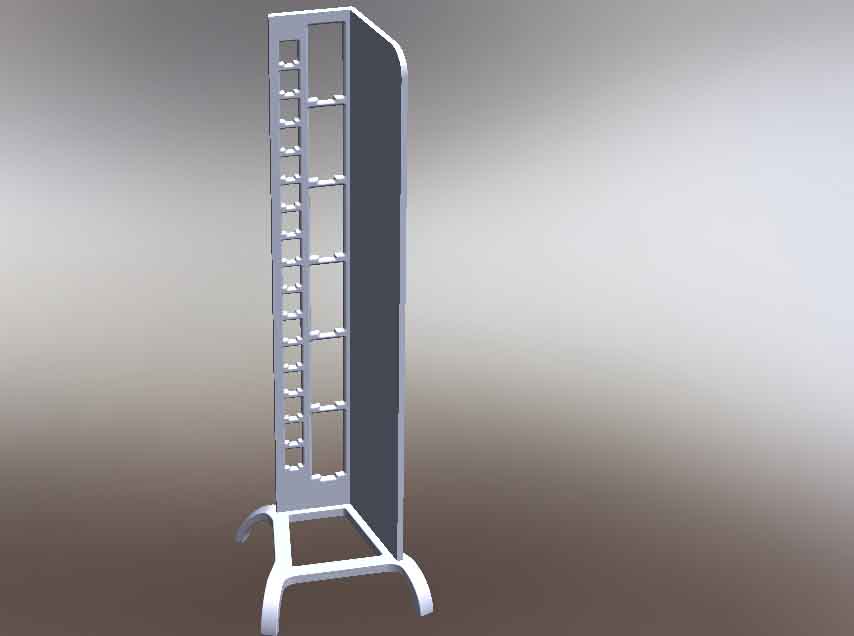

Just letting  people  know that these are still in the works. been poking away at  a contoured base and discussing  composites.










jay

Vedder323

  • Full Member
  • Posts: 422
  • vinyl reviews and more, check out Newrecordday.com
    • New Record Day
Re: Updated Line force (Super LS? )
« Reply #1 on: 14 Sep 2018, 09:22 pm »
Tease!!!!

ebag4

Re: Updated Line force (Super LS? )
« Reply #2 on: 14 Sep 2018, 10:29 pm »
Very cool Jay! Is there a technical reason the base needs to add that height?

Thanks,
Ed

SoCalWJS

Re: Updated Line force (Super LS? )
« Reply #3 on: 14 Sep 2018, 11:26 pm »
 :o :o :o :o :o

 :thumb:

Captainhemo

Re: Updated Line force (Super LS? )
« Reply #4 on: 15 Sep 2018, 12:26 am »
Very cool Jay! Is there a technical reason the base needs to add that height?

Thanks,
Ed

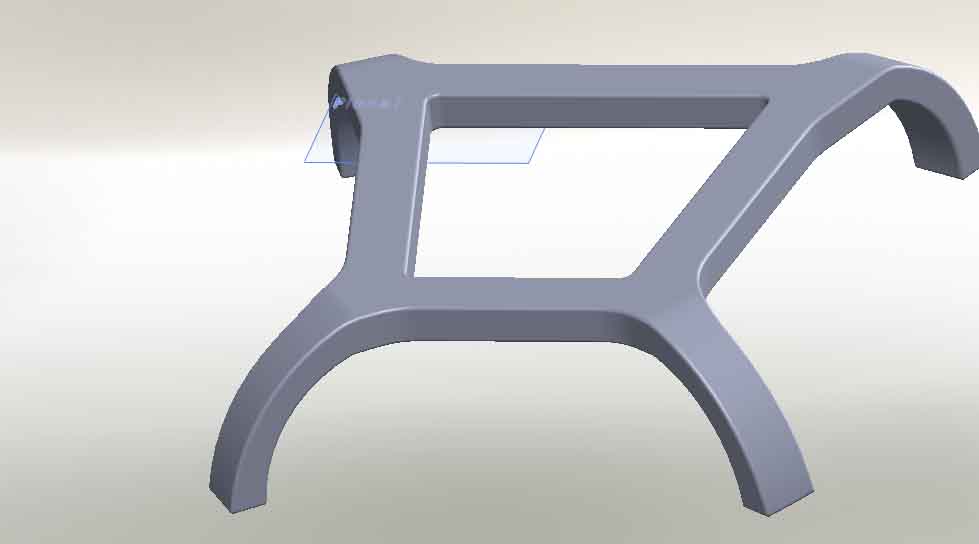

They do lift  the array up a  bit but not as much  as  you  may think.. those bases are only 5.5 "  tall..
Was really  just  trying to  keep them similarin  height to the  orignal pair but   "fit"  the   speaker  cabinet  a bit  better  IMHO  .     Each will  have to  be milled from a  solid  block of   composite.


jay

Folsom

Re: Updated Line force (Super LS? )
« Reply #5 on: 15 Sep 2018, 01:30 am »
Why not a simple T outrigger, and some spikes?

**I cannot visualize as well as CAd

MarvinTheMartian

  • Jr. Member
  • Posts: 89
Re: Updated Line force (Super LS? )
« Reply #6 on: 15 Sep 2018, 06:46 pm »
Jay:
If you are concerned with baffle stiffness why not double up the thickness with a baffle sandwich.
Add a front panel, mirror image of your current design (minus the terminal cut outs) would leave a nice clean finished look.
Rubber sheet gasket in between the two layers and you may not need the slight driver recess.
Choose the gasket material correctly and you may not even need the 100 driver mounting screws.
Twenty bolts from the backside  should hold the panels together and keep the that nice clean look.

Shawn












Captainhemo

Re: Updated Line force (Super LS? )
« Reply #7 on: 16 Sep 2018, 12:22 am »
All good on the baffle  ,  no worries

jay

soundofrockets

  • Jr. Member
  • Posts: 276
Re: Updated Line force (Super LS? )
« Reply #8 on: 26 Nov 2018, 08:00 pm »
Any updates on this one??

Captainhemo

Re: Updated Line force (Super LS? )
« Reply #9 on: 26 Nov 2018, 08:18 pm »
A pair is inthe "que"  now

jay

soundofrockets

  • Jr. Member
  • Posts: 276
Re: Updated Line force (Super LS? )
« Reply #10 on: 26 Nov 2018, 08:20 pm »
Wow.  Drivers and cross over by Danny?

Captainhemo

Re: Updated Line force (Super LS? )
« Reply #11 on: 26 Nov 2018, 08:35 pm »
Yes, it'll be a  combination effort.  We'll finish the  cabinets up here and ship down to  Danny for final asembly before   heading out to their  new  home .

jay

jay

SoCalWJS

Re: Updated Line force (Super LS? )
« Reply #12 on: 26 Nov 2018, 08:59 pm »
 :popcorn:

Great to hear they're still moving forward. You mentioned "Composite" in the original post. Any decisions or details?

Captainhemo

Re: Updated Line force (Super LS? )
« Reply #13 on: 26 Nov 2018, 09:56 pm »
Yes, they will be a  composite, similar in density to  MDF (approx 75gr/cc).
I sent  Danny  a sample Neo3/Neo10 baffle made  from a similar (not quite as dense)  product.


    Excellent machineability
    Low dust emission
    No shrinkage / Dimensionally Stable
    Low moisture absorption
    No grain
    Excellent surface finish

jay
