[Kramer]

From the PDF on Dave's site:

Front plate: 9" W x 19" H (veneer not added)

Tweet CL: 4" horz from left edge, 5" horz from right edge, 2-5/8" vert from top edge

Woof CL: 4-1/4" horz from left edge, 4-3/4" horz from right edge, 8" vert from top edge


When plotted in ACAD, the image doesnt look right. Woofer appears too high, and shouldnt it be on the box's CL?


[EProvenzano]

I'm not sure about your measurements, but I do know that the woofer is indeed off the center line.

Woofer is offset by about 1/4". That is how mine appear.
I haven't confirmed by actually measuring.

Enjoy.
EP

[EProvenzano]

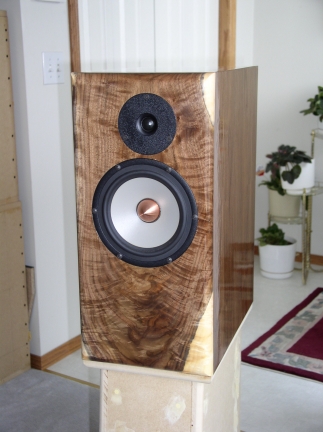

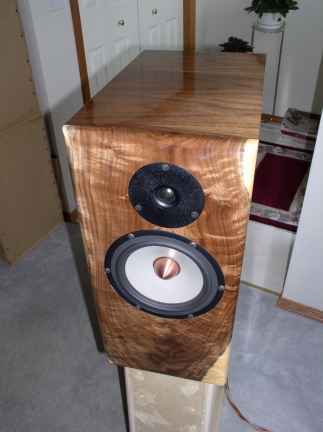

Here's a couple shots of mine.
It's kind of tough to see the woofer offset in this pic.
Hope this can help you visualize.





Dave, did I ever tell you that I'm NEVER selling these

[David Ellis]

The only thing that looks awry is the woofer vertical distance from the top of the speaker.  I place mine about 8 1/4 - 8 3/8 from the top.  You cited 8" from the top.  This might be a wee bit tight.

I suggest you eyeball the clearance with the real drivers on your cabinet after marking the cut/drill locations.

Don't worry about a little sawdust on the woofer.  It'll wipe clean with a damp cloth.  The tweeter dome isn't quite this easy.  It is slightly rough.  Keeping this clean is somewhat important.  It's tough to wipe the dome clean.

Dave
