***X-LS Extravaganza***

0 Members and 1 Guest are viewing this topic. Read 21603 times.

kenneth815

  • Jr. Member
  • Posts: 6
Re: ***X-LS Extravaganza***
« Reply #120 on: 29 Apr 2020, 02:27 am »
People can't believe how good these speakers sound. Then when they get the chance to hear them, they really can't believe how good they sound. Gloss black can be a PITA but you did a great job with these.

Thanks, Mike! Indeed they sound amazing and thanks for sharing your cross over images btw, just what I needed!

Ekim

  • Jr. Member
  • Posts: 6
Re: ***X-LS Extravaganza***
« Reply #121 on: 29 Apr 2020, 02:31 am »
Great job on your first project! Thanks for sharing :D.

mlundy57

Re: ***X-LS Extravaganza***
« Reply #122 on: 29 Apr 2020, 03:07 am »
Thanks, Mike! Indeed they sound amazing and thanks for sharing your cross over images btw, just what I needed!

Oh, by the way, you're hooked now. That's the same speaker I started with six or seven years ago. There is no vaccine for this bug. Don't fight it, just go with the flow...  :thumb:

kenneth815

  • Jr. Member
  • Posts: 6
Re: ***X-LS Extravaganza***
« Reply #123 on: 29 Apr 2020, 03:25 am »
Oh, by the way, you're hooked now. That's the same speaker I started with six or seven years ago. There is no vaccine for this bug. Don't fight it, just go with the flow...  :thumb:

Haha, so true!!! I'm very aware that I have been bitten! Luckily, there's lots for me to learn between builds, hopefully between that and saving up, it will slow this disease from onsetting too quickly :lol:

Peter J

  • Full Member
  • Posts: 1412
  • Hmmmm
Re: ***X-LS Extravaganza***
« Reply #124 on: 29 Apr 2020, 02:13 pm »
Looks like they turned out really well, Kenneth. Thanks for posting the progress pics, I'm sure it's encouraging for others who want to give it a go. Happy listening!

Captainhemo

Re: ***X-LS Extravaganza***
« Reply #125 on: 29 Apr 2020, 04:29 pm »
Nice job Kenneth !!   I agree with Mike,  you're   in trouble   LOL
Enjoy the tunes  man

jay

Gearguy

  • Jr. Member
  • Posts: 14
Re: ***X-LS Extravaganza***
« Reply #126 on: 14 May 2020, 11:32 pm »
X-LS Encore hi-pass question:

To relieve the X-LS speakers (and the Dynaco ST-70) of having to deal with all the low freq energy, I will try an in-line high pass filter. My powered sub says it will go to 120hz.

Question: 100hz or 70hz?

corndog71

  • Full Member
  • Posts: 1049
  • Some people call me Rob.
Re: ***X-LS Extravaganza***
« Reply #127 on: 15 May 2020, 12:36 am »
I would go with the one that you like more.

mlundy57

Re: ***X-LS Extravaganza***
« Reply #128 on: 15 May 2020, 02:48 am »
The decision may come down to cap availability. I recently bought caps for an inline filter to work with power amps that have an input impedance of 100k Ohms. There were only two sizes that would work with my NX-Utica MTMs. One would put the -3dB point at 159Hz and the other at 79Hz.

Once you know the input impedance of your power amp, you can find out what sizes the caps you want to use are available in, determine where those sizes will put the -3 point, then decide.

Eldergod

  • Jr. Member
  • Posts: 3
Re: ***X-LS Extravaganza***
« Reply #129 on: 15 May 2020, 03:26 pm »
Clarifying question on the X-LS: Is one sheet of No Rez enough for the pair?

Danny Richie

  • Facilitator
  • Posts: 13094
    • http://www.gr-research.com
Re: ***X-LS Extravaganza***
« Reply #130 on: 15 May 2020, 04:06 pm »
Clarifying question on the X-LS: Is one sheet of No Rez enough for the pair?

Yes.

Peter J

  • Full Member
  • Posts: 1412
  • Hmmmm
Re: ***X-LS Extravaganza***
« Reply #131 on: 20 May 2020, 03:52 pm »

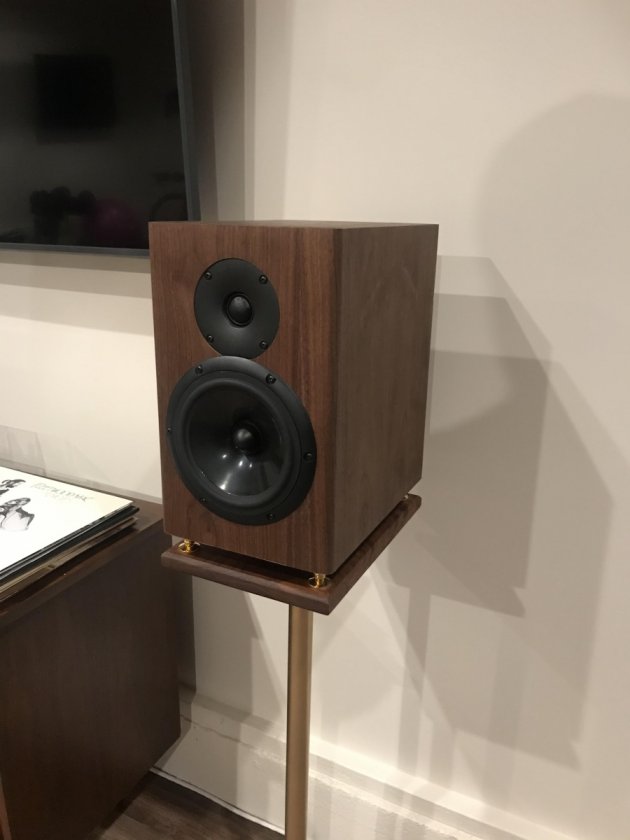

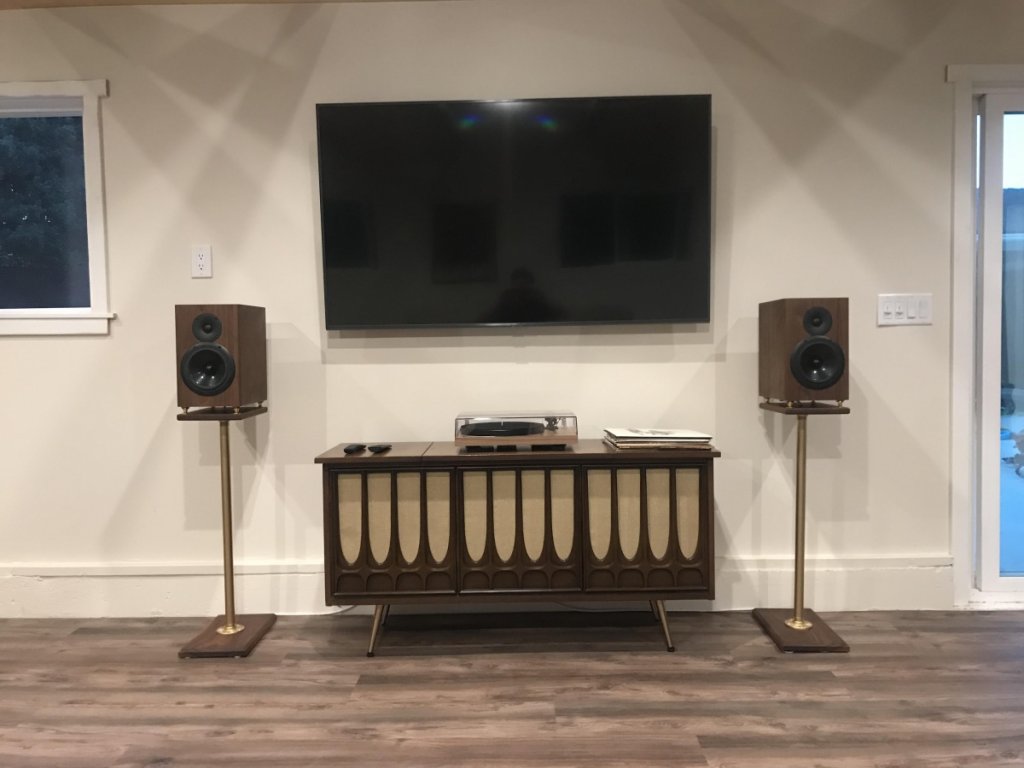

I love it when folks send or post their "completed" photos. These from Casey, in oiled walnut. They look groovy with that console...







AlexH

Re: ***X-LS Extravaganza***
« Reply #132 on: 20 May 2020, 04:00 pm »
Those look great!!

Hobbsmeerkat

  • Jr. Member
  • Posts: 138
Re: ***X-LS Extravaganza***
« Reply #133 on: 20 May 2020, 04:26 pm »
Those look awesome, love the walnut too! Its definitely the look I'm going for when it comes time to build my Studios.

Danny Richie

  • Facilitator
  • Posts: 13094
    • http://www.gr-research.com
Re: ***X-LS Extravaganza***
« Reply #134 on: 21 May 2020, 12:39 pm »
Man, those do look really good.

Peter J

  • Full Member
  • Posts: 1412
  • Hmmmm
Re: ***X-LS Extravaganza***
« Reply #135 on: Yesterday at 05:09 pm »

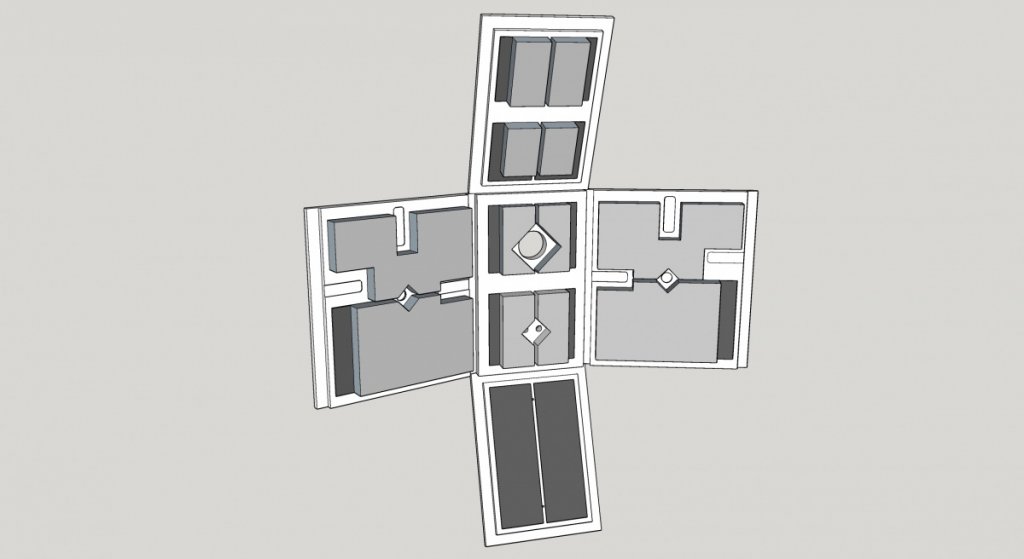

I've had many queries about NoRez installation. Surprising to me, several have suggested, and some have installed, before cabinet assembly. Interestingly, when I showed this illustration to my wife to gauge if it actually accomplished what I was intending, she suggested just that...installing before assembly. I'll leave that to builder to decide, I guess.

Anyway, my intention is to make a video about NoRez installation in general using X-LS mules I have. Here's my question to y'all. If you were to look at this illustration and an associated dimensional drawings, would it make sense to you? I really want to clear things up on what appears to be murky to some.

Feedback solicited...that's where y'all come in.




Gearguy

  • Jr. Member
  • Posts: 14
Re: ***X-LS Extravaganza***
« Reply #136 on: Yesterday at 09:25 pm »
Peter, I pre-installed the NoRez in the pair I built from your flat pack. Seemed like the easier way to me. Your illustration would be very helpful to those who would like to pre-install it.

bucky63

  • Jr. Member
  • Posts: 3
Re: ***X-LS Extravaganza***
« Reply #137 on: Today at 01:28 am »
Here are some project pics of the X-LS Encore project I started this month to give to my son for his high school graduation.   Thanks to Danny and Peter for supplying the speaker kit and the Flat-pack!

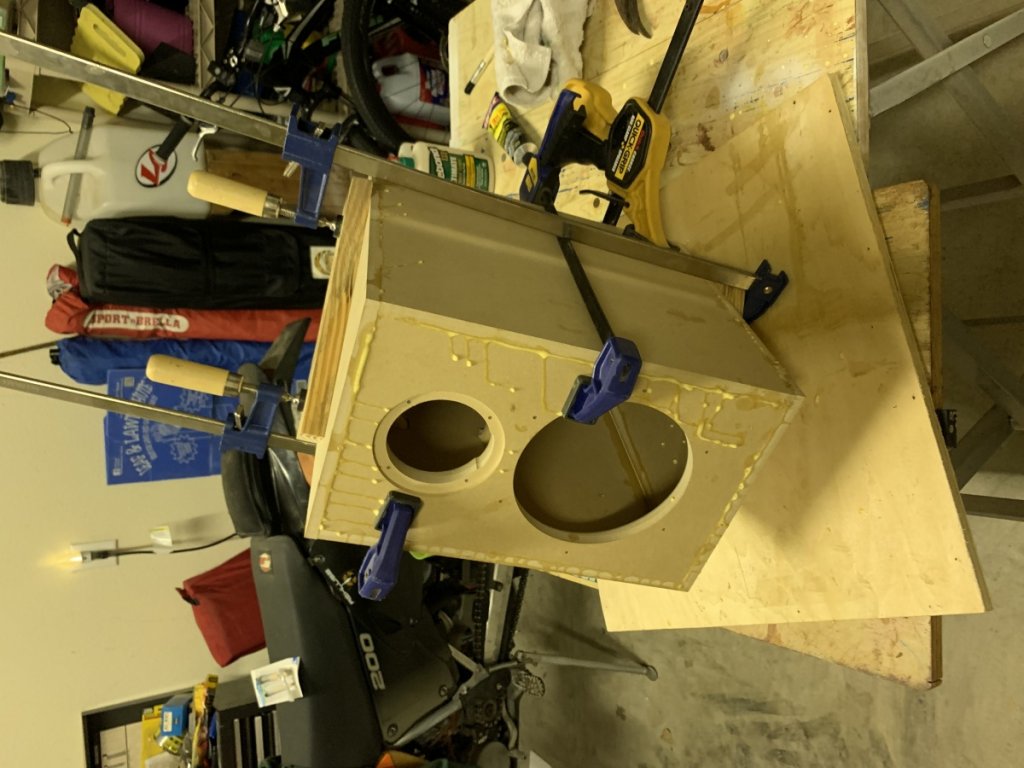

Glued and clamped

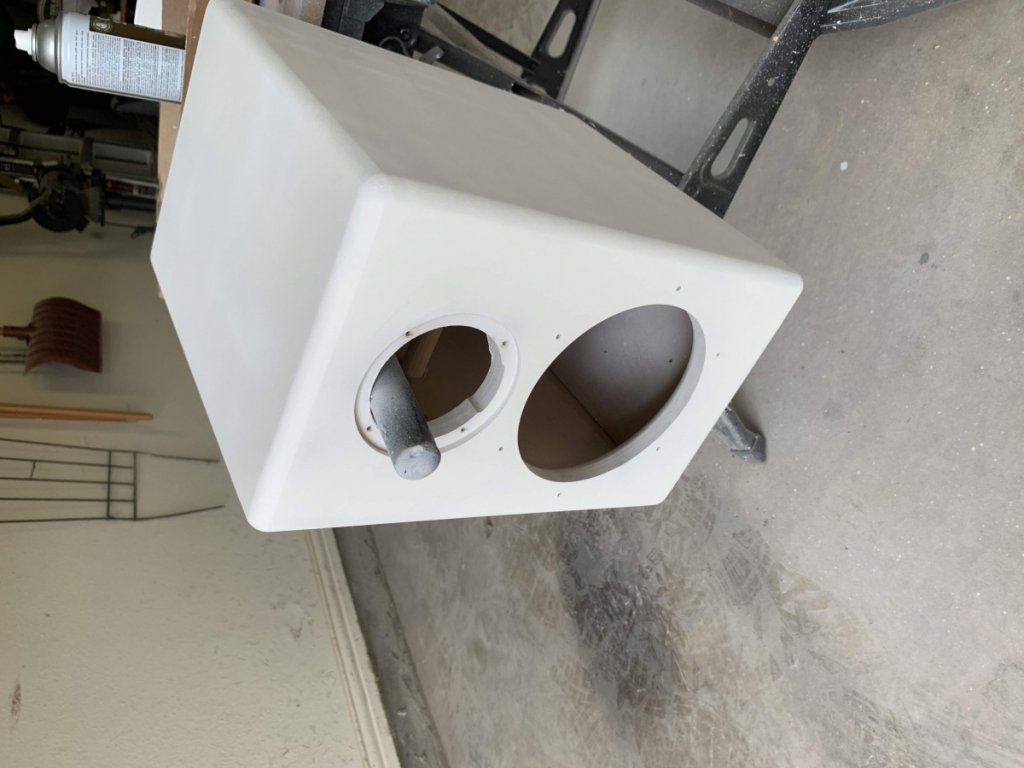

Primed

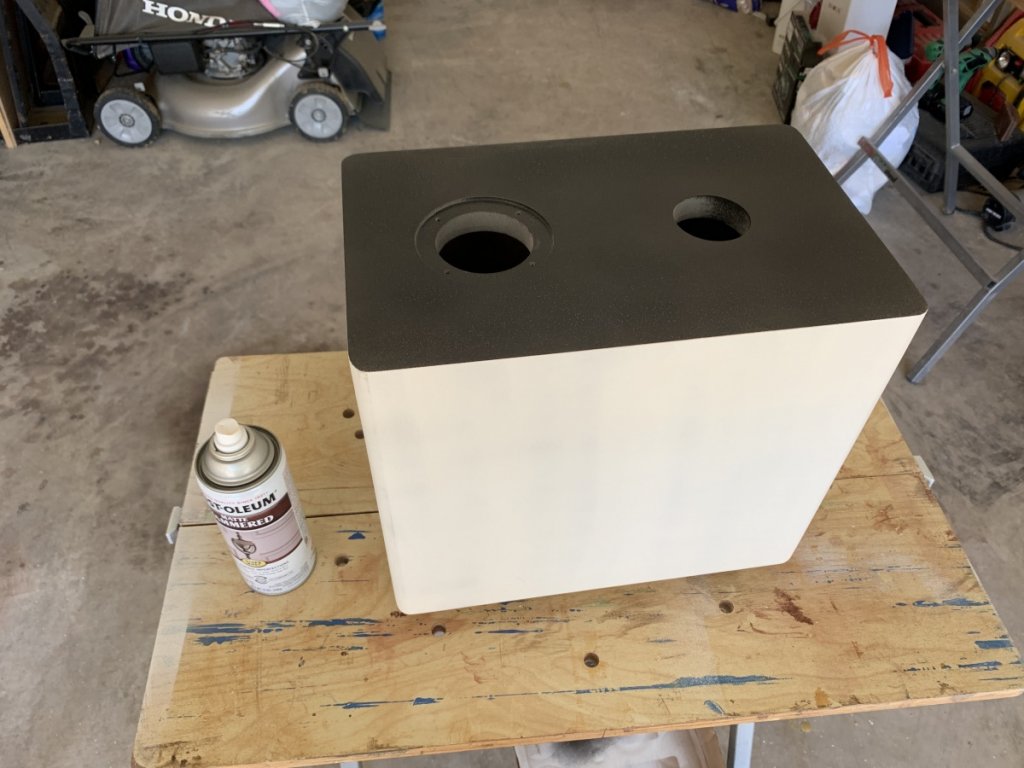

Painted backs with a dark gray hammered effect spray paint

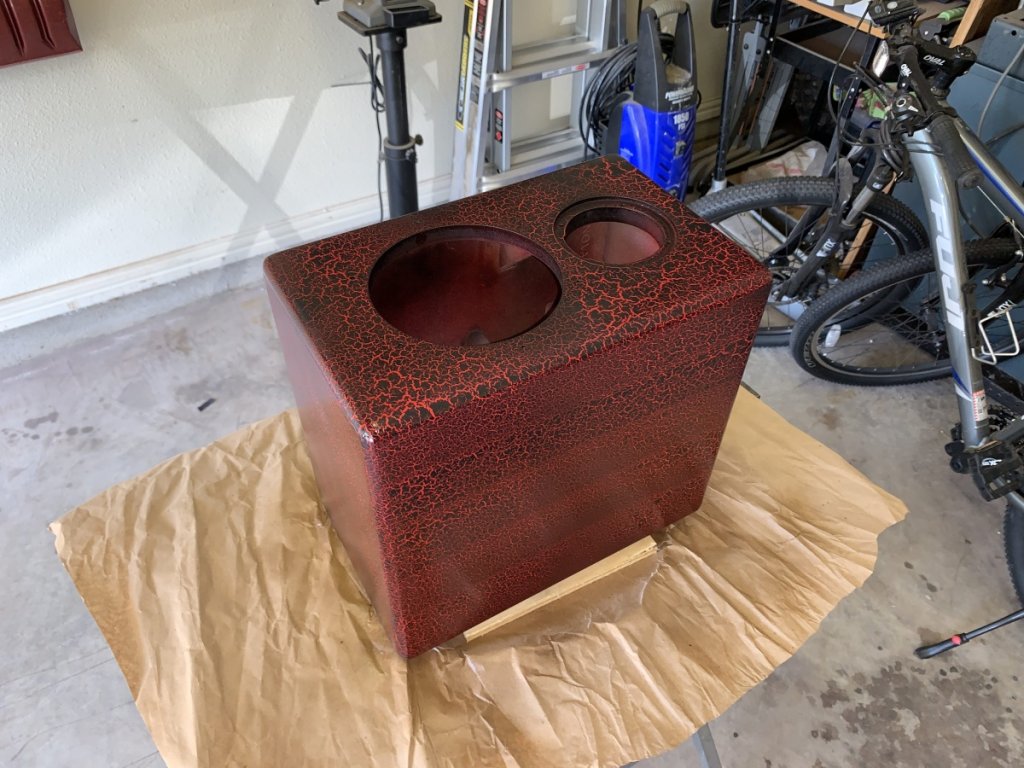

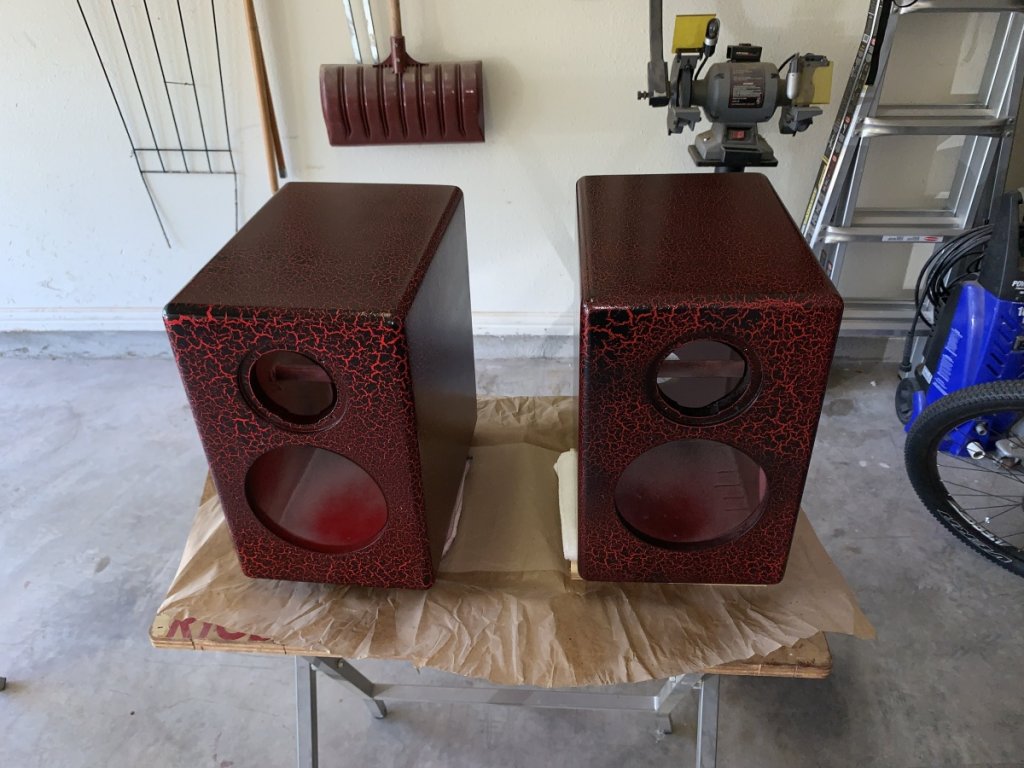

Crackled effect inspired by Peter's build for his grandson.  I used Montana Black Crackle spray over red Rust-Oleum enamel.



Finished with Krylon Clear Gloss Lacquer spray

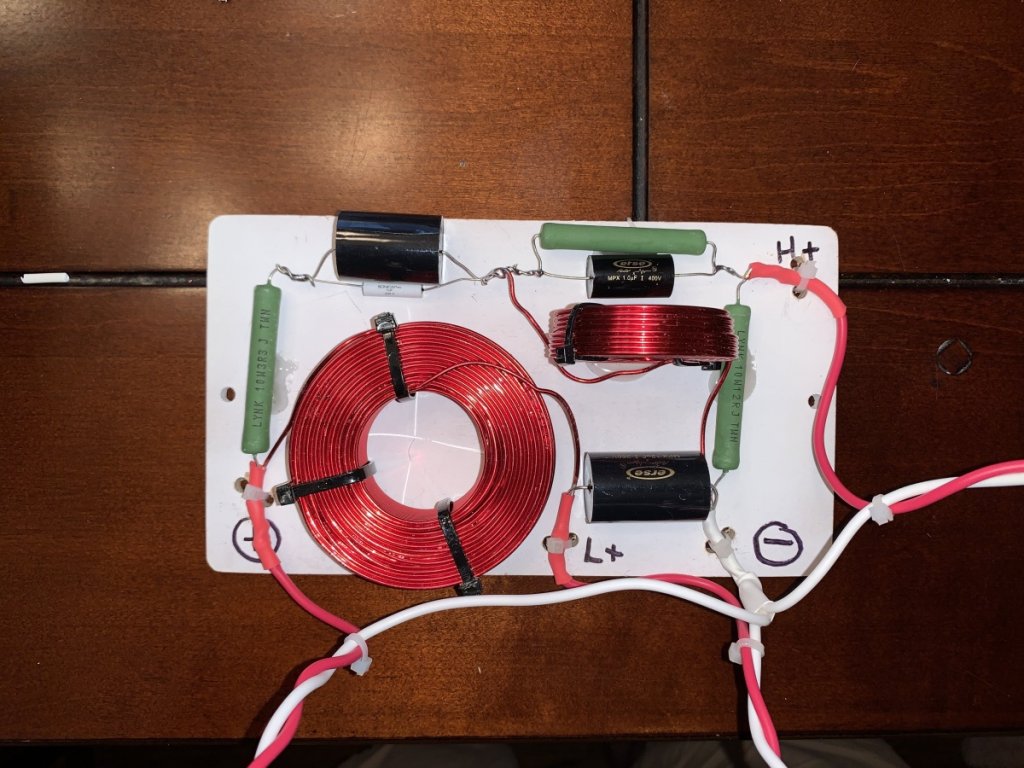

Danny's basic X-LS cross-over

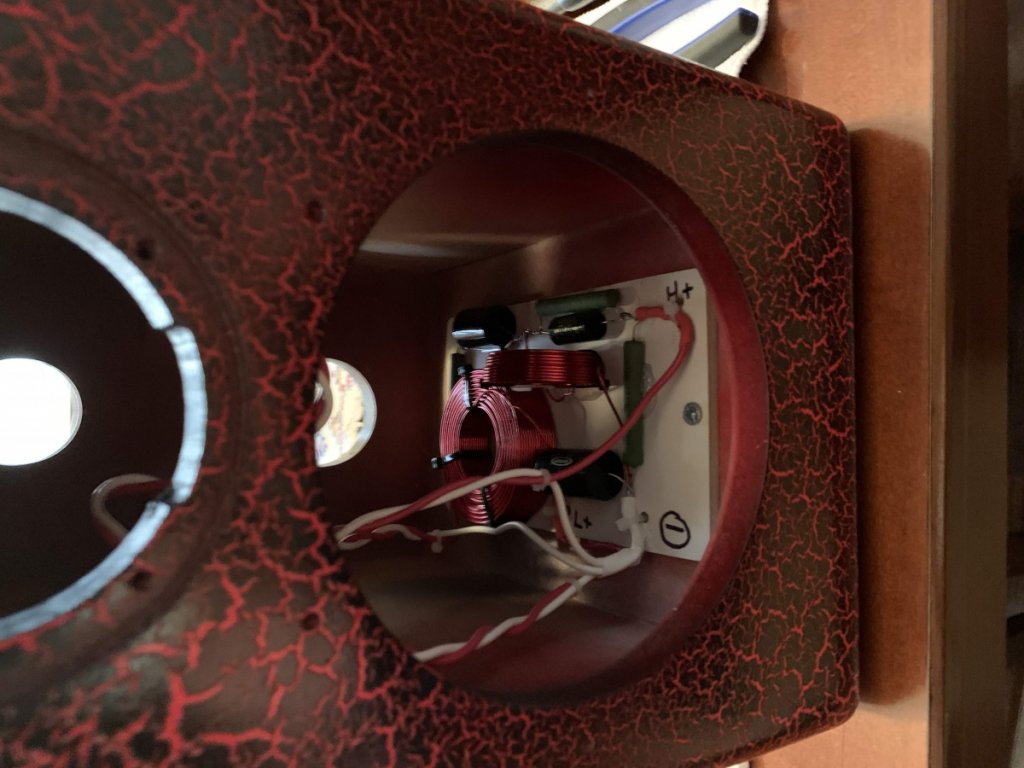

Cross-over inserted in the box

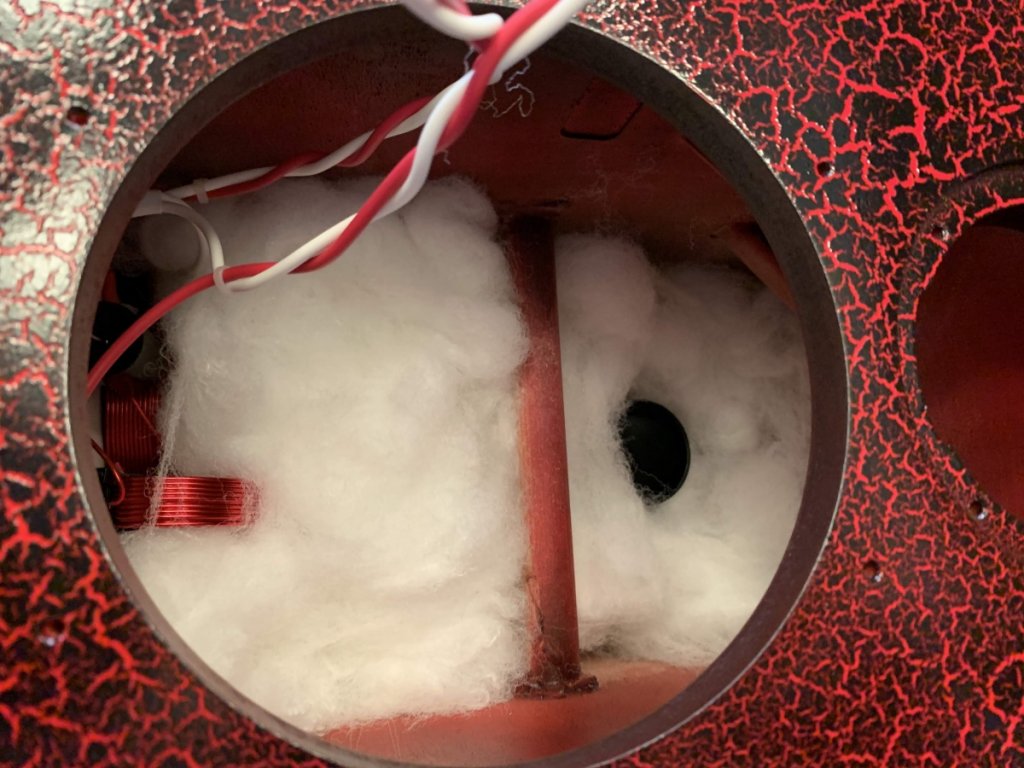

Sorry, Danny, I used polyfill for this build

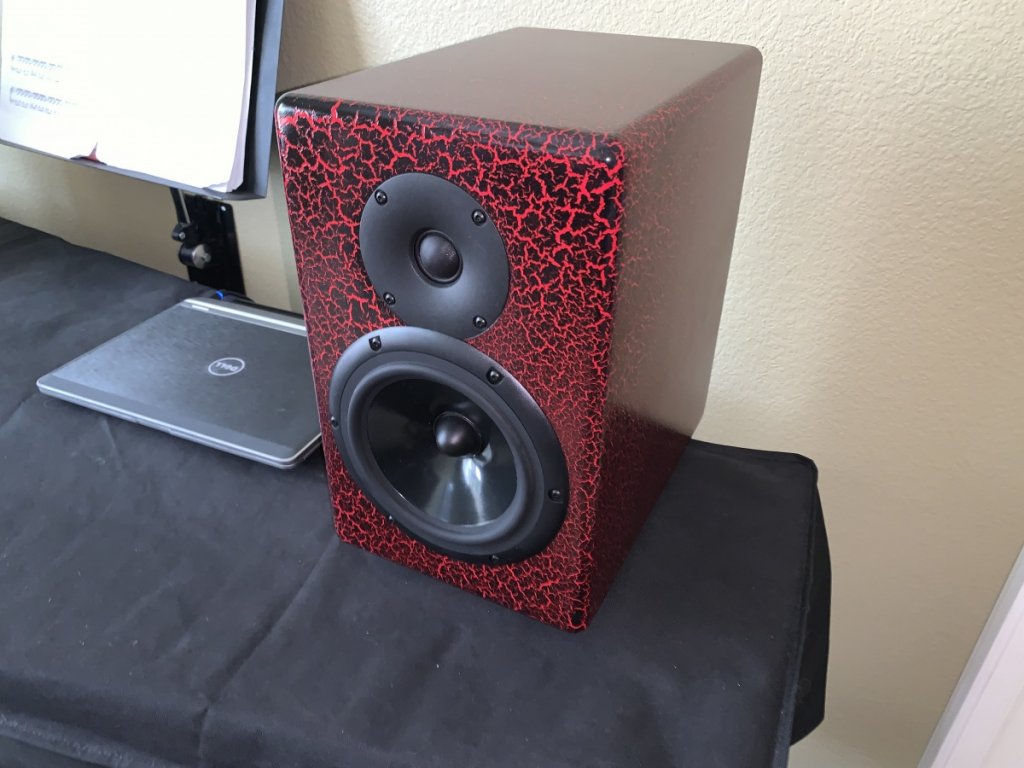

Finished speaker one



Finished speaker two






Back of speaker

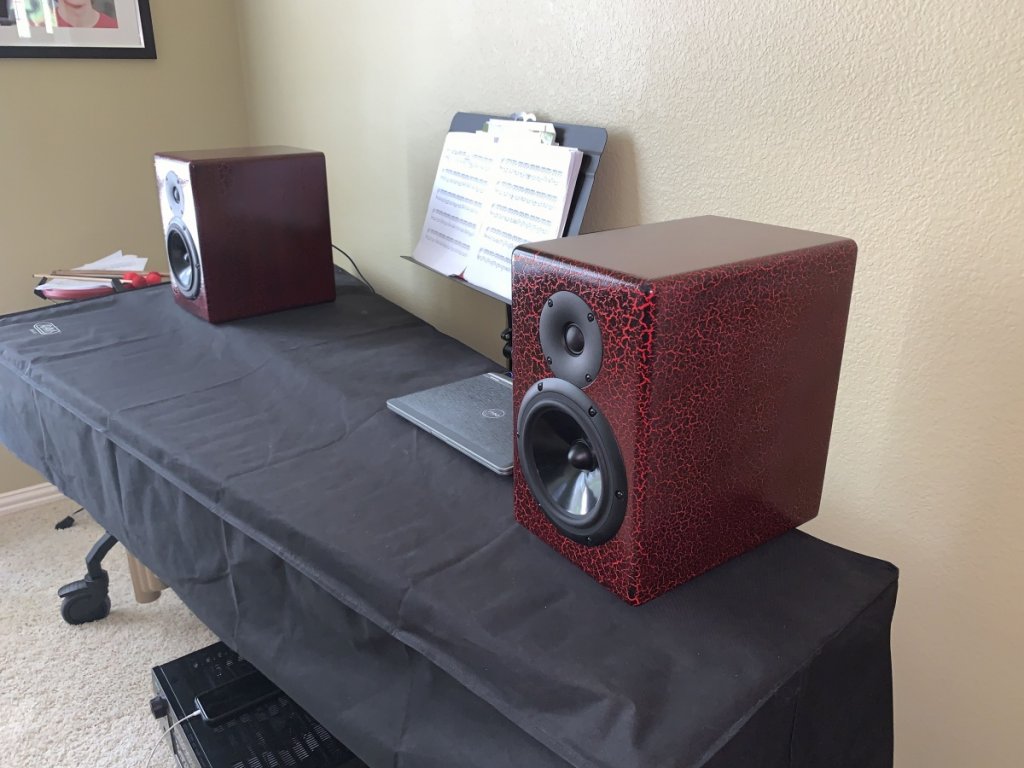

Overall I'm very pleased with the finished results and so is my son!  We just got them hooked up to a Denon AVR today and both love the sound so far.  Since this was my first real serious DIY speaker project there were some learning experiences but nothing too bad and happy with going the DIY route.  Both speakers look and sound fantastic!!
« Last Edit: Today at 01:40 pm by bucky63 »

cody69

Re: ***X-LS Extravaganza***
« Reply #138 on: Today at 01:46 am »
Quote
Feedback solicited
Makes good sense Peter. And a comment regarding the front baffle would avoid follow-up questions.
