Current and future DIY projects
« on: 16 Jan 2017, 11:10 am »
Hello,

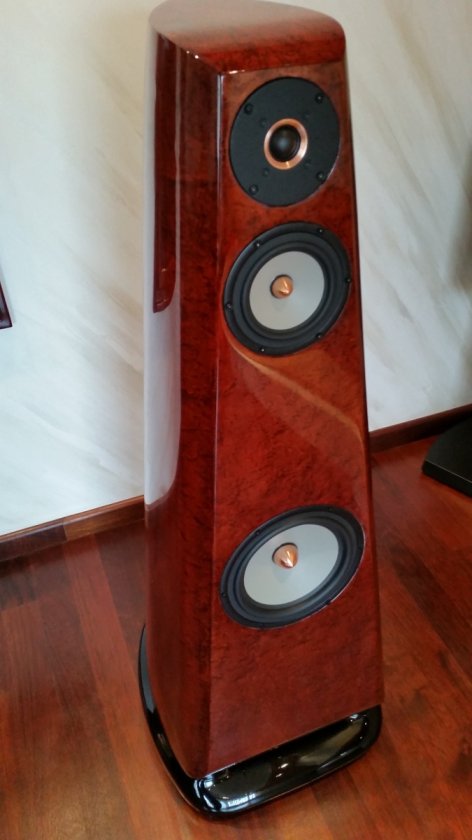

the first project of my DIY loudspeakers i have served Ti6k- JBL. My first contact with
them, was in distant 2005.
I started working with them in 2009 and finished in 2012.

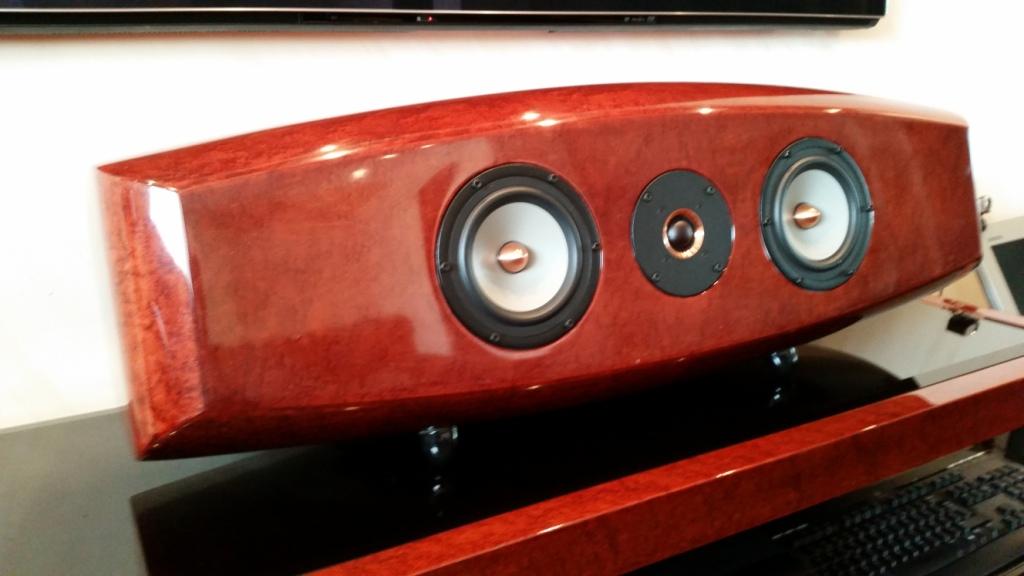

The loudspeakers are "SEAS"- Excel / Tw-1”, Mw-5”for center 2х 5.5”,Bass-8,5”/ and cross-over parts- "Intertechnik".

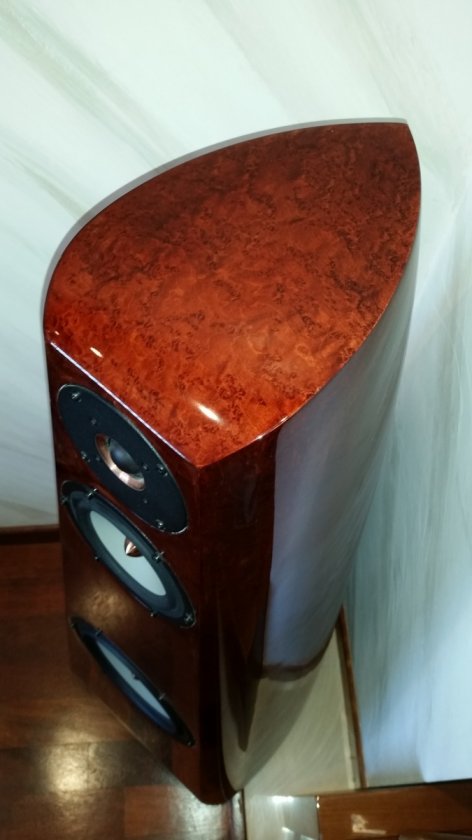

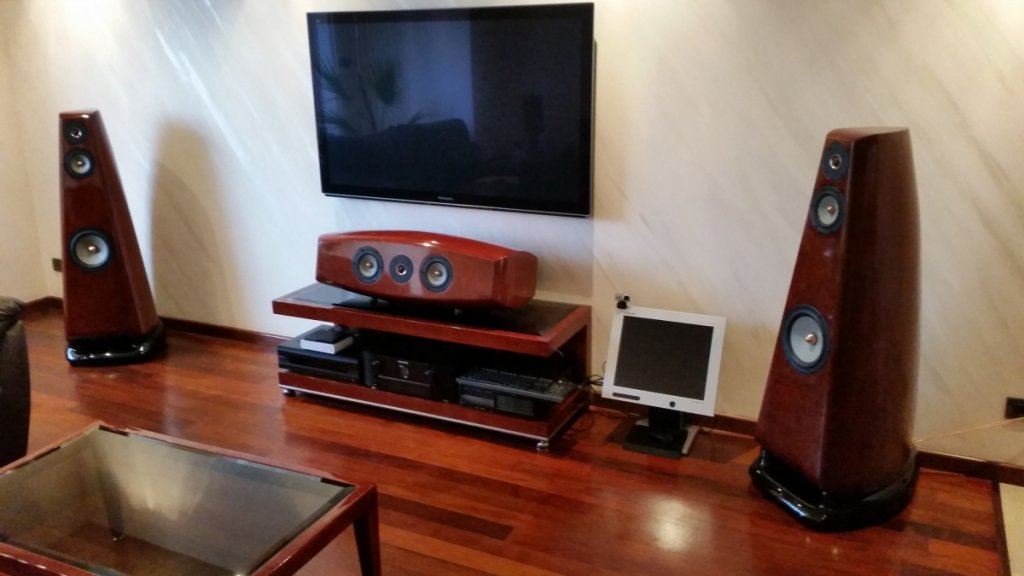

Have are some pictures, if there is interest, i will continue.
Regards!










mresseguie

  • Volunteer
  • Posts: 3375
  • D Sachs amp/pre + Daedalus Audio Speakers = HEAVEN
Re: Current and future DIY projects
« Reply #1 on: 17 Jan 2017, 03:53 pm »
THERE IS INTEREST!  :lol:

I see DIY projects like these; have great fantasies about making something as beautiful as your speakers, but I always crash back to Earth once I remember my carpentry skills.  :roll:

Reading about others' exploits gives me a nice warm fuzzy feeling though!  :thumb:

Michael

jororaitchev

  • Jr. Member
  • Posts: 66
Re: Current and future DIY projects
« Reply #2 on: 17 Jan 2017, 04:17 pm »
^
Quote
THERE IS INTEREST!
Really big interest. It is seen everyday.

Jazzman53

Re: Current and future DIY projects
« Reply #3 on: 17 Jan 2017, 04:34 pm »
Beautiful work!

I assume you used burl veneer and I'm intrigued how you got it so well blended in the corner radii.  If they sound as good as they look, it's a beautiful thing  :thumb:

Phil A

Re: Current and future DIY projects
« Reply #4 on: 17 Jan 2017, 04:38 pm »
Beautiful beyond words!

jororaitchev

  • Jr. Member
  • Posts: 66
Re: Current and future DIY projects
« Reply #5 on: 18 Jan 2017, 02:28 pm »
Quote
Jazzman53Beautiful work!

I assume you used burl veneer and I'm intrigued how you got it so well blended in the corner radii.  If they sound as good as they look, it's a beautiful thing  :thumb:

No, not burl  It is "Birds maple",

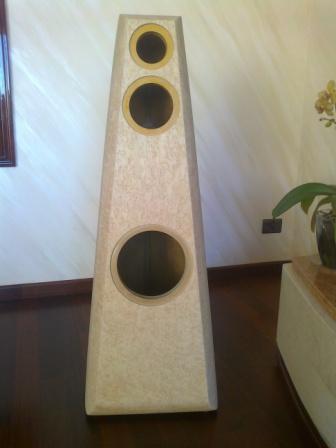

collected by this way:

jororaitchev

  • Jr. Member
  • Posts: 66
Re: Current and future DIY projects
« Reply #6 on: 20 Jan 2017, 10:50 am »

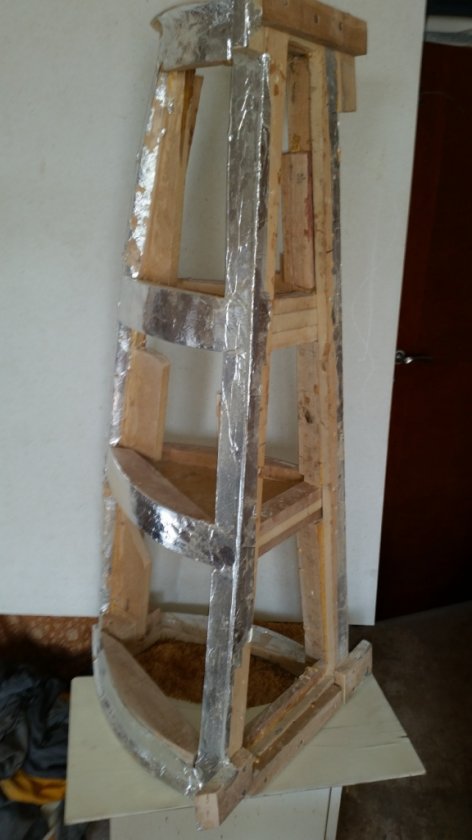

Now go, how they made the speakers:

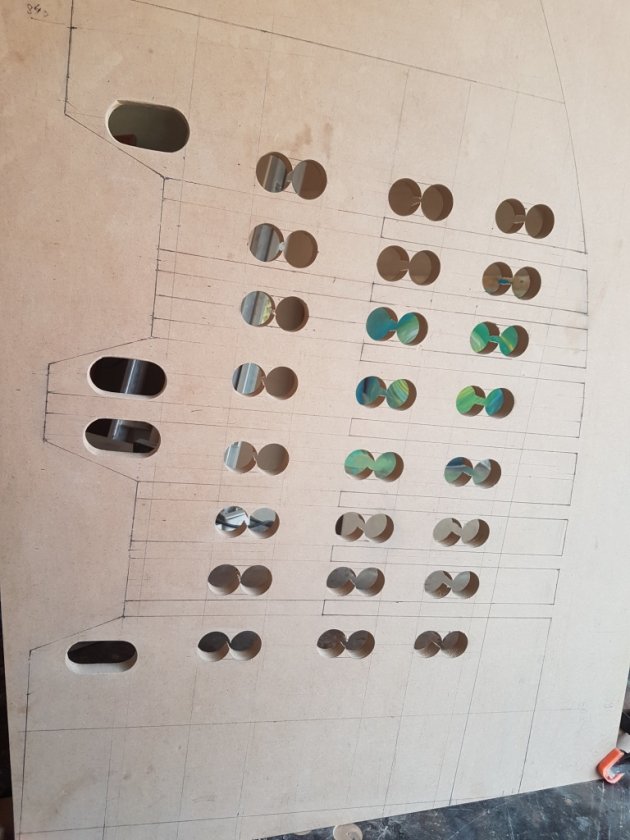

First did this "home-matrix"....

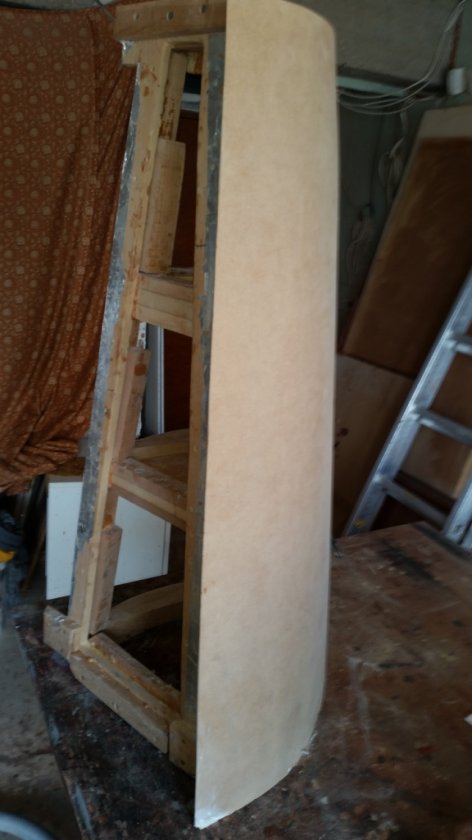

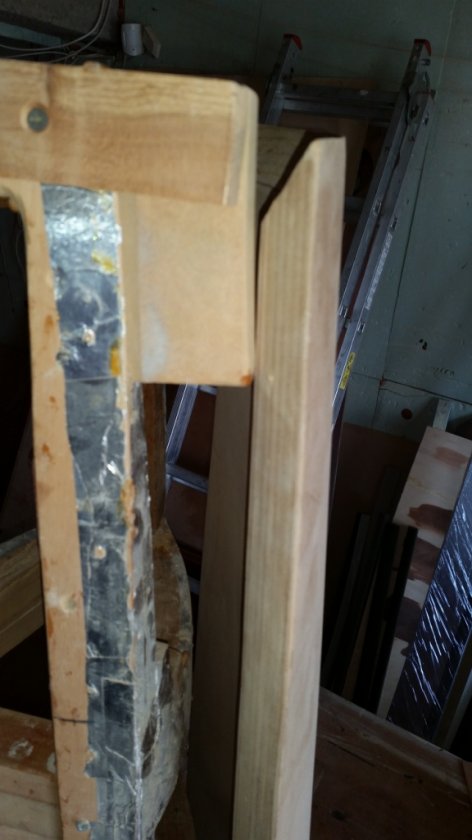

On fire therein 8 layers / 4mm / MDF.

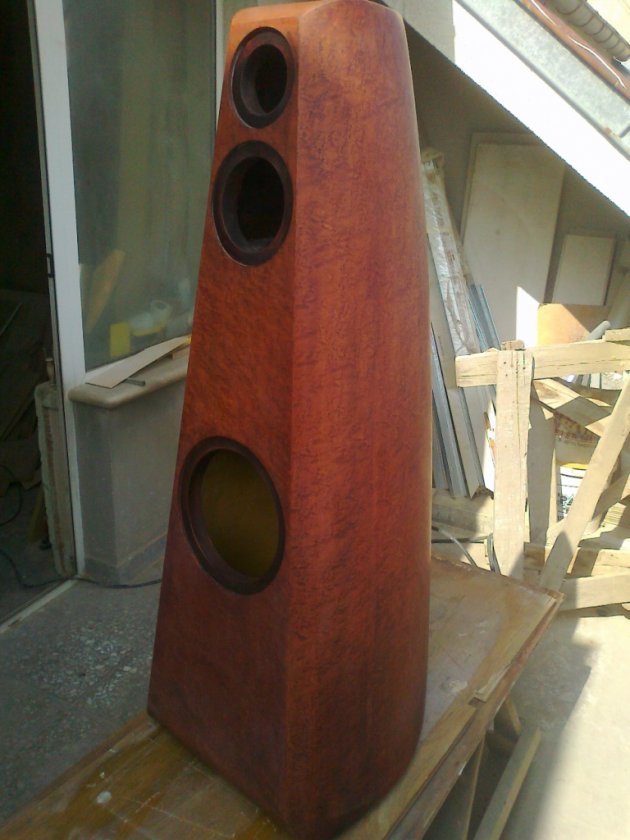

The result is two such shells ...



Follows; assembly of the structure veneering veneer 'Birds' maple' toning and everything else ....
Greetings,
Joro

jororaitchev

  • Jr. Member
  • Posts: 66
Re: Current and future DIY projects
« Reply #7 on: 20 Jan 2017, 11:00 am »












Rocket

Re: Current and future DIY projects
« Reply #8 on: 21 Jan 2017, 04:36 am »
Hi,

Fantastic carpentry skills and great looking speakers.  Who designed the crossover for you?

Cheers Rod

Carl V

  • Full Member
  • Posts: 505
Re: Current and future DIY projects
« Reply #9 on: 21 Jan 2017, 05:01 am »
Very Nice Indeed!
Toning? dye? what
type and subsequent
Finishing?
yes, the crossovers
would be of interest.

S Clark

  • Volunteer
  • Posts: 5878
  • measurement? We don't need no stinkin measurement
Re: Current and future DIY projects
« Reply #10 on: 21 Jan 2017, 05:21 am »
Beautiful work.  Tell us more about how you got that finish!

jororaitchev

  • Jr. Member
  • Posts: 66
Re: Current and future DIY projects
« Reply #11 on: 21 Jan 2017, 01:38 pm »
Quote
Rocket: ....Who designed the crossover for you?

Аll my design. Everything is done by my hands.This Is the technical parameters:
Nominal impedance- 8 Ohm
Freguency Range 30Hz-20kHz
Characterstic Sensitivity(2,83V/1m)- 87db
Long Term-110W

Quote
S Clark:  Tell us more about how you got that finish!

Thanks for the good evaluation!
Auto acrylic varnish, high scratch resistance and UV protection. The last thing is done is polishing with polishing paste 3M- numbers from 1 to 3.
I have used Italian, Spanish varnishes, but I'm most pleased with the Polish. American products can hardly speak / for obvious reasons /.
Regards!

Letitroll98

  • Facilitator
  • Posts: 4174
  • Too loud is just right
Re: Current and future DIY projects
« Reply #12 on: 21 Jan 2017, 02:51 pm »
Stunning craftsmanship with an elegant design, very beautiful.  Do you have surround speakers built as well?

jororaitchev

  • Jr. Member
  • Posts: 66
Re: Current and future DIY projects
« Reply #13 on: 23 Jan 2017, 02:58 pm »
Quote
Letitroll98:Stunning craftsmanship with an elegant design, very beautiful.  Do you have surround speakers built as well?
Yes, there will. N



ow work on them. It now stands for.

jororaitchev

  • Jr. Member
  • Posts: 66
Re: Current and future DIY projects
« Reply #14 on: 25 Jan 2017, 07:46 am »

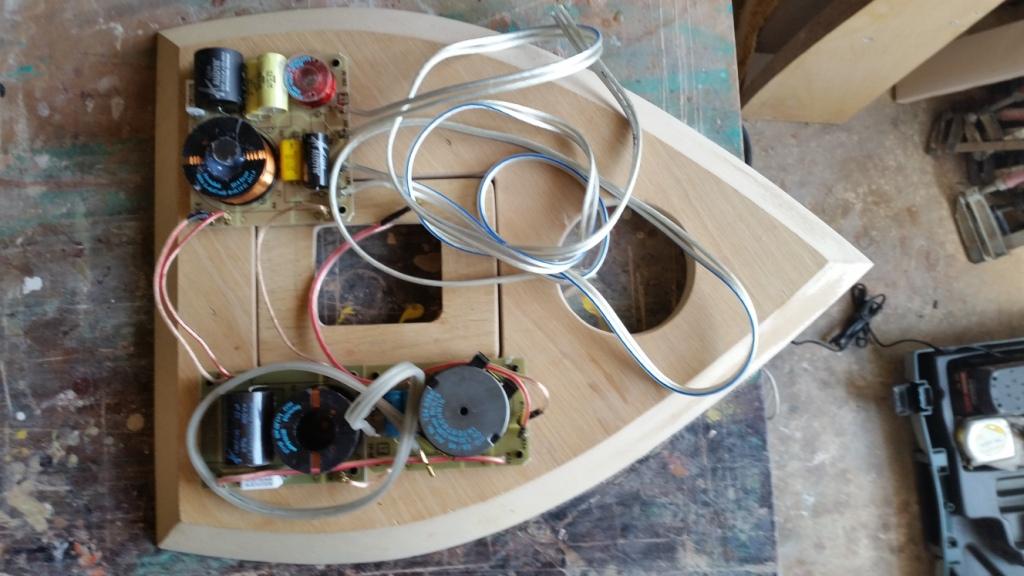

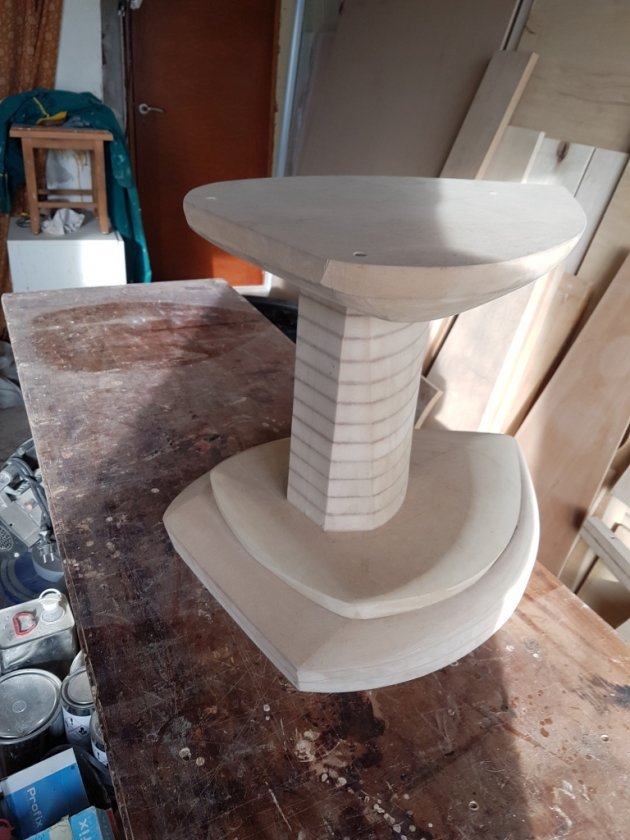

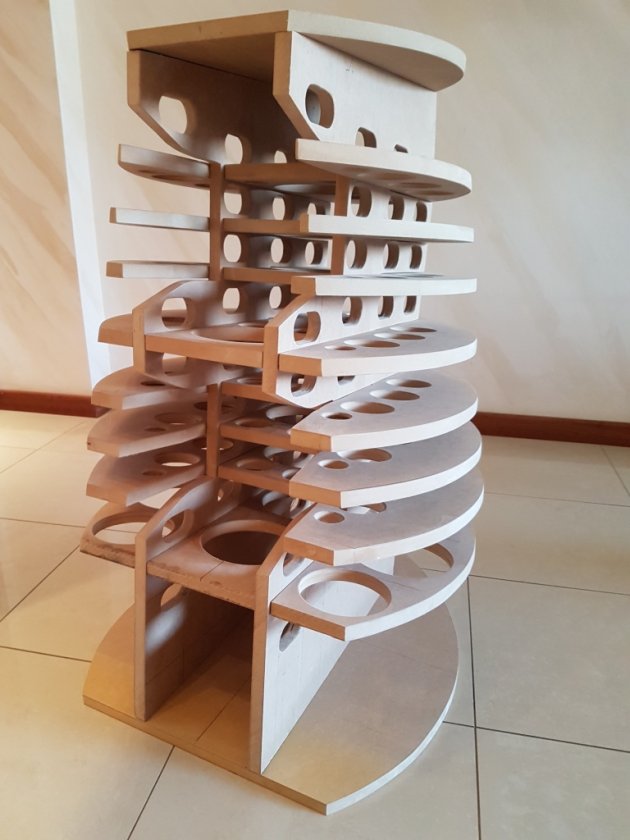

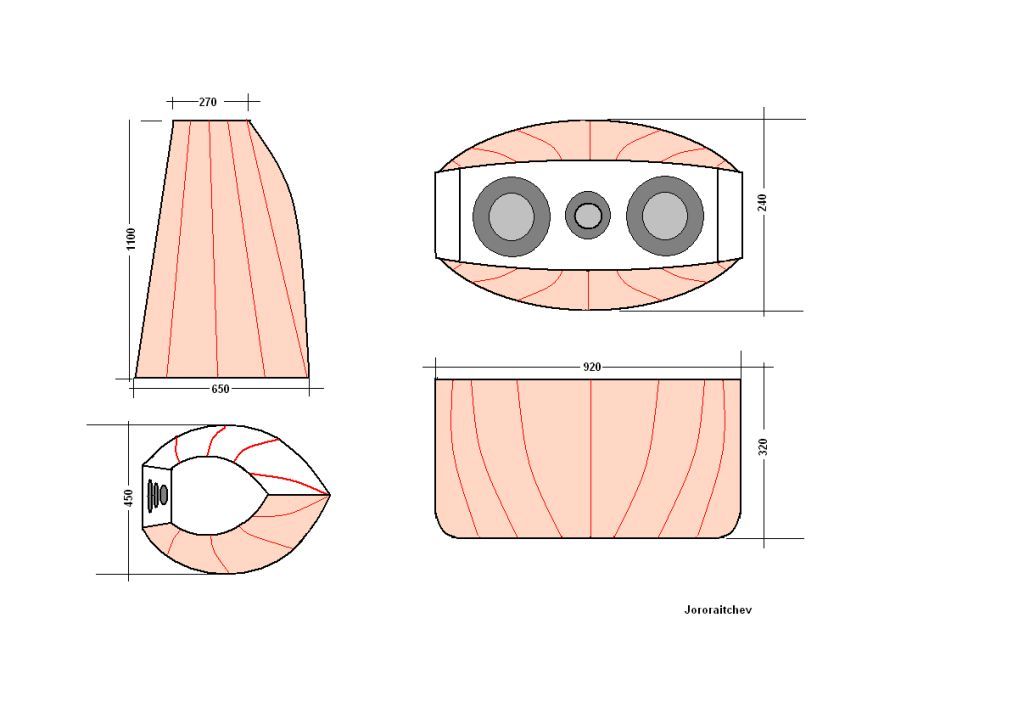

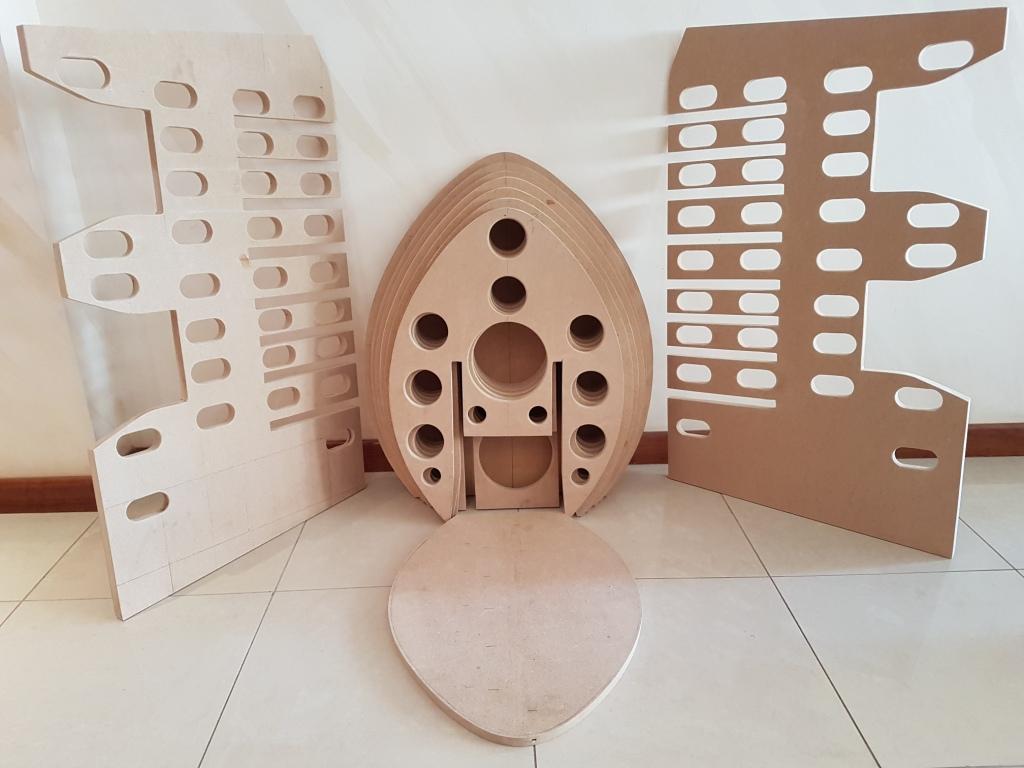

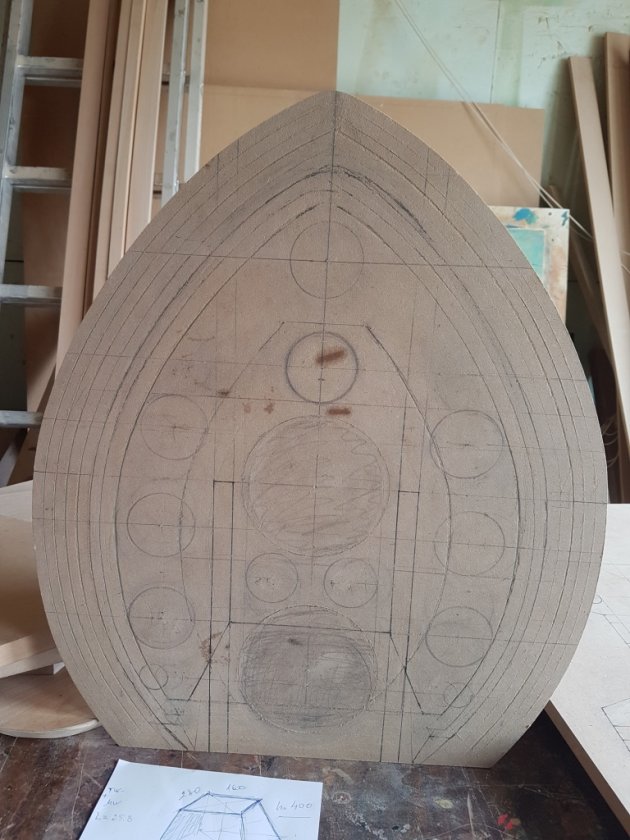

I decided to show you my new project:
