Ghent Audio recently began offering a stereo NCore case kit - http://ghentaudio.com/kit/ncore-se.html

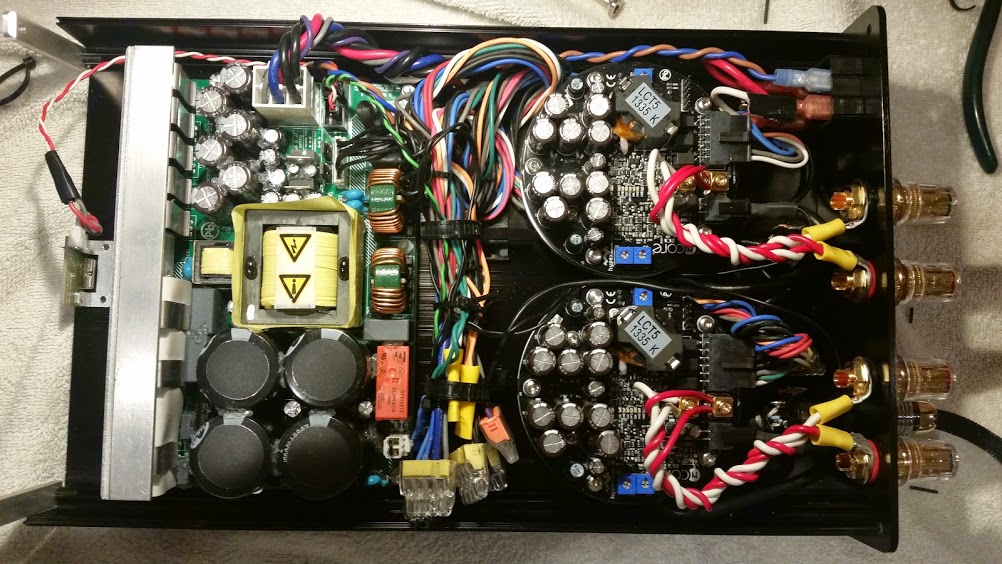

The sharp looking case and a strong US dollar has prompted me to take the plunge in to NCore-land. Looks to me like the NC400 modules are rather tightly packed in this configuration and am wondering what you think of this layout:
I'm a bit concerned about the following:
* AC lines passing over and somewhat close to the NCore module

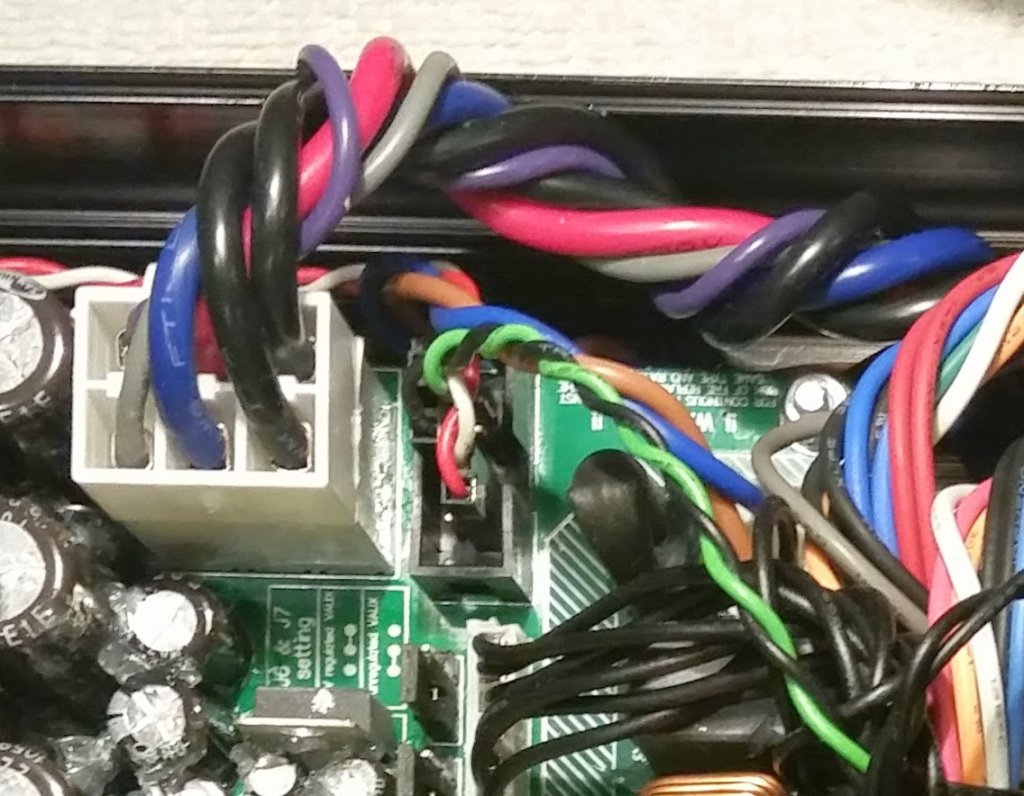

* NC400 power input loom passing between/underneath the modules
* Close proximity of the modules to power supply
Is there any cause for concern here, or additional shielding you'd recommend?
Would a copper divider between the amps and PS be overkill?
Bonus question - Can NAMPon be wired to the power switch?
For reference, I'll be using Cardas litz wire based on some comments I've read in this circle. Here's what is on order:
Input - 2 x 20.5 shielded pair (Cardas Crosslink 1i)
AC - 2 x 15.5 twisted pair
Output - 2 x 11.5 twisted pair
Also ordered an 'el cheapo', $40 solder pot off of Amazon which will hopefully be up to the task of burning enamel and tinning the litz wire. I'll be sure to report back how that endeavor works out.
Thanks in advance for any insight you can offer.
