[CIAudio]

We're now shipping the long awaited E-200S 200w per channel stereo(dual mono) amplifiers.

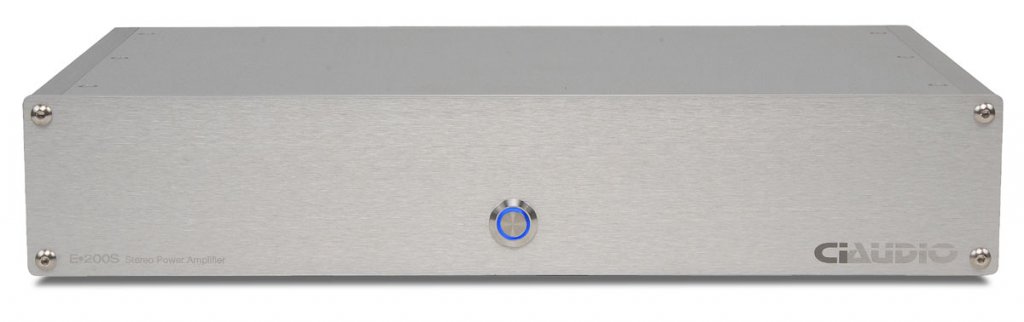

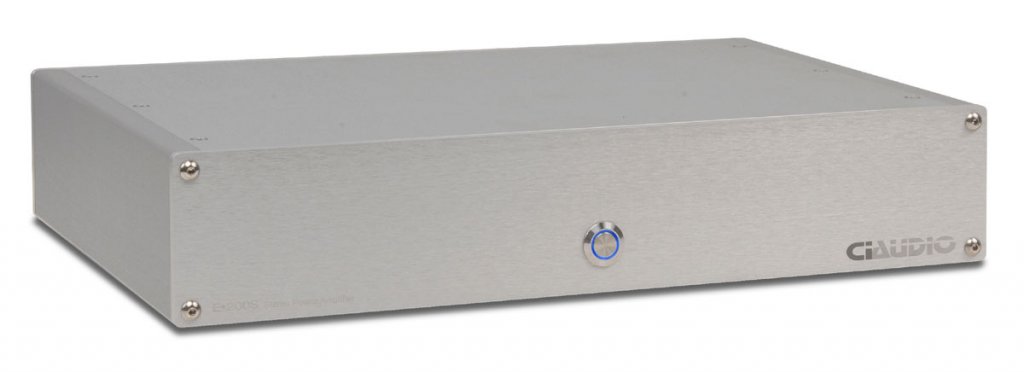

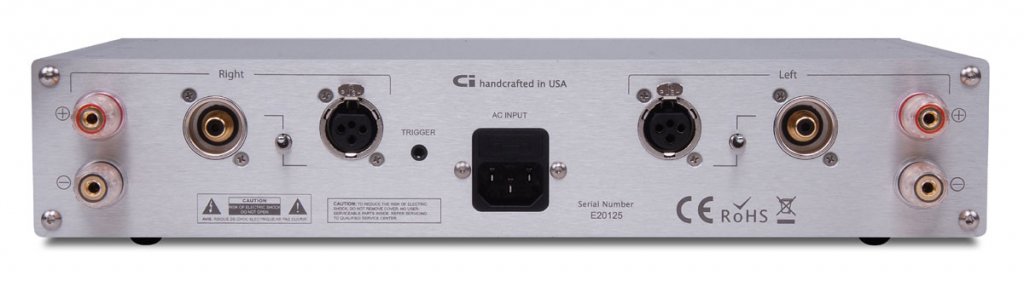

Here are a few shots of the production version.

[jtwrace]

Nice job!

[CIAudio]

Thanks Jason

Now working on the circuit boards for E-100S (100w per channel version).

[CIAudio]

The 2 x 100w version will look identical and retail for $1695

[CIAudio]

Below are measurements taken from a random production sample E•200S.
All measurements were taken without any bandpass or weighting filters!

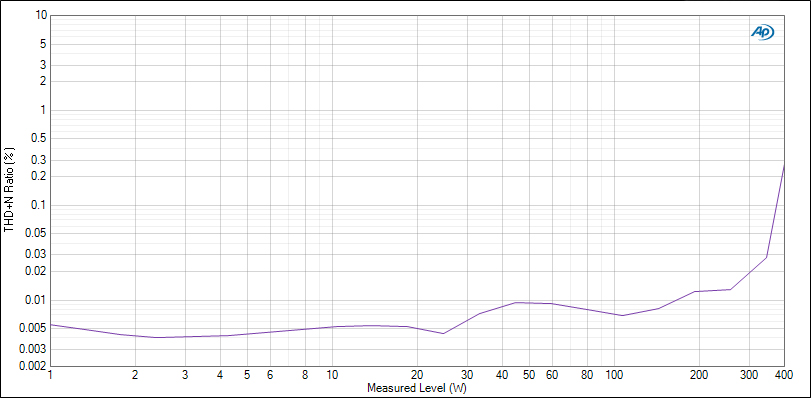

THD+Noise vs Power @ 4 ohms

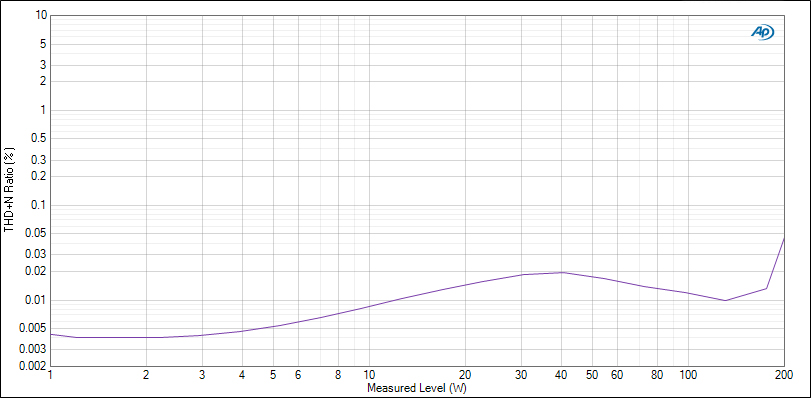

THD+Noise vs Power @ 8 ohms

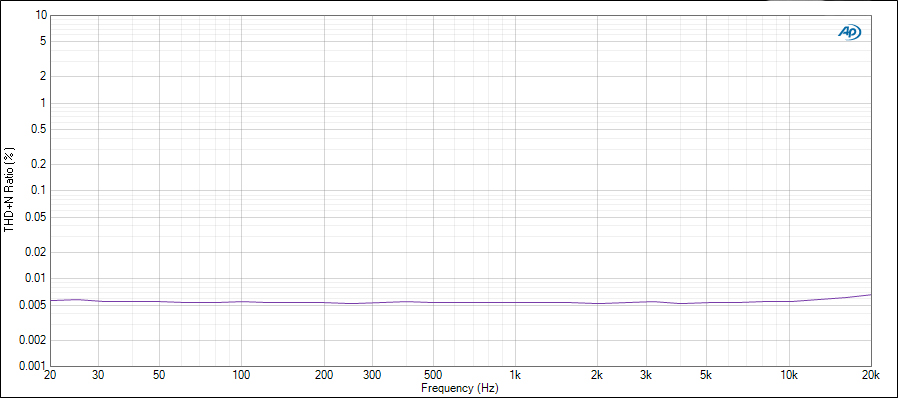

THD+Noise vs Frequency (100mV)

[CIAudio]

It is commonly believed that the 1st watt is most significant...
You'll notice that from 1-5 watts, the distortion is < .006
Also distortion is flat vs frequency... this holds true at all power levels.

[CIAudio]

Will have more of these to ship in friday

[mca]

Will you ever offer a black faceplate option?

[CIAudio]

Will you ever offer a black faceplate option?

no sorry... all products are natural brushed aluminum finish (clear anodized).

[tktran303]

Is this another Hypex based amp?

Any more details?

[CIAudio]

Yes, we use Hypex modules for the output stage/modulator, input stage and regulation are our own.

More info will be on the website soon... for more info you can call us at (805) 984-8282

-Dusty
