Pictures of TOTAL LOW WATT SYSTEMS (pictures and brief sentence-no more)

0 Members and 1 Guest are viewing this topic. Read 56768 times.

JoshK

beauty!

PRELUDE




I took this shot quite a while ago, but it's all pretty much the same today. I have something new on the way so I will update my system pic after the honeymoon.  :inlove:
Very nice :thumb: :thumb:
I owned the Nakamich twice the 303 and 505.How you like the Audio Note?
Is it the kit?

Quiet Earth

  • Full Member
  • Posts: 1788
I love the Audio Note gear Prelude. I have had those amps for a little over 7 years now if I remember correctly. They are U.K. production units though, not the kits.

I need to update my picture, but it pretty much looks the same.

doug s.

  • Full Member
  • Posts: 6572
  • makin' music
Updating my picture again...new stand for the monoblocks!!


what's the monster white gear on the right speaker?  amp?

doug s.

Whitese

what's the monster white gear on the right speaker?  amp?

doug s.

my now departed Atma-Sphere prototype...6AS7s galore!!

gotog

  • Jr. Member
  • Posts: 19
Hawthorne Duet



Decware Mini Torii (6v6)



guf

Desktop system Bottlehead S.E.X and  Blumenstein orca's


gamve

  • Newbie
  • Posts: 5




Type 50 amps and Supravox field coils on JE Labs Baffles :D

Guy 13

(Low wattage system)
Hi all Audio Circle members.
I think I can be a full time member of the low wattage system club.

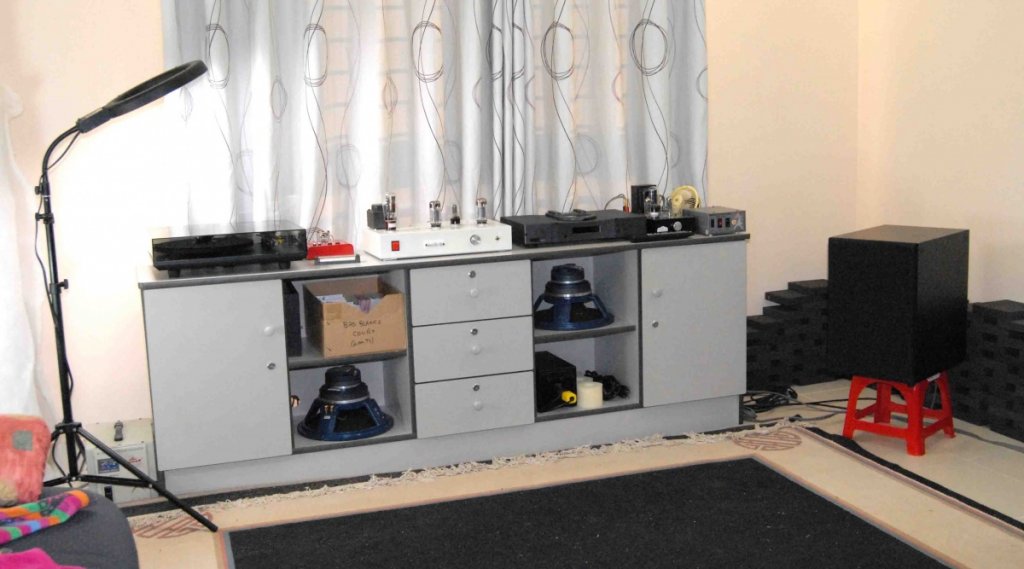

My (Humble) system, consisting of the following:
(From left to right)
Rega P3 turntable
Rega Exact mm cartridge
Bellari VP-129 phono pre-amp.
Niteshade Audio NS-10 Integrated amplifier (10wpc)
6SN7 triode (Motorola & Radio Schack)
6L6WXT+ pentode connected (Sovtek and Electro-Harmonix)
5U4GC Ruby rectifier.
Rega Apollo CD player.
Decware SE84C+ SET amplifier (2wpc)
Triode 6922 No name ?
Pentode (Triode connected) EL84EH Electro-harmonix
Rectifier 5U4GB RCA (Got that NOS free from a friend.)
Speakers (One one shown) GR Research N3 (Modified)
Enclosures made in Vietnam and covered with vinyl wood imitation by myself.
(Shelving system) Furniture made in Vietnam, it was our bedroom dresser but I decided to move it up-stair in {{{{ MY }}}} penthouse.
The pair of PAudio 12” coaxial drivers you see on the shelves are from my GR Research V1 that are waiting for their new home, to be built in the months to come. (OB with H frame for GR Research 2X 12” servo subwoofers.)

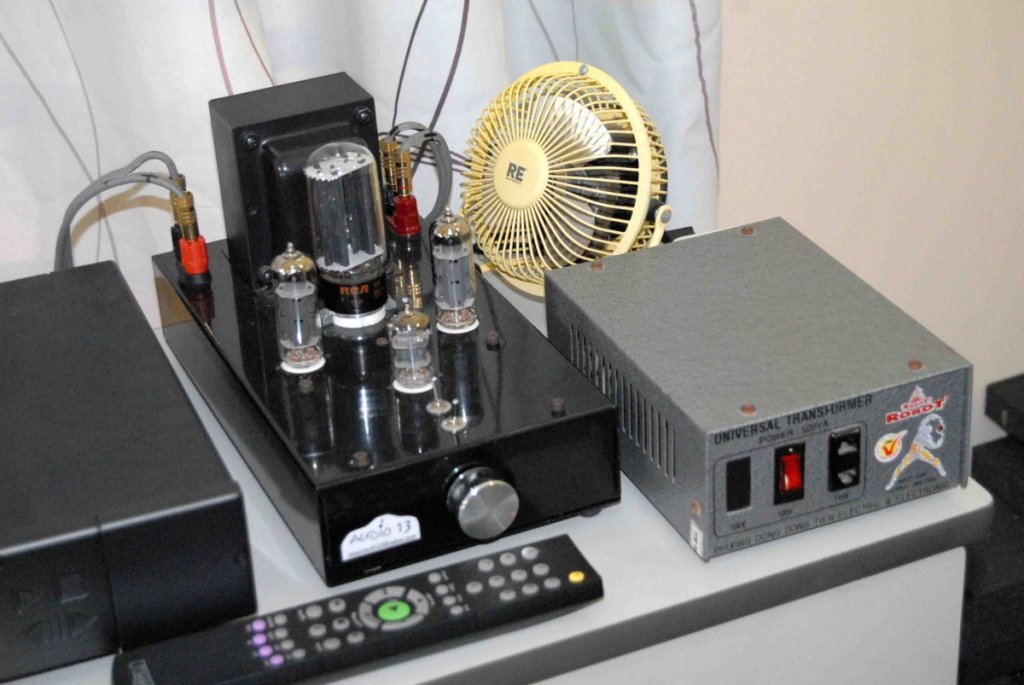

Close up of my Decware SE-84C+
The grey box on the right is a step-down transformer for my 120V. SE-84C+ and the light yellow fan is to blow 34C/95C+ air
to cool down everything and it does a pretty good job.

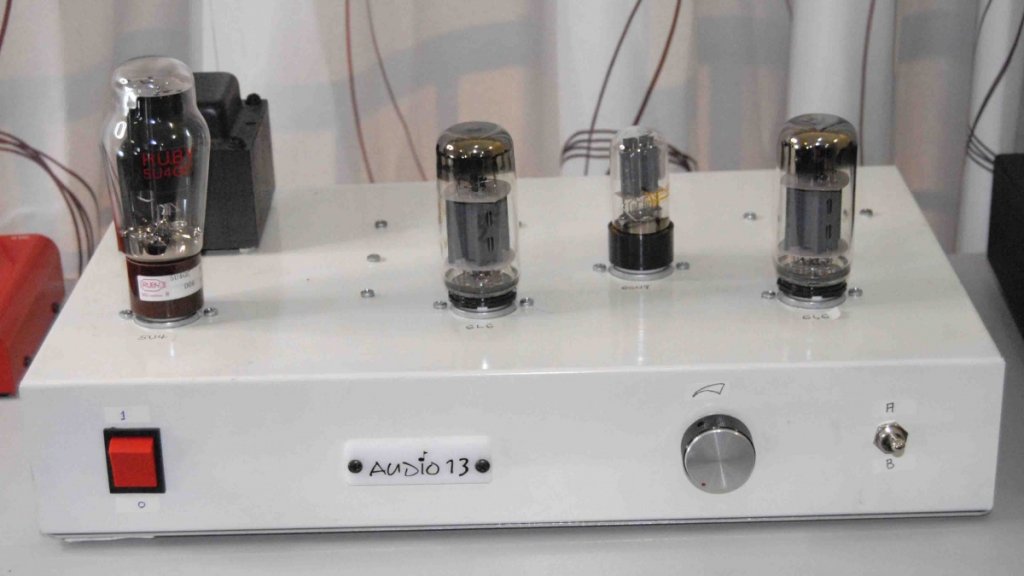

Close up of my Niteshade Audio NS-10
I have up-graded the main power switch with a nice looking red rocker heavy duty switch.
I have also up-graded the volume control know with something more sexy.
I still have to up-grade the two positions input toggle switch,
It has a too industrial look for a white amplifier chassis.

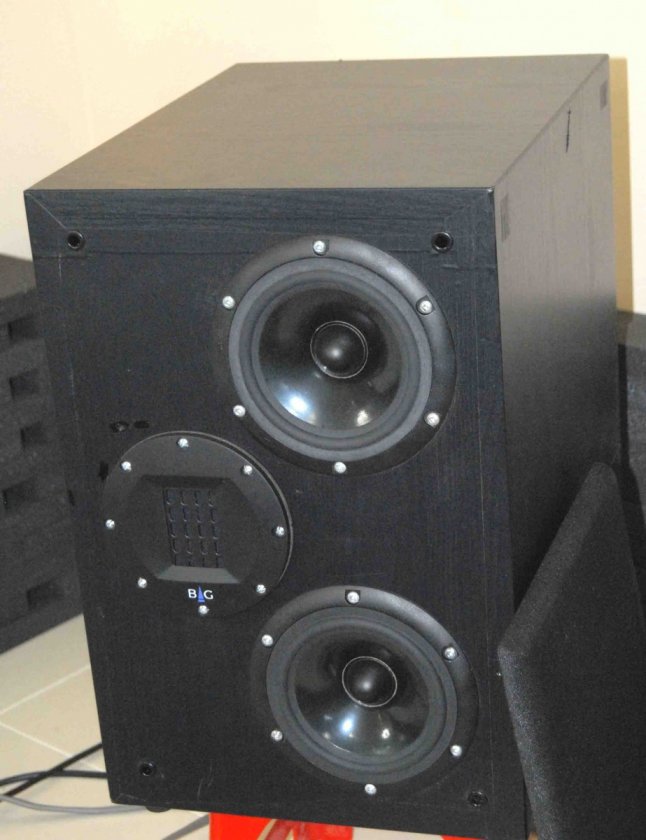

My GR Research N3 speakers.
They are sealed type.

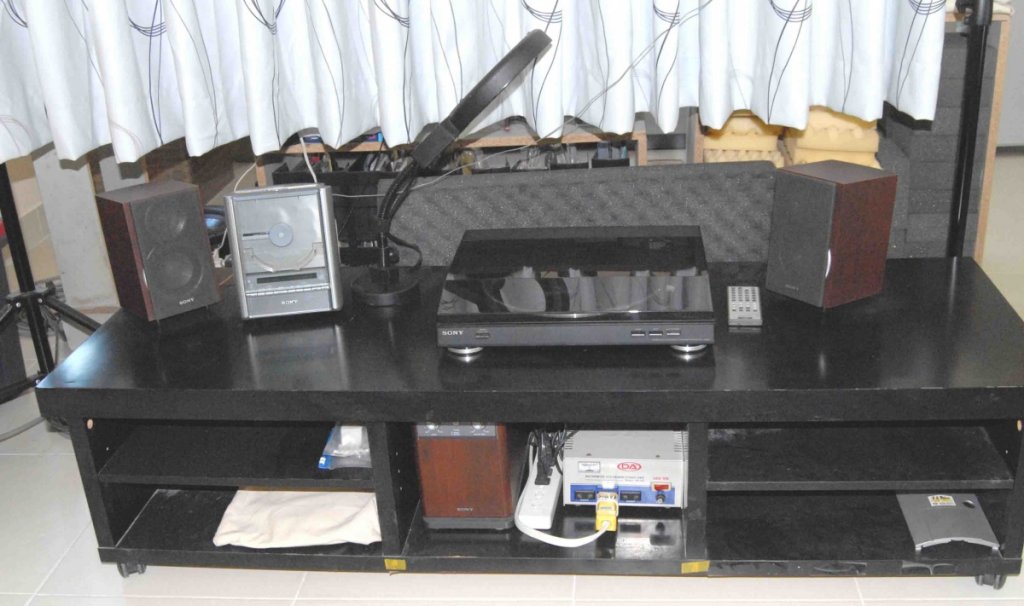

My second system for ambient music with low solid state heat and low wattage (15wpc).
Sony AM/FM – CD player and amplifier combo.
Sony 3-1/2” - 2 ways speakers with a (Believe it or not) 3” subwoofer with passive radiator.
Sony belt drive automatic turntable with MM cartridge and built in phono amplifier.
Shelving by IKEA Canada and a step down transformer to power everything on 120V.





That’s my two low wattage audio systems.
Nothing extraordinary, but all paid for.
(No home theater yet,
when I get back to Canada in 2013 or 2014.…)

Guy 13

Bill Baker

  • Full Member
  • Posts: 4837
  • Musica Bella Audio - Custom Design and Manufacturi
    • Musica Bella Audio
These are my favorite type of threads. Lots of sexy systems with great pictures. It's nice to see all the AC members' systems as it really helps to keep this hobby moving.
 Keep 'em coming.


galyons

  • Full Member
  • Posts: 430
Mostly BottleHead,  custom Hagerman Cornet2, my own SUT with Hashimoto trannies and the major restoration in process, EV Sentry IV-A, 102dB/1W/M.








sebrof

My system - Rega sources, a 3-watt
DIY 2A3 SET based on the WE 91A, and a pair of DIY speakers with Altec 416s and Heils.






versus rider

200Hz horn BMS 4592 mid compression driver 6L6 set amp, Raal 140-15D tweeter driver 300B, Eminence alpha 15 OB/open backed box driver 6S33S push pull. TT not in use at time of pics,  Denon dvd/sacd player


pardales

Would you explain in a little detail what we are looking at with your speakers? Are the drivers suspended by wire or something? It looks like they are suspended. Not like anything I have seen before. Thanks. :)


Lowther open baffles, 300Bs, active crossovers and Altec 416s in big honkin boxes.










...you did say pictures, right?

milford3

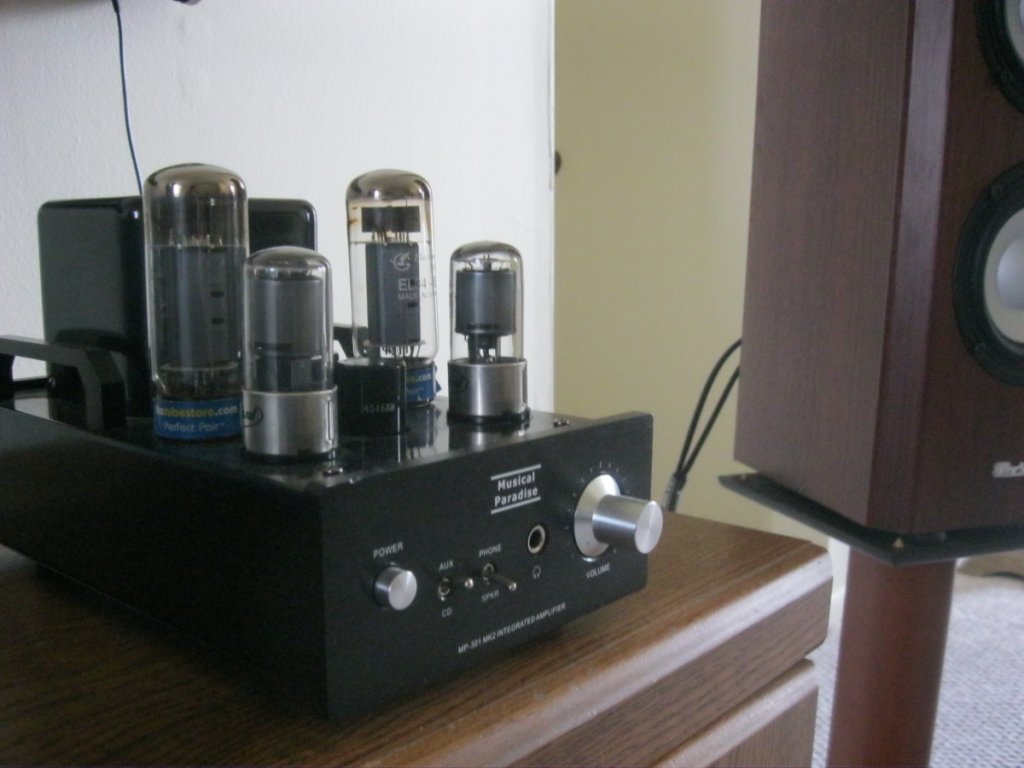

Musical Paradise MK 302.   6.5 watts with EL34B power tubes.  It drives my Axiom M22v3's.




Bemopti123





Type 50 amps and Supravox field coils on JE Labs Baffles :D

Do you have any helper drivers for the high end?  The one Supravox field coil I Have heard was very very soft on the top.

Bemopti123

My system - Rega sources, a 3-watt
DIY 2A3 SET based on the WE 91A, and a pair of DIY speakers with Altec 416s and Heils.






I call this awesome, redefined!

Bob in St. Louis

  • Volunteer
  • Posts: 13060
  • "Introverted Basement Dwelling Troll"
Would you explain in a little detail what we are looking at with your speakers? Are the drivers suspended by wire or something? It looks like they are suspended. Not like anything I have seen before. Thanks. :)
If I may be so bold as to speak for Scott.......Those Lowthers are mounted in clear Acrylic.
And they sound amazing, if I might add.

Bob

pardales

If I may be so bold as to speak for Scott.......Those Lowthers are mounted in clear Acrylic.
And they sound amazing, if I might add.

Bob

Ahh. I understand now. Thanks. Love to hear that set-up. Bet it sounds great.

Triode Pete

  • Industry Contributor
  • Posts: 1101
  • www.TriodeWireLabs.com
    • Triode Wire Labs - Affordable Audiophile Cables
System Overview -





Components - Wiesner 2A3 / 45 Convertible Monoblocks (3.5 watts / 1.4 watts), Loesch & Wiesner phone & line stage preamp with dual mono tube regulated PS, WT Reference TT w/ Clearaudio Maestro, Goldenote Stibbert IV CD player, Sony ES-9000ES SACD player, McIntosh MR-78 tuner






Hot Rodded Volti Audio K-horns in Brazilian Rosewood circa 1974






Cheers,
Pete
