Optional transformer colors example
« on: 20 Mar 2012, 11:54 am »

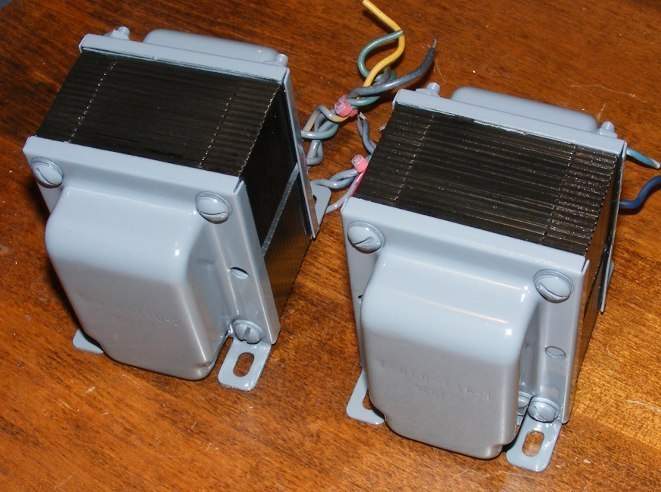

Vintage looking vintage transformers


Usually we make all transformers look the same. This time a pair of vintage Fisher 500C output transformers were made to look 'old school' military style.

We're going to use this approach on some new applications and orders that are beginning now for those who have requested it.

The vintage look can be applied to new transformers as well.
« Last Edit: 28 Jun 2012, 11:34 am by Niteshade »

Niteshade

  • Full Member
  • Posts: 2425
  • Tubes: Audio's glow plug. Get turbocharged!
    • Niteshade Audio
Re: A fresh new look for transformers
« Reply #1 on: 1 May 2012, 12:18 am »

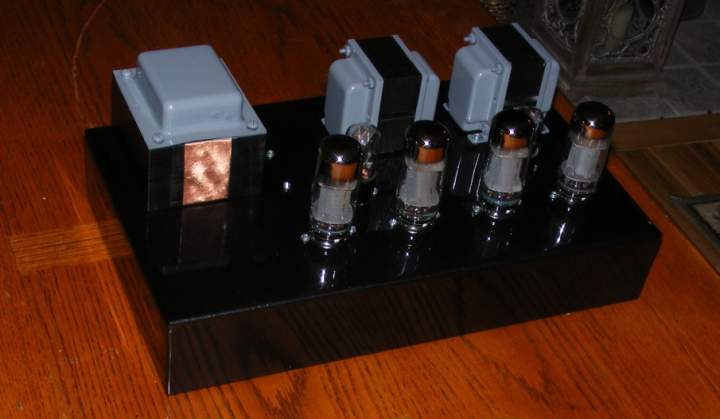

NS-40 Tube stereo amplifier:


The output transformers are from a Fisher 500C as an upgrade from our standard model.

Niteshade

  • Full Member
  • Posts: 2425
  • Tubes: Audio's glow plug. Get turbocharged!
    • Niteshade Audio
Re: A fresh new look for transformers
« Reply #2 on: 1 May 2012, 12:11 pm »

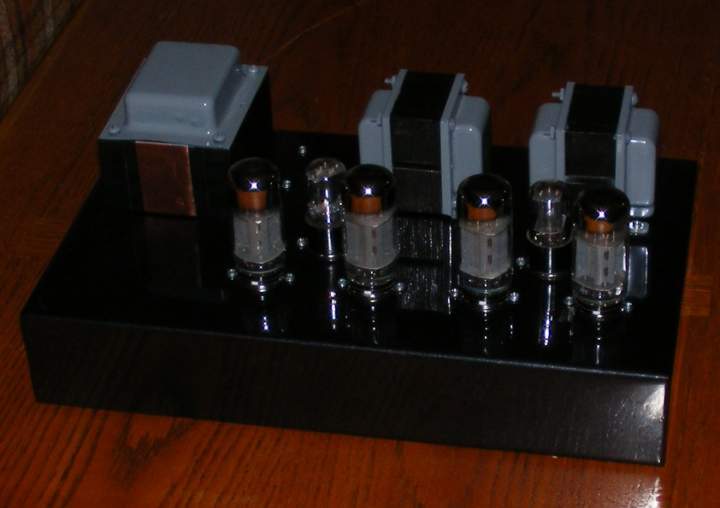

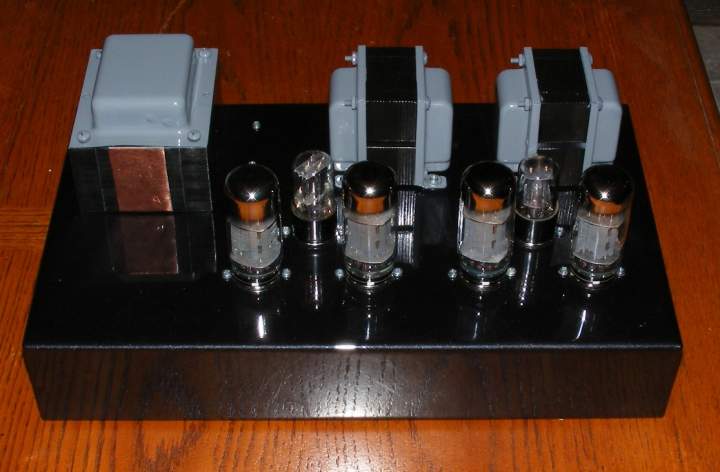

Additional exterior photos.







It's difficult to capture what it looks like in person. The laminations are clear coated as is the copper strip on the power transformer. The Fisher's iron is a natural black after being cleaned while the power transformer is bright steel. The power transformer's iron was painted lightly to match the Fisher's appearance in color as well as texture.
