Danny, somewhere in my memory I stored the concept of imagining the radiation pattern of drivers expanding like a bubble from the driver forward, like blowing a bubble with gum. Sorta simplistic but is it accurate in your experience?

The radiation pattern varies with frequency but is more like a rock dropped into a pond.

Any tall or flat surface sticking up on the edges of the speakers baffle are a problem. If the edges are curved then the effect of the grill frame is lessened considerably.

Peter J

  • Full Member
  • Posts: 1199
  • Hmmmm
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #41 on: 7 Dec 2011, 05:14 am »
Moving on...

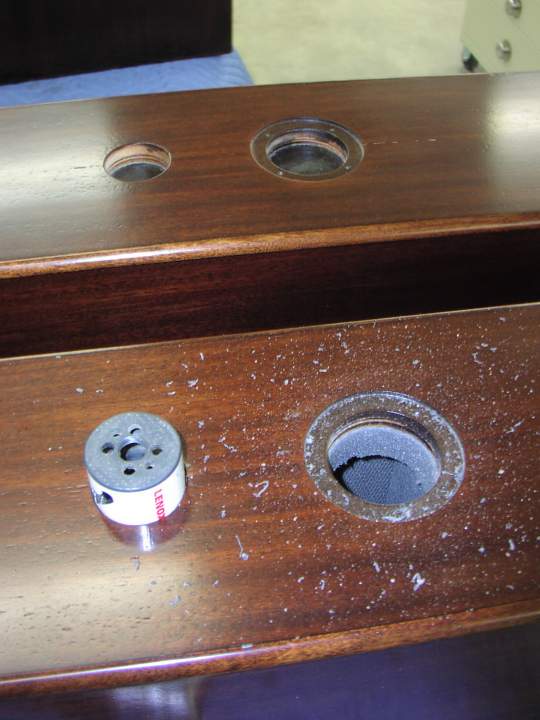

The last of the woodwork... inserts for cones on SLS





I'm not crazy about dark stains in general, but it's in fashion now and what daughter wanted, so I'll make the most of it. We have an old mahogany piano that I'm using as reference.

I started with a non-pigmented dye for base color.





And followed up with a custom mixed wiping stain left over from a recent job




Turned out a little cool to my eye and could stand to lighten color depth a little, so I mixed some lemon yellow toner into clear stain base to warm it up some and gave everything two wipe on/off coats. Wiping over pigmented stain has the side effect of removing some of the previous color, so it lightens things a little.

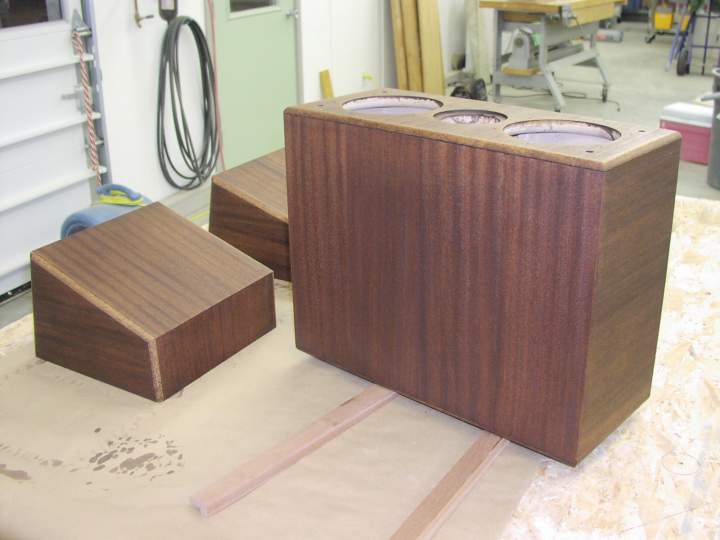

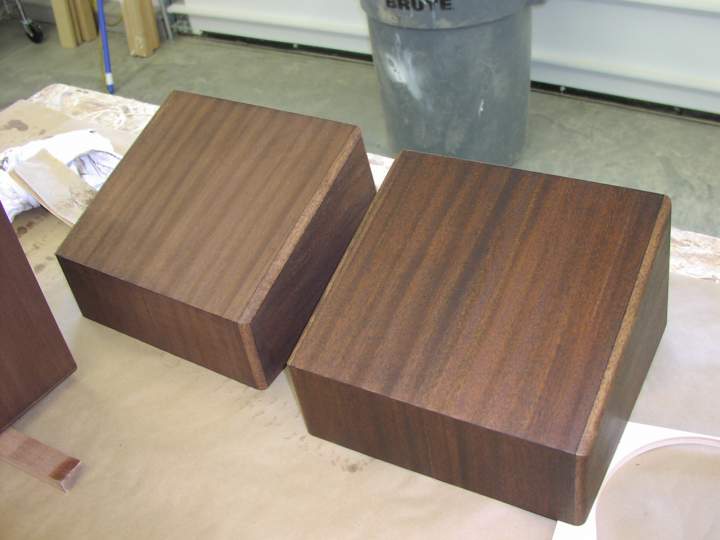

Here's a shot of rears to better see some of the progression. Left is dye only and right is after staining





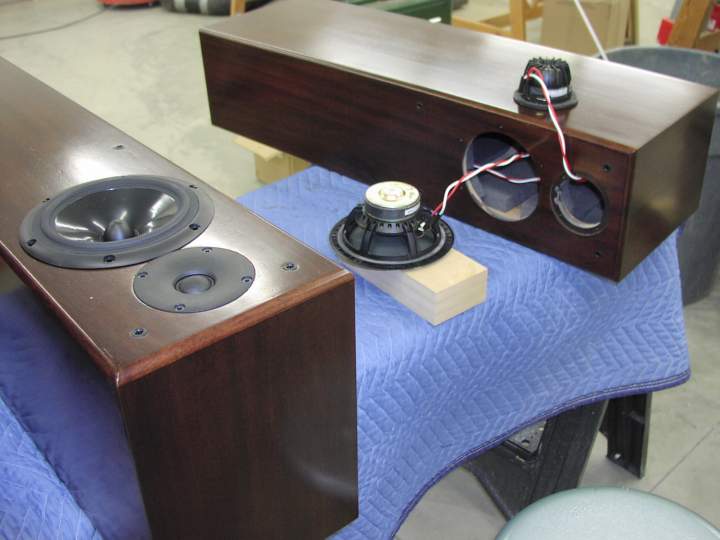

Here's center and rears after the yellow treatment




Next up will be sealer and lacquer.





« Last Edit: 7 Dec 2011, 04:20 pm by Peter J »

Danny Richie

  • Facilitator
  • Posts: 12431
    • http://www.gr-research.com
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #42 on: 7 Dec 2011, 04:01 pm »
Man those look good!

skeeter99

Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #43 on: 7 Dec 2011, 04:35 pm »
Man those look good!

Yeah no kidding! AV123 always had great finishes but this is really taking these guys to a whole new level. Very cool!!

Peter J

  • Full Member
  • Posts: 1199
  • Hmmmm
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #44 on: 9 Dec 2011, 11:05 pm »
Onto finishing now.

Anybody tired of  looking at pictures yet?

I'll follow all the way through if  there's interest.

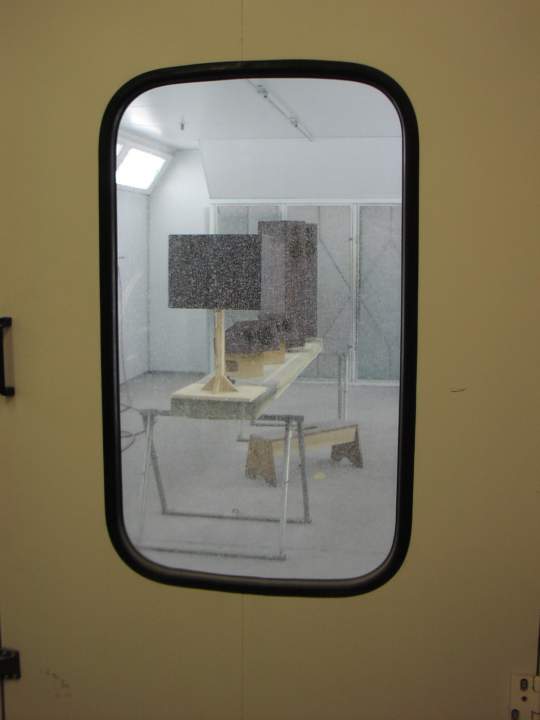

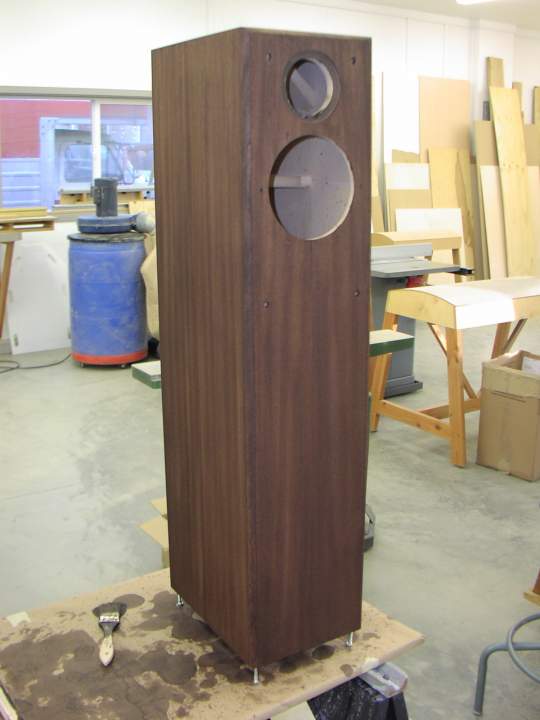

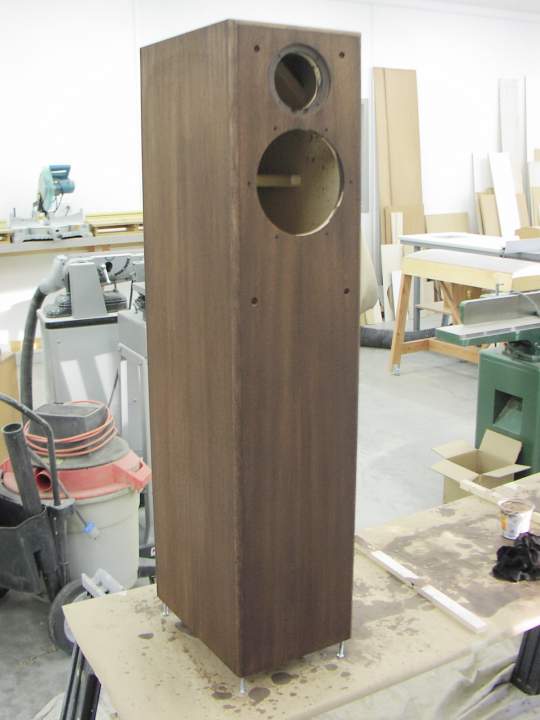

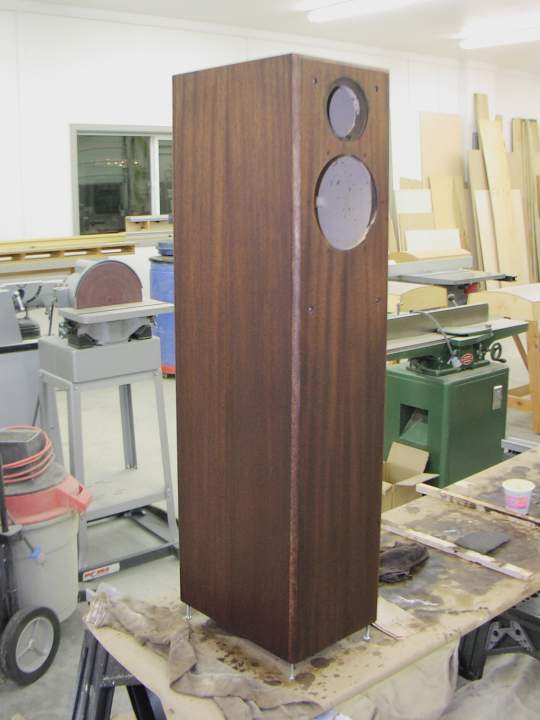

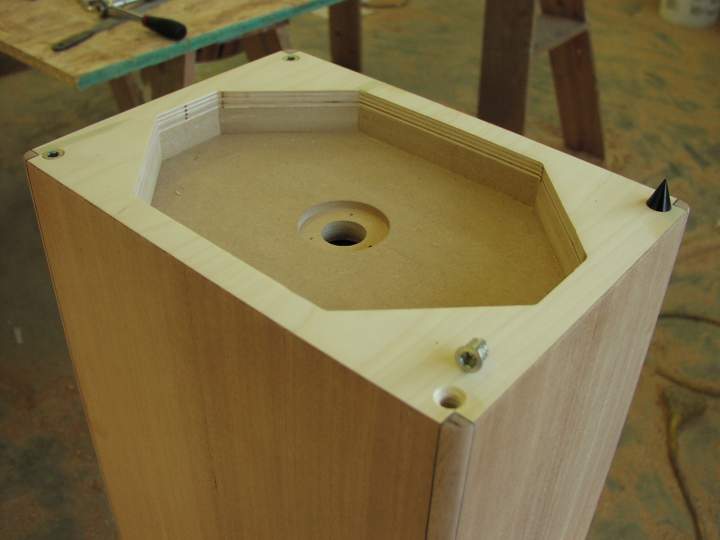

In the raw, in the booth





Three coats of sealer, sand after coat 1 and coat 3

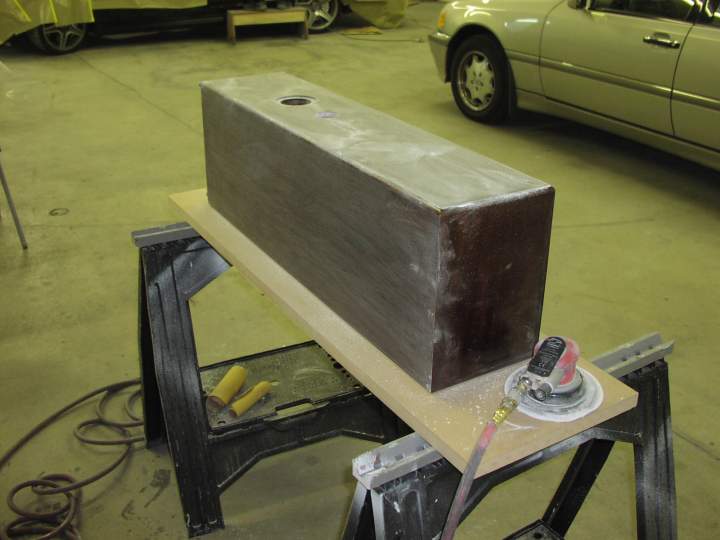

The dusty part

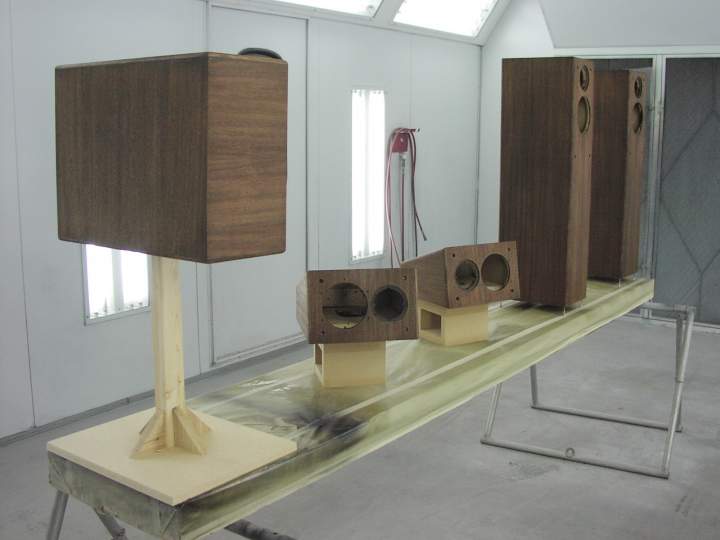

Three coats of lacquer, sand between coat two and three

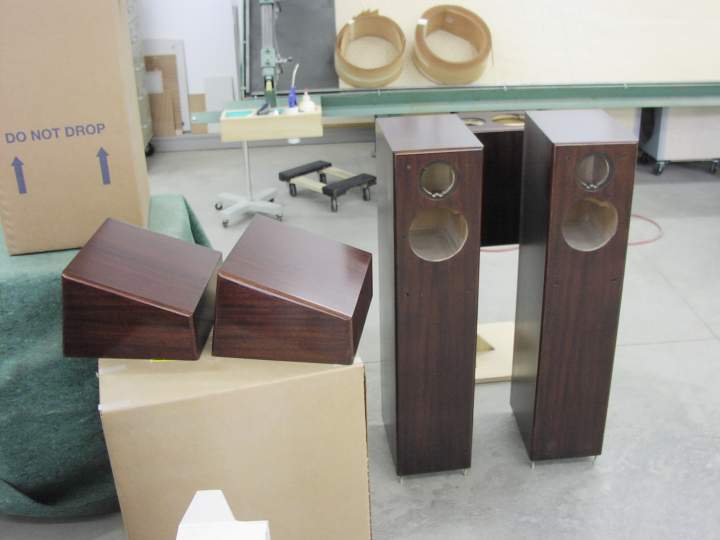

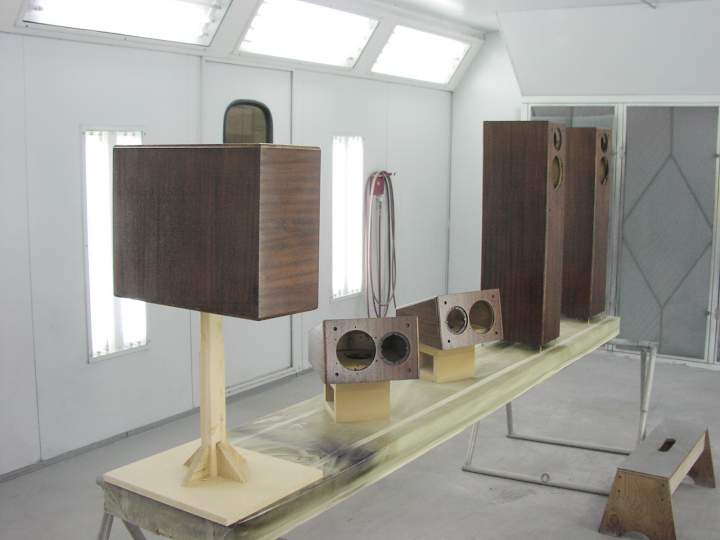

Out of the booth...some curing time




Next on the list will be rubbing and buffing the lacquer, speaker assembly and grill cloth. Shall I keep going?

Danny Richie

  • Facilitator
  • Posts: 12431
    • http://www.gr-research.com
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #45 on: 9 Dec 2011, 11:24 pm »
Oh yeah. We love the pics!

DeeJayBump

  • Jr. Member
  • Posts: 93
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #46 on: 9 Dec 2011, 11:55 pm »
Love the pics, keep posting the progression of the build and finish.

HT cOz

  • Industry Participant
  • Posts: 1262
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #47 on: 10 Dec 2011, 12:54 am »
Wow keep'em coming!  :thumb:

skeeter99

Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #48 on: 10 Dec 2011, 01:31 am »
Wow keep'em coming!  :thumb:

Dang those look stunning! Keep up the good work. Is that booth at your house??

Peter J

  • Full Member
  • Posts: 1199
  • Hmmmm
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #49 on: 10 Dec 2011, 03:12 am »
Is that booth at your house??

Oh man, I wish... I'd almost give up --- for it. But sadly no, it's in a friend's body shop not far from our house. This booth was his dream...it's incredible to work in. Even has  bake capability, but with a 1,500,000 btu dedicated furnace, it eats large quantities of natural gas. Gas pipe's as big as my arm!
He got so jazzed when he saw these, he wants me to make him some. Nothing to power them with, knows little about home theater... doesn't even have a DVD player. Said he'd just put them in his living room and look at them...pretty funny.

jeffh

Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #50 on: 10 Dec 2011, 11:27 pm »
Nice work.  Keep the pictures coming.

Randall Kepley

  • Industry Participant
  • Posts: 73
  • Kepley Custom Cabinets & Furniture
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #51 on: 11 Dec 2011, 05:54 am »
You've got my vote! Keep those pix coming! R.K.

Peter J

  • Full Member
  • Posts: 1199
  • Hmmmm
Re: X-SLS & X-CS Encore, AV-1RS Build
« Reply #52 on: 14 Dec 2011, 07:07 am »
Onward we go then, y'all!

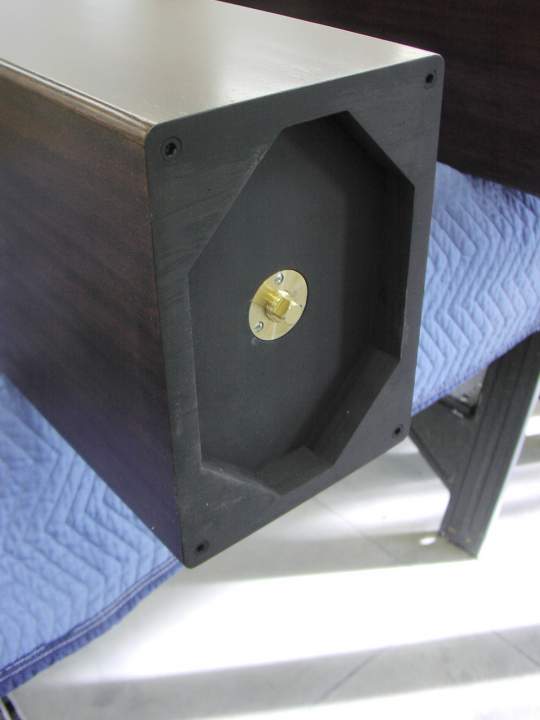

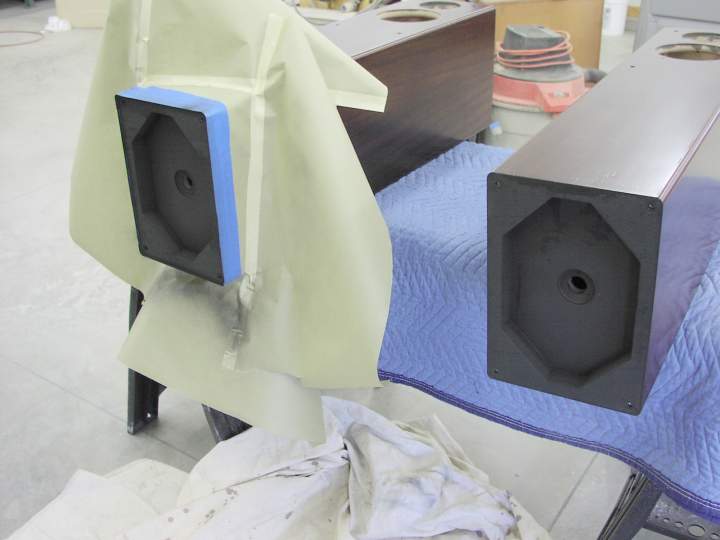

Moving right along to some details that I imagine nobody will care about but me...painting bottom of SLS and back of RS. My ocd compels me...I'm powerless :)





Remember the boat plug? See how nice it looks there now with the paint. The bugs that crawl under it will appreciate the view, I'm sure...

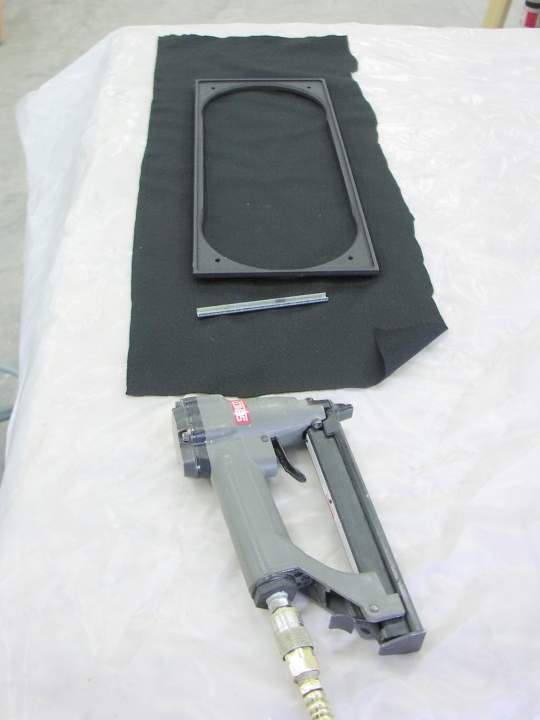

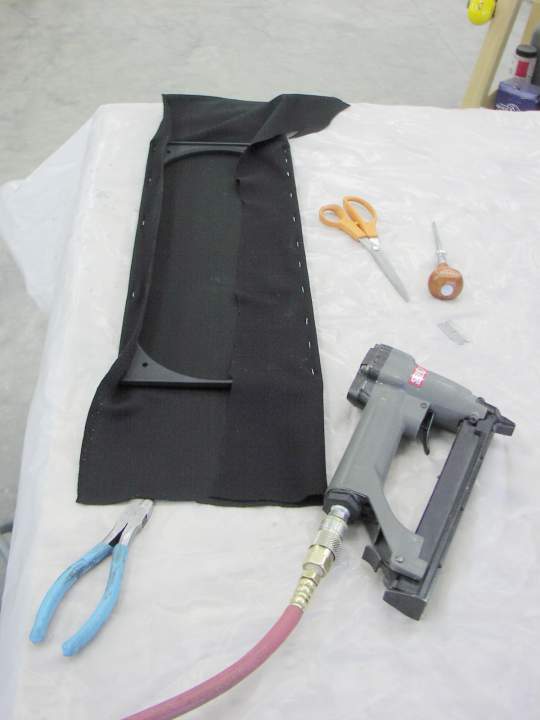

And now grills. I staple 'em, not a grill gluer, I guess





Wrap around opposite side pull a little tension in fabric. This is Parts Express's better grill cloth.

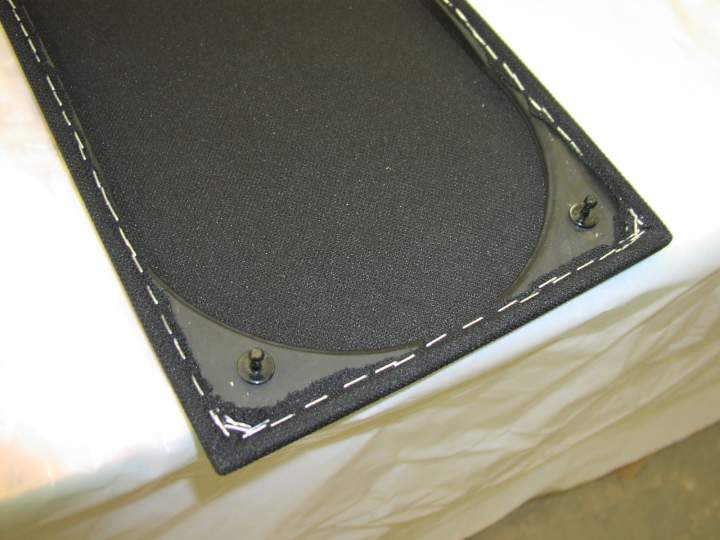

Tension, staple, tension, staple, tension, staple around and around till they're like this:

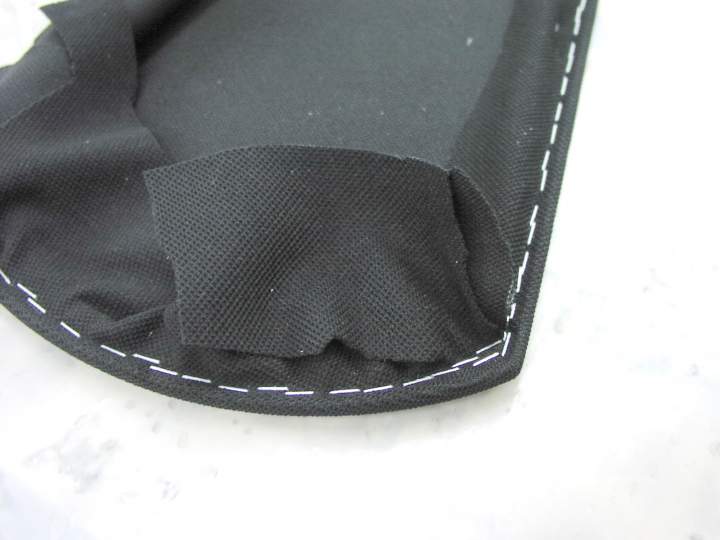

Trim it with razor blade and in this case added the grill clips. FWIW, I broke several of these pegs before I figured out the holes are just too small. I drilled 'em out a smidgen which worked better on the Baltic Birch. Might work ok with what they call for on MDF.

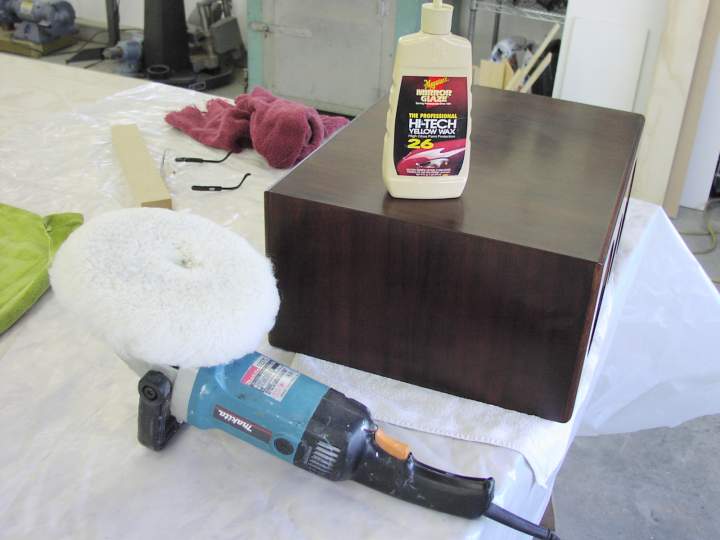

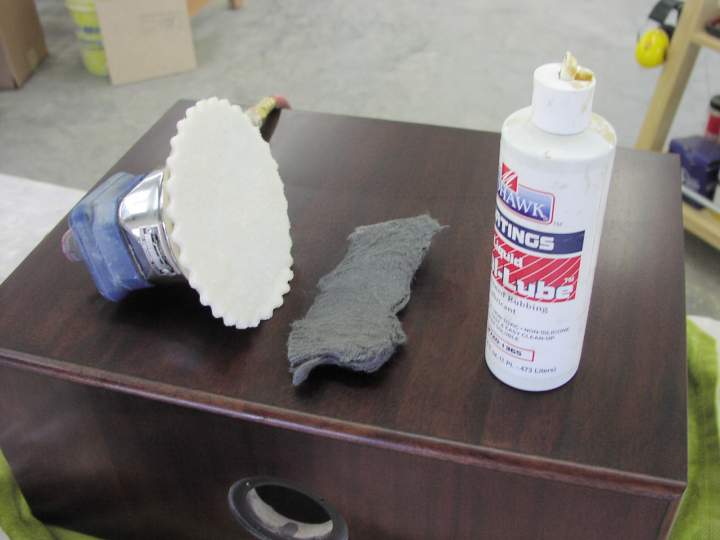

Here's my cut and buff supplies. I shot these with satin lacquer, so not looking for super glossy finish, just want to get smooth and protected. I knock off any overspray with 0000 steel wool and then buff with white scotch brite.





After the scotch brite I put a coat of wax on mostly just for protection. Although it does bring the gloss up a little that will dull back down with time and use.

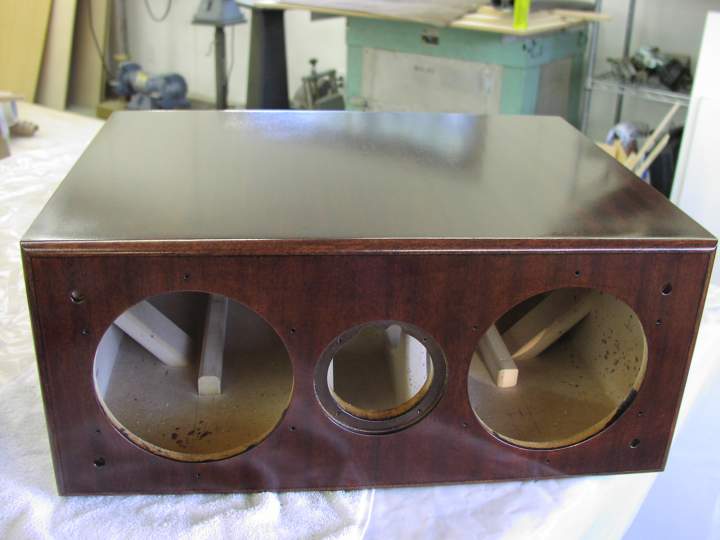

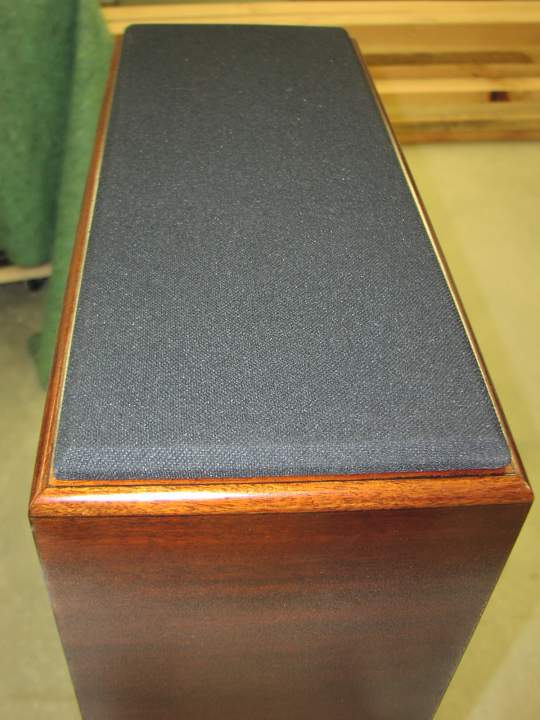

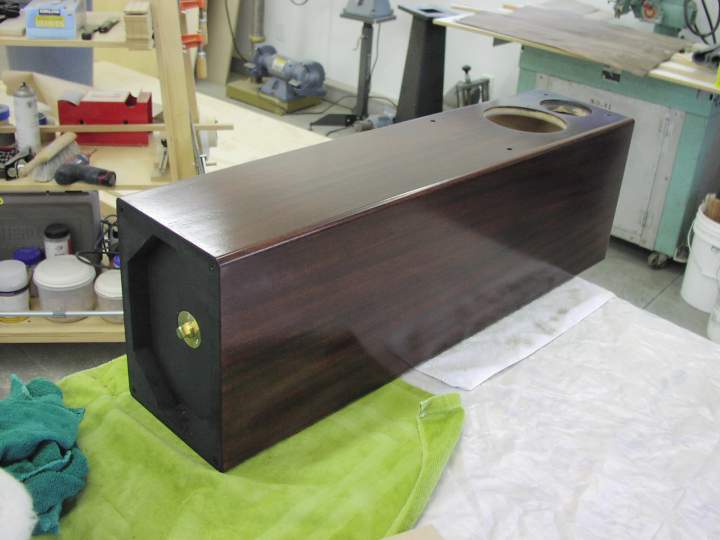

Final result

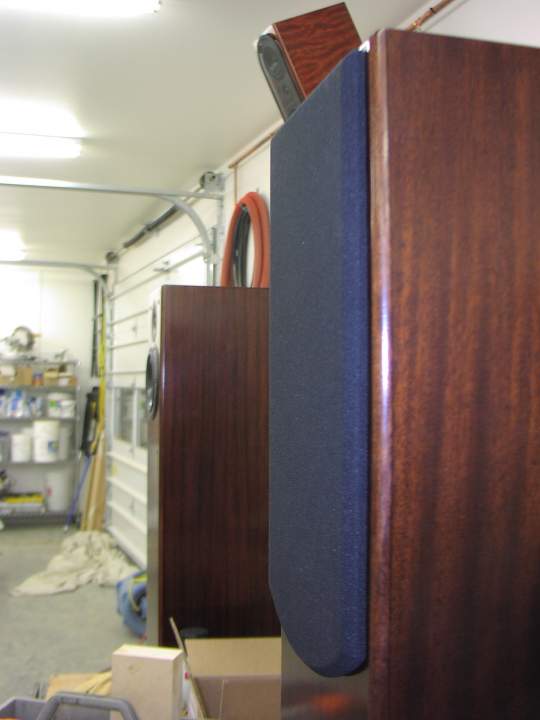

And another

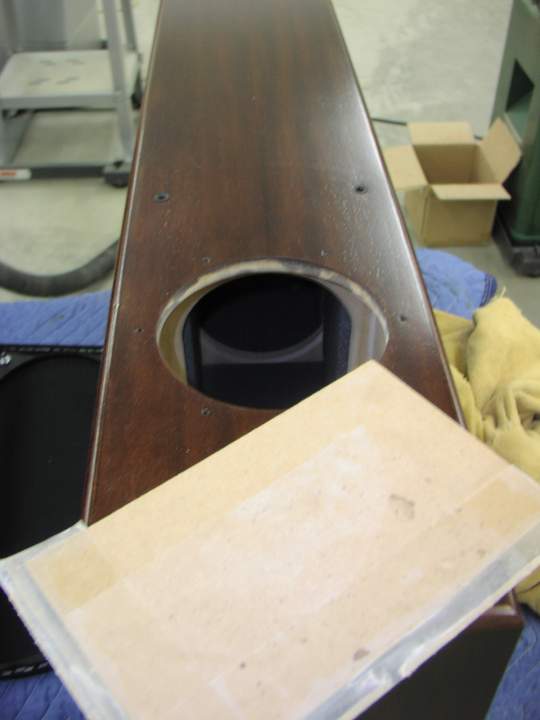

The block off that I taped in earlier comes out






I let the No Rez cover these holes untill now, keeps crap out...and you know by now I like my No Rez pure...

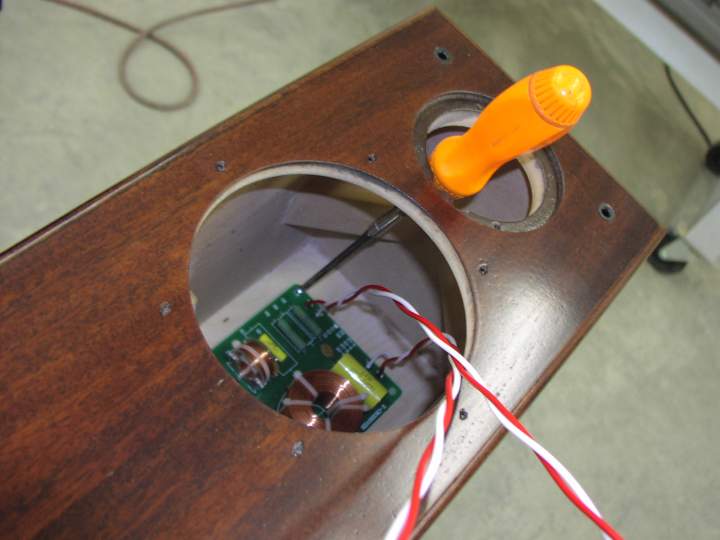

Crossover goes in for last time





Hooked up the binding post plate





Drivers get installed

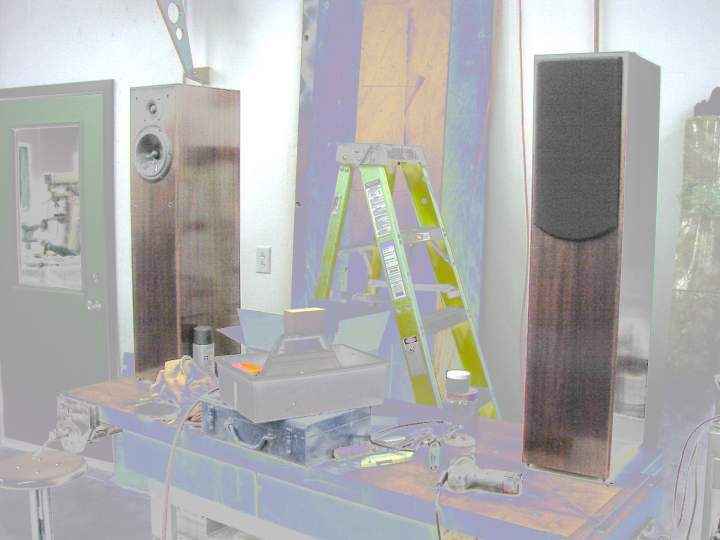

And an arty shot, SLS's on bench, one with grill on, one naked, and if you look above you see another Danny design.





I hooked 'em up, turned on the amp, and the magic happened. The whole shop went into a foggy haze... it was surreal :o




go figure...
