[Badd99]

Hi all - I remember seeing some pictures posted a while back of people showing what they found to be the exact dimensions needed for all the different parts of the nx otica and triple servo subs but I can't seem to find them when I actually wanted them 😅

Any help would be appreciated!!

[Danny Richie]

Even if I had those measurements listed somewhere, I would still likely remeasure them based off of the cabinets to make sure all is correct and I get the best yield from the sheets.

[Badd99]

Even if I had those measurements listed somewhere, I would still likely remeasure them based off of the cabinets to make sure all is correct and I get the best yield from the sheets.

Thanks Danny, old tried and true method prevails.

[NoahH]

Doubling down on Danny's comment - I measured for mine, cut wooden stencils, and still found I was off by ~1/8th on a couple of them. Particularly for the servo enclosures I would do a cheap wood test first.

[Rock Ball]

Hi all - I remember seeing some pictures posted a while back of people showing what they found to be the exact dimensions needed for all the different parts of the nx otica and triple servo subs but I can't seem to find them when I actually wanted them 😅

I don't know what others have posted, but here's what I posted in my build threads.
https://www.audiocircle.com/index.php?topic=153612.msg1822153#msg1822153

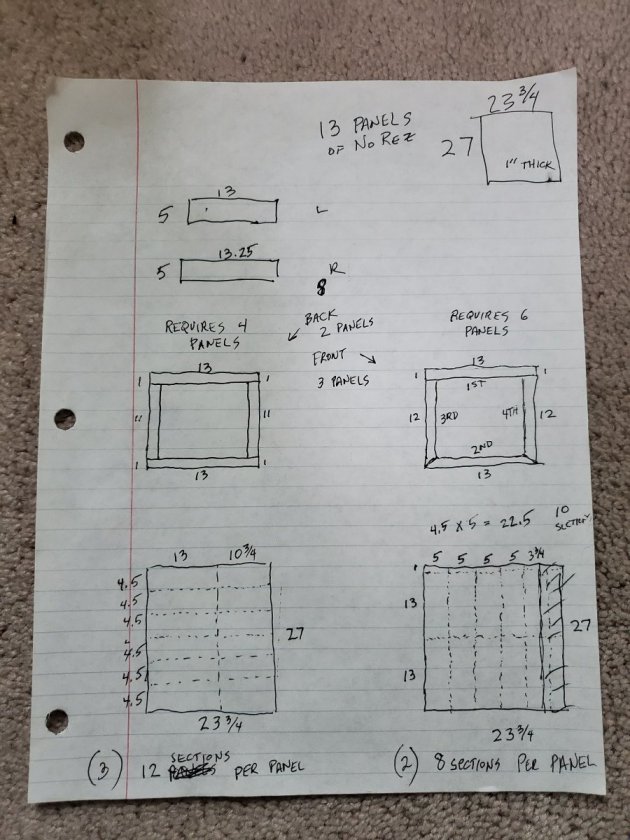

This sketch shows rough estimates.  I was trying to figure out how much No-Rez each method shown would use.

I ended up doing the method on the left.  I precisely measured and cut each piece to get a tight fit.

For the NX-Tremes, I also precisely measured and cut each piece, but most of the 7x13.5 pieces were very uniform.


Hope this helps.
