Another X-LS Encore is on it's way home
« on: 20 Dec 2022, 04:08 am »

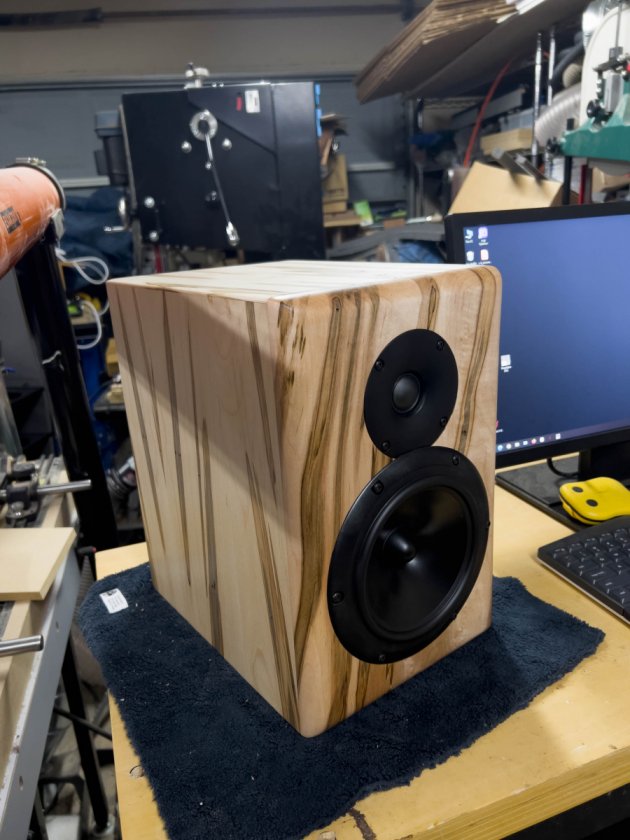

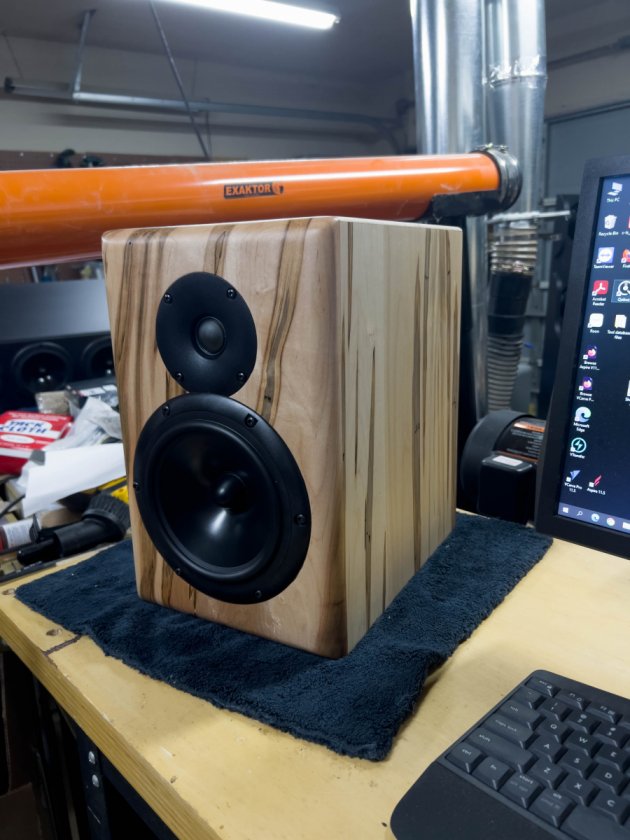

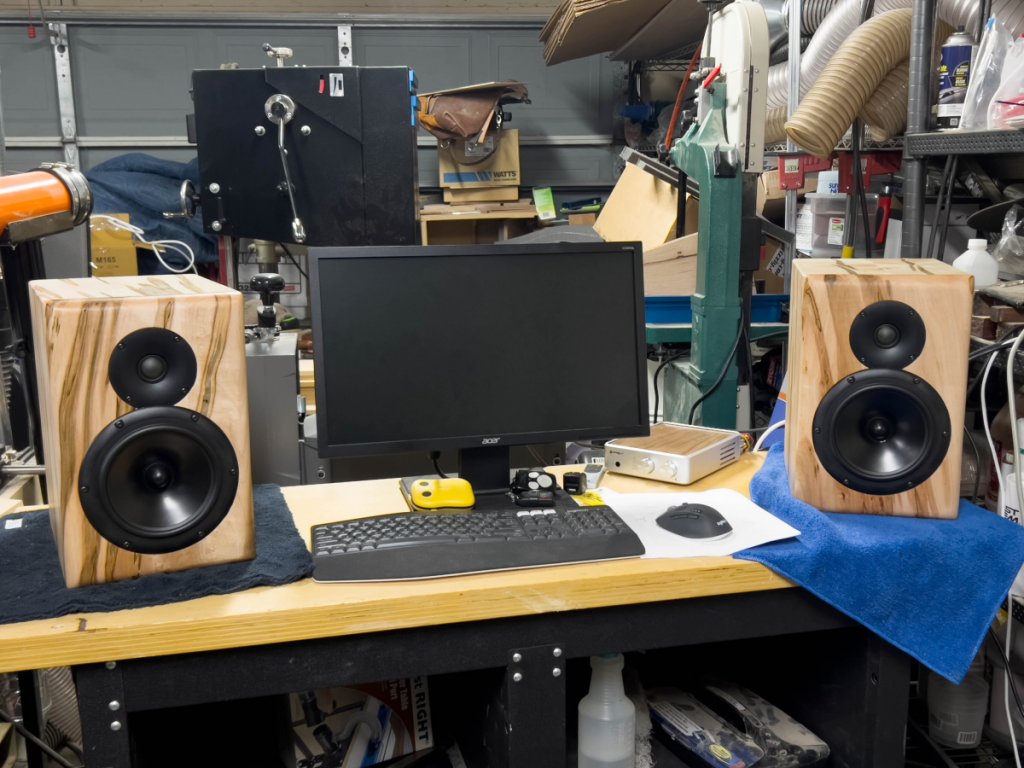

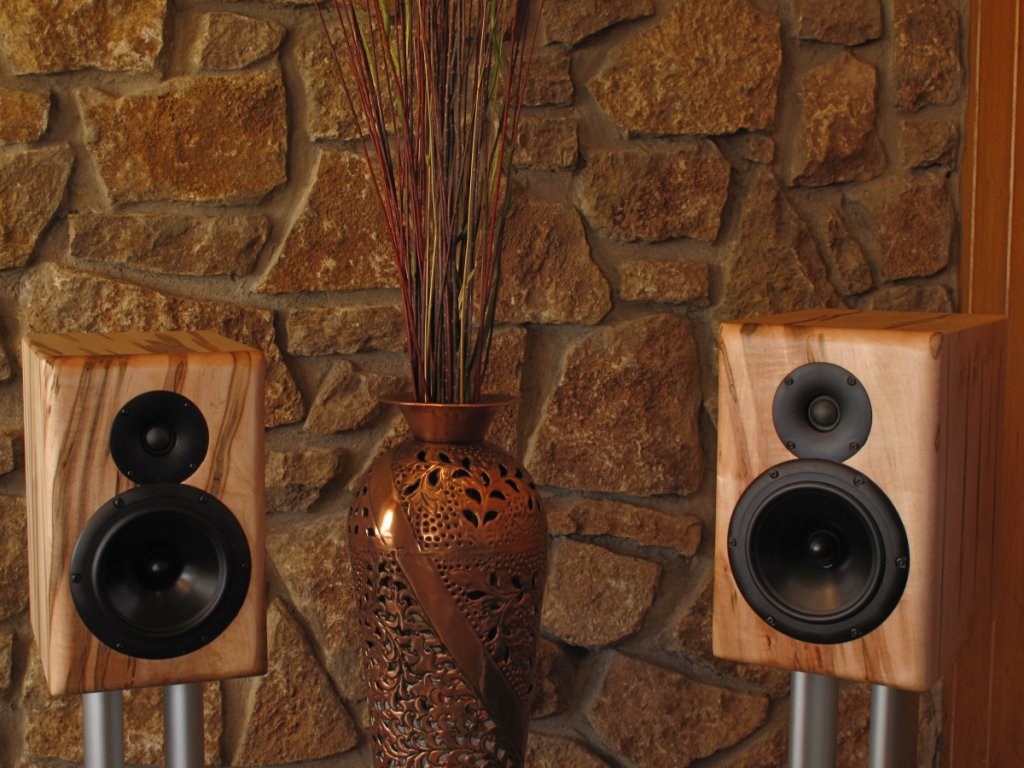

Starting to get caught up a little. This pair of X-LS Encores have taken awhile but are now heading to their home in time for Christmas. These are similar to the ones Ron reviewed. They are made with shop cut 3/16" panels of ambrosia maple laminated to the MDF sides, top, and back. The baffles are 3/4" solid ambrosia maple. The bottoms are black Dura-Tex over MDF. The finish is two coats of Rubio Monocoat 2C Pure followed by one coat of Rubio Maintenance oil.

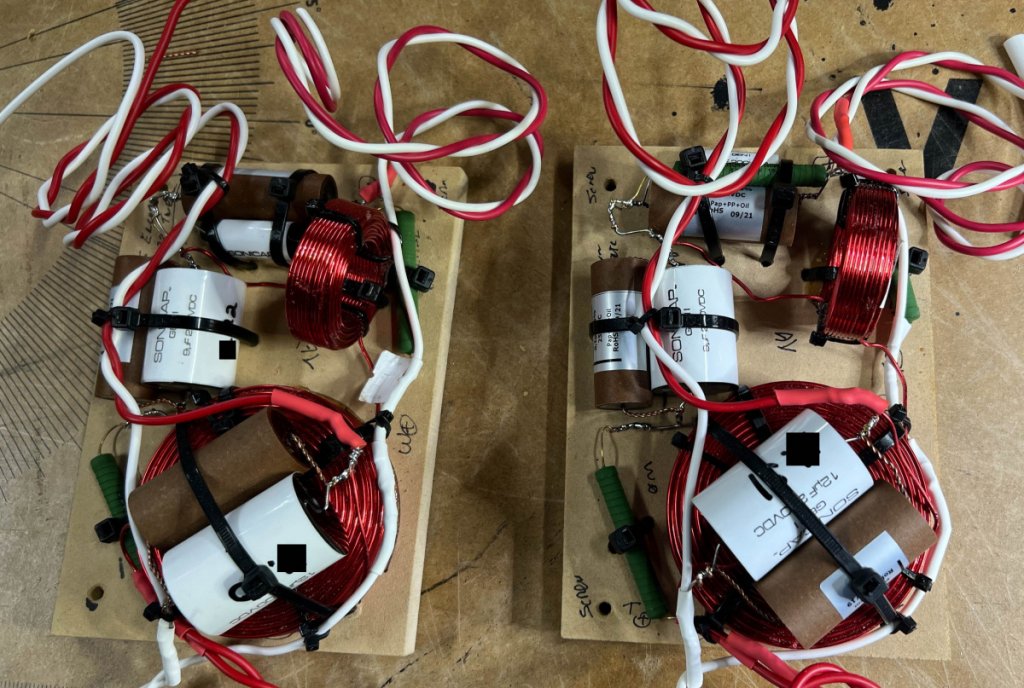

Here's the crossovers

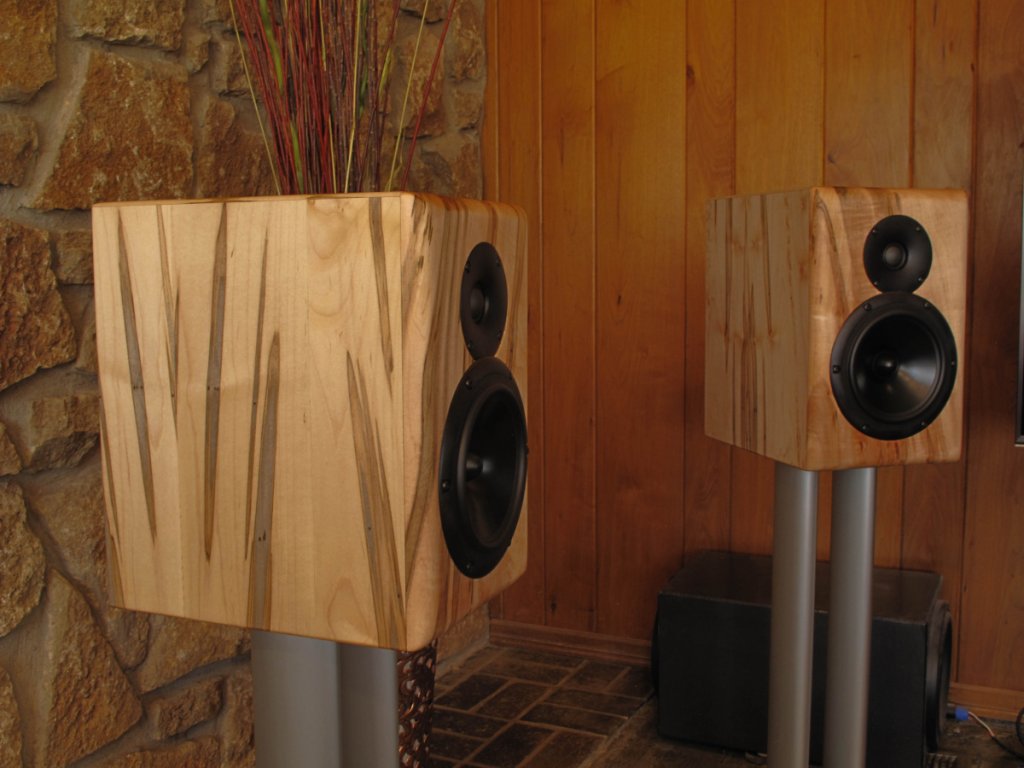

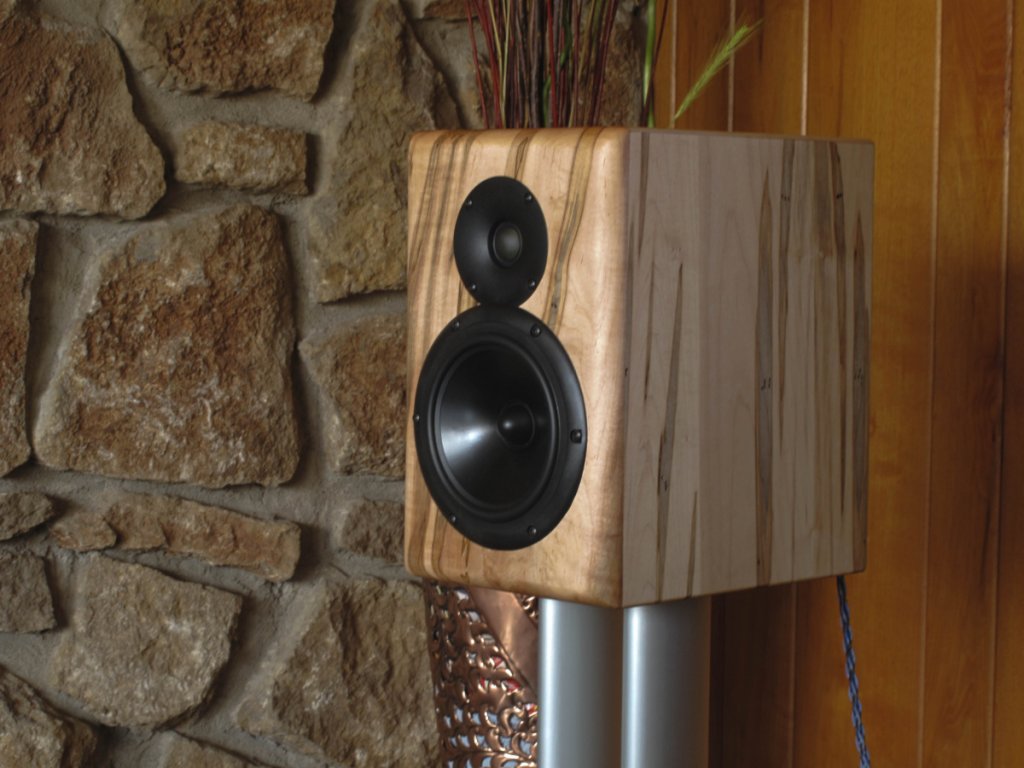

Here are some more pics Norman took









Tomorrow I'll be shipping out a pair of NX-Oticas. Five more pairs of speakers and I'll be caught up...

Mike

Tubefly

  • Jr. Member
  • Posts: 59
  • Motorcycles, Music, and Trout
Re: Another X-LS Encore is on it's way home
« Reply #1 on: 20 Dec 2022, 12:33 pm »
Those look awesome Mike!!

AlexH

Re: Another X-LS Encore is on it's way home
« Reply #2 on: 20 Dec 2022, 01:11 pm »
Absolute Beauty!!

Danny Richie

Re: Another X-LS Encore is on it's way home
« Reply #3 on: 20 Dec 2022, 03:18 pm »
Wow!

Peter J

  • Full Member
  • Posts: 1881
  • Hmmmm
Re: Another X-LS Encore is on it's way home
« Reply #4 on: 20 Dec 2022, 04:04 pm »
Those look great, Mike!

Never having used it, I'm curious if Rubio is all that the web seems to suggest. Would appreciate your take on it.

Rikard Ekval

Re: Another X-LS Encore is on it's way home
« Reply #5 on: 20 Dec 2022, 05:17 pm »
Starting to get caught up a little. This pair of X-LS Encores have taken awhile but are now heading to their home in time for Christmas. These are similar to the ones Ron reviewed.

Here's the crossovers


Tomorrow I'll be shipping out a pair of NX-Oticas. Five more pairs of speakers and I'll be caught up...

Mike

Mike. Great craftsmanship and superb finish.
See you have added a Mylex to the Sonicaps for the woofer.
Could you share your thoughts on the sound and possibly the value  :wink: because I have build my Encores now and are about to assemble it all. Should I add ??

nlitworld

  • Full Member
  • Posts: 2022
  • Strange things are afoot at the Circle K
Re: Another X-LS Encore is on it's way home
« Reply #6 on: 20 Dec 2022, 05:31 pm »
Should I add ??

When in doubt, deck it out! Lol.

I have a miflex bypassing a Sonicap on my NX-Studios in the woofer circuit and while they are different drivers than the X-LS, the tone from that combo is a big  :thumb:.

Tyson

  • Full Member
  • Posts: 11144
  • Audio - It's all a big fake.
Re: Another X-LS Encore is on it's way home
« Reply #7 on: 20 Dec 2022, 05:39 pm »
Mike. Great craftsmanship and superb finish.
See you have added a Mylex to the Sonicaps for the woofer.
Could you share your thoughts on the sound and possibly the value  :wink: because I have build my Encores now and are about to assemble it all. Should I add ??


Definitely worth it, IMO.

mlundy57

  • Industry Participant
  • Posts: 3587
Re: Another X-LS Encore is on it's way home
« Reply #8 on: 20 Dec 2022, 06:21 pm »
Those look great, Mike!

Never having used it, I'm curious if Rubio is all that the web seems to suggest. Would appreciate your take on it.

I’m a big fan of Rubio when it fits the sheen you want. If you want a matte finish, then it is true to its monocoat name. One coat is all you need and it couldn’t be easier to apply. You can get it to a satin sheen like these by applying a second coat the next day then a coat of their maintenance oil a couple days later.  If you add a ceramic coating about a week after that you can get up to semi-gloss but that’s it. If you want a higher sheen, Rubio is not the product to use.

Two other pluses are it’s durability and ease of repair. It was designed for hardwood floors so is very durable and it can be spot repaired if necessary. Oh, and, you don’t need a respirator to apply in.

It’s expensive up front but a little really does go a long way. For example, 18ml of the wax/oil mix and 3ml of activator was plenty for one coat on both speakers and I still had some left over. One caution, if you want a natural wood look, you need the “Pure” version, not the “Natural” like you would think. The Natural actually has a slight white/yellow tint to it.

Mike. Great craftsmanship and superb finish.
See you have added a Mylex to the Sonicaps for the woofer.
Could you share your thoughts on the sound and possibly the value  :wink: because I have build my Encores now and are about to assemble it all. Should I add ??


I definitely think it’s worth it. Not necessarily from a bang for the buck standpoint but from a SQ standpoint. I think it makes the overall tonal balance smoother. There’s only two of them so it’s not expensive. I’d go for it.

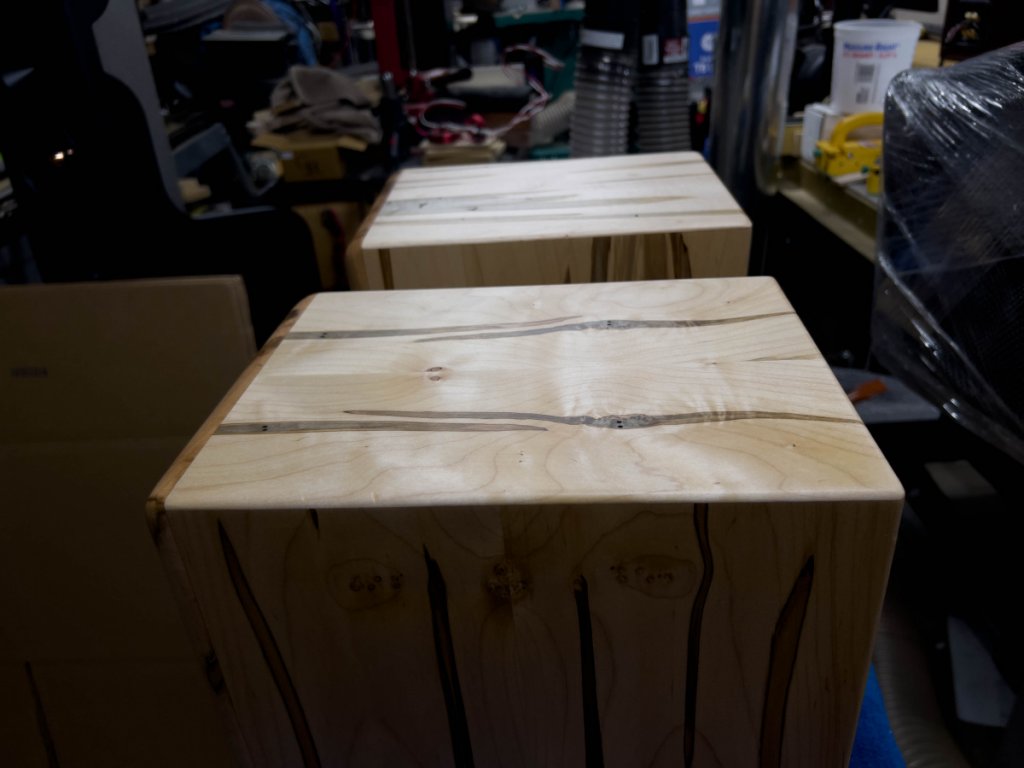

These were a little more challenging than the last pair. For that pair the board I had was wide enough to get the top and side panels with one piece. With this pair, there were two boards. One was wide enough for the front and back panels be be one piece but the other was narrower so the panels were made up of two or three pieces. This meant gluing up wider panels after milling the pieces to 1/4” but that allowed me to play with the patterns. On some panels, book matching worked well while others required mixing and matching to get interesting patterns. With ambrosia maple, the patterns don’t always go all the way through the board which also made mixing and matching necessary.


Rikard Ekval

Re: Another X-LS Encore is on it's way home
« Reply #9 on: 22 Dec 2022, 06:15 pm »
Mike.
Did you use the same value on the Miflex on the woofer, as on my crossover (all extra from Danny) for the Encores, on the tweeter?

My DIY board, that hopefully will have a Christmas with us, if wifey is in the mood  :o we both have the flu…..




Merry to ya all and have a nice weekend.

« Last Edit: 22 Dec 2022, 09:44 pm by Rikard Ekval »

Norman Tracy

Re: Another X-LS Encore is on it's way home
« Reply #10 on: 22 Dec 2022, 09:10 pm »
Michael wrote above: "These were a little more challenging than the last pair. For that pair the board I had was wide enough to get the top and side panels with one piece. With this pair, there were two boards. One was wide enough for the front and back panels be be one piece but the other was narrower so the panels were made up of two or three pieces. This meant gluing up wider panels after milling the pieces to 1/4” but that allowed me to play with the patterns. On some panels, book matching worked well while others required mixing and matching to get interesting patterns. With ambrosia maple, the patterns don’t always go all the way through the board which also made mixing and matching necessary."

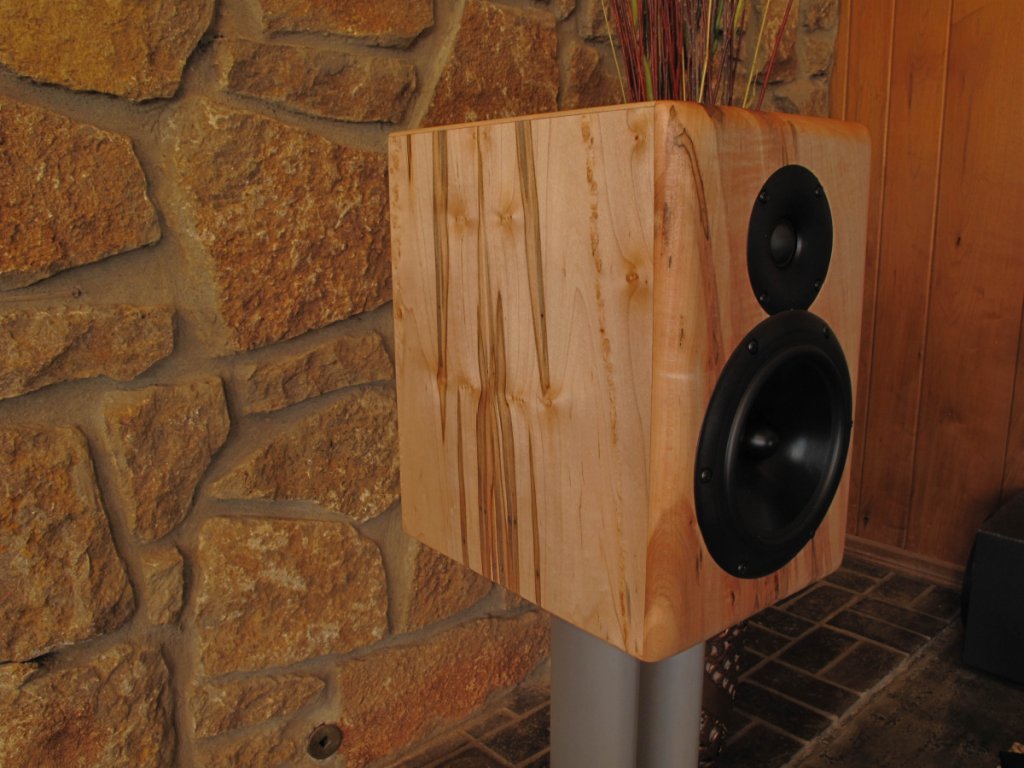

This closeup shows his work book matching ambrosia maple.




We had too little time listening to this pair after the photo shoot and before it was back to business. X-LS Encores always elicit the "...ahh..." reaction from me. So smooth and warm at first listen unassuming then as one settles in you become aware of the wealth of musical detail on offer.




mlundy57

  • Industry Participant
  • Posts: 3587
Re: Another X-LS Encore is on it's way home
« Reply #11 on: 22 Dec 2022, 09:59 pm »
Mike.
Did you use the same value on the Miflex on the woofer, as on my crossover (all extra from Danny) for the Encores, on the tweeter?

My DIY board, that hopefully will have a Christmas with us, if wifey is in the mood  :o we both have the flu…..




Merry to ya all and have a nice weekend.

Yes, the value of all the Miflex by-pass caps is the same.

kwhitman

Re: Another X-LS Encore is on it's way home
« Reply #12 on: 13 Jan 2023, 06:58 pm »
Dang Mike those are awesome!  Your woodworking skills continues to amaze me.  Great looking pair of Encores!

Kris

mlundy57

  • Industry Participant
  • Posts: 3587
Re: Another X-LS Encore is on it's way home
« Reply #13 on: 13 Jan 2023, 08:15 pm »
Thanks everyone. These have settled in nicely and their owner is pleased.
