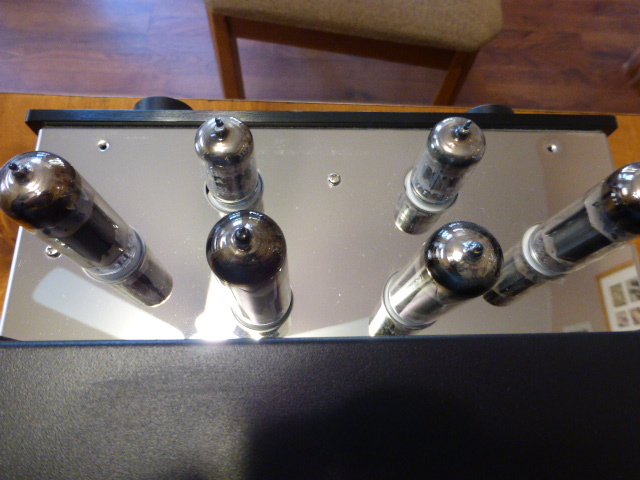

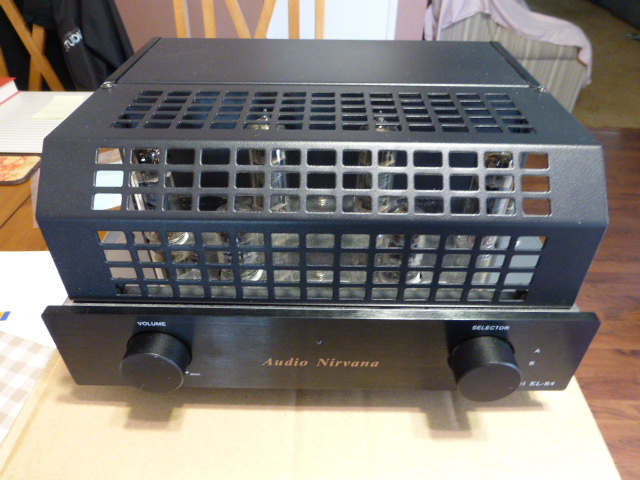

For sale; my favorite integrated compact tube amp. Comes with stock tubes and power cord, double boxed in original factory carton. Excellent condition. Only flaw I can find is minor scuff marks under the tube cage at the front (not visible when cage is installed). Makes a very nice desktop amp, but also powers normal or high efficiency speakers in a modest room very well. Specs and details below. Asking $375 plus shipping (last retail when they were in stock from David Dicks at Common Sense Audio was $699).

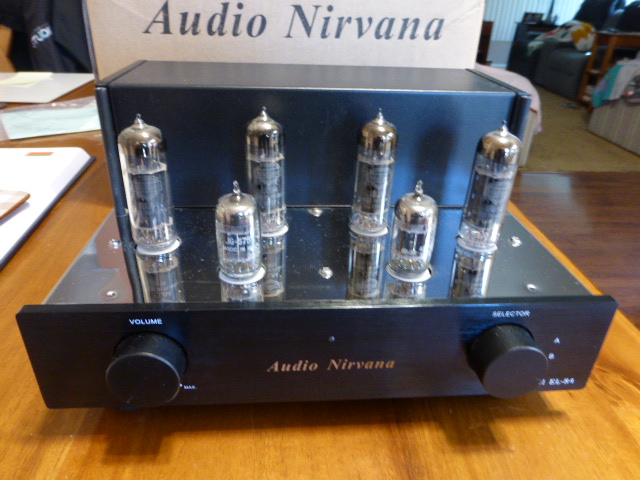

An incredible sounding vacuum tube stereo amplifier--professionally assembled and tested--for about the same price as many kit amplifiers. Full, deep, rich bass. Extended highs. Ultralinear circuit uses an extra set of windings in the output transformers. This gives the smoothness of SET amps with the power and dynamics of push/pull design. And lower distortion than both. The Audio Nirvana EL84 uses the two most popular vacuum tubes of all time. The EL84 (6BQ5 or 7189) power tube. The 12AX7 small signal tube. 10 watts per channel--all you need with the highest quality high efficiency speakers. Can be operated with or without the included tube shield. 4 ohm and 8 ohm terminals. Two inputs with selector. Dual voltage: 115 volts or 230 volts.
Parts are chosen for the best possible sound quality--not because we want to impress you with 'boutique' names. Each amplifier is beautifully hand assembled and tested. To maintain the superb sound, there are no adjustments to be made--ever. Self biasing, no AC or DC balance to adjust. And made with the fewest parts possible and best sounding tubes. This is a 'straight power amplifier with a volume control'. There is NO preamplifier inside, just a passive line stage. A $10,000 preamplifier can't sound better than no preamplifier at all. No separate preamp is needed. Just connect any 'line level' source, like CD, DAC, Tuner, or Tape directly to the A or B inputs
Features
EL84 Ultralinear vacuum tube stereo amplifier.
Four EL84 and two 12AX7 vacuum tubes.
Conservatively rated at 10 watts per channel.
Hand wired. No integrated circuits.
Transformers wound in our own factory.
Polished stainless steel chassis.
Brushed aluminum face and back plates.

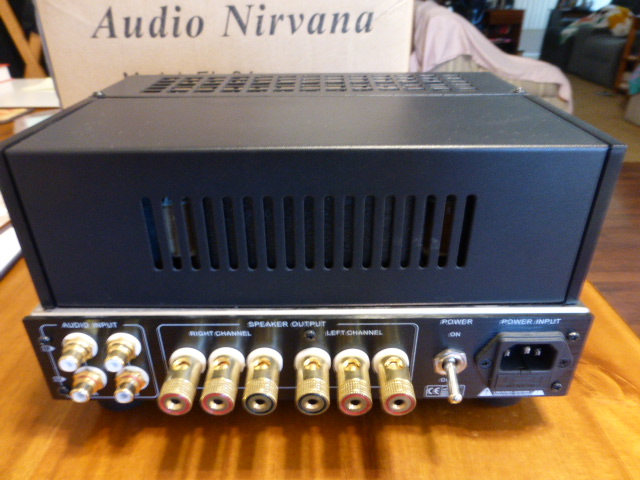

4 and 8 ohm gold plated metal speaker terminals.
Accepts two line level inputs.
Voltage selector for 115 or 230 volts.
Excellent build quality will ensure years of reliable service.
$699 with free USA shipping "
Specifications
INPUT IMPEDANCE: 100K ohm (RCA)
OUTPUT IMPEDANCE: 4 ohm - 8 ohm
OUTPUT POWER: 10W into 8 ohms,
CLASS AB
DAMPING FACTOR: >3
FREQUENCY RESPONSE: 20Hz-20KHz -1dB
T.H.D.: <1% 20Hz-20KHz (REF. OUTPUT)
TOTAL GAIN: 32dB
INPUT SENSITIVITY: 300mV - 600mV
S/N: >90dB (HUM NOISE <1.5mV)
CHANNEL BALANCE: <1dB 20Hz-20KHz (MAX. VOLUME)
CHANNEL SEPARATION: >65dB 20Hz-20KHz
