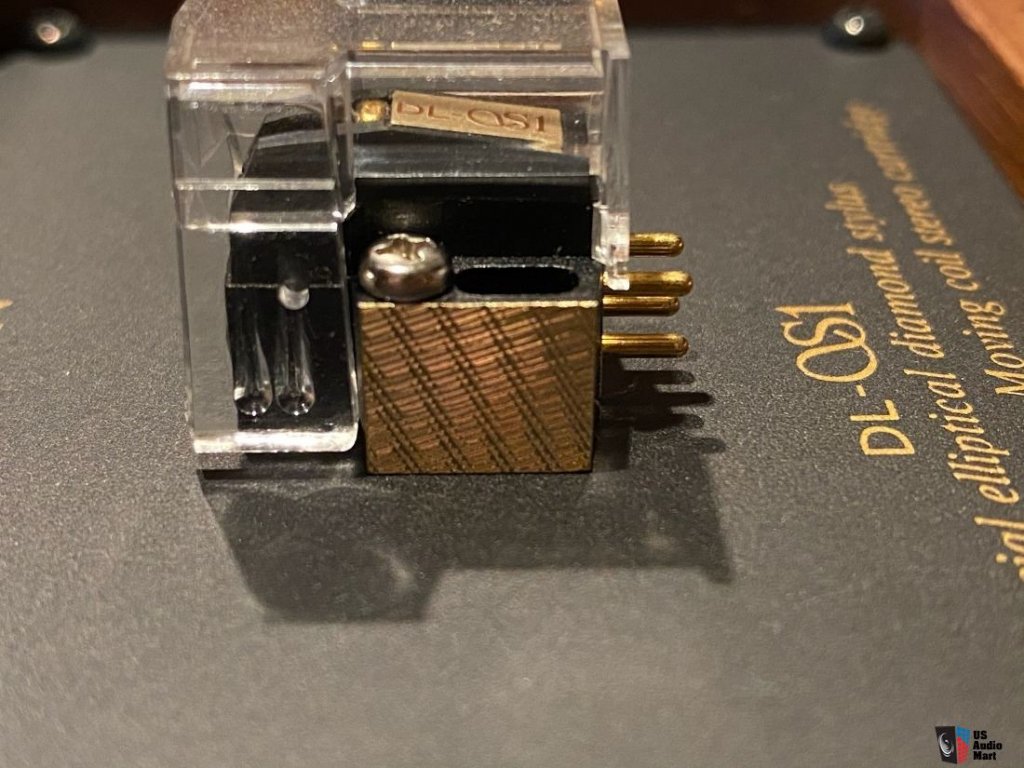

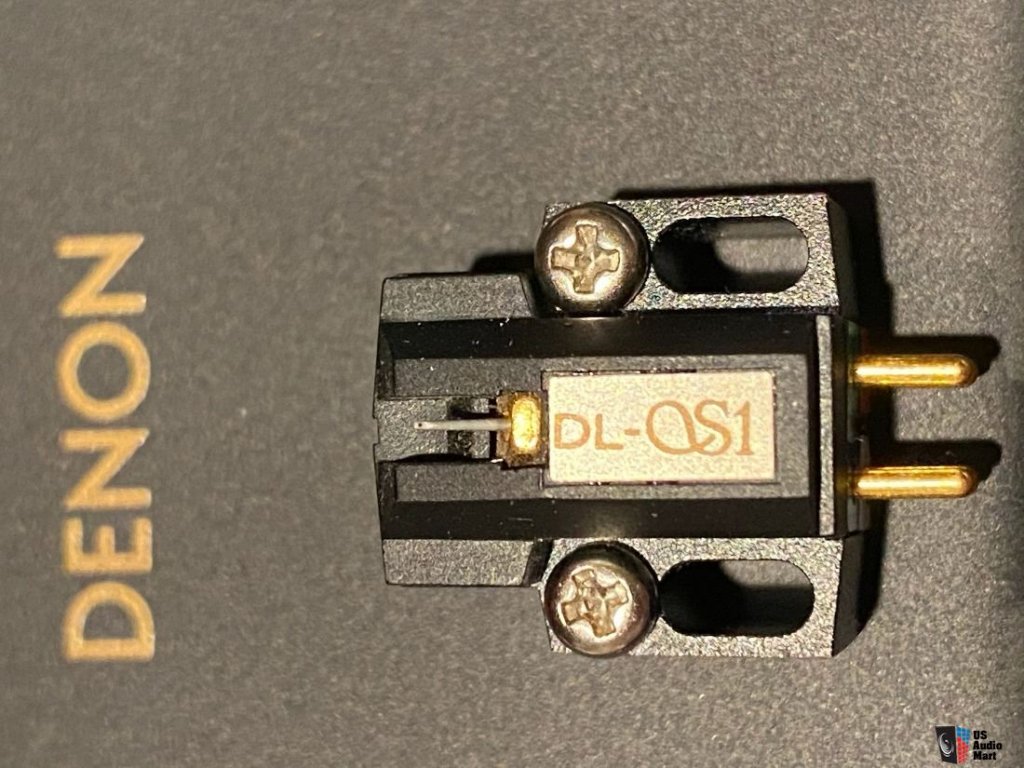

The iconic Denon DL-S1 moving coil cartridge. Their flagship model and still revered as one of the best values in high end analog playback. Very difficult to find one that is still in excellent OEM shape.

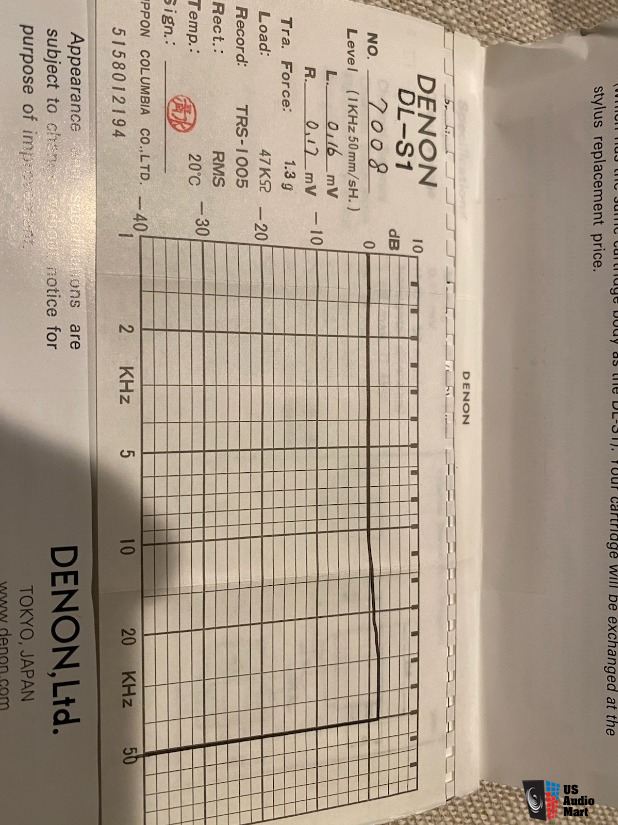

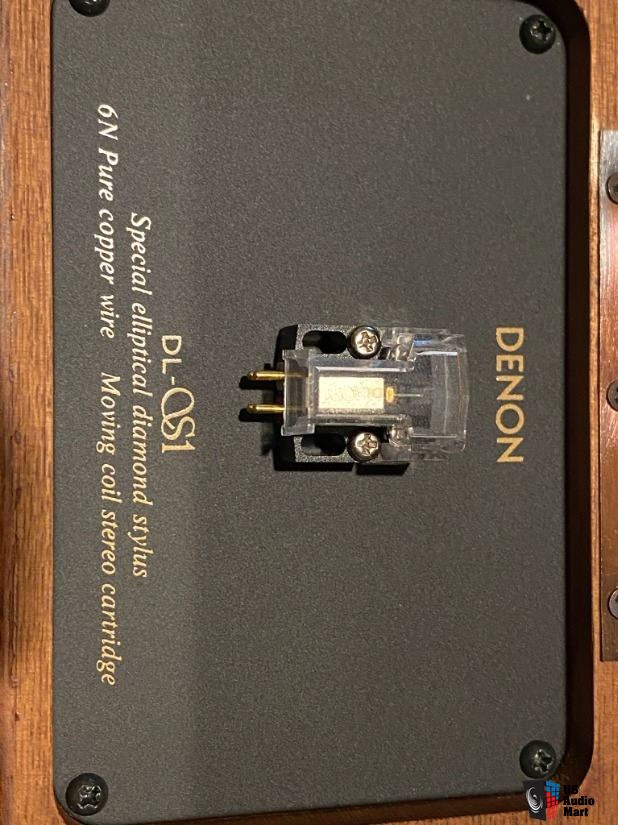

Cartridge has slightly less than 300 hours. Cantilever is perfect as is the suspension. Performs as it should and is refined, detailed, and expressive. Comes with factory wood case, response graph, and box.
Be aware that a .15mv output voltage will require a robust phono stage or step up device to attain the highest level of performance from this cartridge.
MSRP $1000
Sell $570
DENON DL-S1 Features
1. Newly developed ultra fine wire combining gold and 6N copper. A newly developed ultra fine wire combining pure gold and 6N copper is used in the voltage generating coil. By combining the excellent qualities of gold and copper, the Denon DL-S1 is thus able to deliver uncompromisable and unadorned pure and clean analog sound quality. Pure music - that's what you get with the Denon DL-S1 MC phono cartridge.
2. Stable, analog reproduction via superb tracing capability. The use of a tapered cantilever, a non-magnetic coil bobbin, and a 0.07 mm micro stylus chip reduced the effective mass of its vibration system, lowered its mechanical impedance, and superbly improved its ability to trace the grooves in the record.
3. Elimination of unwanted vibrations with carefully selected materials. A ceramic frame and a highly rigid aluminum body to eliminate unwanted vibrations within the cartridge.
4. Denon's unique 2-way dumping system. The unique Denon two-way dumping system has been employed to suppress the tonal variations due to changes in room temperature and at the same time to obtain level frequency characteristics.
Denon DL-S1 Phono Cartridge Specifications
- Type: Moving coil
- Output voltage: 0.15mV
- Frequency response: 20Hz-70kHz
- Recommended load impedance: Over 100 ohms
- Channel balance @ 1kHz: < 1db
- Channel separation @ 1kHz: > 28dB
- Stylus tip: 0.07 x 0.07 mm square solid diamond
- Compliance: 14 x 10-6 cm/dyne
- Recommended tracking force: (1.3g +/- 0.2g)
- Color: Black/Gold
- Weight: 7 g
