MTMWW Rebuild with Visaton KE25SC and GR M-130x mids
»

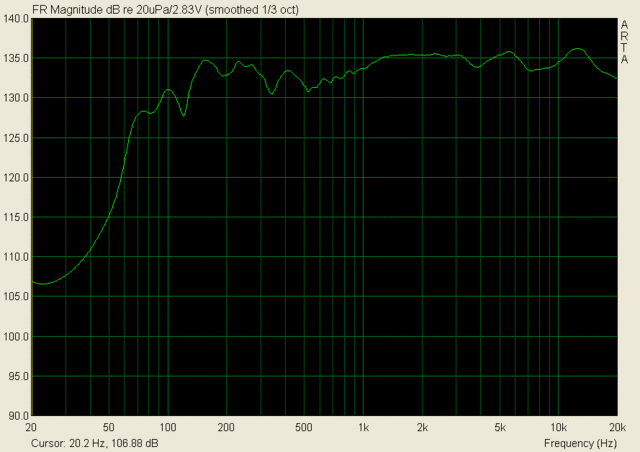

2 Component test crossover - After seeing how well the measured responses match up, I tried a simple 2 component crossover - a .33mH on the mids and a 9.2uF on the tweeter - this is the measured repsonse. Listening shows promise, the tweeter need a db or two of padding, but other than that it sounds excellent.
