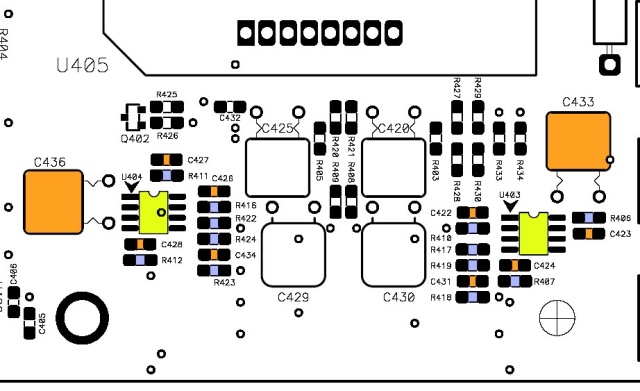

DC servo components located in my favorite spot under the wind tunnel! R431/432 1.0M ohm input resistors not shown (Ch1/2 respectively). Op amp is a TL072 (light green). Caps are orange and resistors are light purple.
