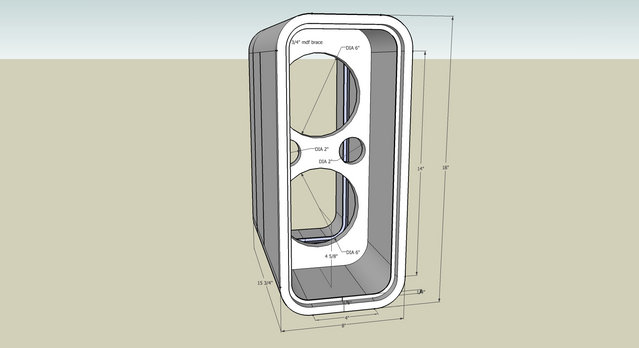

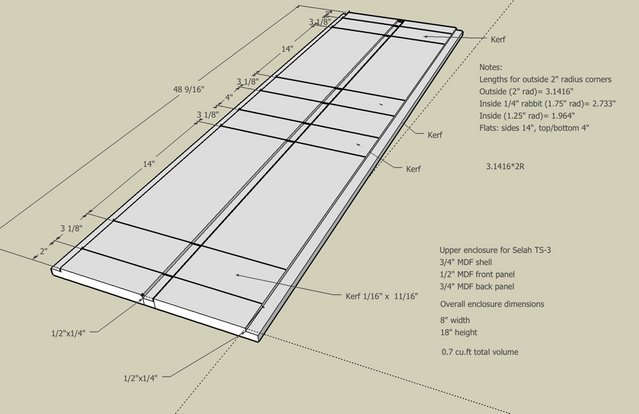

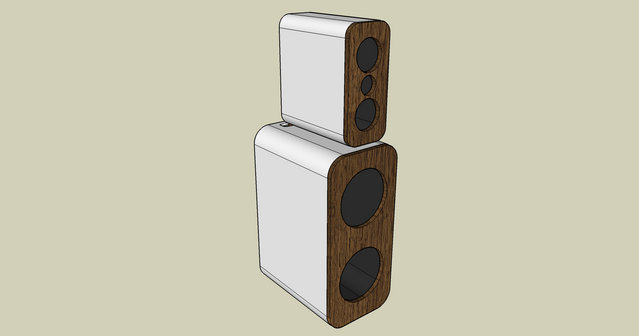

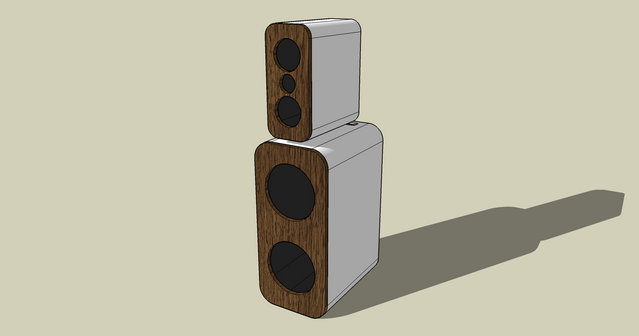

Selah TS-3 Upper cabinet shop drawing - Drawing of the single MDF piece which forms the cabinet shell for TS-3 upper portion. Front panel, back panel and internal brace serve as the form for wrapping the outer shell. Overall cabinet dimensions are 8"x 18" x 14"deep	TS3 MTM upper - Concept drawing for Selah TS3 upper mtm cabinet	TS3 upper/lower cabinet concept - Cabinet prototype concept drawing for TS3 speaker. Micro perforated white satin exterior shell with solid Claro Walnut baffles.	TS3 concept front view - Custom cabinet rendering for Selah TS3 design

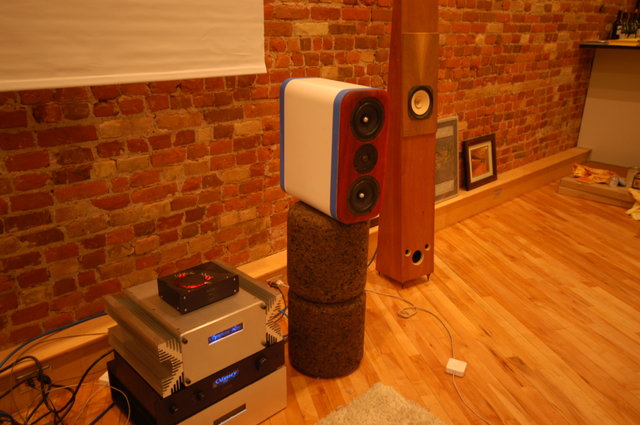

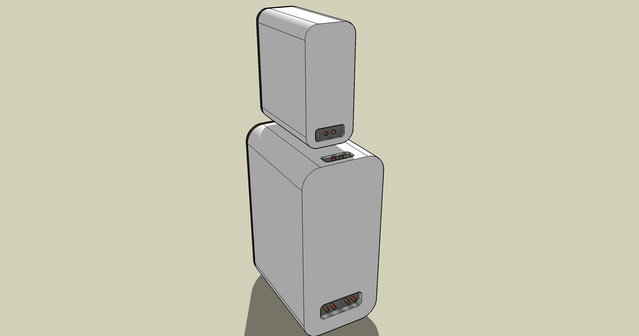

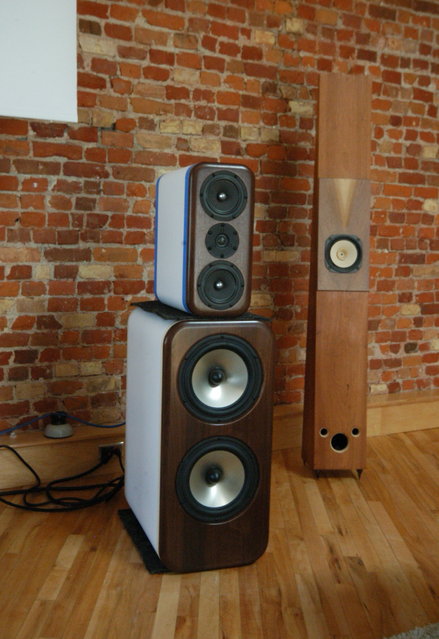

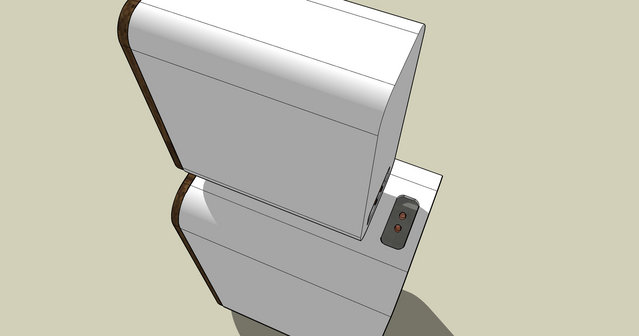

TS3 concept top/back view - Custom Cabinet rendering for Selah speaker	Back rendering for TS3 - Biamp/biwire set-up concept for TS3	TS3 Upper module - Selah TS3 upper module during testing.	TS3- walnut and white

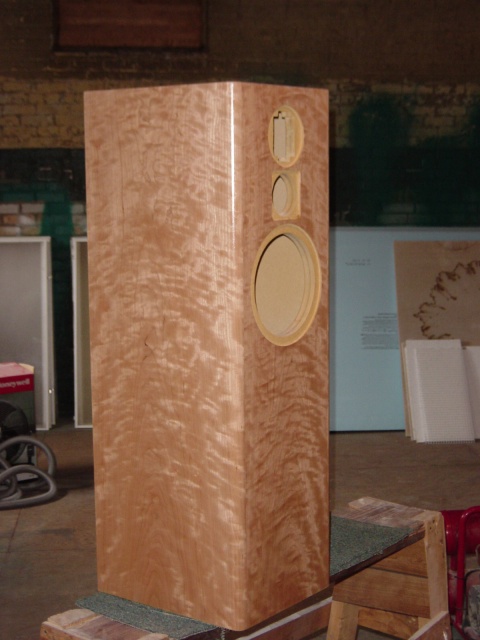

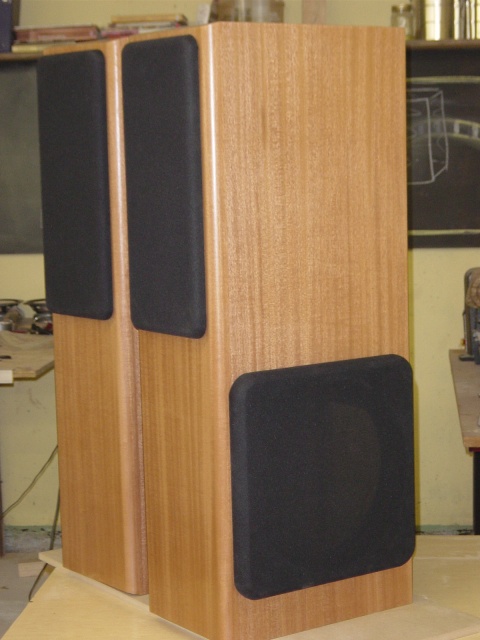

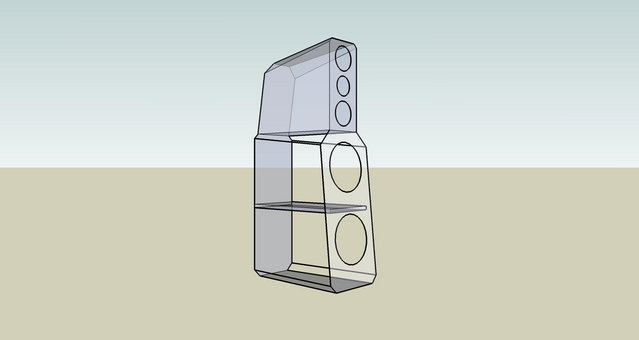

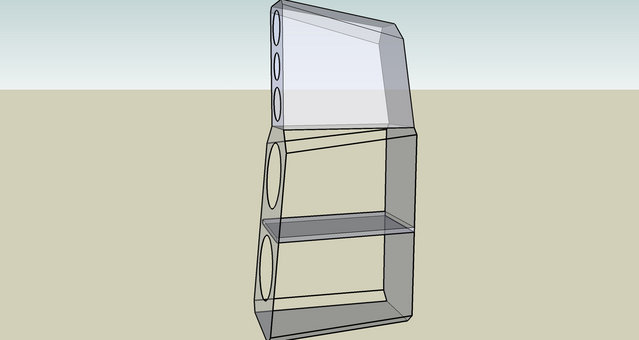

Large Selah 3-way prototype	Selah 3-way prototype drawing	Chalcedonys in Ribbon Mahogany built for Selah Audio - Ribbon Mahogany veneered Chalcedony cabinets for Selah. I owned a pair of these myself, they are wonderful speakers.	Carnelian enclosures in Quilted American Cherry built for Rick Craig

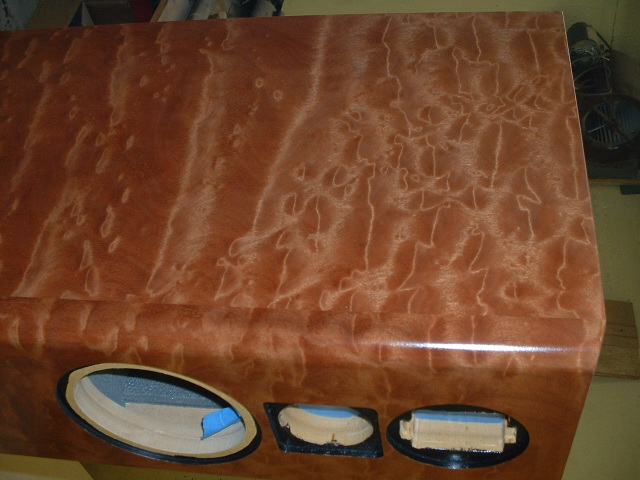

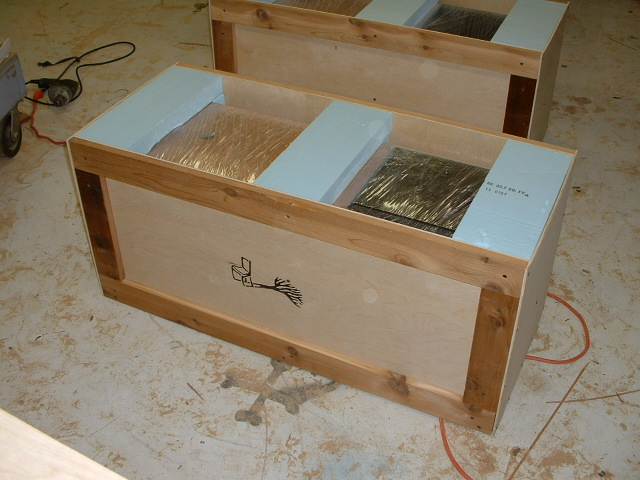

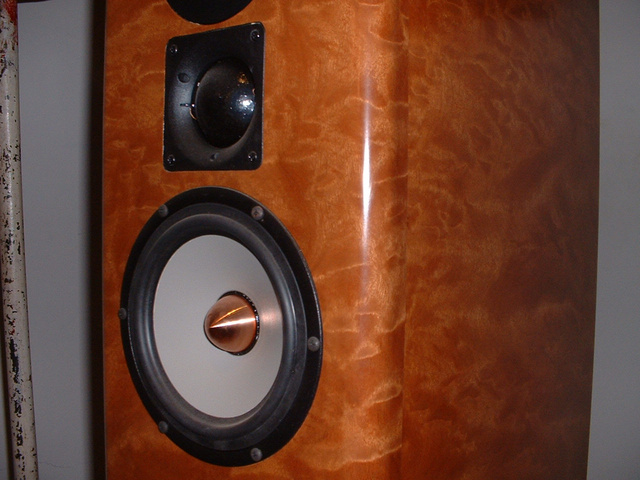

Carnelain in quilted Cherry built for Selah Audio	Chalcedony's in shipping crates going to Selah Audio	Chalcedony's in quilted Makore - detail in progress	Chlacedony's after drivers mounted

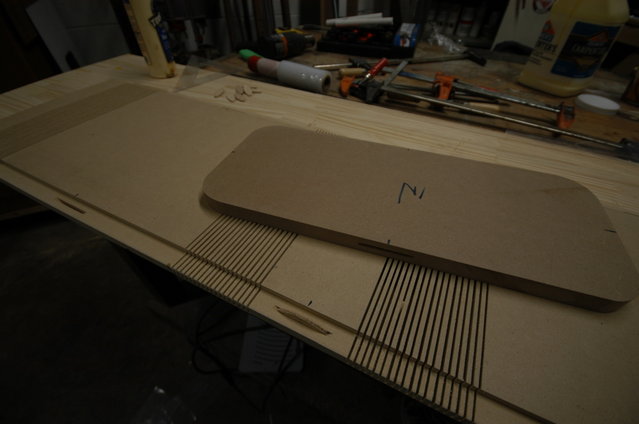

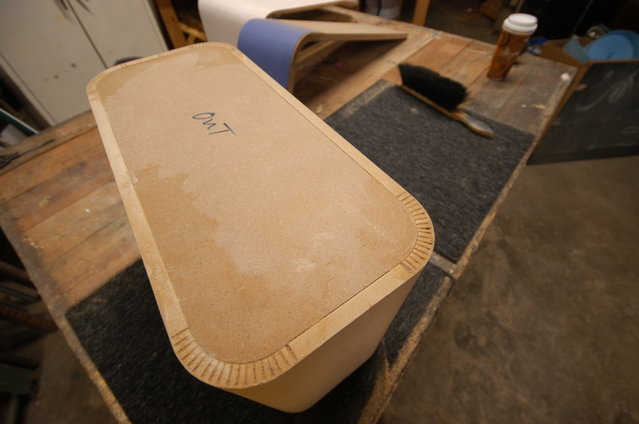

Detail of TS-3 upper enclosure - TS-3 upper enclosure after the glue has dried and the clamps released. Any air pockets in the kerf cuts will be injected with epoxy. The inside of the enclosure will be coated with epoxy resin & fiberglass to add strength to the bent corners.	TS-3 Enclosure before bending - Biscuits are used to align the panels while bending. Glue is applied to rabbit and kerfs.
