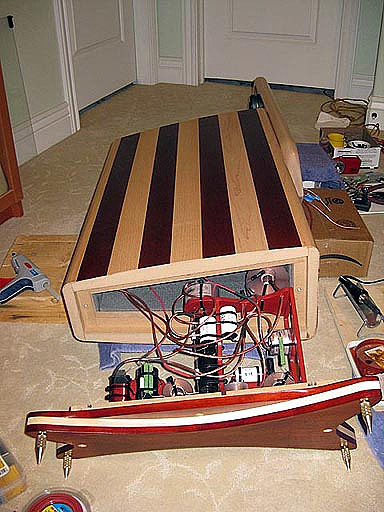

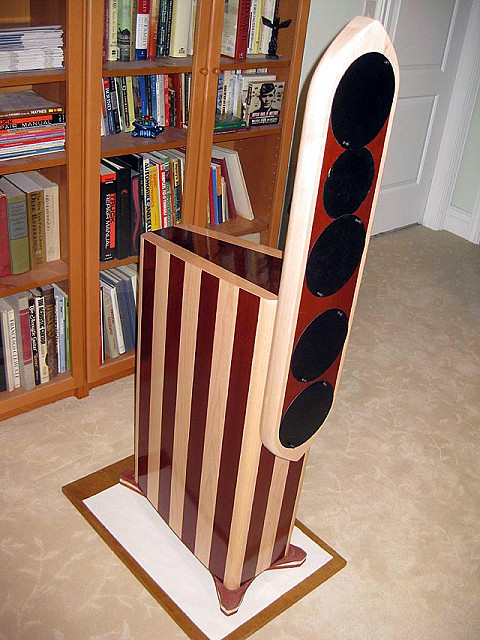

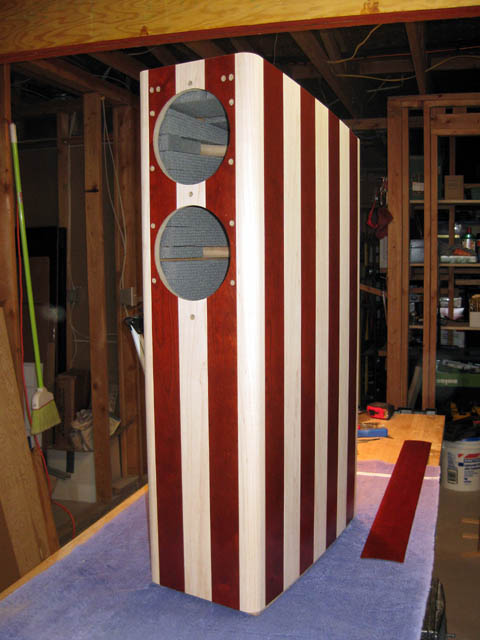

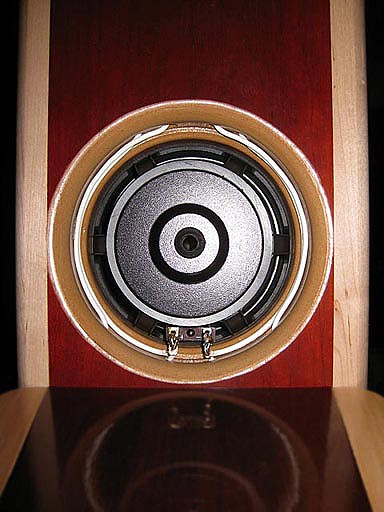

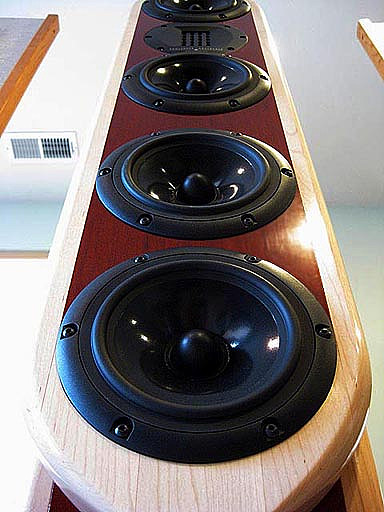

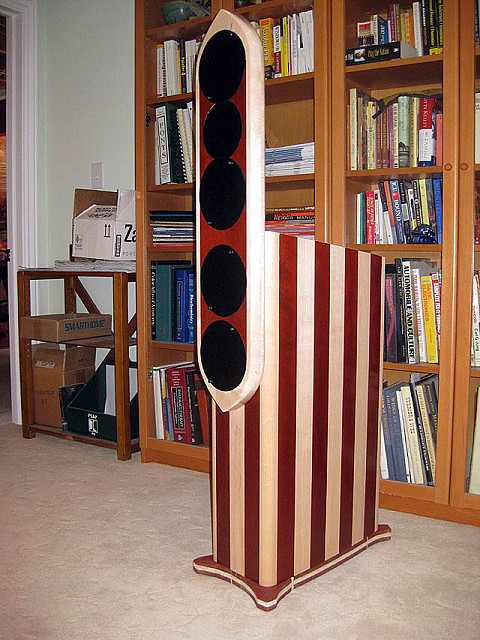

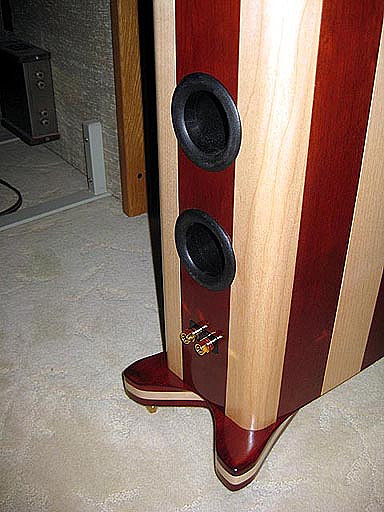

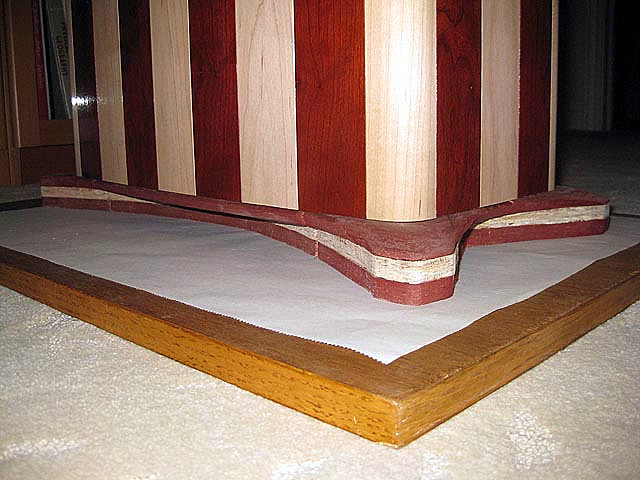

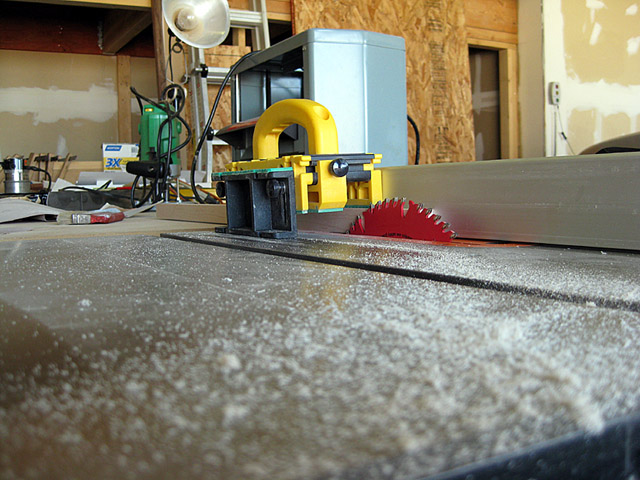

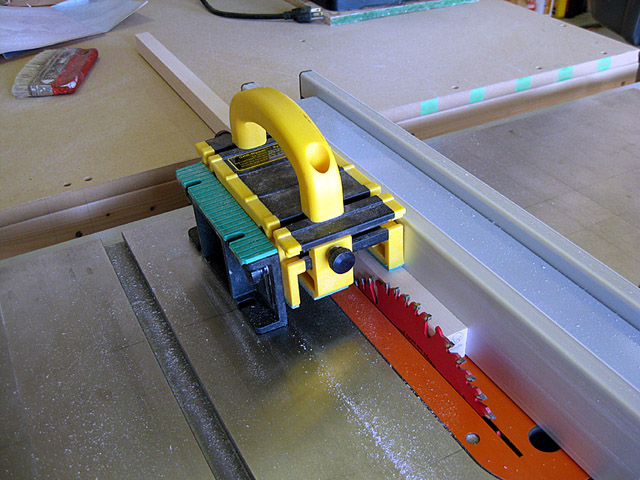

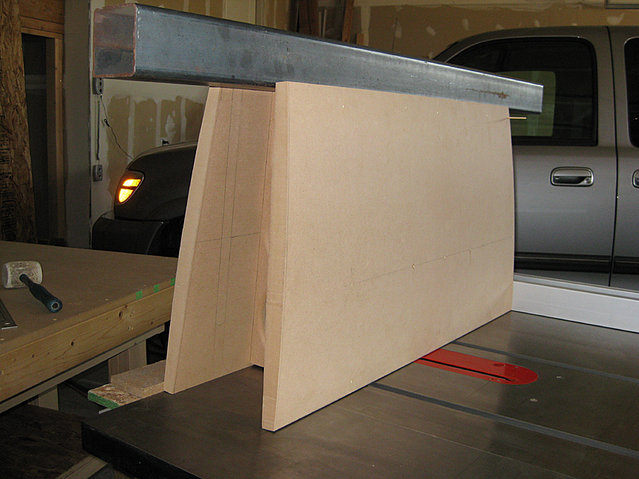

IMG 0244.JPG - This was a test layout of the jig setup on the table saw. I used the table saw because it has a perfectly flat surface to keep things all on the same plane.

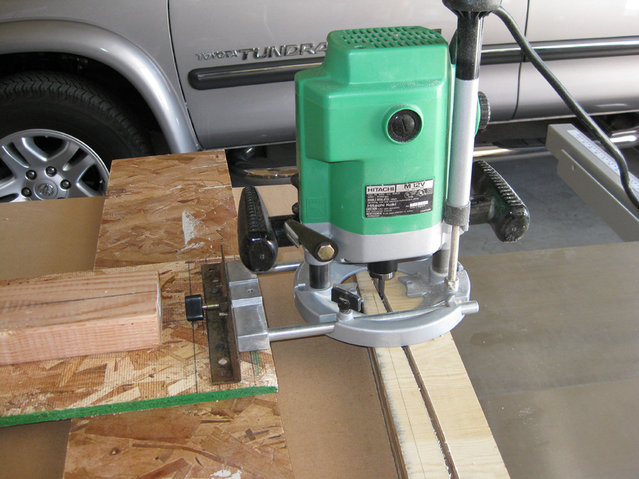

IMG 0237.JPG - The router is the venerable Hitachi M12V at 15A, 3¼HP. It will accept a ¼" or ½" shaft bit and weighs in at 12.4lbs. The bit is a Grizzly double fluted straight bit, ½" shank, 1¼" cutter diameter and 2â…" OAL.
IMG 0239.JPG - With router attached and all mating surfaces sprayed with lacquer and waxed. It slides very well back and forth.
IMG 0233.JPG - The first test fit of the jig with one edge guide attached.
IMG 0225.JPG - The top parts of this will be the carriage for the router and the bottom are the rails.
IMG 0231.JPG - Layout of the pieces on ¾" MDF. I bought the ¾" and 1⅛" MDF from a local lumber yard and not one of the "big box" stores. I don't think the MDF from the "big box" stores is of very good quality.
IMG 0257.JPG - The last ½" still to cut.
(Untitled)

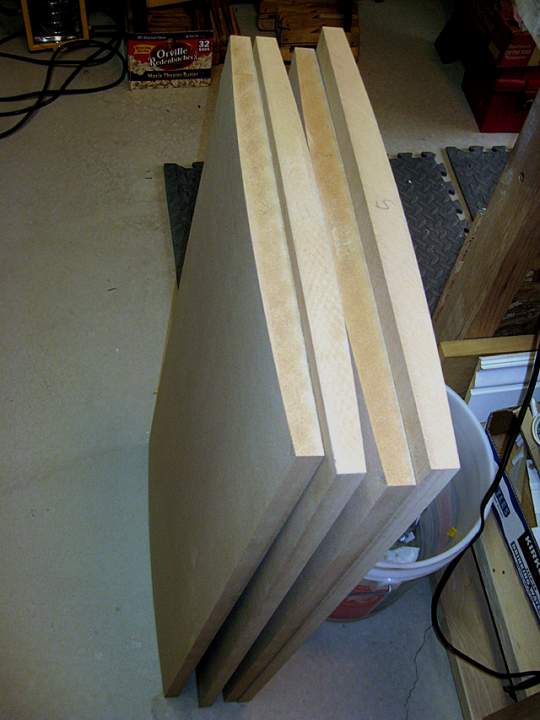

IMG 0250.JPG - It produced a beautiful 9 ft. radius curve. The material is 1⅛" MDF. I removed about 1mm from the apex and that left a ¾" edge.

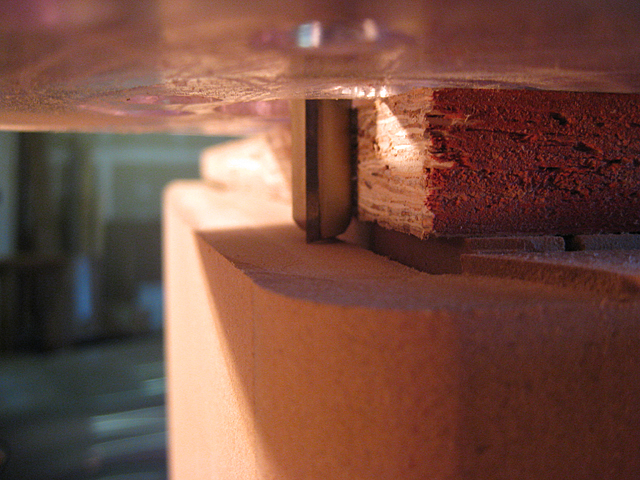

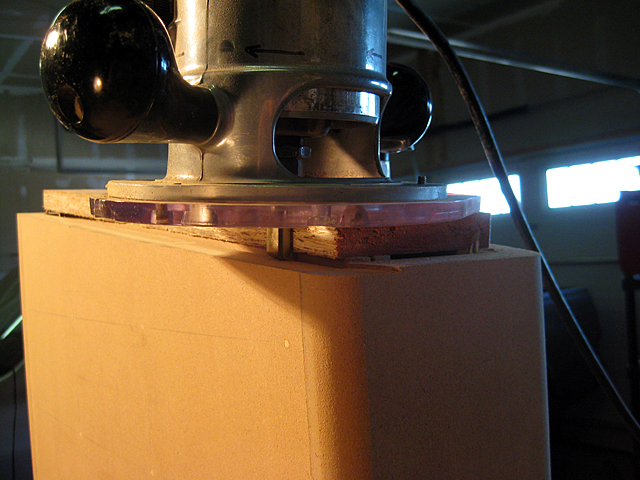

IMG 0245.JPG - As the router is slid back and forth, the side being cut will be pushed under the router. I used the top half of some cam clamps to act as hold-downs to the side piece.

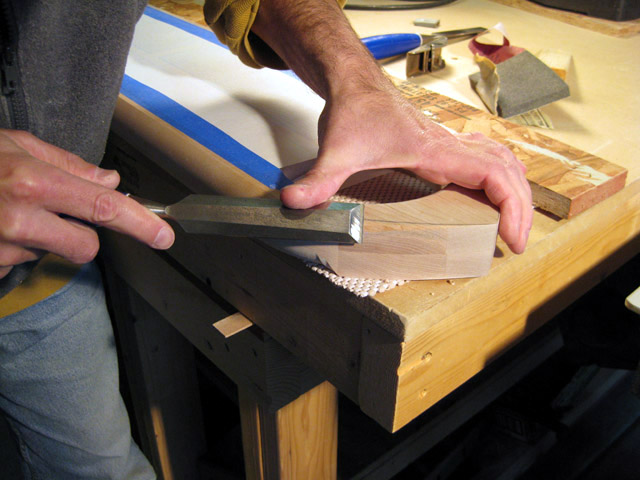

When you drive the â…›" pin into the center of the circle and scrap backing, it acts like a nail and compresses the cushy liner material and prevents anything from moving. And yes, that is a Black & Decker 7620 router that dates back to 1975.

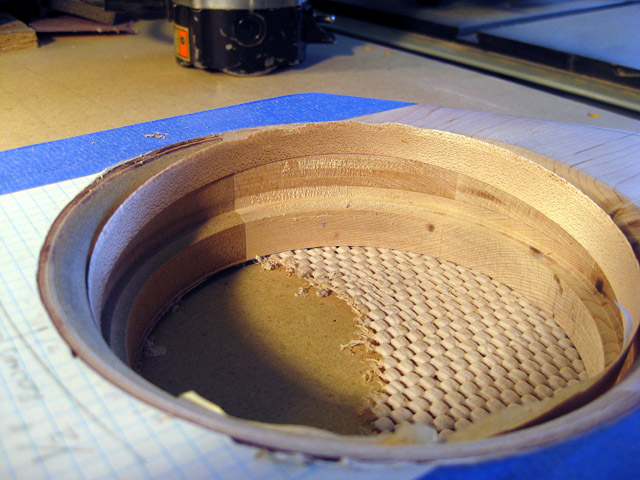

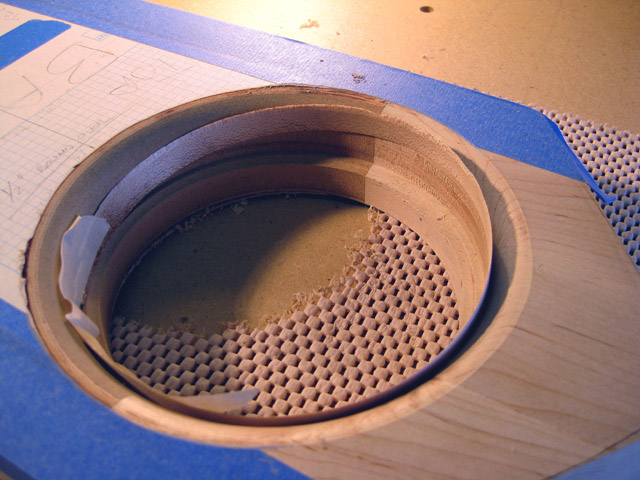

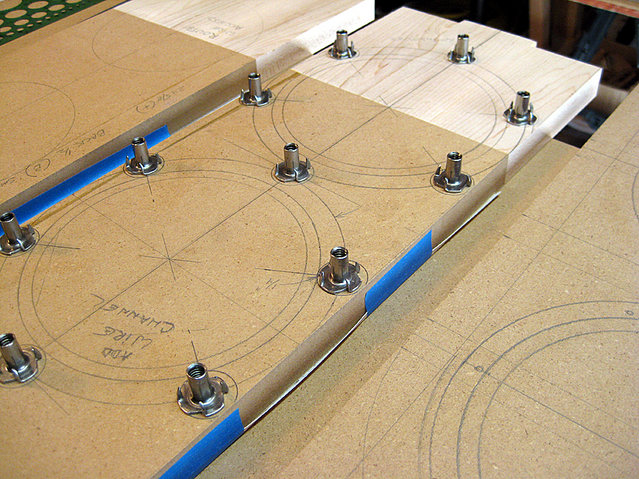

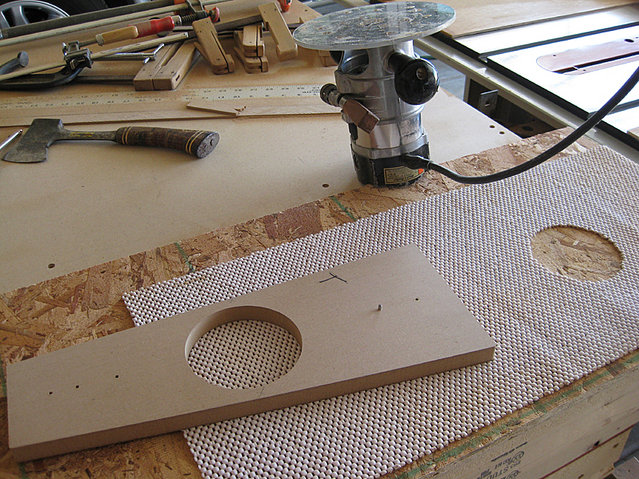

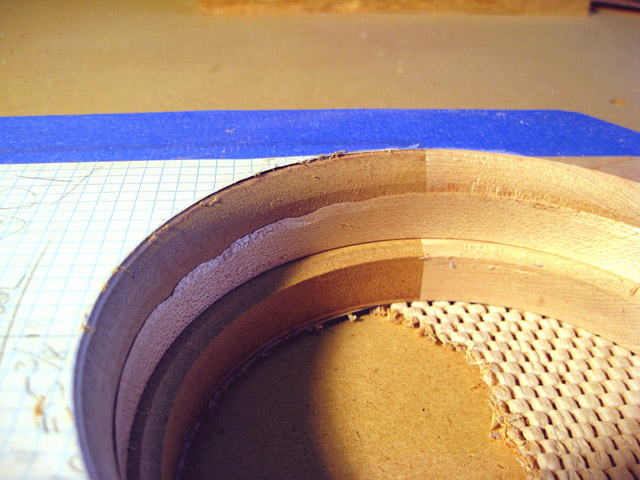

My technique for cutting the circles out of the braces is to use a Jasper Circle Cutting Jig and a piece of non-slip liner. This is the stuff you use to put under a rug to keep it from moving and it's also sold as shelve and drawer liner.

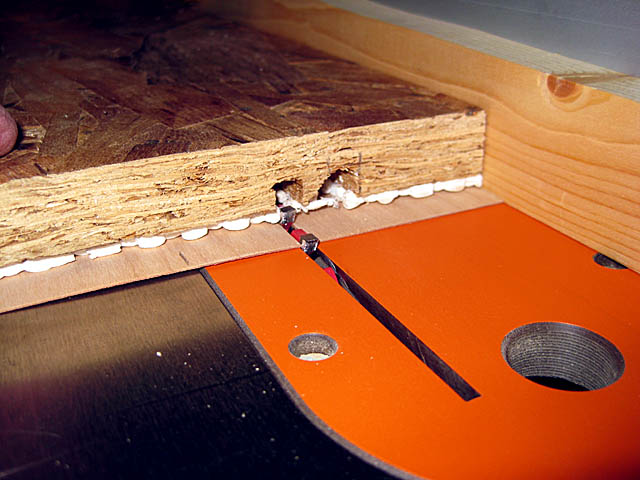

In the router table is a Bosch Flush Trim Bit, ½" x 1", triple flute Carbide tipped.

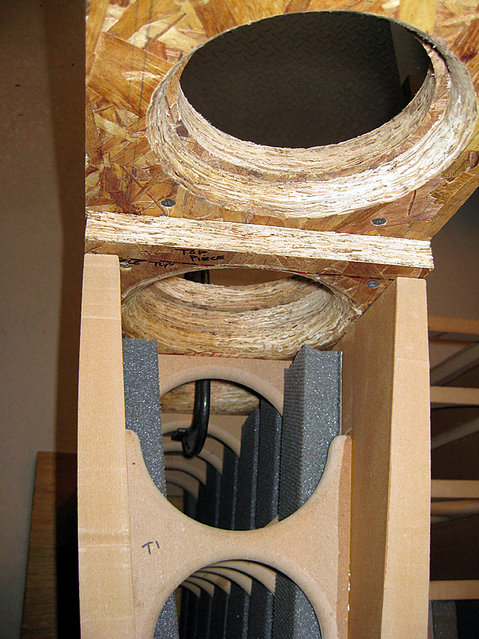

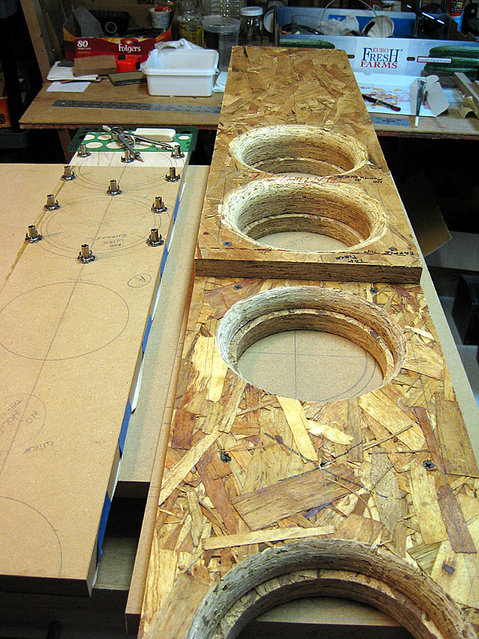

I used a template to cut the internal braces to make sure that each one is exactly the same size and shape.

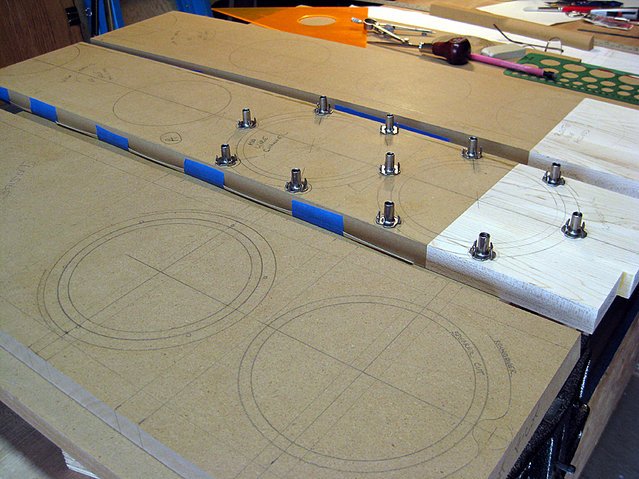

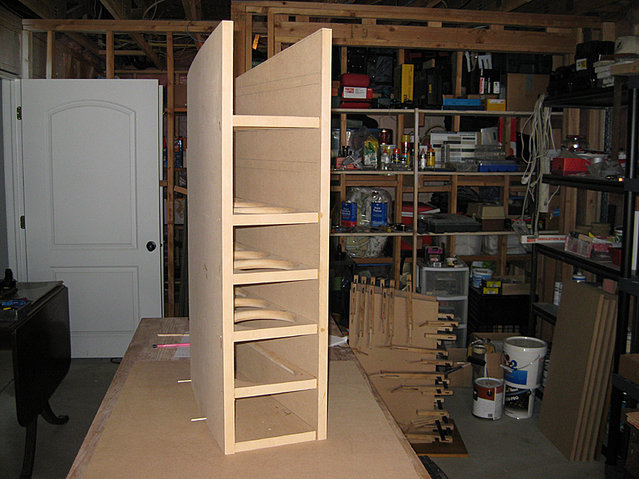

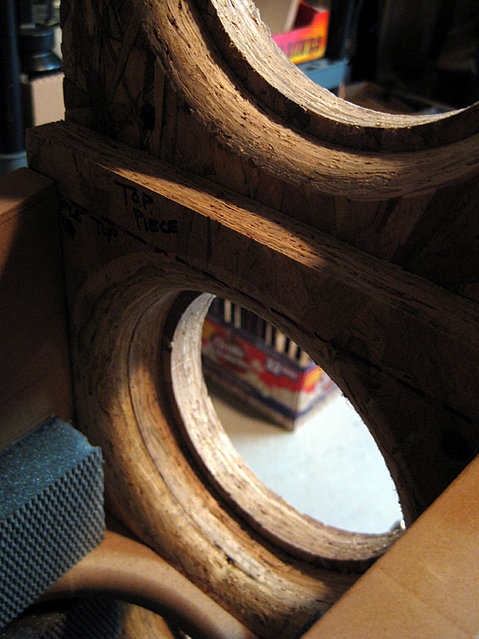

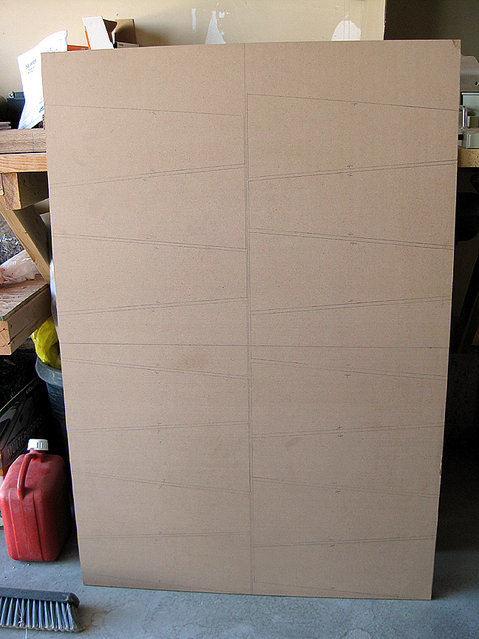

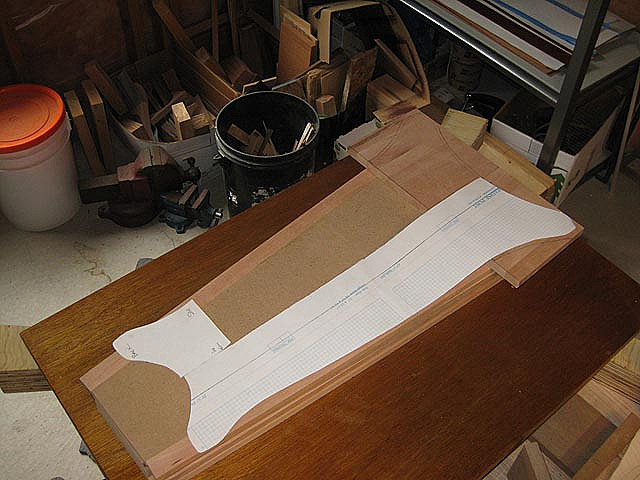

Starting on the Braces - The braces laid out on the same one sheet of ¾" MDF (Medium Density Fiberboard).
Braces cut and rounded over.

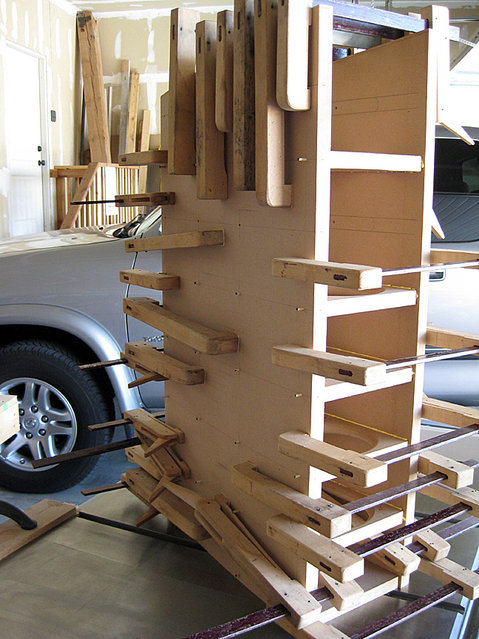

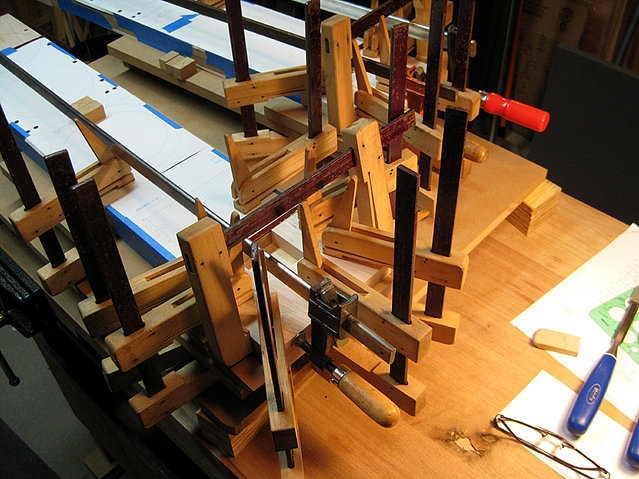

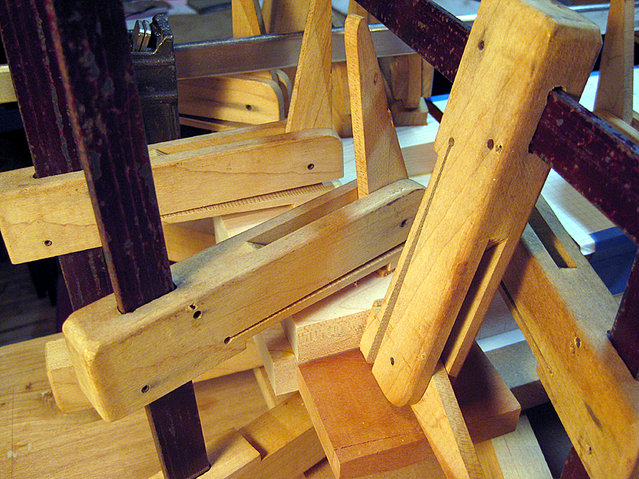

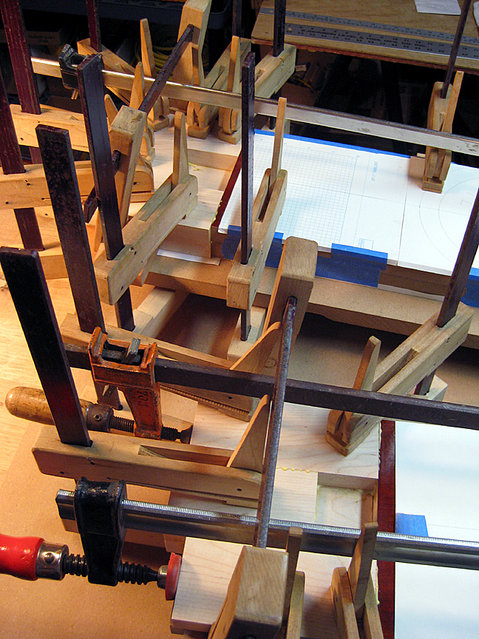

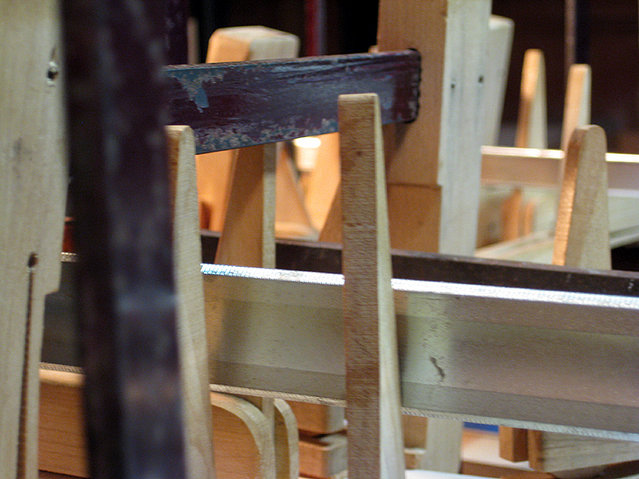

IMG 0263.JPG - It's always nice to have plenty of clamps.
(Untitled)
(Untitled)
(Untitled)

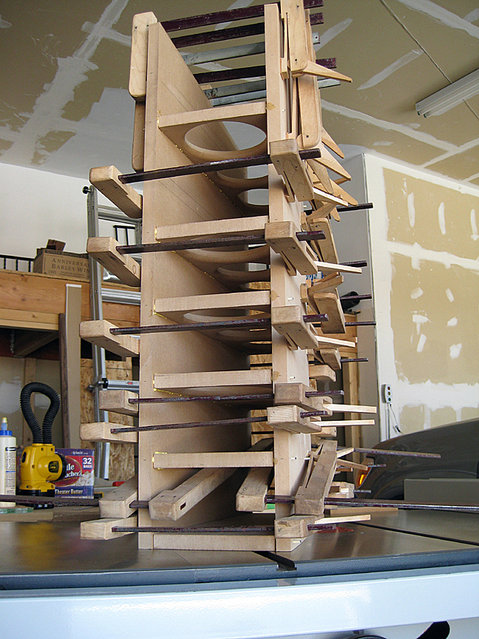

IMG 0270.JPG - The urgent action of glue up did not allow me the time to take a picture, so this is a staged reenactment.

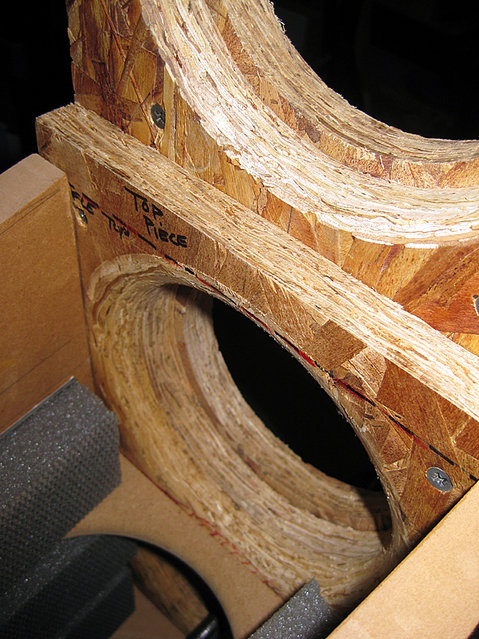

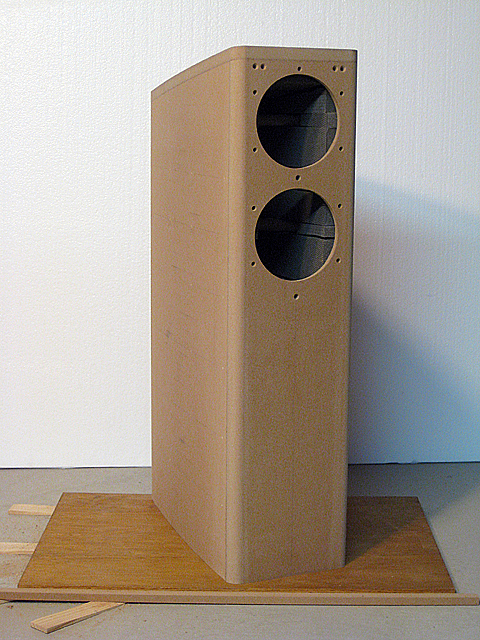

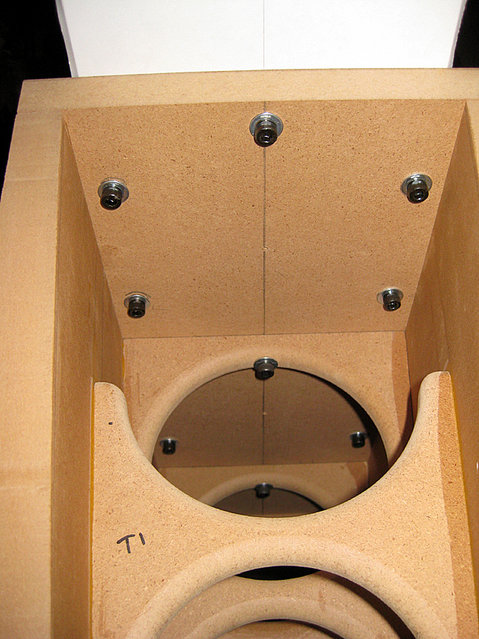

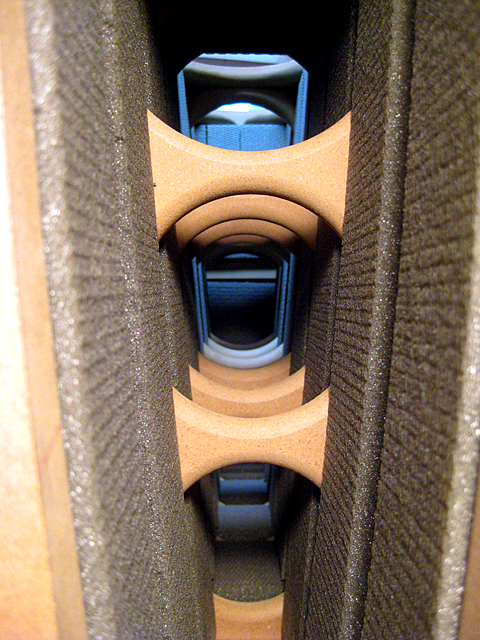

IMG 0277.JPG - A bit tricky trying to get the ¾" side edges to be on the same plane as the back of the braces.
(Untitled)
(Untitled)
(Untitled)
(Untitled)

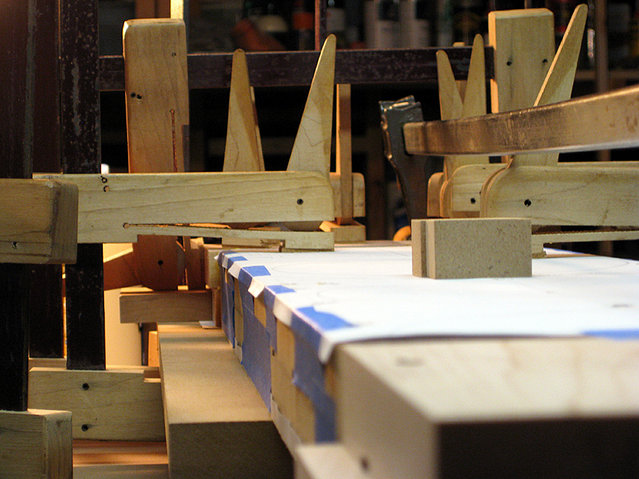

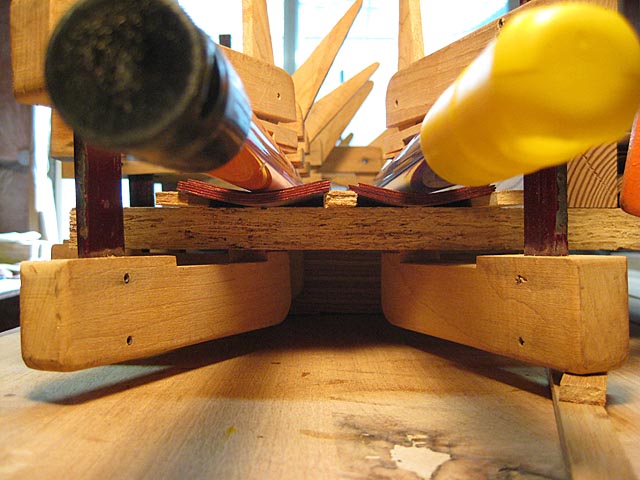

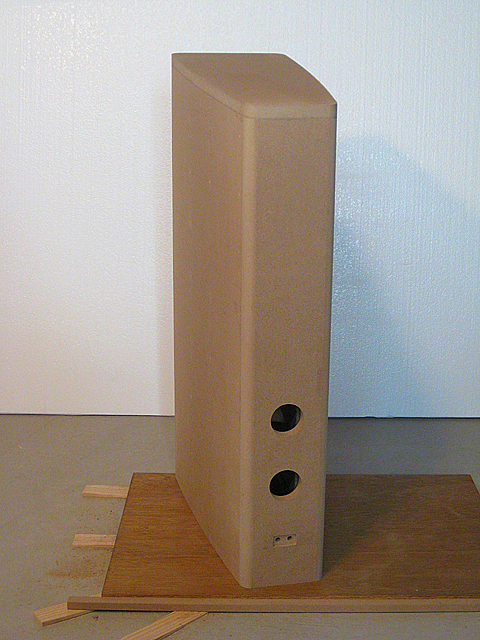

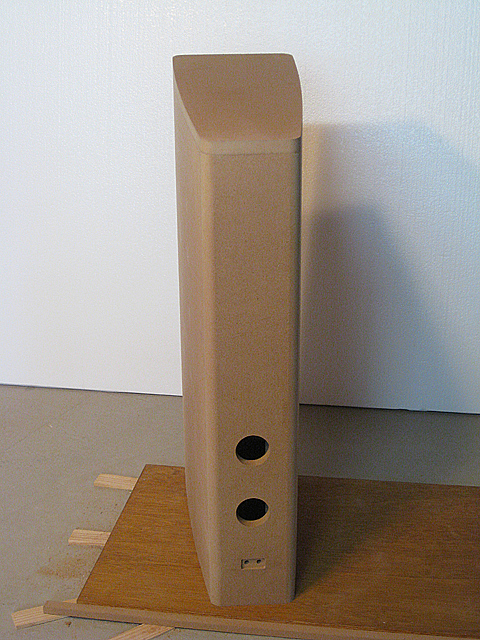

IMG 0295.JPG - The back being glued on.

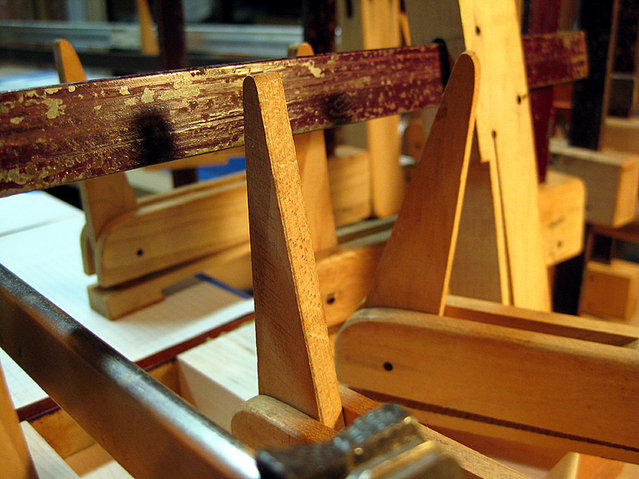

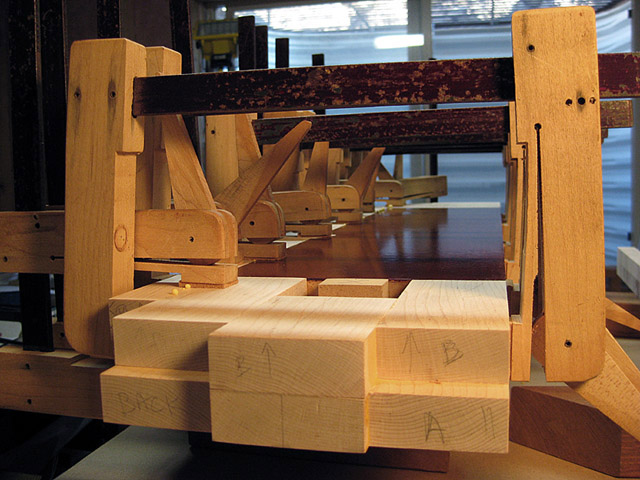

IMG 0299.JPG - Ever wonder why those little 1" clamps are included when you buy a clamp kit?
(Untitled)

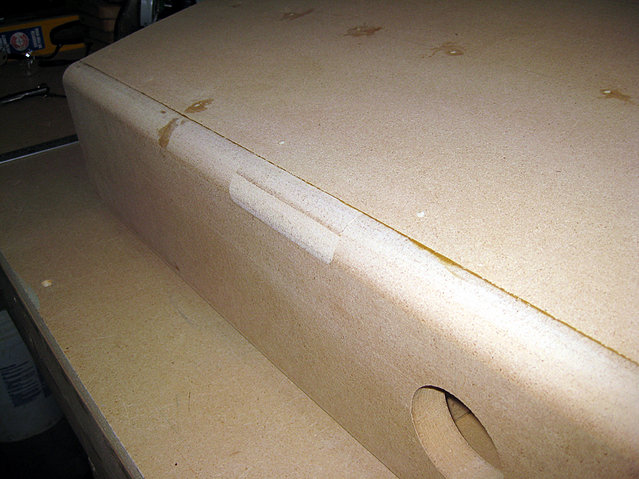

IMG 0294.JPG - I had a little hiccup while I was rounding over the uninstalled back and had to make a little patch. Finally got to use those tiny 1" C-clamps.
(Untitled)
IMG 0315.JPG - This is the same spot, just a different angle.

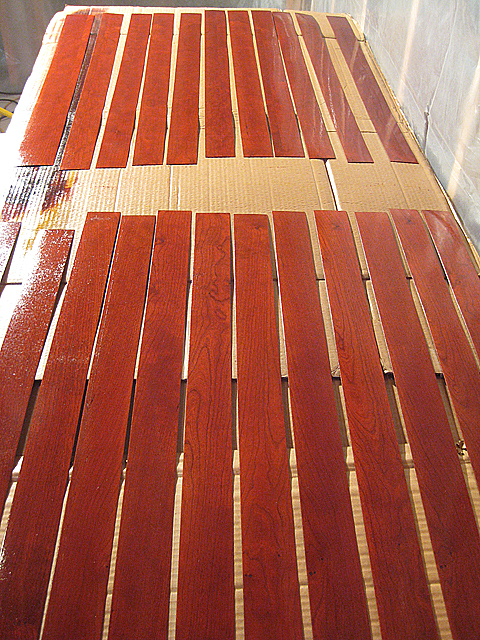

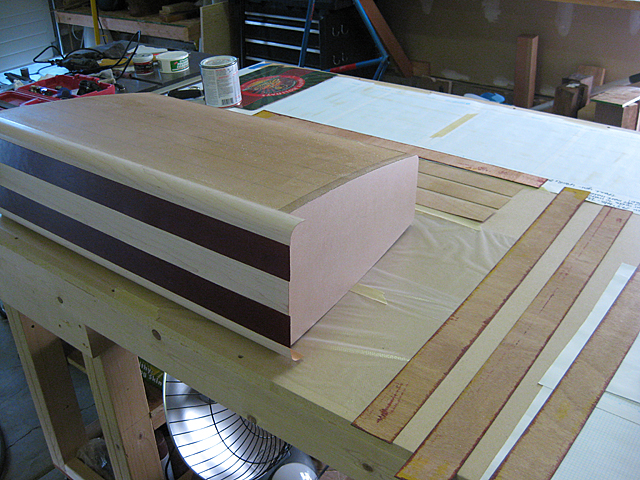

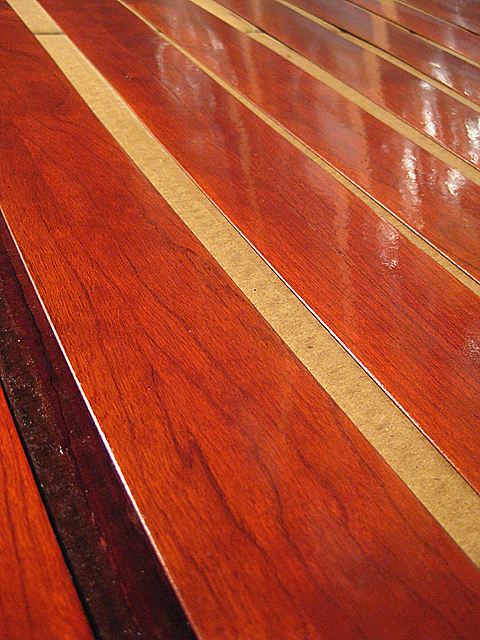

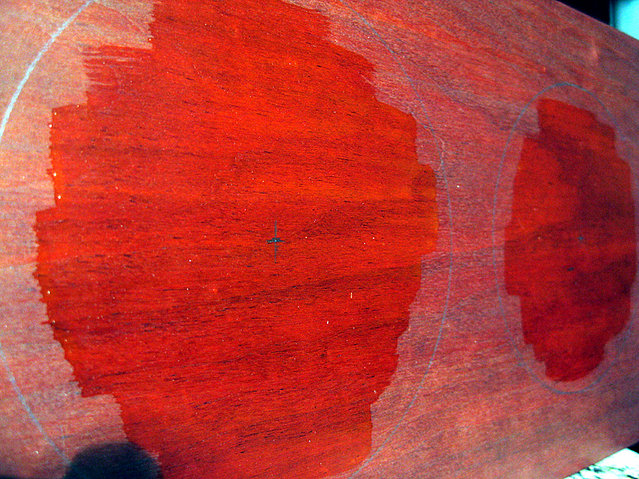

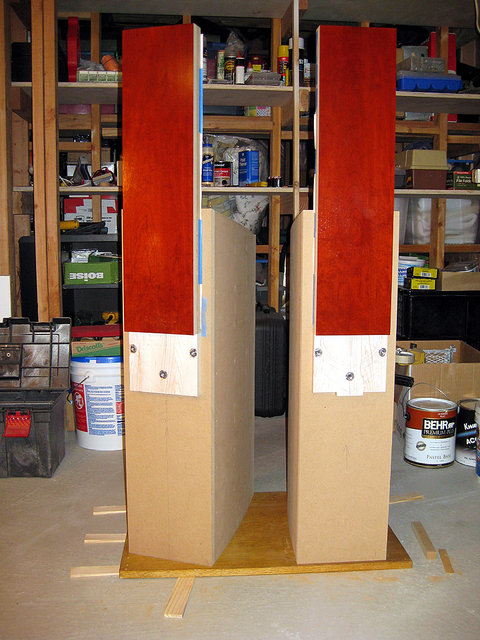

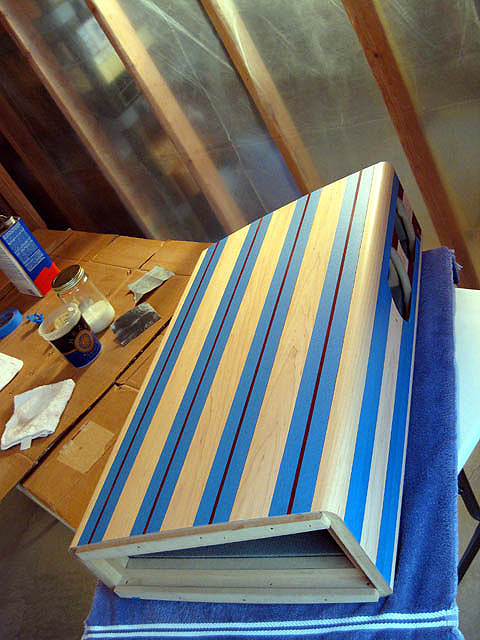

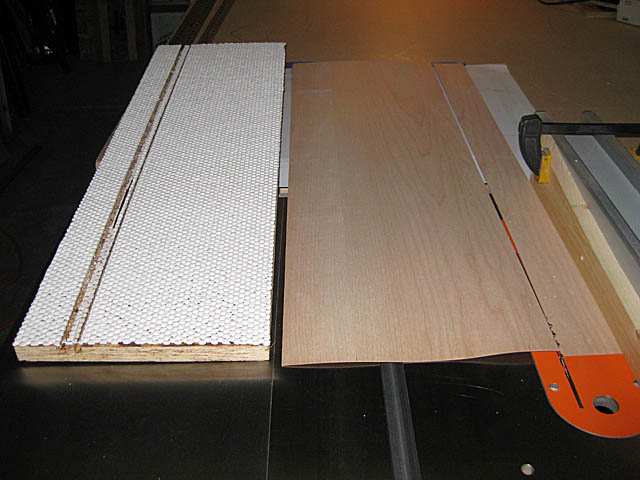

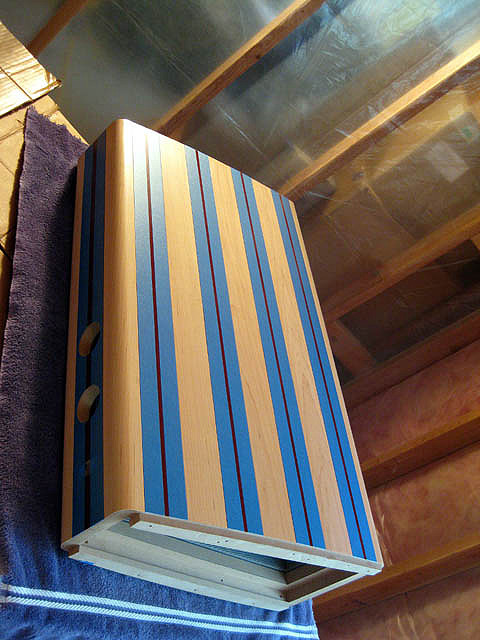

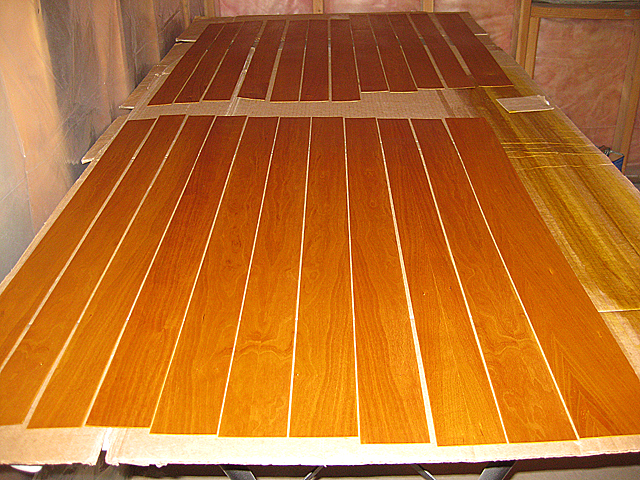

IMG 0313.JPG - A test of the clear top coat over the stained veneer.

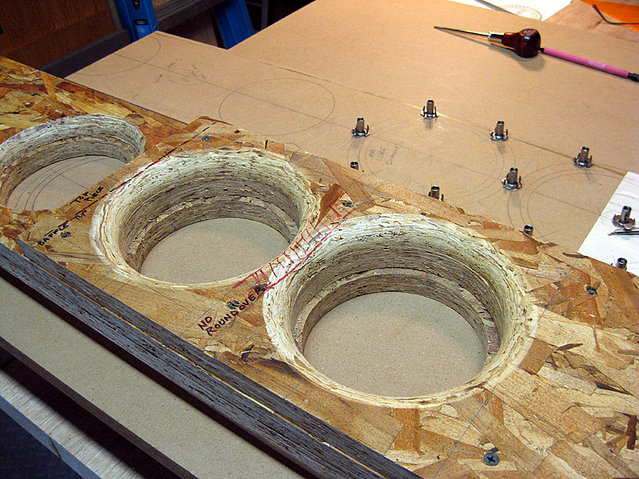

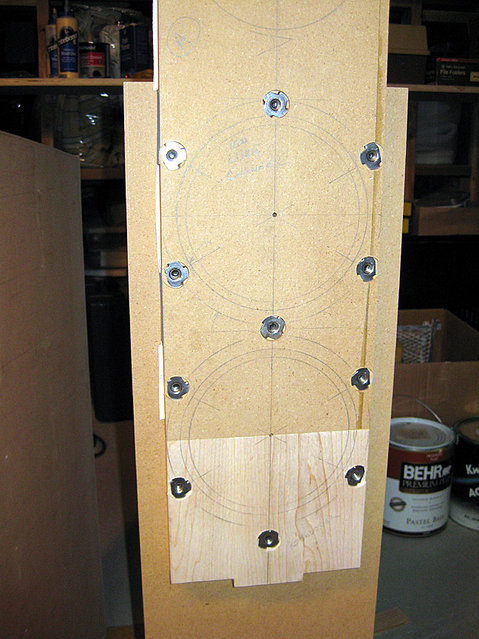

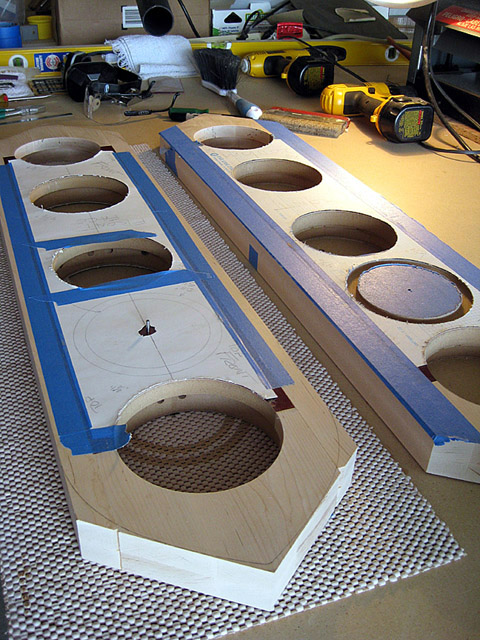

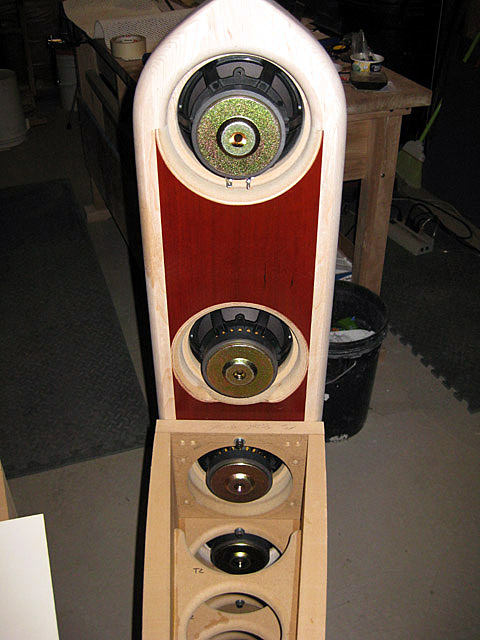

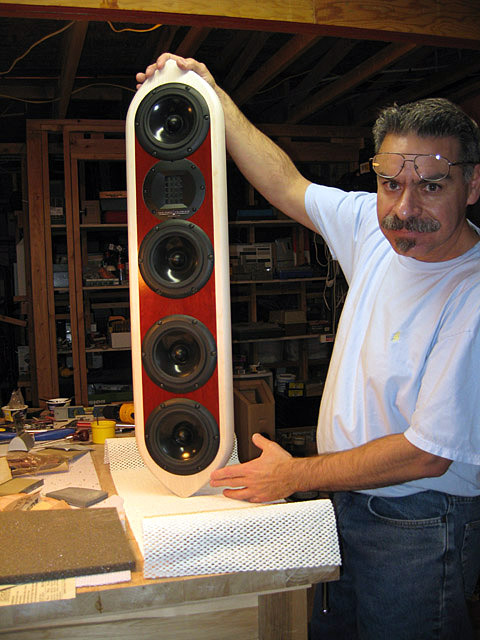

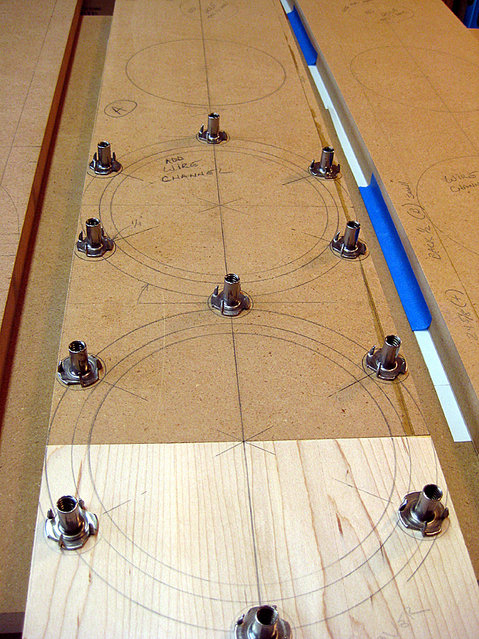

IMG 0309.JPG - Here are some of the pieces that will make up the Baffles.

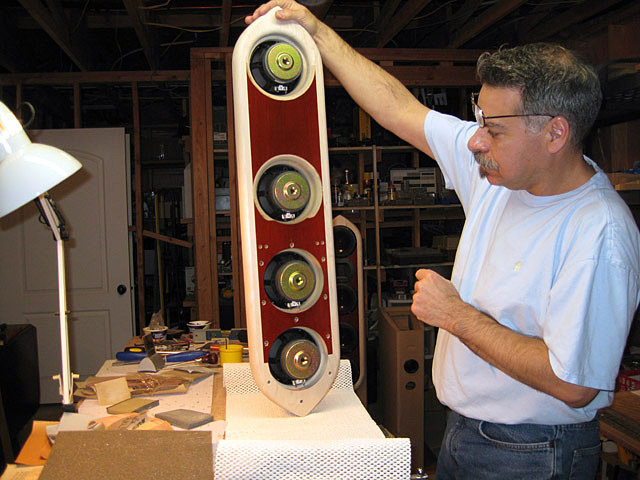

(Untitled)

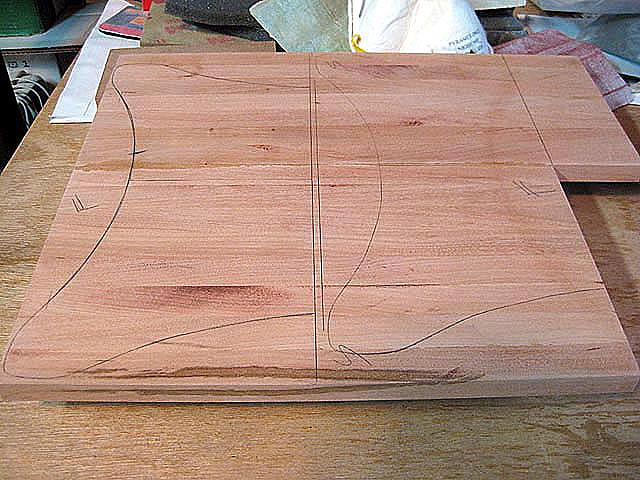

(Untitled)

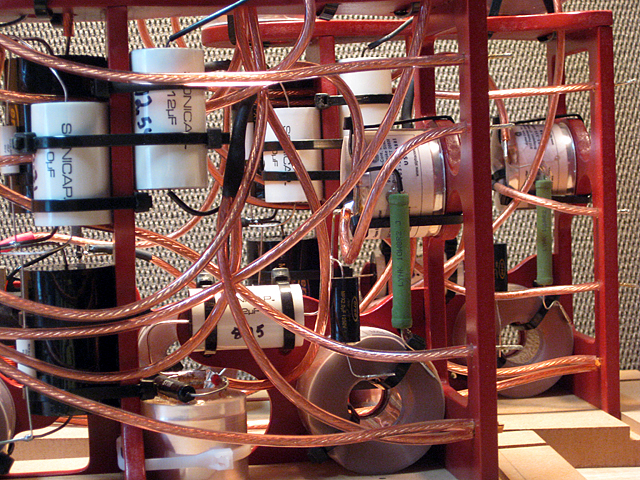

(Untitled)

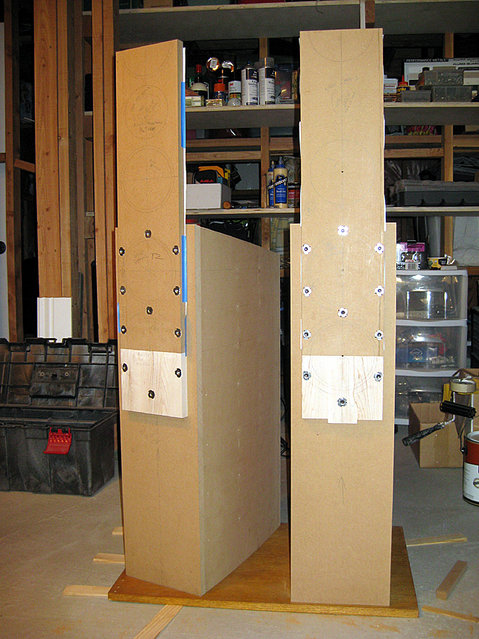

(Untitled)

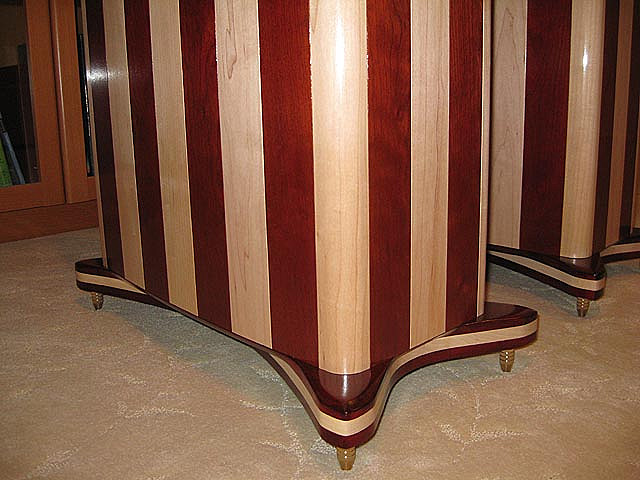

(Untitled)

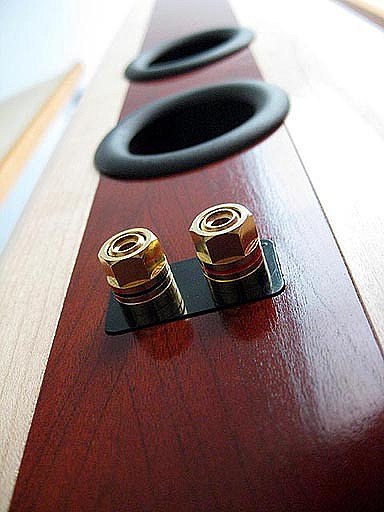

(Untitled)

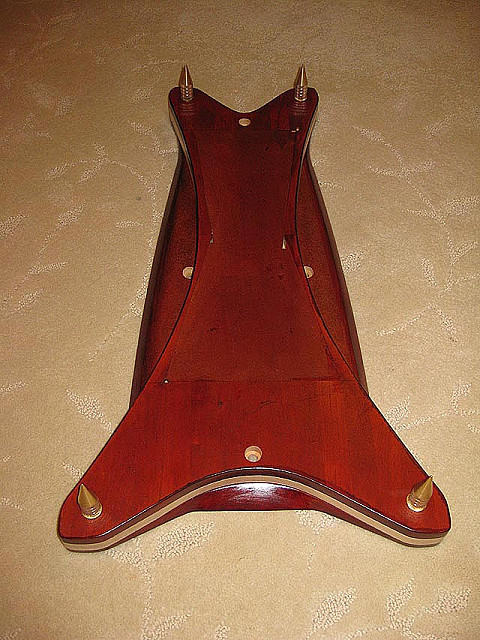

(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
IMG ~0
(Untitled)

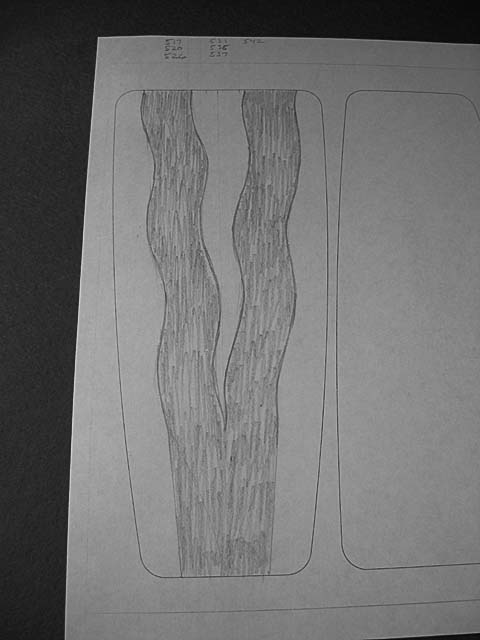

Walnut Claro Burl 7868-03
CD Tweak 005
CD Tweak 006

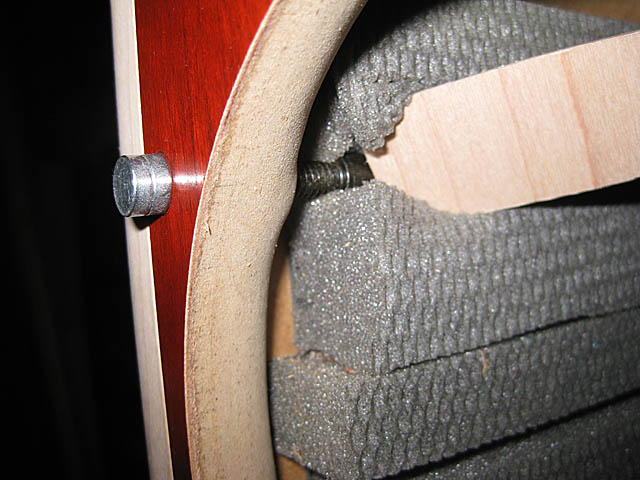

(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
IMG 0448sphere
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
IMG 0721.jpg
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
IMG 0740.jpg
(Untitled)
IMG 0742.jpg
(Untitled)
IMG 0755.jpg
(Untitled)
IMG 0839.JPG)

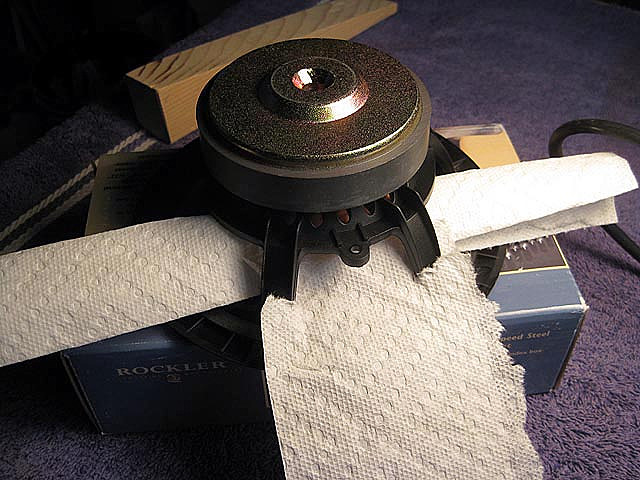

(Untitled)
(Untitled)
(Untitled)
(Untitled)

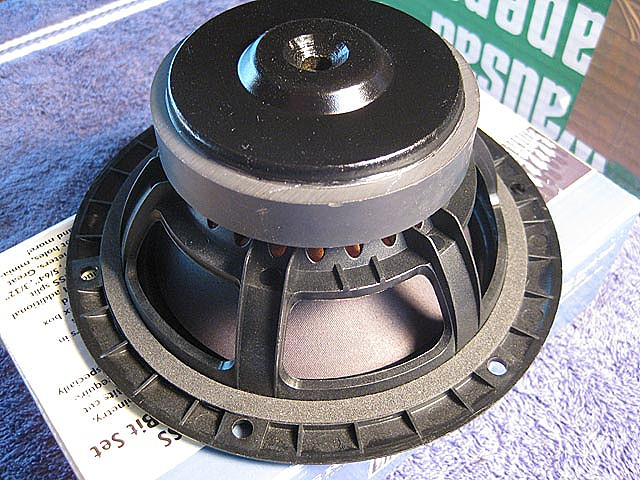

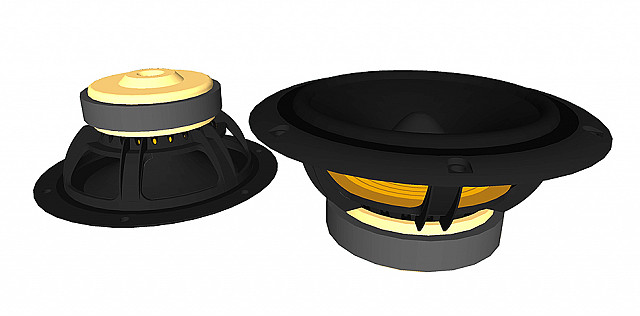

M-130

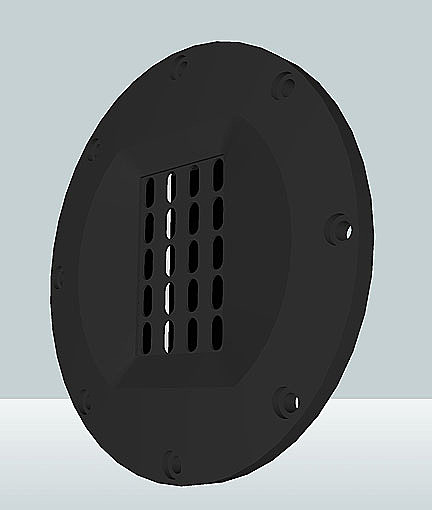

Neo 3 PDR

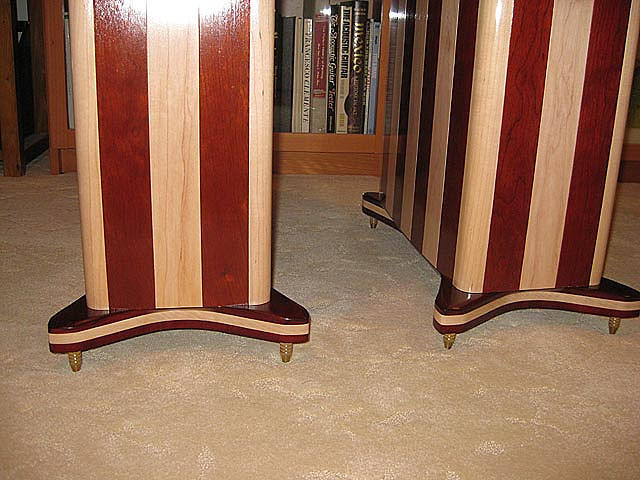

(Untitled)

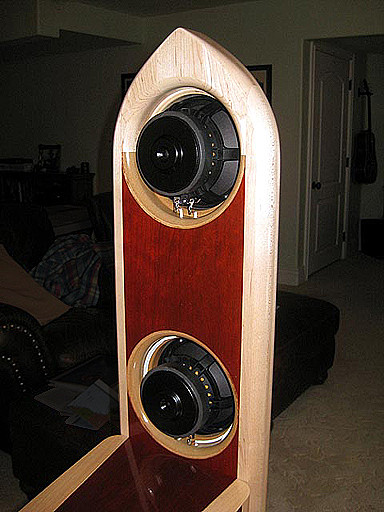

(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)

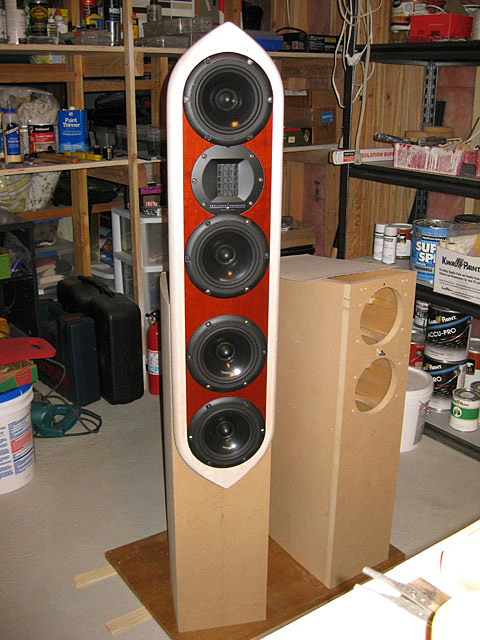

IMG c
v7
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)
(Untitled)

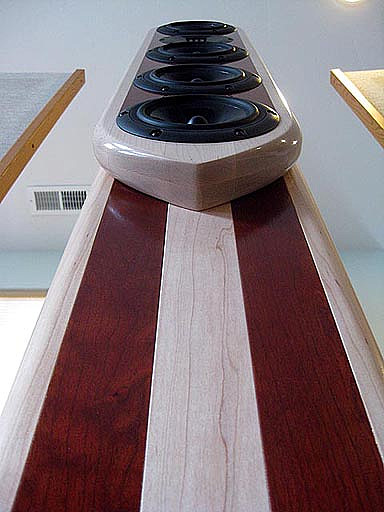

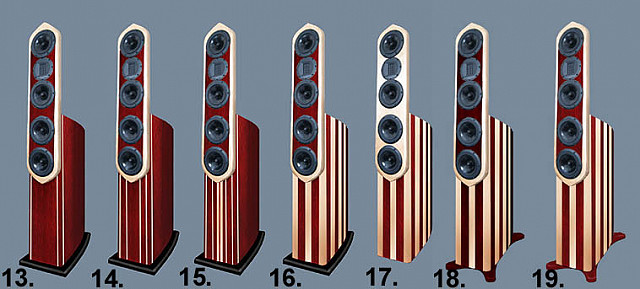

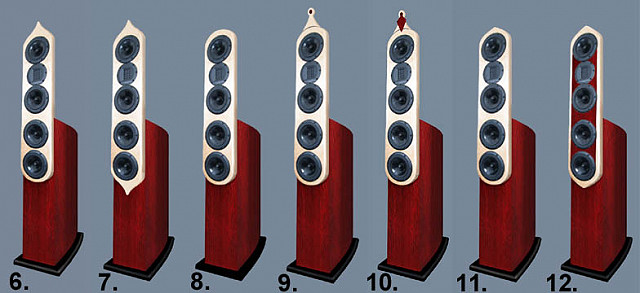

OB5_comp2

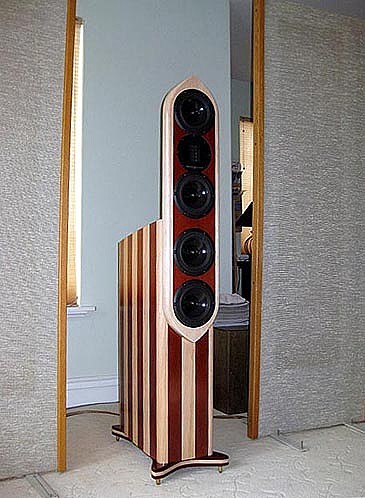

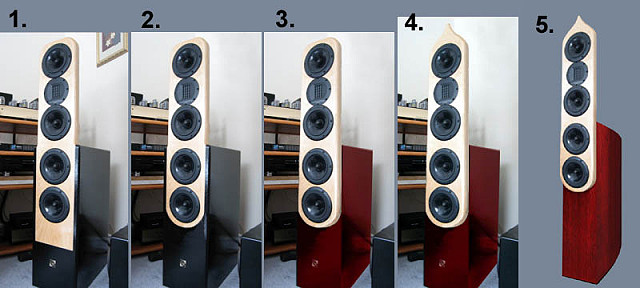

OB5_comp1

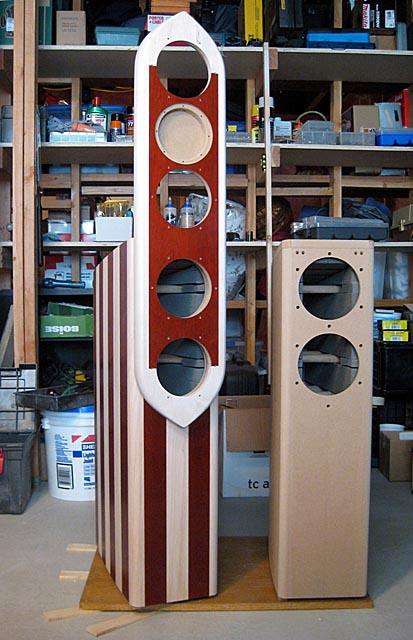

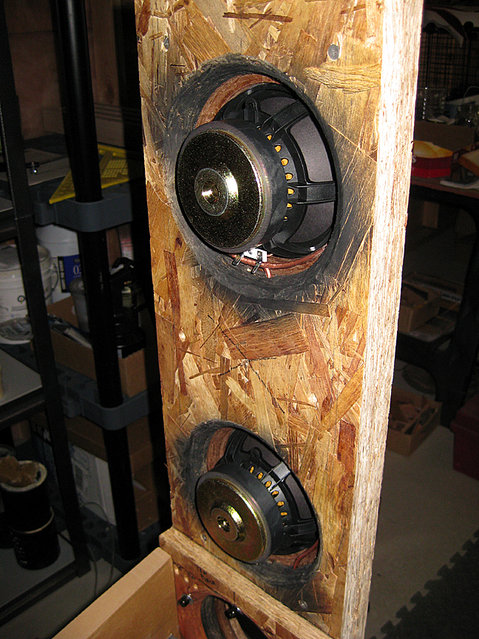

OB 5 RRcomp
(Untitled)

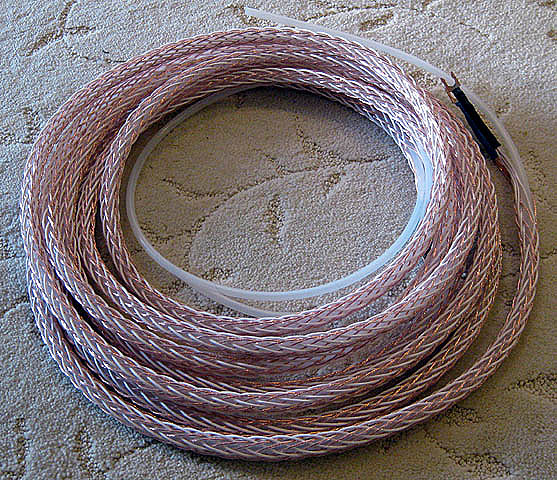

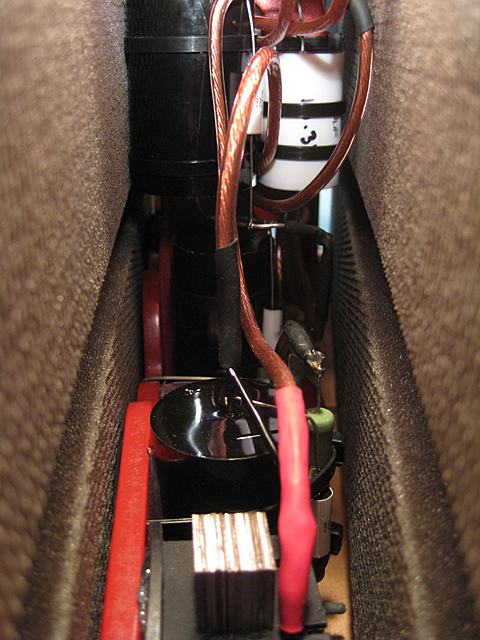

Kimber Kable with PE tube

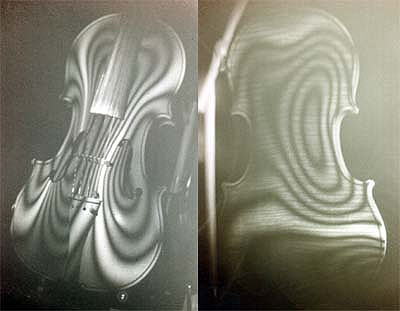

Vibration modes

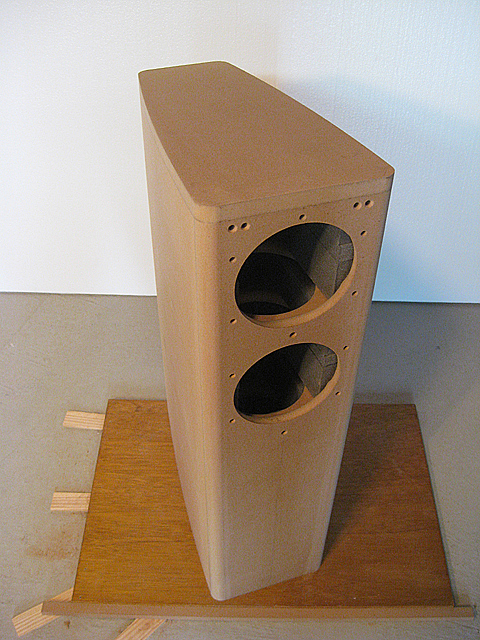

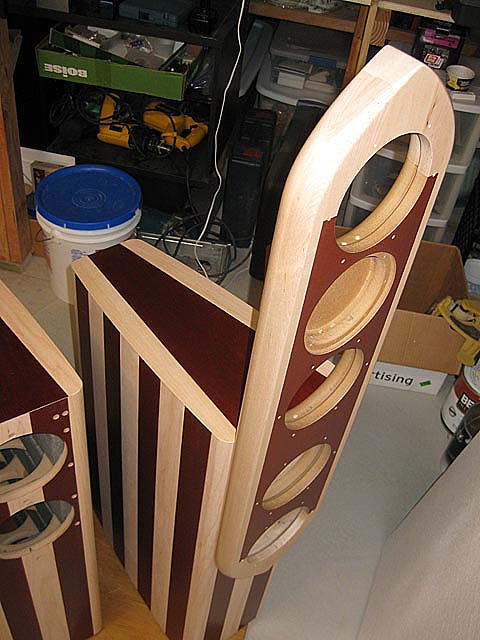

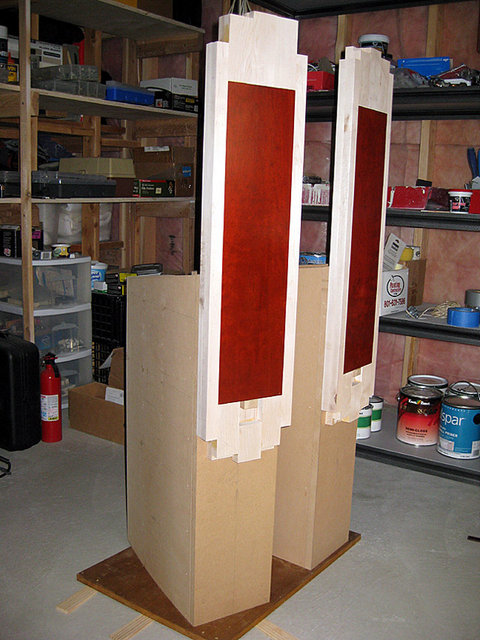

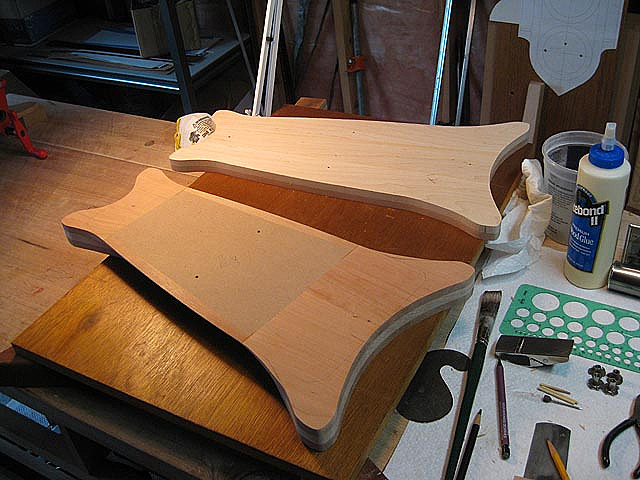

Extra curved side panels

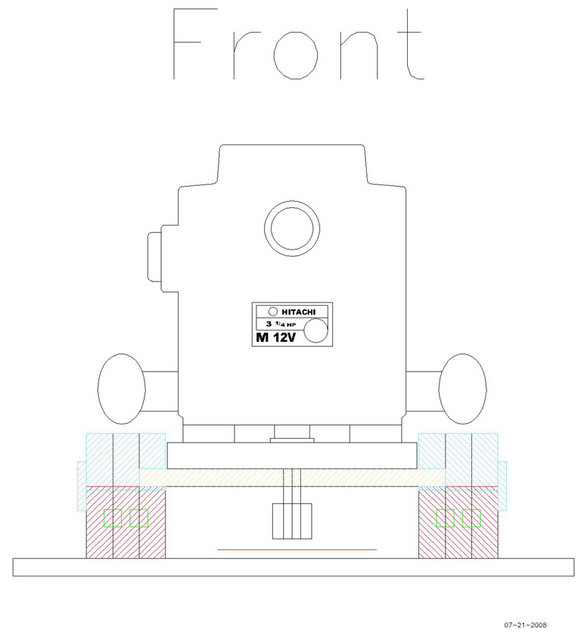

OB-5 JIG-FRONT-Layout 1 - I drew this up using AutoCad 2004 so I could get a good idea of what was needed and the dimensions necessary to make things fit.
OB-5 JIG-SIDE-Layout 1 - Side view of curved-side cutting jig. This will make a 9' radius cut.
IMG_0220 - The first task was to accurately cut the bottom rail and top carriage runners at a 9'1.77" radius. This required a lot of preparation.

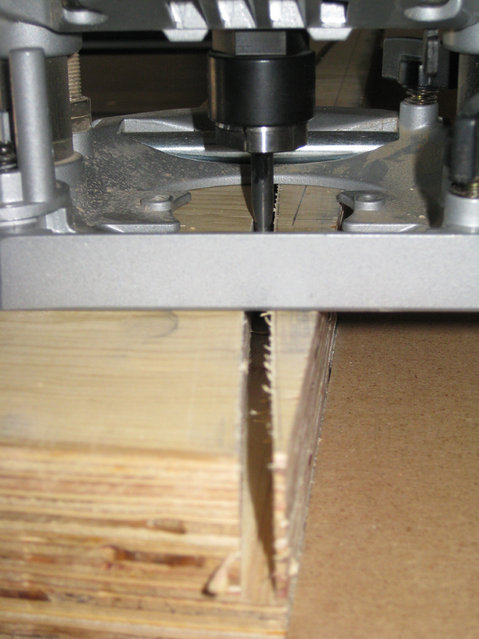

IMG 0229.JPG - The cutting bit is a BOSCH micro solid carbide, upcut, end mill. ¼" cut ¼" shank, 2½" OAL.
IMG 0221.JPG - The cut had to be perfect at 90 degrees. Each pass would cut about â…›" (2mm) off.
(Untitled)
IMG 0222.JPG - Here is the 9' extension to hold the router.

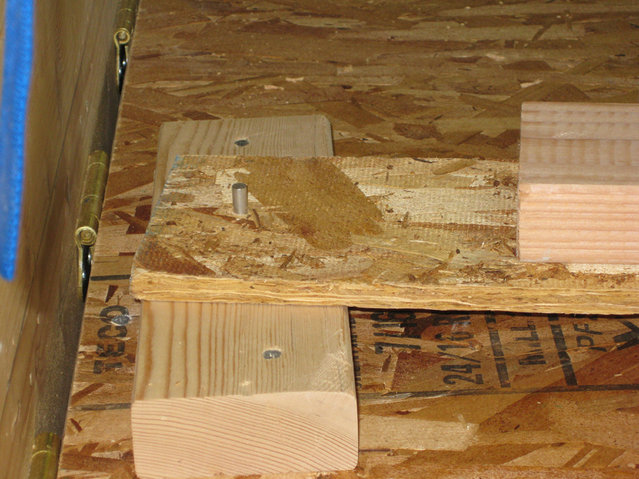

IMG 0228.JPG - I used a ¼" aluminum pin to anchor it.
IMG 0224.JPG - The edge guide that came with the router made the perfect connection piece.
IMG 0226.JPG - Here is one side of the guide rails cut. I've embedded two ½" rectangular steel tubes into the bottom of the rails to help support the weight of the router.
