New OB

0 Members and 1 Guest are viewing this topic. Read 13976 times.

PDR

  • Full Member
  • Posts: 820
  • May the best man win
New OB
« on: 9 Mar 2009, 07:01 pm »

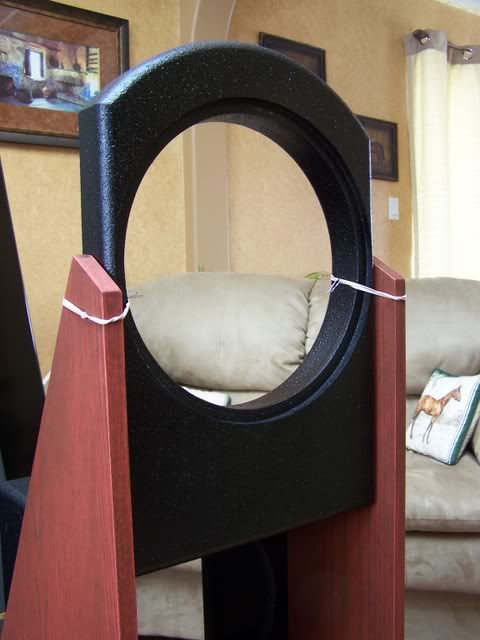

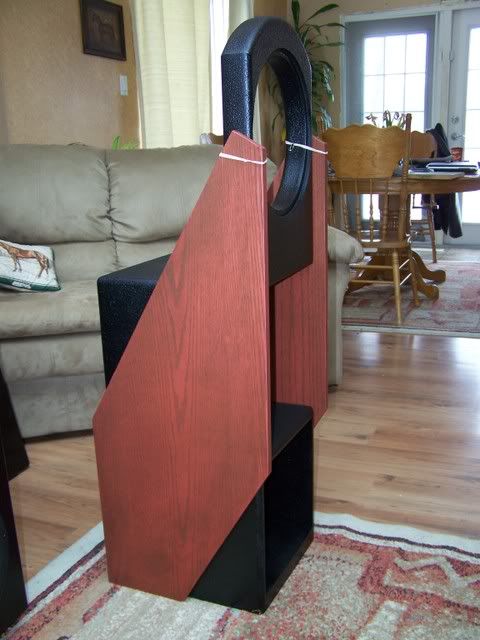

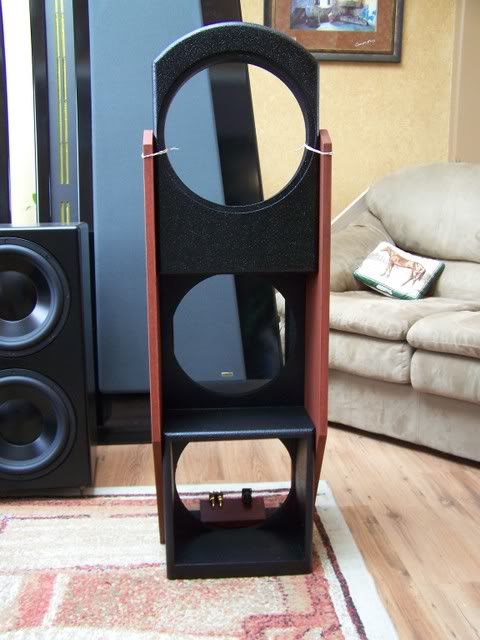

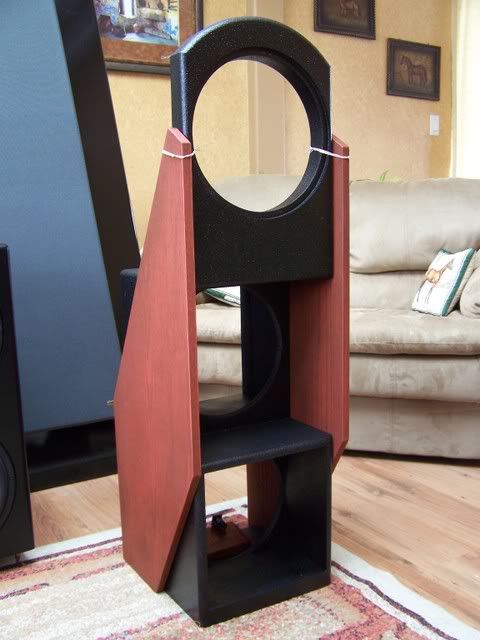

I have started my build of Dannys new un-named OB.
A few things changed to match my wood working abilities,
but I think they will turn out very nice.
The side panels will gloss up a bit when finished.
Thought you guys might enjoy these pics.







Logged

Nick77

Re: New OB
« Reply #1 on: 9 Mar 2009, 07:09 pm »
Nice work! Cant wait to see those loaded. I like your angles better than the design. Great job!  :green:
« Last Edit: 9 Mar 2009, 10:47 pm by Nick77 »
Logged

Rapt

Re: New OB
« Reply #2 on: 9 Mar 2009, 08:47 pm »
Quote from: PDR on  9 Mar 2009, 07:01 pm
I have started my build of Dannys new un-named OB.
A few things changed to match my wood working abilities,
but I think they will turn out very nice.
The side panels will gloss up a bit when finished.
Thought you guys might enjoy these pics.





  Wow! that looks amazing and will look even better loaded up with drivers. What did you use for the black part in the above pic it does not look like wood in the pic? VERY nice... keep us posted  :thumb: 8)
Logged

prokennex

Re: New OB
« Reply #3 on: 9 Mar 2009, 09:04 pm »
They really look awesome. I like the sides better this way without the curves. Interesting to know what wood and finish you used.

Ray
Logged

EARGASM

  • Jr. Member
  • Posts: 281
  • No thanks.
Re: New OB
« Reply #4 on: 9 Mar 2009, 09:05 pm »
Giddy Up! :thumb:
Logged

corndog71

  • Full Member
  • Posts: 1673
  • Some people call me Rob.
Re: New OB
« Reply #5 on: 9 Mar 2009, 09:19 pm »
Great job!  I love the angles on the sides and the black texture.   :drool:
Logged

mcgsxr

Re: New OB
« Reply #6 on: 9 Mar 2009, 09:34 pm »
It reminds me of my own DIY paint - Truck Bed Liner!

I suspect it is something far nicer, but the effect can be achieved with spray bombs, and some prep.

I like the juxtaposition of the black and wood, and the angles are cool too.
Logged

grubyhalo

  • Jr. Member
  • Posts: 93
Re: New OB
« Reply #7 on: 9 Mar 2009, 10:36 pm »
Nice! Love the angles better than the curves too!
Logged

PDR

  • Full Member
  • Posts: 820
  • May the best man win
Re: New OB
« Reply #8 on: 10 Mar 2009, 09:09 pm »
Thanks for the compliments!
I think it will turn out really nice.
The coating is not truck bed liner or panel gaurd.
I have built 9 speaks in the last 12 months including these. All of them have had a black satin
finish on at least the front baffle......it was time for  change.
I had noticed how some people have finished their boxes in bed liner so I bought some
to try it out. Neither the bed liner or panel gaurd were to my taste.
This is my own mixture.

The whole thing is MDF except the side panels. They are pre-veneered 3/4" ply.
I thought this would be fine in an open baffle. The veneer is oak, the stain is cherry.
Can hardly wait to power up......couple of weeks yet....will keep you guys posted.



Logged

djdube525

Re: New OB
« Reply #9 on: 10 Mar 2009, 10:07 pm »
Just curious... How are you planning on adjoining the side panels to the center section?
Logged

PDR

  • Full Member
  • Posts: 820
  • May the best man win
Re: New OB
« Reply #10 on: 10 Mar 2009, 10:20 pm »
The top baffle and box sides will be screws and glue, the bottom part of the box to the panel
will have to be dowels and glue, clamped till dry. This should support the bottom of the
cabinet where the back 2 spikes are......I hope.
Logged

EARGASM

  • Jr. Member
  • Posts: 281
  • No thanks.
Re: New OB
« Reply #11 on: 12 Mar 2009, 02:40 am »
Removed by member.
« Last Edit: 25 Sep 2009, 03:58 pm by EARGASM »
Logged

dgshtav

Re: New OB
« Reply #12 on: 12 Mar 2009, 03:18 am »
Looks great. Will look even better once loaded and the sides are finished!

What sub is that in the background?
Logged

PDR

  • Full Member
  • Posts: 820
  • May the best man win
Re: New OB
« Reply #13 on: 22 Mar 2009, 06:13 pm »

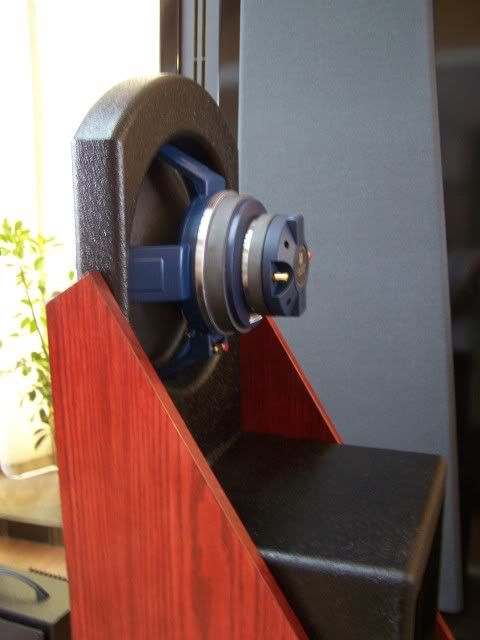

Well....I have the drivers installed in the cabinets, and the servo amps 100% ready to go.
This week I will work on the wiring.....should be "ON" by next weekend.
The rear tweet and x-over are next to install.
The cabinets came out really nice...but the flash had to be turned off, due to glare,
so the pictures are a little washed out.
This is not the room thase will be used in....sort of speaker storage right now.

I can hardly wait.............













Logged

EARGASM

  • Jr. Member
  • Posts: 281
  • No thanks.
Re: New OB
« Reply #14 on: 22 Mar 2009, 06:15 pm »
Removed by member.
« Last Edit: 25 Sep 2009, 03:55 pm by EARGASM »
Logged

kyrill

Re: New OB
« Reply #15 on: 22 Mar 2009, 06:34 pm »
good eye for the little details,  :thumb:

But seeing your other ( stored) speakers
You have a high reference for good sound already

I am really looking forward to your "discoveries"  :green:
Logged

Berndt

Re: New OB
« Reply #16 on: 22 Mar 2009, 06:46 pm »
Can I be the first to say it looks a bit like a Linkwitz Orion?
no disrespect intended, looks like a good idea
good luck.
Logged

Rapt

Re: New OB
« Reply #17 on: 22 Mar 2009, 09:49 pm »
Great job, looks amazing!! Can't wait to hear a review... Thanks!
Logged

cujobob

  • Full Member
  • Posts: 1262
Re: New OB
« Reply #18 on: 22 Mar 2009, 10:27 pm »
Quote from: Berndt on 22 Mar 2009, 06:46 pm
Can I be the first to say it looks a bit like a Linkwitz Orion?
no disrespect intended, looks like a good idea
good luck.

This was mentioned in the original thread for these speakers...there's not much that can be done to avoid the comparison between the Orion and this speaker, the drivers need to go where they are...

Lookin good, I have to say!  Can't wait to read some impressions of their sound.
Logged

nrenter

  • Full Member
  • Posts: 408
Re: New OB
« Reply #19 on: 22 Mar 2009, 11:12 pm »
Can't wait to read your impressions on how it sounds!! It's looks killer!!!!
Logged
