Tempesta 2

0 Members and 1 Guest are viewing this topic. Read 456 times.

Rick Craig

  • Facilitator
  • Posts: 3266
  • Selah Audio
    • http://www.selahaudio.com
Tempesta 2
« on: 15 Nov 2017, 06:28 pm »





Rick Craig

  • Facilitator
  • Posts: 3266
  • Selah Audio
    • http://www.selahaudio.com
Re: Tempesta 2
« Reply #1 on: 15 Nov 2017, 08:05 pm »

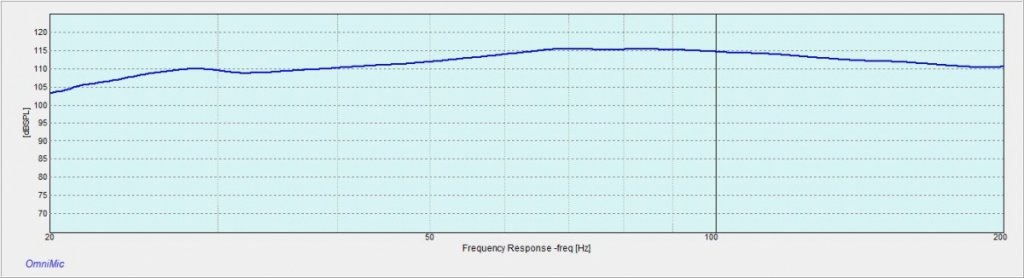

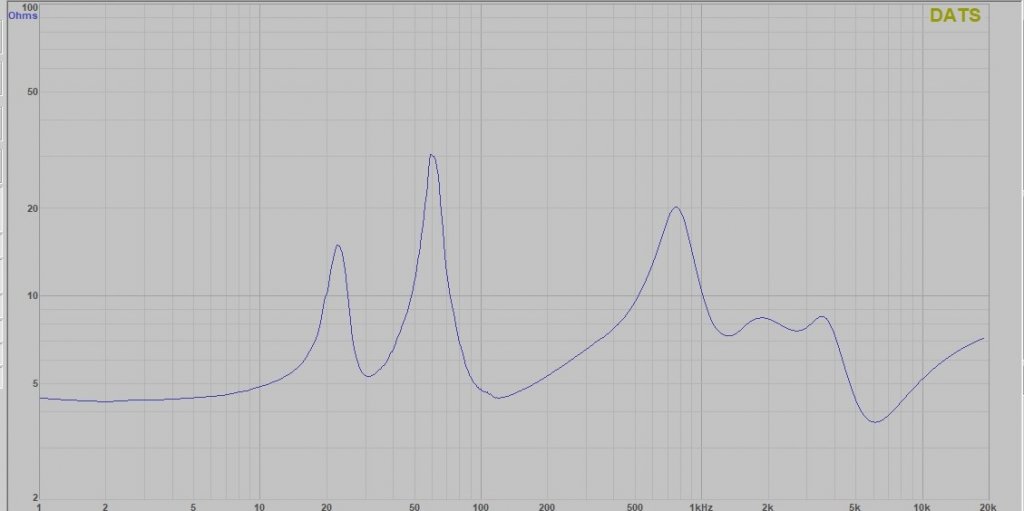

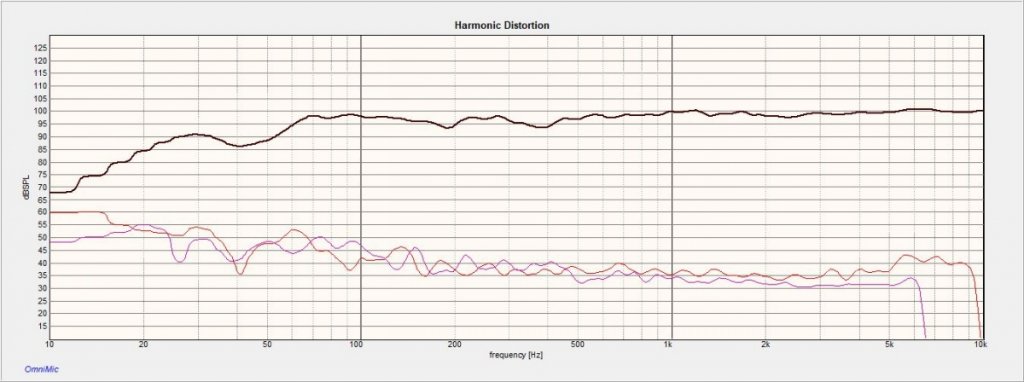

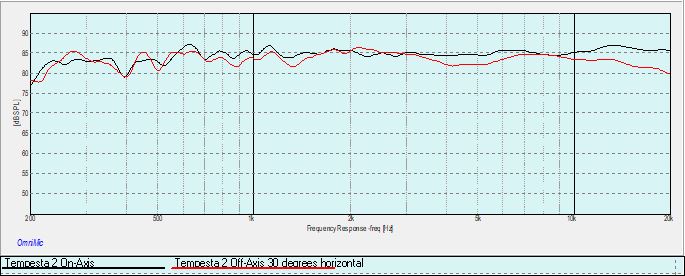

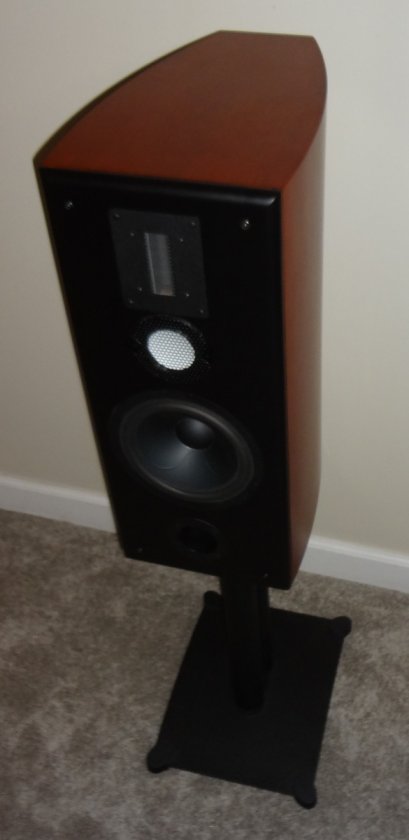

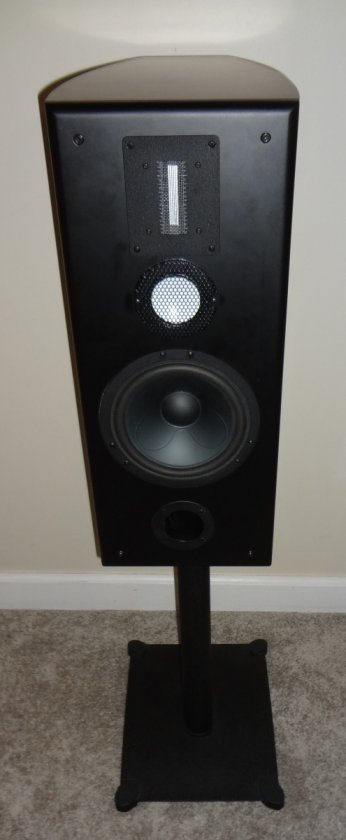

This pair is on the way to California. I planned to have a local demo but a nasty cold for the past week made that impossible. Here are the measurement graphs. Response curves have no gating which means some in-room reflections are present. 1/12 octave smoothing for good resolution.












pawsman

  • Jr. Member
  • Posts: 50
Re: Tempesta 2
« Reply #2 on: 15 Nov 2017, 08:39 pm »
Rick, is that still the 70/10 RAAL tweeter?

pawsman

Rick Craig

  • Facilitator
  • Posts: 3266
  • Selah Audio
    • http://www.selahaudio.com
Re: Tempesta 2
« Reply #3 on: 16 Nov 2017, 12:31 am »
Rick, is that still the 70/10 RAAL tweeter?

pawsman

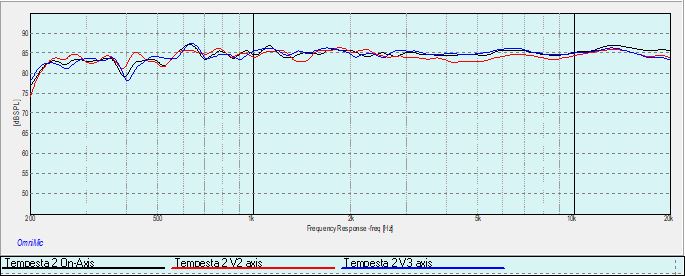

Yes, and I also changed the crossover to allow for removing the foam vertical directivity pads. As you can see the vertical dispersion very smooth.
