Bryston Turntable

0 Members and 1 Guest are viewing this topic. Read 44198 times.

Samurai7595

Re: Bryston Turntable
« Reply #40 on: 15 Apr 2016, 05:21 pm »
Plus one of the major advantages we will have is we will be able to offer cartridges and phono stages which will match identically (impedance, loading, capacitance, gain requirements etc.) to provide our customers with predictable performance.

james

Very cool!!!!!   :thumb:

bjski

Re: Bryston Turntable
« Reply #41 on: 16 Apr 2016, 05:12 am »
Nice looking turntable!
Do I upgrade my 7BSST/2 to the cube or buy the turntable?

Rocket

Re: Bryston Turntable
« Reply #42 on: 16 Apr 2016, 07:27 am »
Hi James,

Just an idea of course for you to consider for an alternative finish.   I would say though that the leather finish looks very nice.  I also have a clear perspex finish on my other turntable quite nice as well.

I think you will be happy with Bluenote if you decide to go ahead as I've been happy with their after sales service.

Good luck

Rod

Marius

Re: Bryston Turntable
« Reply #43 on: 16 Apr 2016, 09:19 am »
Hi,


For this years Recordstore day, What Hifi's record special edition: http://links.em.whathifi.com/servlet/MailView?ms=MTQyNDExODgS1&r=MjI0MTUxNTU5NQS2&j=NzYxMTE2MDY2S0&mt=1&rt=0


Of special interest of course since Bryston's announcement : How a (Rega) turntable is made: https://youtu.be/IxdGdyVD6cw


have a great RSDay!





Cheers,
Marius




CanadianMaestro

  • Full Member
  • Posts: 594
  • Skepticism is the engine of true progress
    • Hearing Everything That Nothing Can Measure
Re: Bryston Turntable
« Reply #44 on: 16 Apr 2016, 11:29 am »
Nice looking turntable!
Do I upgrade my 7BSST/2 to the cube or buy the turntable?

My bias: Go for the amp upgrade!  Bigger system-wide impact.   :thumb:

Big Audio

  • Jr. Member
  • Posts: 24
Re: Bryston Turntable
« Reply #45 on: 16 Apr 2016, 02:52 pm »
Can't wait to see a pic of an all Bryston TT only system. :thumb:

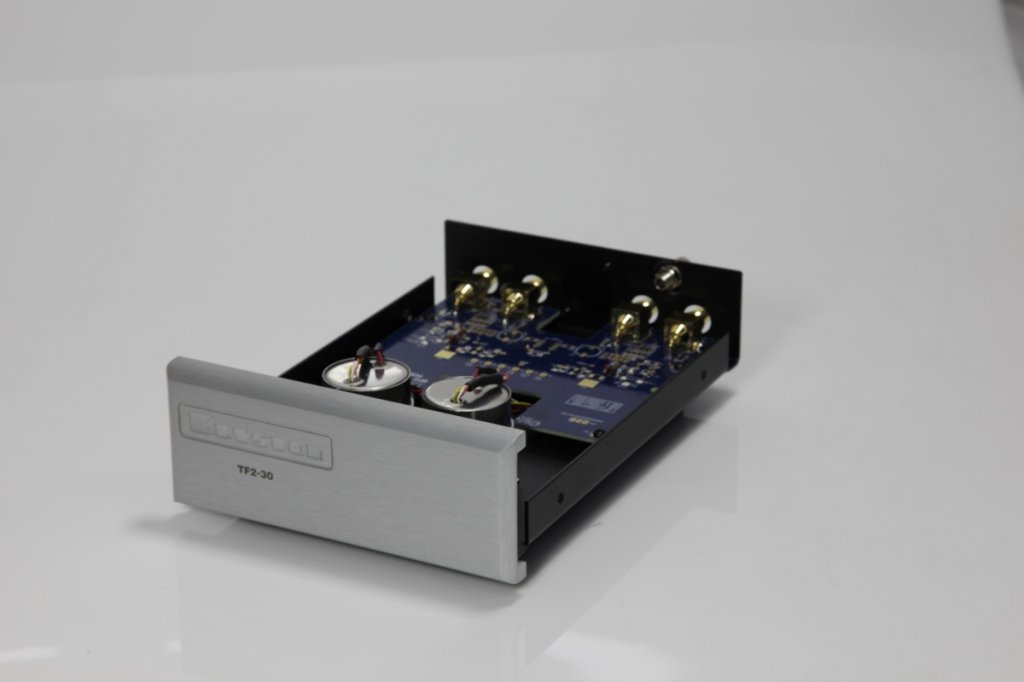

Heres mine waiting for the new Bryston TF2-20 Step up Transformer:




James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #46 on: 16 Apr 2016, 03:03 pm »
Hi Big Audio

What table and arm and cartridge?

james


Big Audio

  • Jr. Member
  • Posts: 24
Re: Bryston Turntable
« Reply #47 on: 16 Apr 2016, 03:17 pm »
Hi Big Audio

What table and arm and cartridge?

james

Hi James,
Its the VPI Classic 1 in piano black with the 10 " JMW Memorial arm.
Clearaudio Talisman cartridge.



Spinning Rush Power Windows from the 40 year reissue series!

bacmsl

  • Jr. Member
  • Posts: 41
Re: Bryston Turntable
« Reply #48 on: 16 Apr 2016, 03:36 pm »
As I can see I'm a little late to this discussion, did you look at any direct drive tables or manufacture of parts and build your own plinth. http://www.langer-audio.de/Page8.html. I still have and enjoy an old Technics SL-7 linear tracking table, the only problem with it is the cartridges are a P mount and very limited in what you can buy for it. Also on a separate note, is the MC/MM in my BP-26 up grade able .
Barry

James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #49 on: 16 Apr 2016, 04:07 pm »
Hi James,
Its the VPI Classic 1 in piano black with the 10 " JMW Memorial arm.
Clearaudio Talisman cartridge.



Spinning Rush Power Windows from the 40 year reissue series!

Very nice  :thumb:

james

James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #50 on: 16 Apr 2016, 04:10 pm »
As I can see I'm a little late to this discussion, did you look at any direct drive tables or manufacture of parts and build your own plinth. http://www.langer-audio.de/Page8.html. I still have and enjoy an old Technics SL-7 linear tracking table, the only problem with it is the cartridges are a P mount and very limited in what you can buy for it. Also on a separate note, is the MC/MM in my BP-26 up grade able .
Barry

HI

Yes I was looking at working with Stanton but decided on belt drive.

When you say upgradable do you mean if you change your MC cartridge we could change the loading characteristics of the step-up transformers.  We could replace them when a diffeernt version but they come in 2 version currently 20 dB and 30dB of gain.

james


bacmsl

  • Jr. Member
  • Posts: 41
Re: Bryston Turntable
« Reply #51 on: 16 Apr 2016, 05:27 pm »
So it would only change the gain in the pre-amp not necessarily the sound? Or would the sound change also? Is there any other changes in your newer updated tranformers?

James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #52 on: 16 Apr 2016, 05:54 pm »
So it would only change the gain in the pre-amp not necessarily the sound? Or would the sound change also? Is there any other changes in your newer updated tranformers?


Hi

To match the cartridge you have to look at the output impedance of the cartridge and the gain because you do not want to overload the MM phono stage.

For example I have a Benz MC on my prototype table. It has .8mv of output and wants to see more than 200ohms  as a load and 56 DB of total gain through the total system. So I have setup our new TF2 MC transformer to reflect that requirement.

James

James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #53 on: 17 Apr 2016, 11:25 am »
Hi Folks,

The new 1/3rd size phono stage is based on the BP 1.5 - a review below.

http://www.tonepublications.com/analogaholic/review-bryston-bp-1-5-phonostage/

james

James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #54 on: 17 Apr 2016, 11:45 am »
MEMO: To All Bryston Customers
SUBJECT: Bryston TF-2 Moving-Coil Step-Up Transformer


December 2015

Most Moving-Magnet phono stages expect to receive a signal between 3-6 mV at their input from the cartridge.



A step-up Moving-Coil transformer is designed to accept the lower voltage output from the MC cartridge and increase the voltage to a point which is acceptable to the input stage of the standard MM phono section.

The Bryston TF-2 Moving-Coil step-up transformer is available in two versions...with a 20dB or a 30dB gain option.

Your choice on which unit is most appropriate will be determined by the voltage output of your chosen cartridge.

• From .1 to .2 mV we would recommend the 30dB version

• At .3 mV we would say either version would work fine

• From .4 to .5 mV or more we would recommend the 20dB version

An important point to consider when choosing which Step-up to use is you do not want to over-power or under-power the MM phono stage.

Under-powering results in not having enough GAIN in the system and over-powering can result in voltage overload and the resultant distortion.
« Last Edit: 17 Apr 2016, 03:27 pm by James Tanner »

Big Audio

  • Jr. Member
  • Posts: 24
Re: Bryston Turntable
« Reply #55 on: 17 Apr 2016, 09:27 pm »
Hi James

I've only heard a phono stage with an active headamp.

 In your experience what are the sound qualities that a passive step up transformer brings to a phono stage?

thanks

James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #56 on: 17 Apr 2016, 09:40 pm »
Hi James

I've only heard a phono stage with an active headamp.

 In your experience what are the sound qualities that a passive step up transformer brings to a phono stage?

thanks

Hi

A Moving coil cartridge has a very small 'Voltage' output but a very large 'Current' output. So in my opinion what you want to do is work with the large current output rather than the very low voltage output of the MC to optimize the noise floor of your phono system.

So the passive step-up transformer "transforms" the high current output from the cartridge to high voltage which is required by your MM Phono stage. The quality of the transformer is critical of course and the cost is generally much higher than an active headamp but in my opinion it offers the best performance.

If you look at high performance MC cartridge manufactures they generally offer step-up transformers as I believe they are cognizant of the advantages as well.

james


Heckler75

Re: Bryston Turntable
« Reply #57 on: 19 Apr 2016, 08:58 pm »
Hi James,


looks very promising and congrats  to Bryston for extending your product line. :thumb:

will  there be  a wood  finish option (burl or cherry etc...)  in the future plans  of the TT?


any tube gear plans with Bryston  in the future?       (phono or  preamp)


i admire companies  like Bryston. who  continue  to bring great technology to the audio community  and their customers


Cheers

James Tanner

  • Facilitator
  • Posts: 15603
  • The Demo is Everything!
    • http://www.bryston.com
Re: Bryston Turntable
« Reply #58 on: 20 Apr 2016, 12:26 am »
Hi James,


looks very promising and congrats  to Bryston for extending your product line. :thumb:

will  there be  a wood  finish option (burl or cherry etc...)  in the future plans  of the TT?


any tube gear plans with Bryston  in the future?       (phono or  preamp)


i admire companies  like Bryston. who  continue  to bring great technology to the audio community  and their customers


Cheers


HI

For the time being we will just be sticking with Black and Silver as we have to buy a lot of tables to qualify for proprietary manufacturing and adding different finishes would be very costly.

No chance of any tube products from Bryston.

james

Big Audio

  • Jr. Member
  • Posts: 24
Re: Bryston Turntable
« Reply #59 on: 22 Apr 2016, 04:40 am »
Its easy to see why you've picked Bluenote to manufacture your new Turntable as they have always had great quality and engineering in their products.
And then adding your own expertise for a power supply design. :thumb:
