Need speaker level converters for Titan II LE

0 Members and 1 Guest are viewing this topic. Read 1264 times.

kimchee411

Need speaker level converters for Titan II LE
« on: 30 Aug 2012, 08:50 pm »
Mike, are these standard RCA plugs that have just been stripped and soldered on one end?  I would think they would have to attenuate the signal to go into the same inputs as line level, but the ones I used with my old Force XLs just looked like regular RCAs.

Anybody out there have an extra pair they'd be willing to sell?  Please PM me.

Thanks!

jparkhur

Re: Need speaker level converters for Titan II LE
« Reply #1 on: 30 Aug 2012, 09:10 pm »
Need one or two. What hz level.  You want the RCA xo?

kimchee411

Re: Need speaker level converters for Titan II LE
« Reply #2 on: 31 Aug 2012, 04:22 pm »
I need 2 line level to speaker level converters (RCA to speaker wire) not high pass filters.

Joe_K

Re: Need speaker level converters for Titan II LE
« Reply #3 on: 4 Sep 2012, 12:58 am »
Yes, there are attenuators built into them, can't find my notes on the ratio though.
If you haven't found a pair,  shoot me a PM I have a pair here.
Joe

scansp7

  • Jr. Member
  • Posts: 3
Re: Need speaker level converters for Titan II LE
« Reply #4 on: 25 Feb 2017, 08:52 am »
Hi,

Does anyone have the wiring schematic on how what value resistors should be soldered in line?


This was the old link but it not longer works:

http://audioc.com/house/speakers/force.htm#More

Thanks!

Joe_K

Re: Need speaker level converters for Titan II LE
« Reply #5 on: 25 Feb 2017, 06:04 pm »

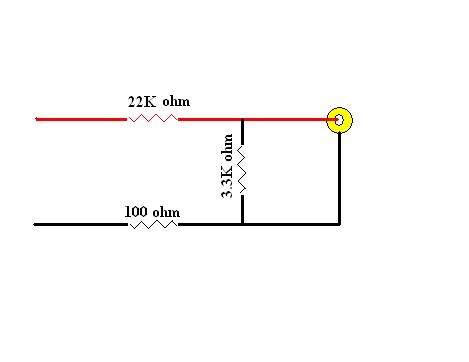

I don't remember the function of the 100 ohm resistor, otherwise it's about a 7:1 divider.

Joe




scansp7

  • Jr. Member
  • Posts: 3
Re: Need speaker level converters for Titan II LE
« Reply #7 on: 26 Feb 2017, 08:47 am »
Thanks!

I image 1/4 watt resistors work

Joe_K

Re: Need speaker level converters for Titan II LE
« Reply #8 on: 26 Feb 2017, 08:10 pm »
1/4 watt is fine.
I would use metal films or other quality resistors.
